Cisco SFP-10/25G-CSR-S Compatible Dual-rate 10G/25G SFP28 Transceiver 400m MMF Optical Transceiver Module

Product Description

Cisco SFP-10/25G-CSR-S Compatible Dual-rate 10G/25G SFP28 Transceiver 400m MMF Optical Transceiver Module
Products Description
Item 25G SFP28 Transceiver
Part No. LS-MM8525E-S4C
Part Status Active
Form Factor SFP28
Max Data Rate 10G/25Gbps
Wavelength 850nm
Max Cable Distance 400m
Media MMF
Connector Duplex LC
Optical Component VCSEL/PIN
TX Power -6.4~2.4dBm
Receiver Sensitivity <-6dBm
Receiver Overload 2.4dBm
Power Consumption ≤1W
Extinction Ratio >2dB
DDM/DOM Supported
Commercial Temperature Range 0℃ to 70°C / -40℃ to 85℃
Protocols SFF-8472, SFF-8024, SFF-8431, SFF-8432, IEEE802.3by
Warranty 5 Years
Sample Available
VIEW OUR SOLUTION

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

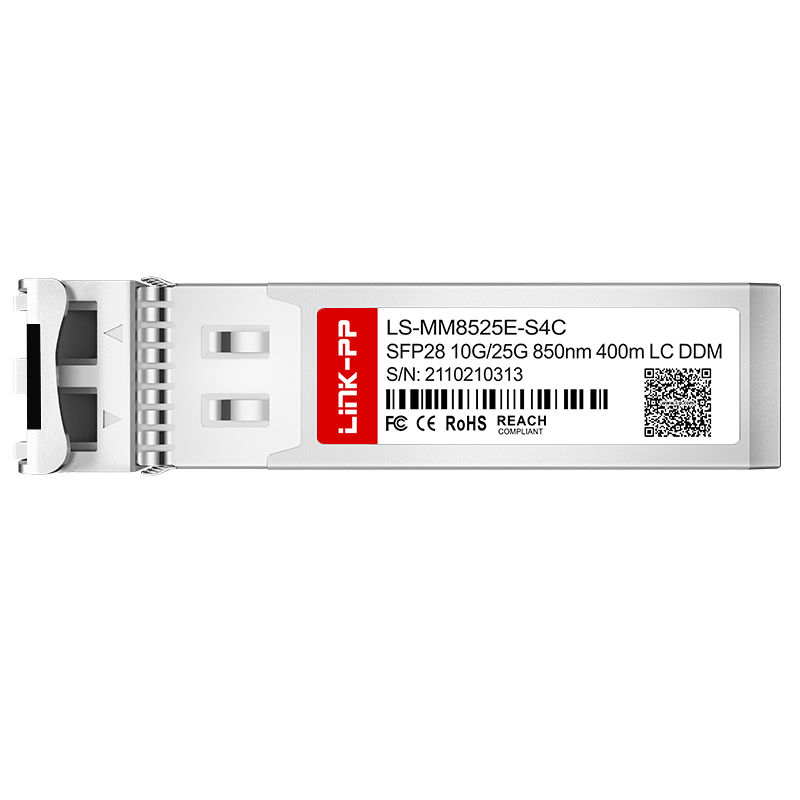

Product Diagram
Product Series Overview

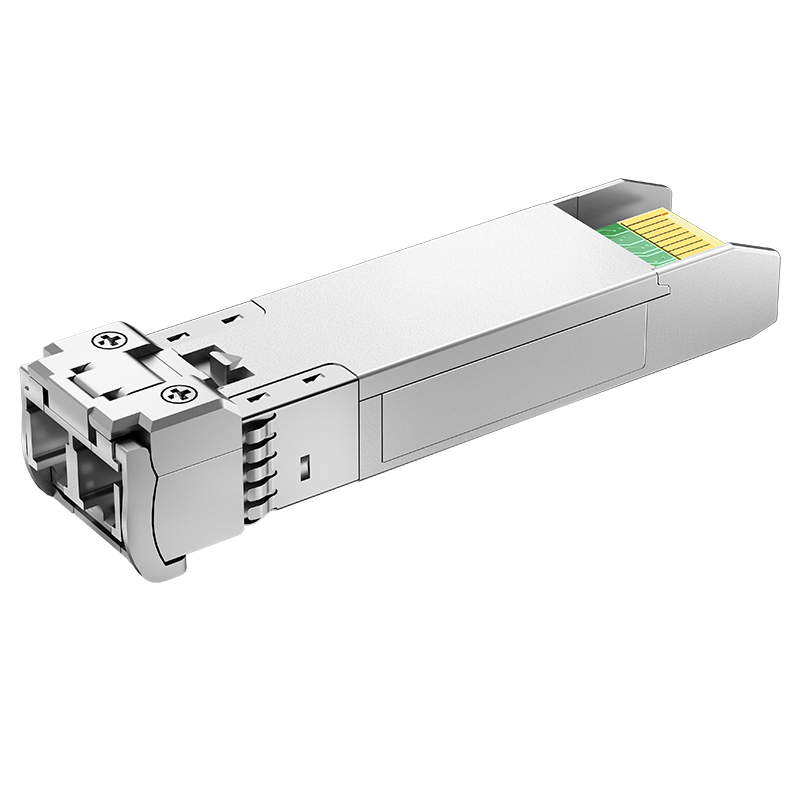

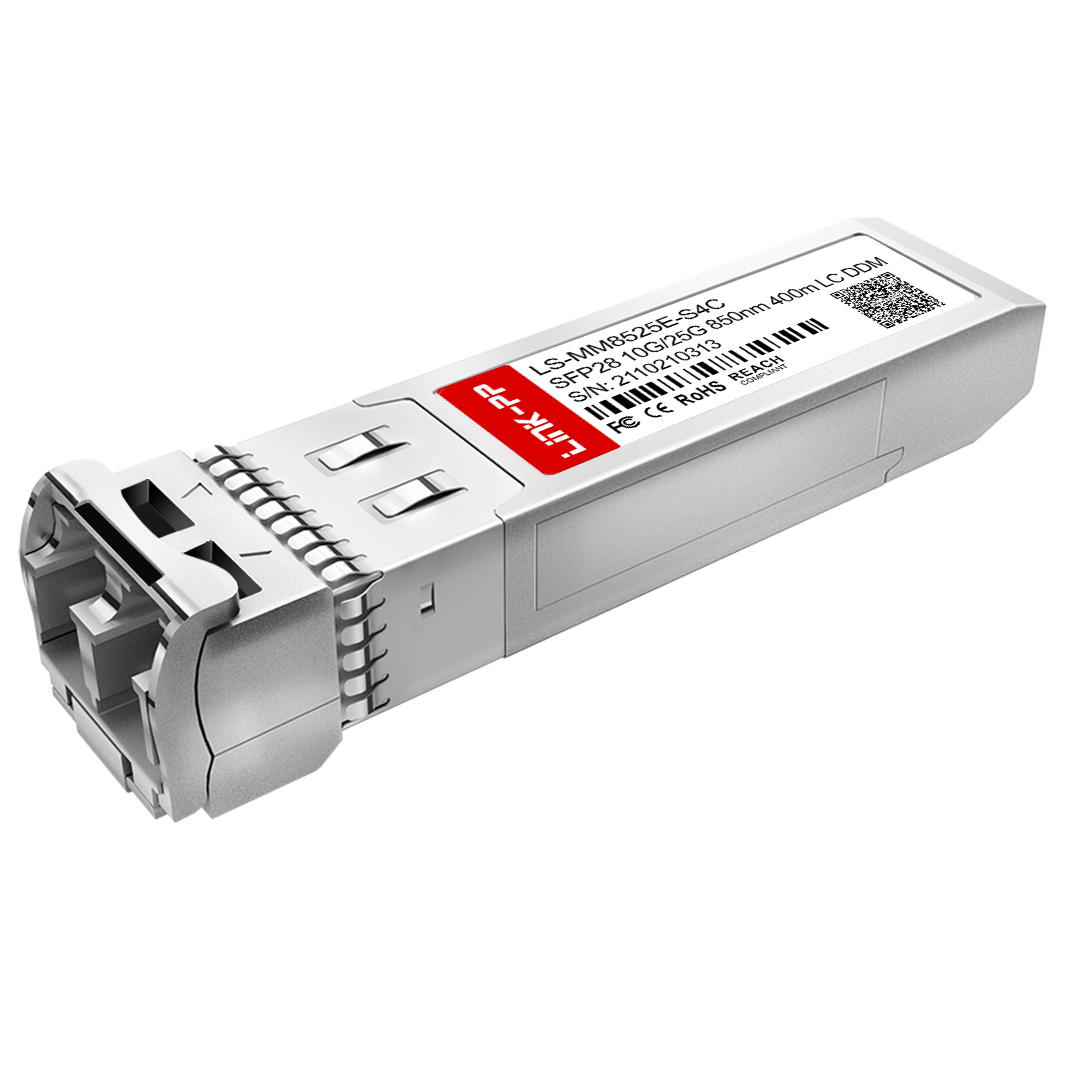

Product Detail Image 1

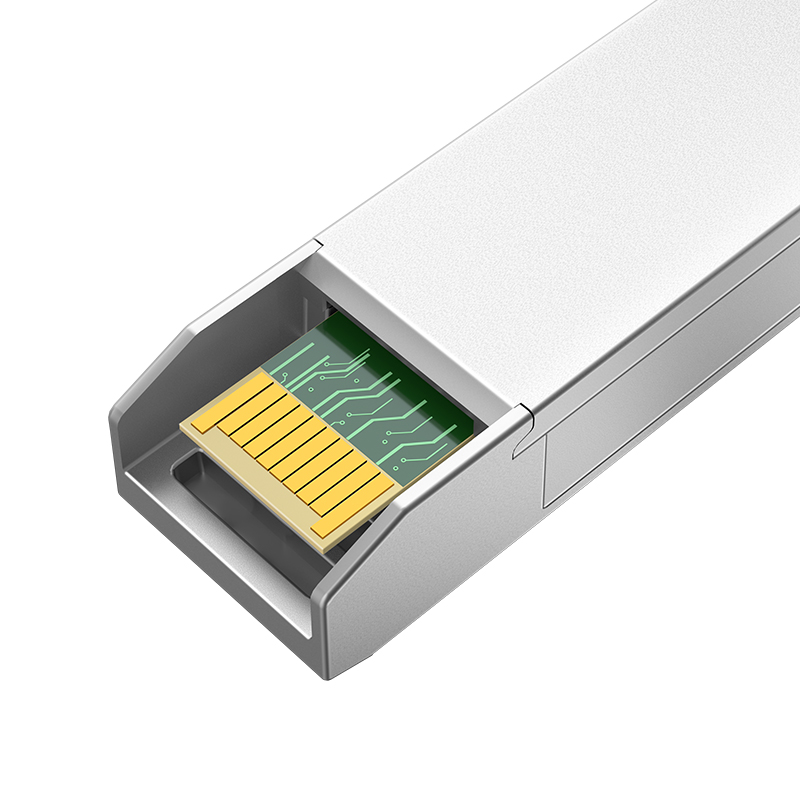

Product Detail Image 2
Product Support Details
Optical Transport Networks
Optical Transport Networks

End-to-end DWDM device solutions with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.

Cloud and Enterprise
Cloud and Enterprise

To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless
Wireless

Providing high reliability and performance products with mature and efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx
FTTx

Aimed at global communication network constructors, providing FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.

Subsystems
Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

Subsystem Specifications
Related Products SFP Cage
Related Products SFP Cage Lineup
Why Choose Us
Strength 1 Strength 2 Strength 3 Strength 4
Company Profile

Our company is a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad.

Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver products within a short time.

Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.

Factory View 1 Factory View 2
FAQ

1. Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

2. Can I get a sample before mass production?

Yes, we can offer you free samples to test the quality, but shipping costs apply.

3. What is your delivery time?

Ready to ship for stock items, and 15-30 days for mass production.

4. What after-service can you offer?

One-year guarantee period, alongside 24-hour online technical support.

5. Can you accept OEM/ODM orders?

Yes, please send your inquiry to us so that we can have a detailed discussion.

6. What is your advantage?

19 years of production experience and long-standing partnerships with leading global technology enterprises.
