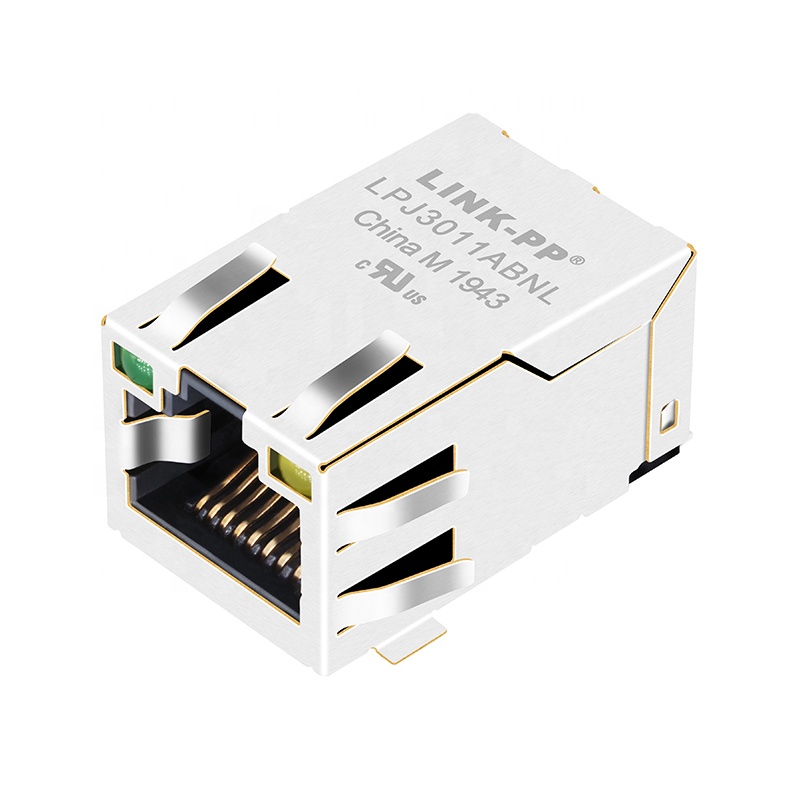

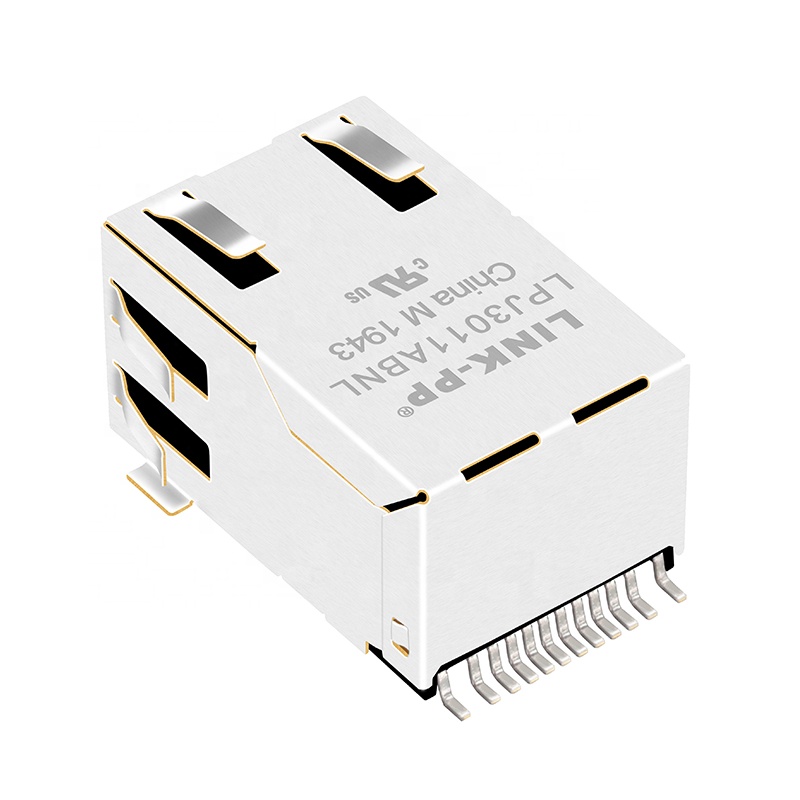

Tab Up G/Y LEDs 10 / 100 Base-T 1 Port 8P8C SMT RJ45 Modular Jack

1 / 5

Tab Up G/Y LEDs 10 / 100 Base-T 1 Port 8P8C SMT RJ45 Modular Jack

Send Inquiry

Product Description

Products Description

Item	RJ45 Female Connector
Part Number	LPJ3011ABNL
Compatible With	J3011G21DNL
Part Status	Active
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port
Speed	10/100/1000 Base-T
Latch	Down/Up
Cores per Port	4
Orientation	90° Angle (Right)
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	Without/With
LED Option	Green/Yellow
PCB	FR4
PCB Retaining Post	T POST
Temperature	0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit	Yes
AutomDX	YES
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C

Product Range

Technical Diagrams & Specifications

Packaging & Applications

Production & Quality Control

Frequently Asked Questions

Q 1. Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Q 2. Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but shipping fees apply.

Q 3. What is your delivery time?

Ready to ship for stock items, and 15-30 days for mass production.

Q 4. What after-sales service can you offer?

We provide a one-year warranty period and 24-hour online technical support.

Q 5. Can you accept OEM/ODM orders?

Yes, please send your inquiry to us so that we can have a detailed discussion.

Q 6. What is your advantage?

Over 19 years of production experience and long-standing partnership with global industry leaders.
