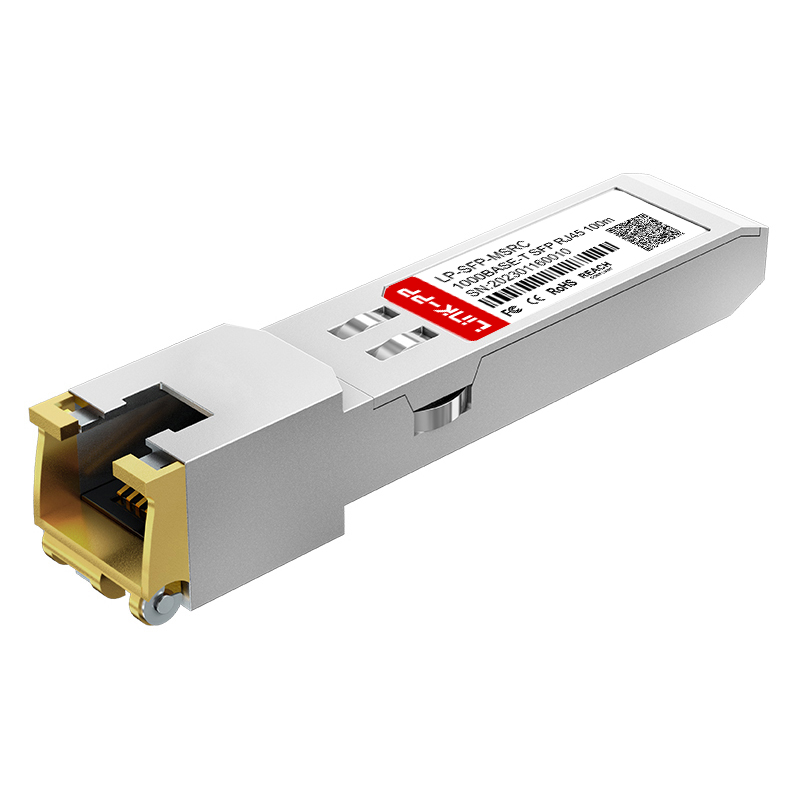

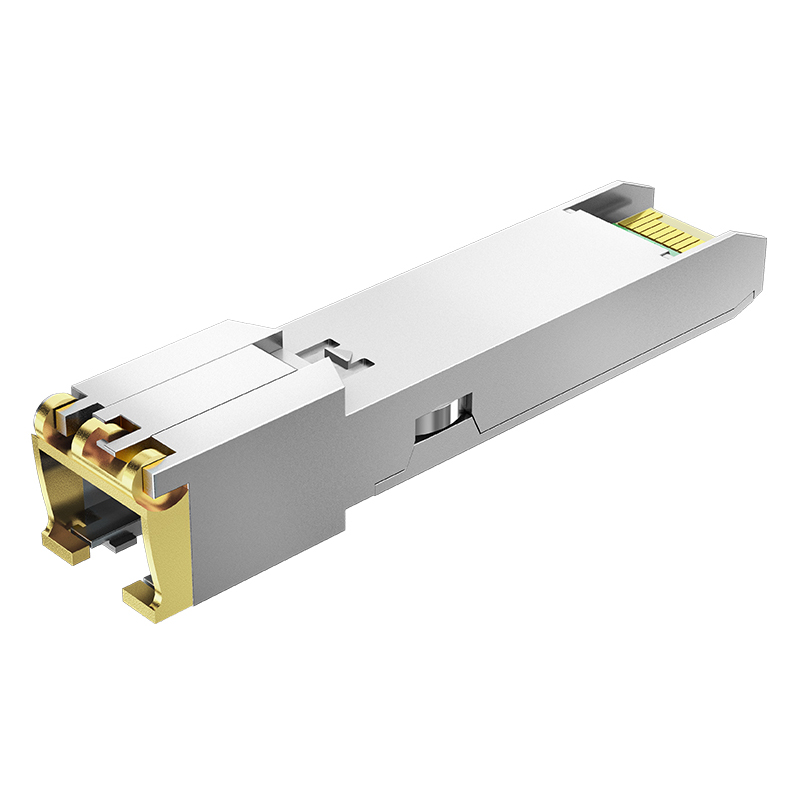

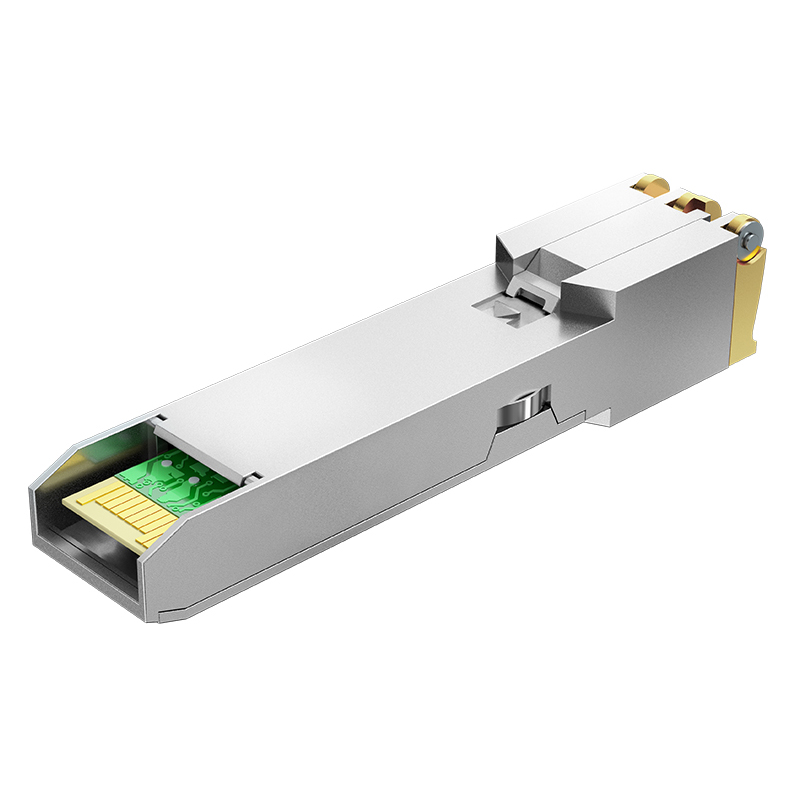

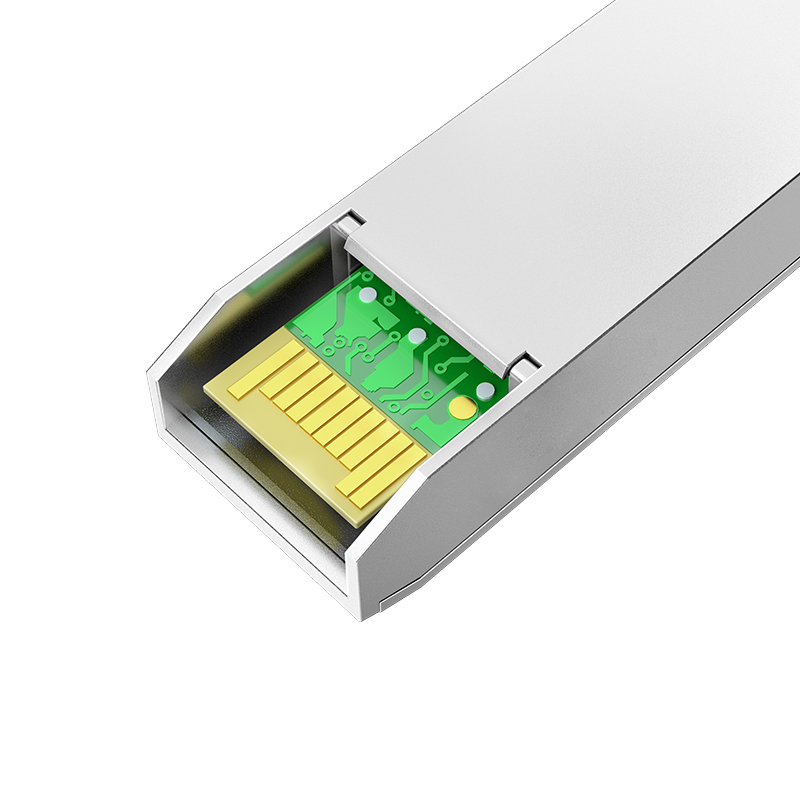

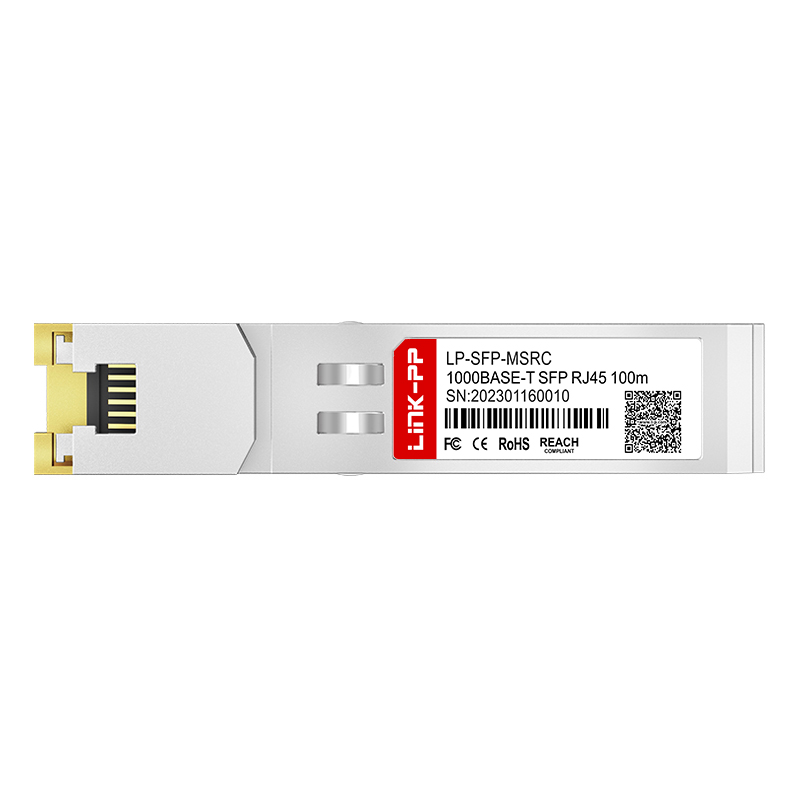

HPE H3C JD089B Compatible 1000BASE-T 1.25G RJ45 Copper 100m SFP Transceiver

1 / 5

HPE H3C JD089B Compatible 1000BASE-T 1.25G RJ45 Copper 100m SFP Transceiver

Send Inquiry

Product Description

View Our Solutions

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Optical Transport Networks

We can provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers worldwide. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which meet all needs in 4G/5G systems.

FTTx

Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.

Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

Compatible 1000BASE-T 1.25G RJ45 Copper 100m SFP Transceiver

Form Factor	SFP
Max Data Rate	1.25Gbps
Max Cable Distance	100m
Connector	RJ45
Media	Cat 5e/6/6a (UTP)
Typical Power Consumption	≤1.2w
EMC (Electro Magnetic Compatibility)	Supported
DDM/DOM	Not Supported
Protocols	IEEE Std 802.3 and 802.3ab, SFP MSA Compliant
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years
Sample	Available

Support 100M-10G Copper SFP

Part Number	Data Rate	Connector	Media	Distance
LP-RJ4501-TC	100Mbps	RJ-45	Cat 5/Cat 6/Cat 6a	100m
LP-SFP-TMRC	10/100/1000Mbps	RJ-45	Cat 6/Cat 6a	100m
LP-SFP-TM8C	10/100/1000Mbps	RJ-45	Cat 6/Cat 6a	100m
LP-SFP-MS8C	1000Mbps	RJ-45	Cat 6/Cat 6a	100m
LP-SFP-MSRC	1000Mbps	RJ-45	Cat 6/Cat 6a	100m
LP-RJ452G-TC	2.5Gbps	RJ-45	Cat5e	100m
LP-RJ45TG-3YC	10Gbps	RJ-45	Cat6a/Cat7 or Better	30m
LP-RJ45TG-8YC	10Gbps	RJ-45	Cat6a/Cat7 or Better	100m

Related Products SFP Cage

Why Choose Us

Manufacturing Capability

We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad. With an abundant production capacity of 3000K per month, we are able to deliver products within a short time. Using the latest optoelectronic technologies, we design, manufacture and sell products worldwide.

Frequently Asked Questions

Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but shipping fees apply.

What is your delivery time?

Products in stock are ready to ship, and mass production typically takes 15-30 days.

What after-service can you offer?

We offer a one-year guarantee period along with 24-hour online technical support.

Can you accept OEM/ODM orders?

Yes, please send an inquiry to us so we can discuss the details.

What is your advantage?

We have 19 years of production experience and have partnered with industry leaders for many years.
