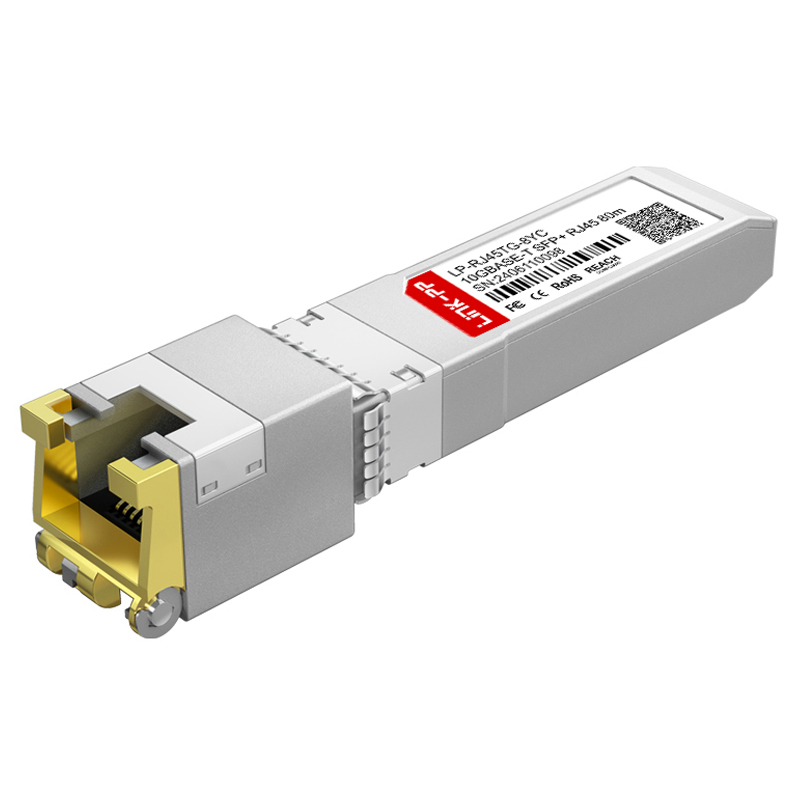

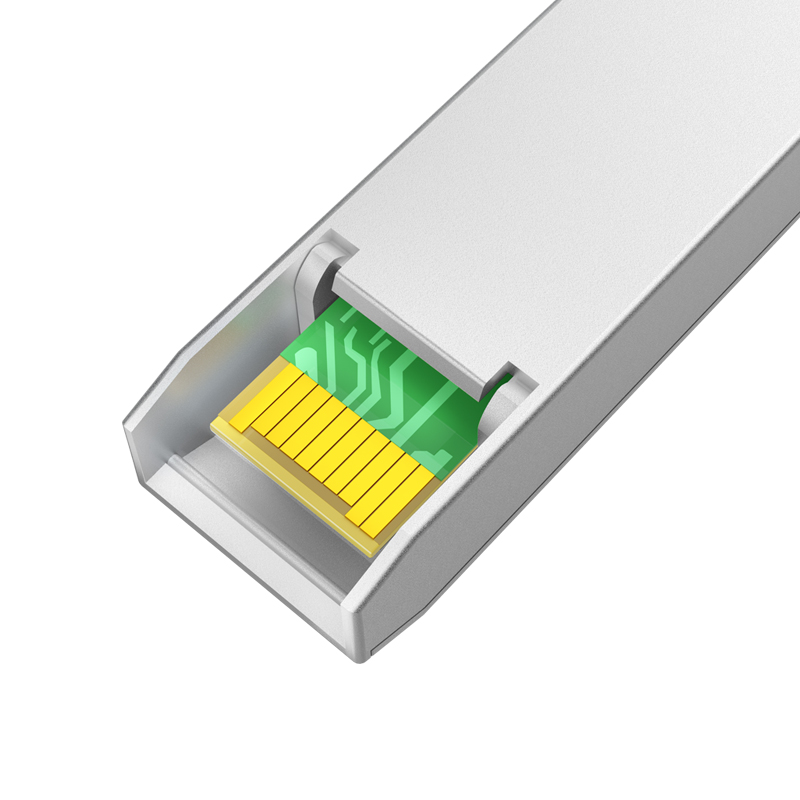

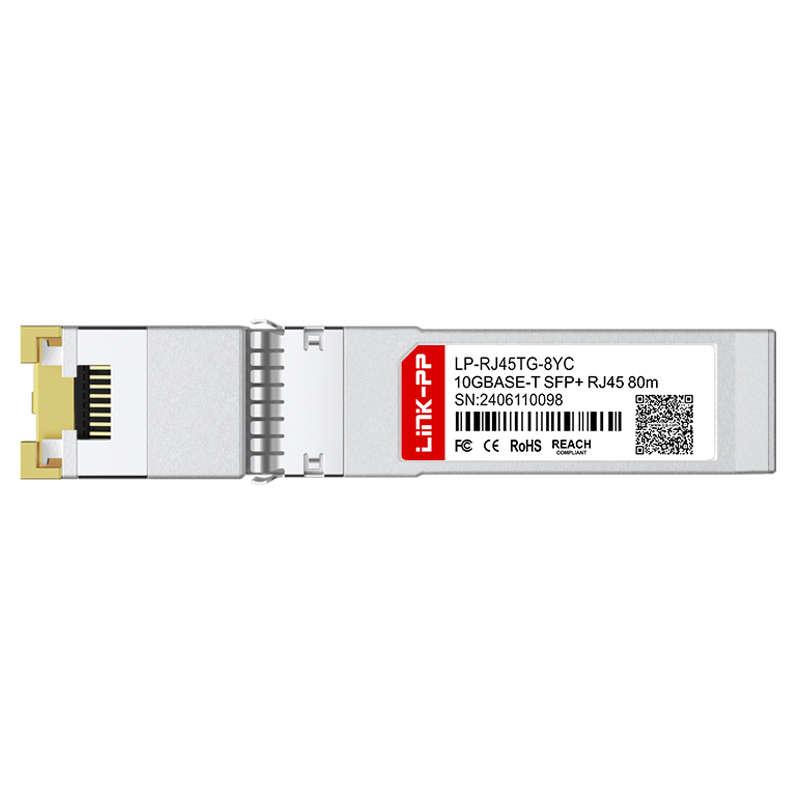

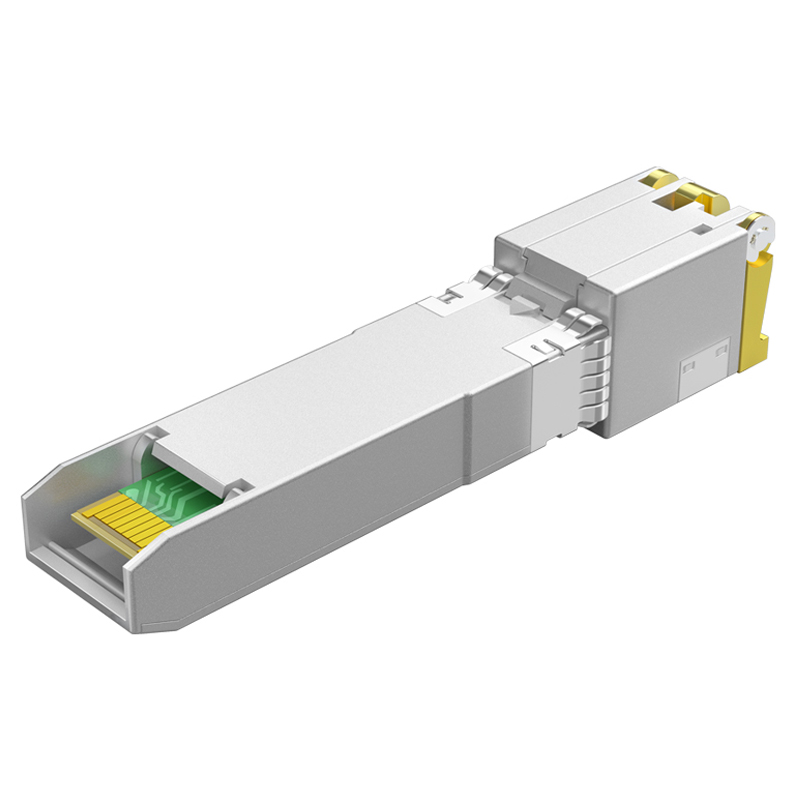

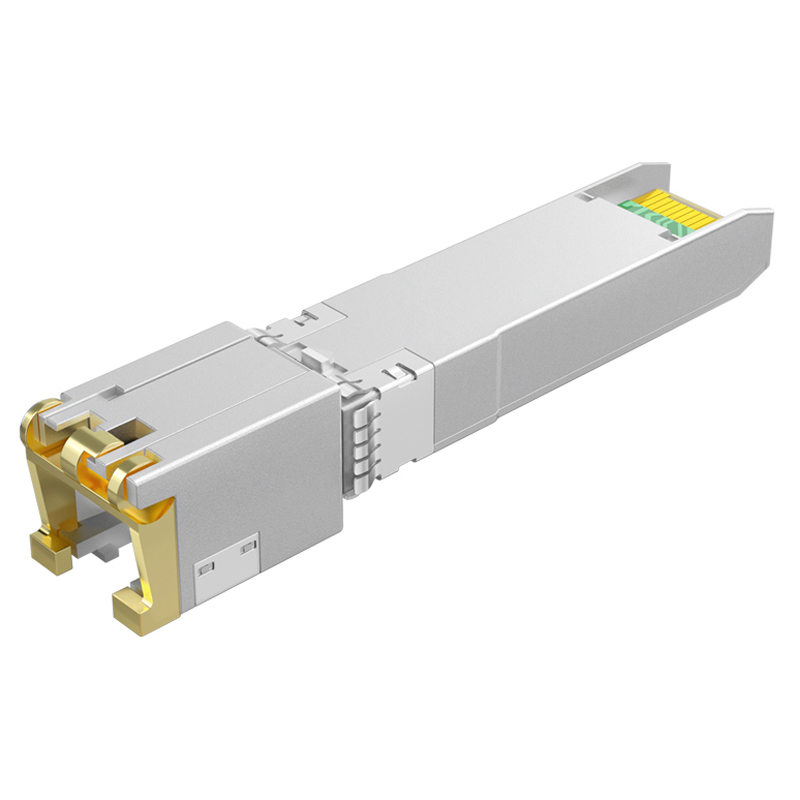

SFPP-10G-T Compatible 10GBASE-T SFP+ 10G Copper Transceiver RJ45 80m
| Technical Specifications | |
|---|---|
| Part Number | RJ45TG-8YC |
| Form Factor | SFP+ |
| Max Data Rate | 10Gbps |
| Max Cable Distance | 80m |
| Connector | RJ45 |
| Media | Cat6a/Cat7 or Better |
| Typical Power Consumption | ≤2.5w |
| EMC Support | Supported |
| DDM/DOM | Not Supported |
| Protocols | IEEE 802.3an, IEEE 802.3az, SFP+ MSA, SFF-8431 |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
| Part Number | Data Rate | Connector | Media | Distance |
|---|---|---|---|---|
| RJ4501-TC | 100Mbps | RJ-45 | Cat 5/Cat 6/Cat 6a | 100m |
| SFP-TMRC | 10/100/1000Mbps | RJ-45 | Cat 6/Cat 6a | 100m |
| SFP-TM8C | 10/100/1000Mbps | RJ-45 | Cat 6/Cat 6a | 100m |
| SFP-MS8C | 1000Mbps | RJ-45 | Cat 6/Cat 6a | 100m |
| SFP-MSRC | 1000Mbps | RJ-45 | Cat 6/Cat 6a | 100m |
| RJ452G-TC | 2.5Gbps | RJ-45 | Cat5e | 100m |
| RJ45TG-3YC | 10Gbps | RJ-45 | Cat6a/Cat7 or Better | 30m |
| RJ45TG-8YC | 10Gbps | RJ-45 | Cat6a/Cat7 or Better | 100m |
