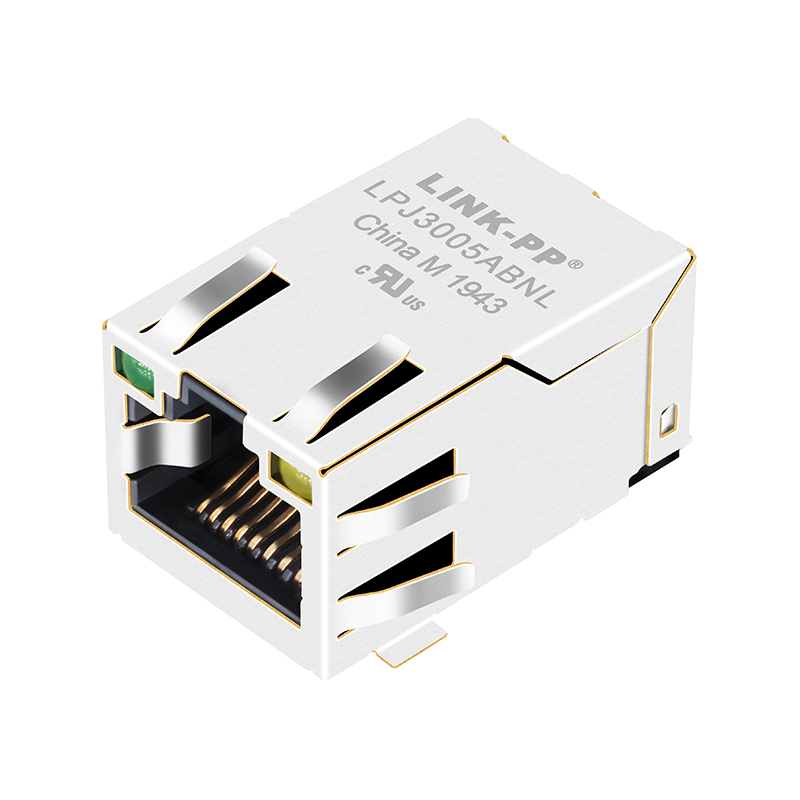

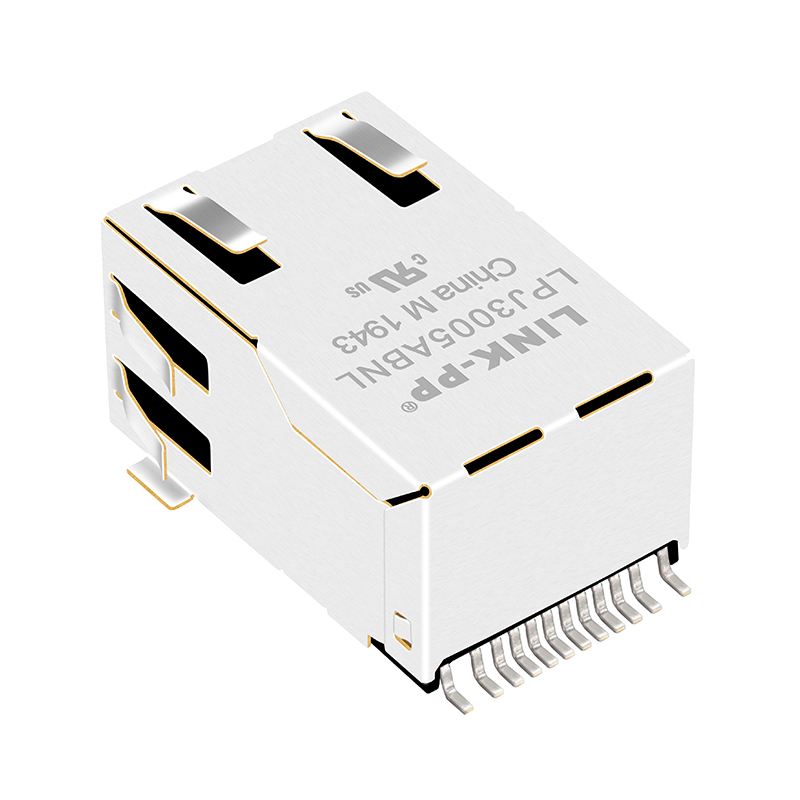

JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector
JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector
JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector
JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector
JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector
1 / 5
JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector
JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector
JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector
JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector
JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector

JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector

Send Inquiry

Product Description

RJ45 Connectors and SFP Modules
JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector
Products Description
Item RJ45 Female Connector
Part Number LPJ3005ABNL
Compatible Part Number JX30-0005NL 74980111211 J3011G21DNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

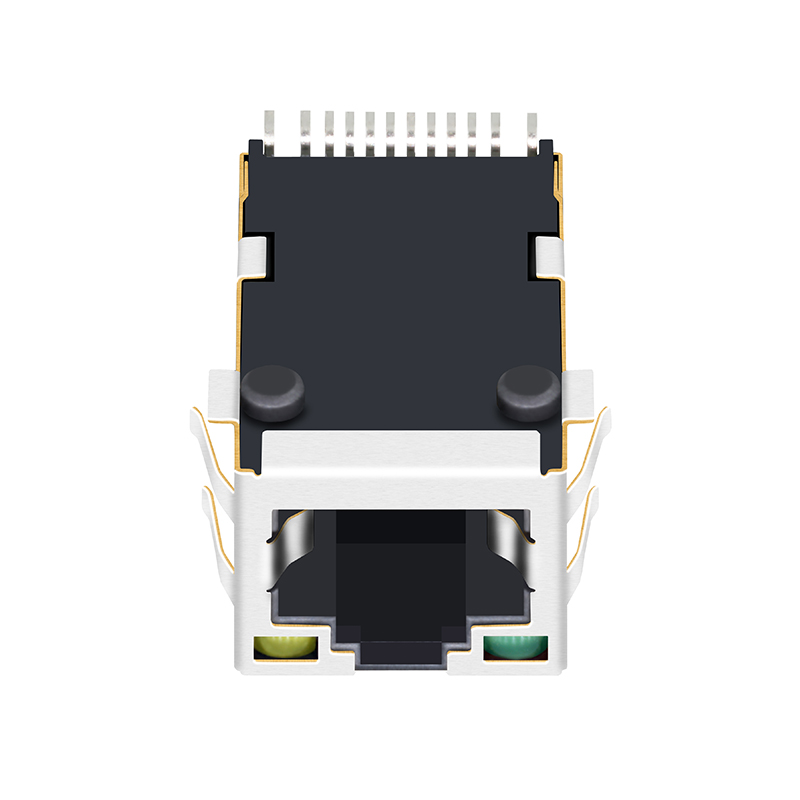

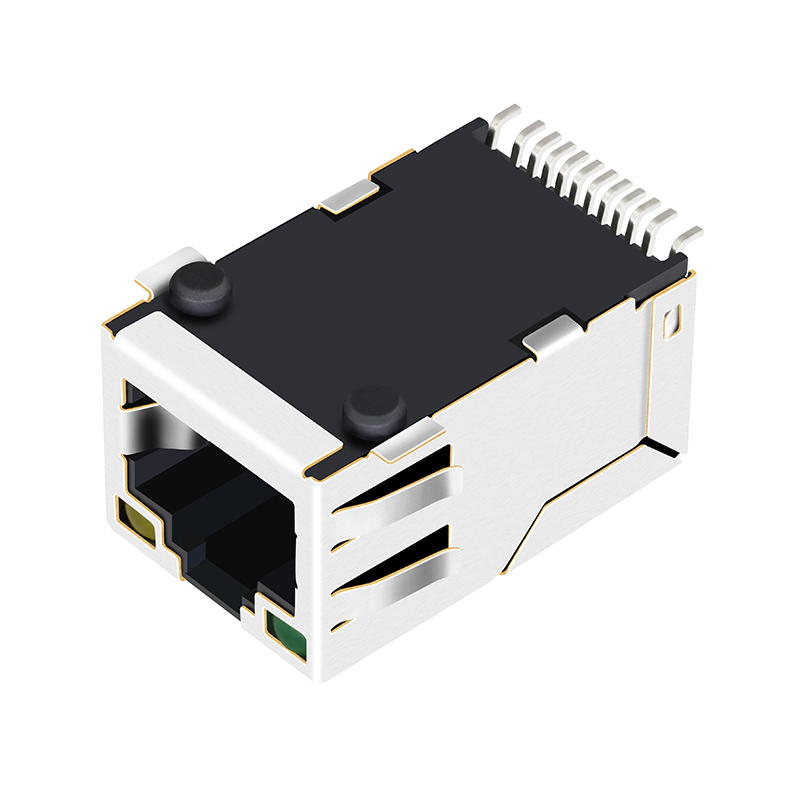

RJ45 Front View RJ45 Side View

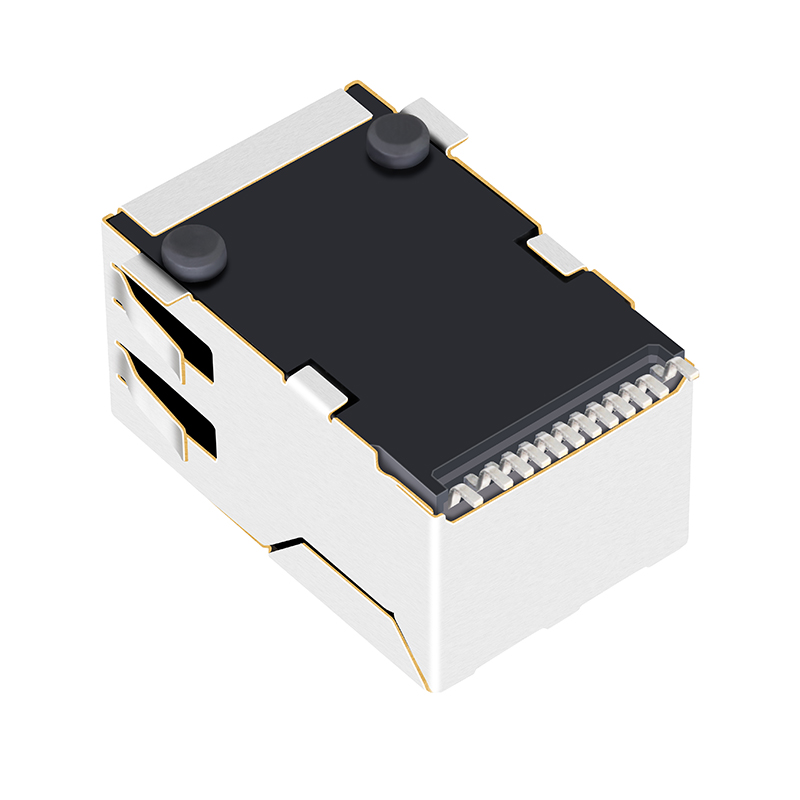

Product Angle 1 Product Angle 2 Product Angle 3 Product Angle 4
Product Category Options
Product Categories Overview
Production Workshop Testing Equipment Quality Management
Automated Production Line Inspection Standards Inventory and Storage
Manufacturing Center Research and Development Certification Showcase
Frequently Asked Questions (FAQ)
Q Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, with shipping costs covered by the buyer.
Q What is your delivery time?
For items currently in stock, they are ready to ship. For mass production orders, the delivery timeframe typically ranges from 15 to 30 days.
Q What after-service support do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries. Please contact us to discuss your detailed requirements.
Q What is your primary manufacturing advantage?
We have 19 years of professional production experience and have served as a trusted partner for industry leaders over many years.
