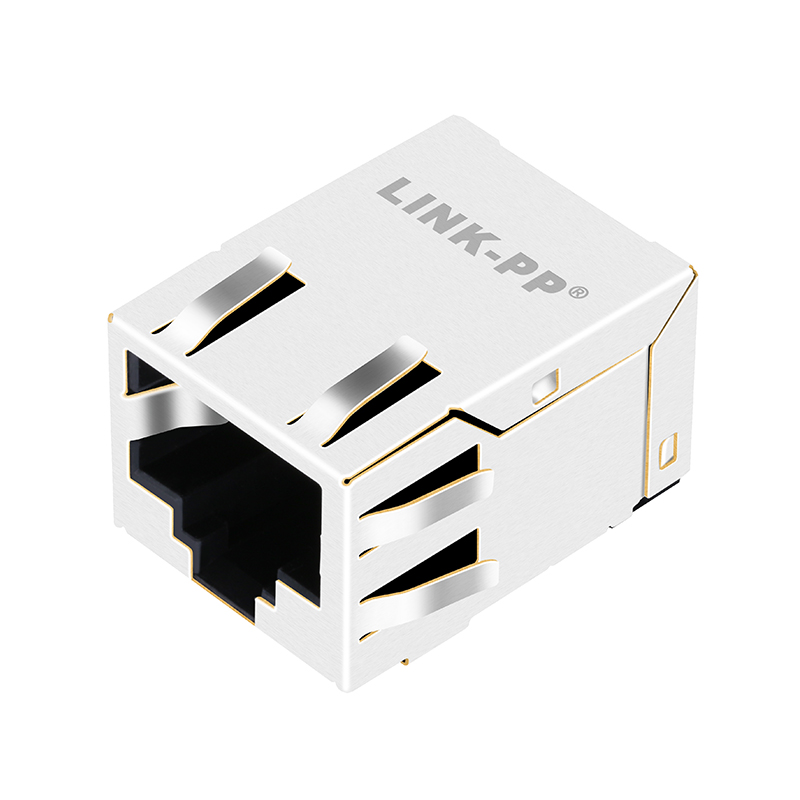

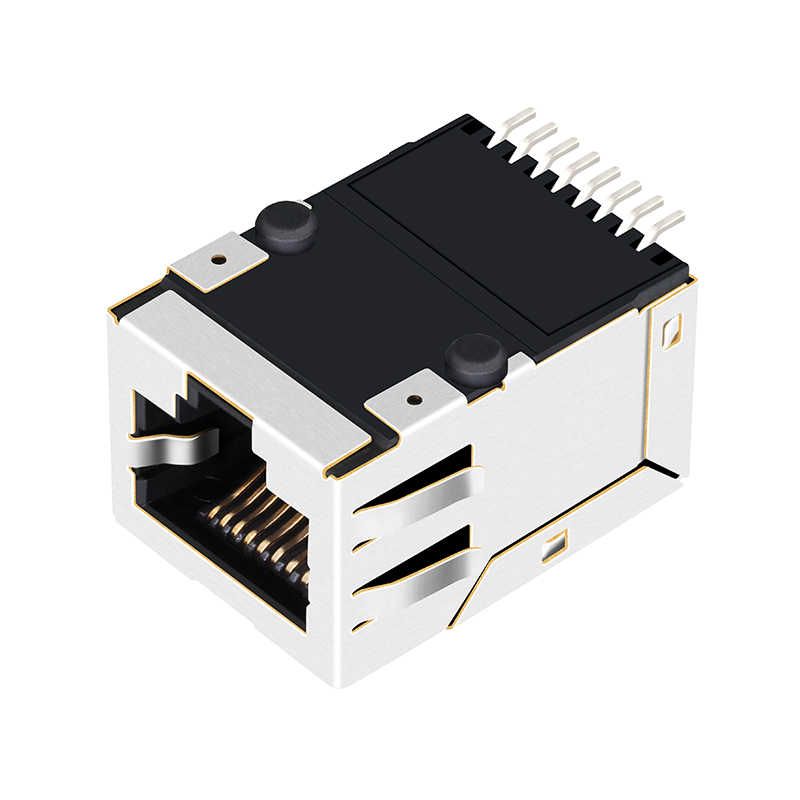

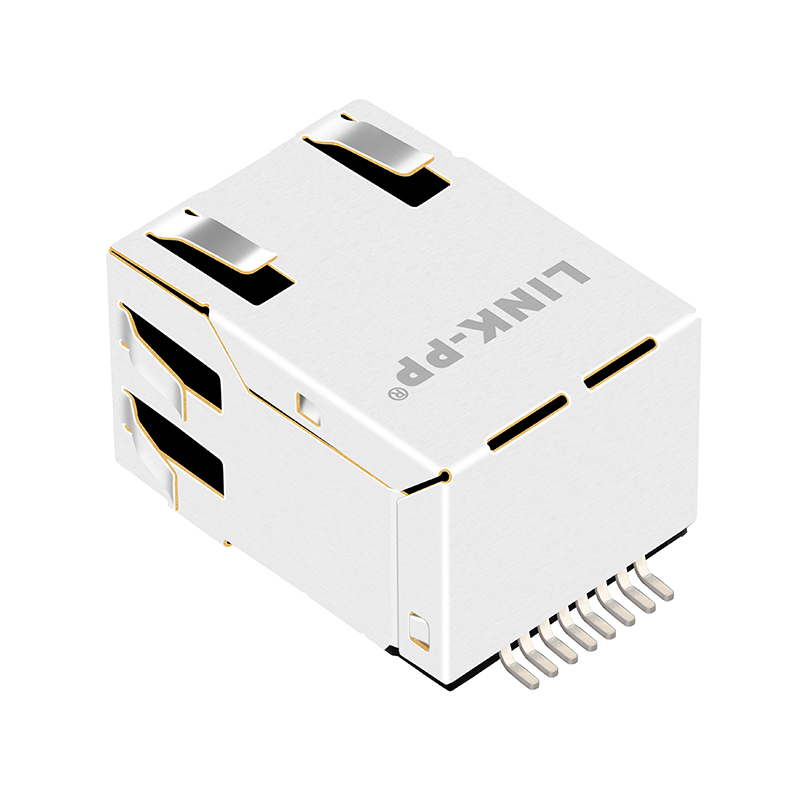

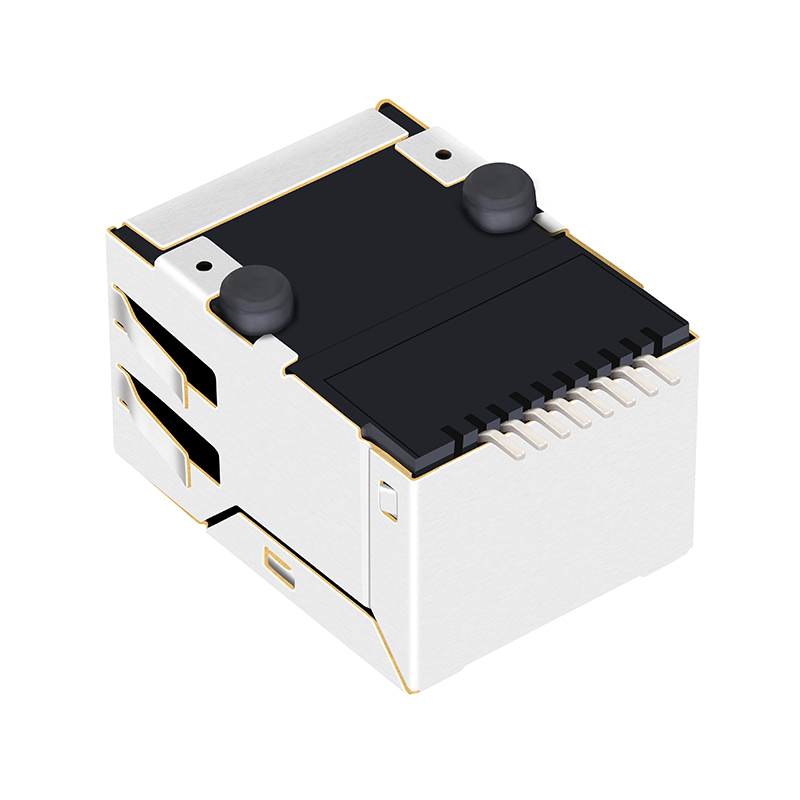

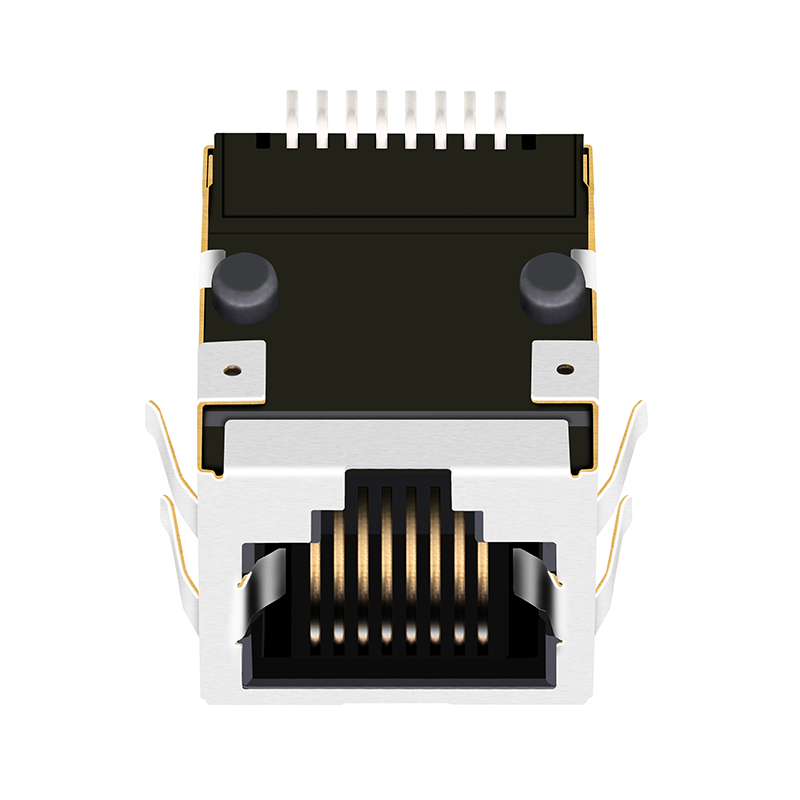

Low Profile RJ45 connector 8P8C SMT Top Entry Modular Jack 0855135109
Part Number
0855135109
Application-LAN
ETHERNET(NON POE)
AutomDX
YES
Bst Circuit
YES
Configuration RX
T,C
Configuration TX
T,C
Contact Mating Area Plating
GOLD 6u"/15u"/30u"
Cores Per Port
4
Diodes
NO DIODES
LED Option
WITH LEDS/WITHOUT LEDS
Latch
UP/DOWN
Number of Ports
1X1
PCB
FR4
PCB Mount Angle
SIDE ENTRY
PCB Retaining Post
T POST
Pin Type
THT SOLDER
RoHS Compliant
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search
YES
Shield EMI Tabs
WITH OR WITHOUT
Speed
10/100/1000 BASE-T
Temperature
0 TO 70°C/-40 TO 85°C
Turns Ratio RX
1CT:1
Turns Ratio TX
1CT:1
