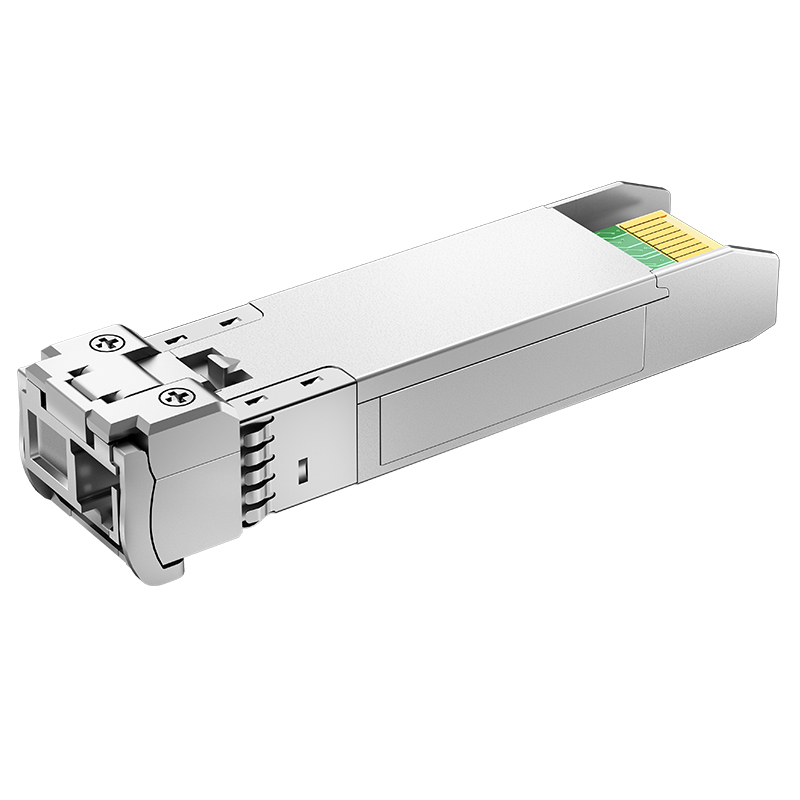

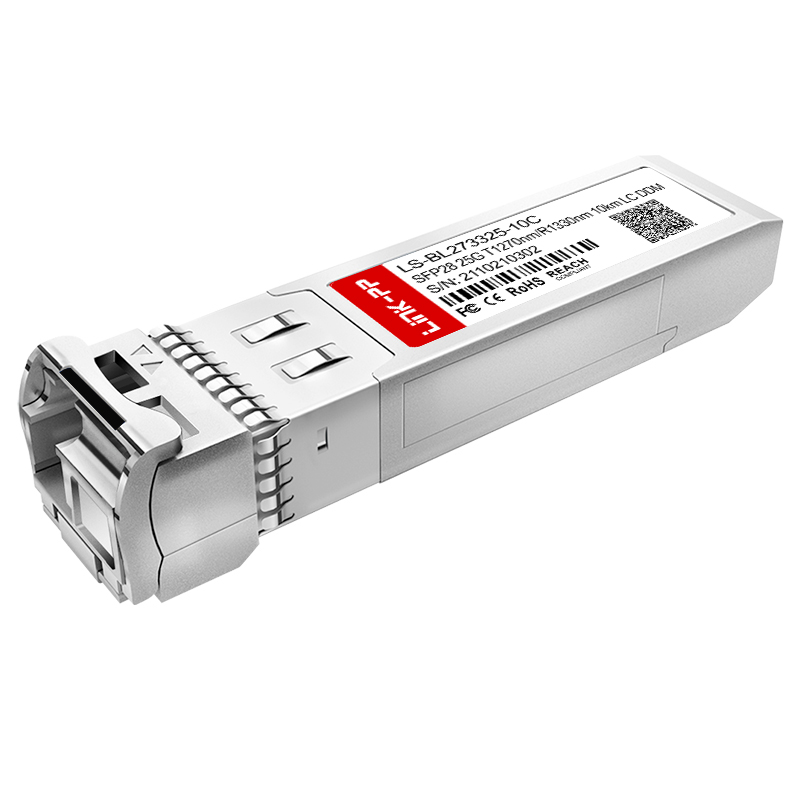

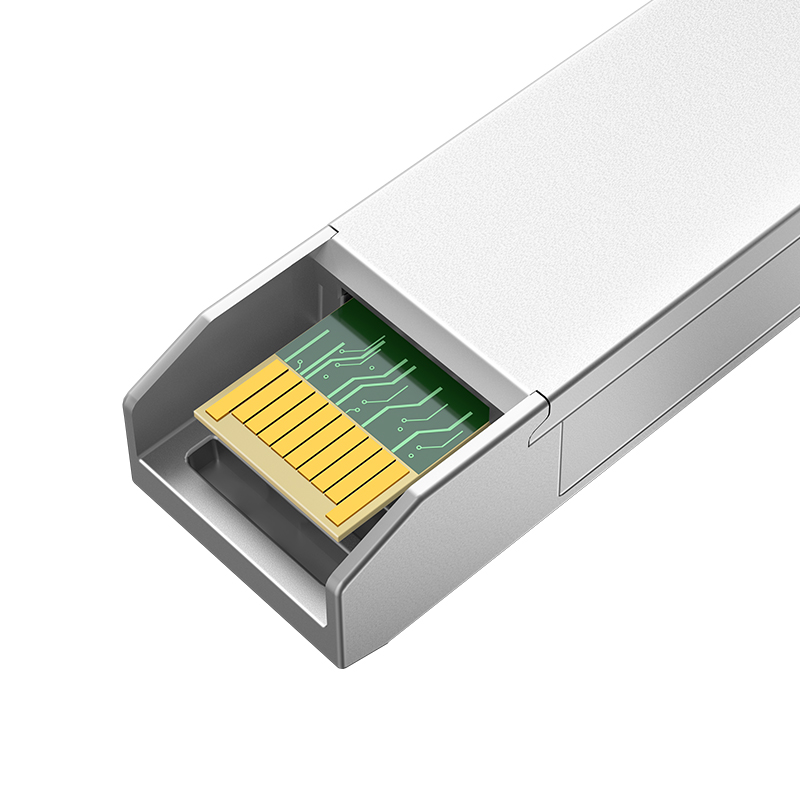

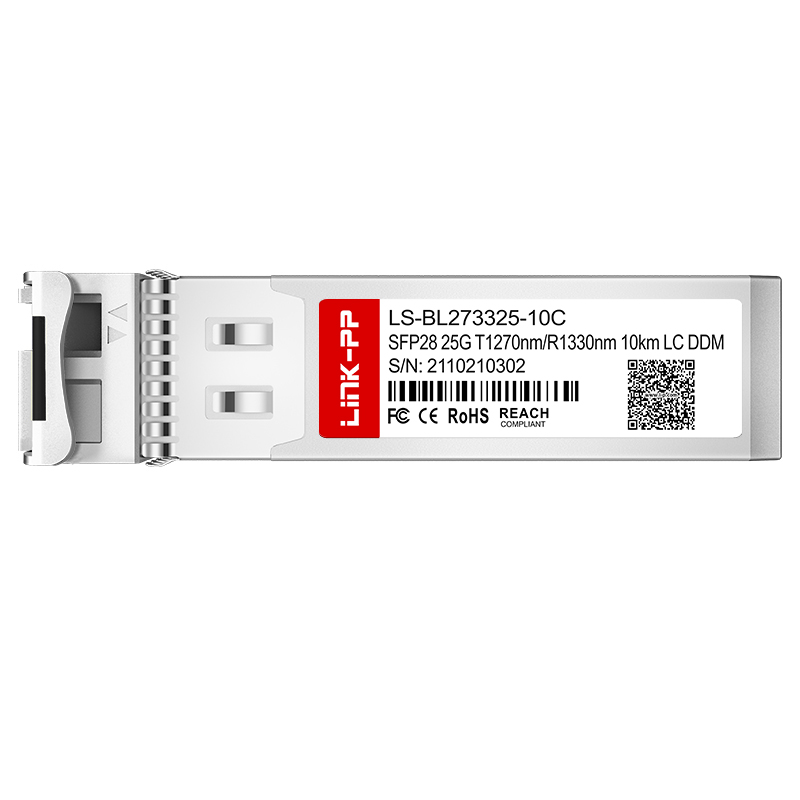

SMF Bidirectional Optical Module 1270nm-TX/1330nm-RX Single Mode SFP28 25G BiDi Transceiver 10km
| Item |
25G SFP28 Transceiver |
| Part No. |
LS-BL273325-10C |
| Part Status |
Active |
| Form Factor |
SFP28 |
| Max Data Rate |
25Gbps |
| Wavelength |
1270nm-TX/1330nm-RX |
| Max Cable Distance |
10km |
| Media |
SMF |
| Connector |
Simplex LC |
| Optical Component |
DFB/PIN |
| TX Power |
-2~4dBm |
| Receiver Sensitivity |
<-13dBm |
| Receiver Overload |
2dBm |
| Power Consumption |
≤1W |
| Extinction Ratio |
3.5dB |
| DDM/DOM |
Supported |
| Commercial Temperature Range |
0°C to 70°C / -40°C to 85°C |
| Protocols |
MSA Compliant, CPRI, eCPRI |
| Warranty |
5 Years |
| Sample |
Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transport Networks
End-to-end DWDM devices can be provided with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Providing high reliability and performance products with mature and efficient lasers and mainstream chip solutions to customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
Aimed at global communication network constructors, FTTx optical fiber access total solutions are provided, covering all-optical or optical copper combined access solutions and products.
Subsystems
To ensure the normal operation of the communication line, the optical cable O&M solution is provided, which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
⚙

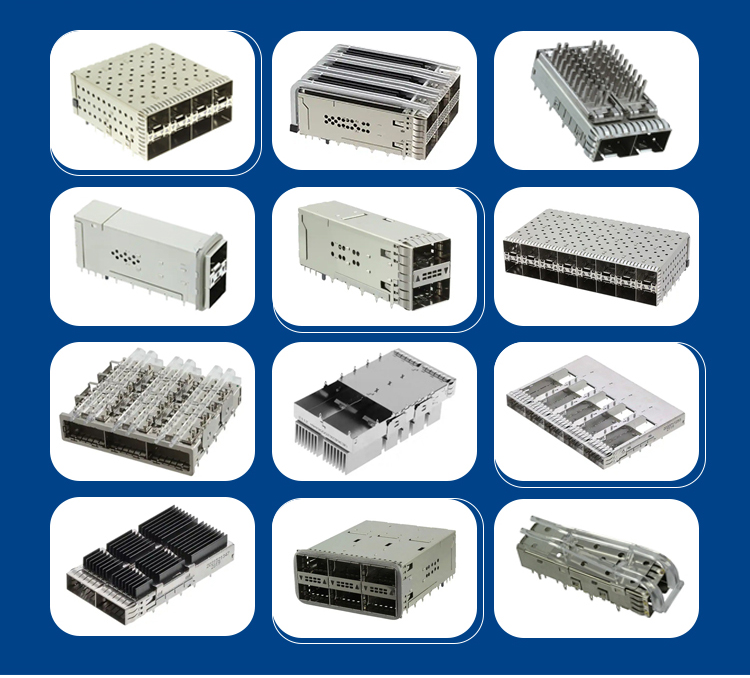

Related Products SFP Cage
As a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL, we own advanced manufacturing facilities and testing equipment imported from abroad.
Established in 1997, with around 2000 staff at present and an abundant productive capacity of 3000K per month, we ensure fast delivery within short timeframes.
Moreover, a full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronics technologies, we develop, manufacture, and sell high-performance products worldwide.
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though the shipping fee is responsibility of the buyer.
What is your typical delivery time?
Items currently in stock are ready to ship immediately, while mass production orders generally take 15 to 30 days.
What after-sales service and technical support do you offer?
We provide a one-year guarantee period along with 24-hour online technical support to resolve any integration issues.
Can you accept custom OEM or ODM orders?
Yes, we accept both OEM and ODM requirements. Please contact us to share your specifications for a detailed discussion.
What are your core manufacturing advantages?
We boast over 19 years of dedicated production experience and have been a trusted partner of global industry leaders for many years.
