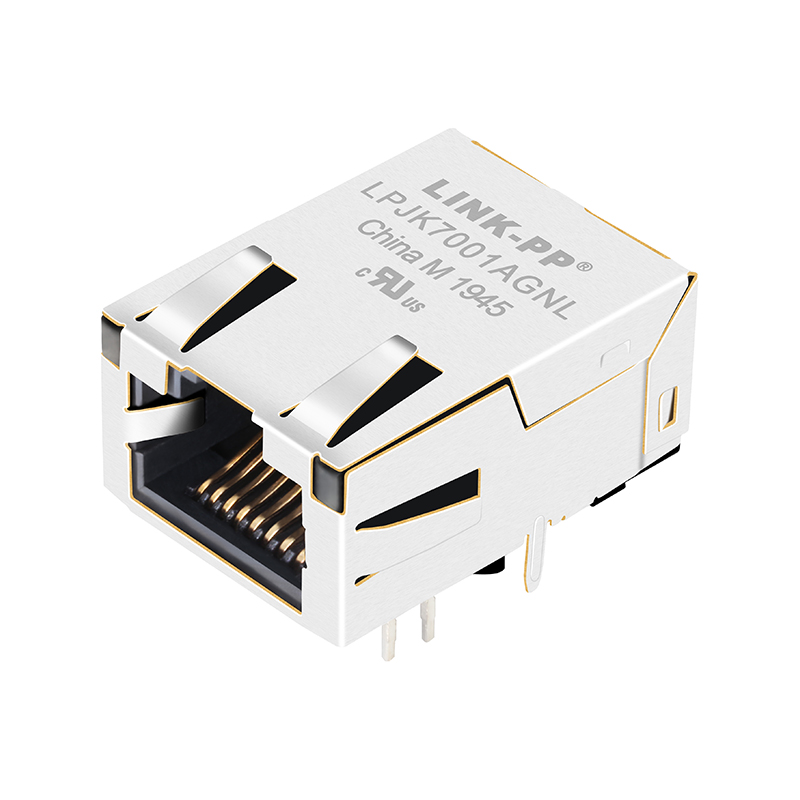

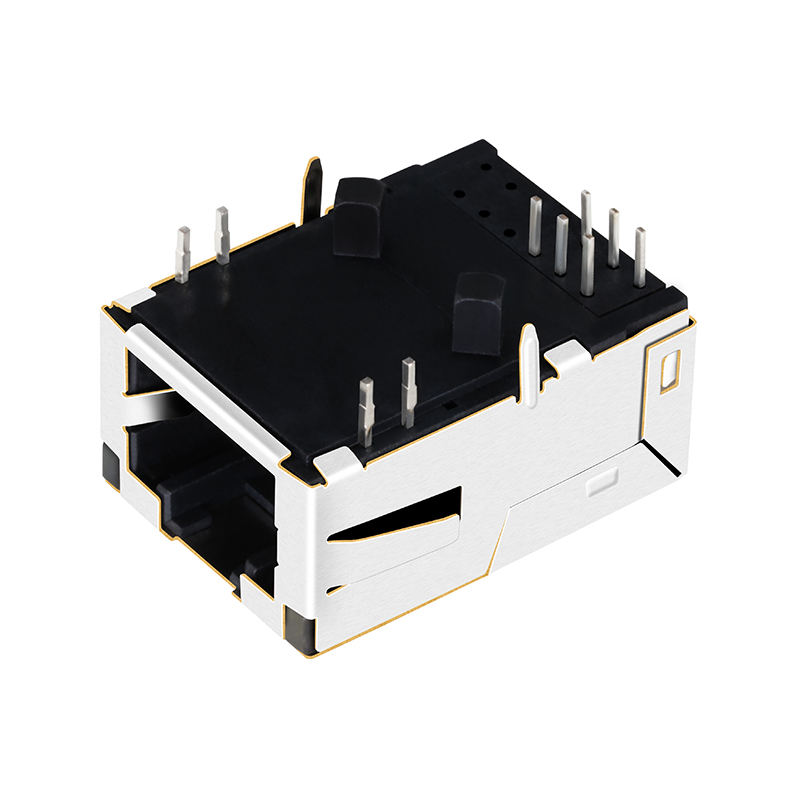

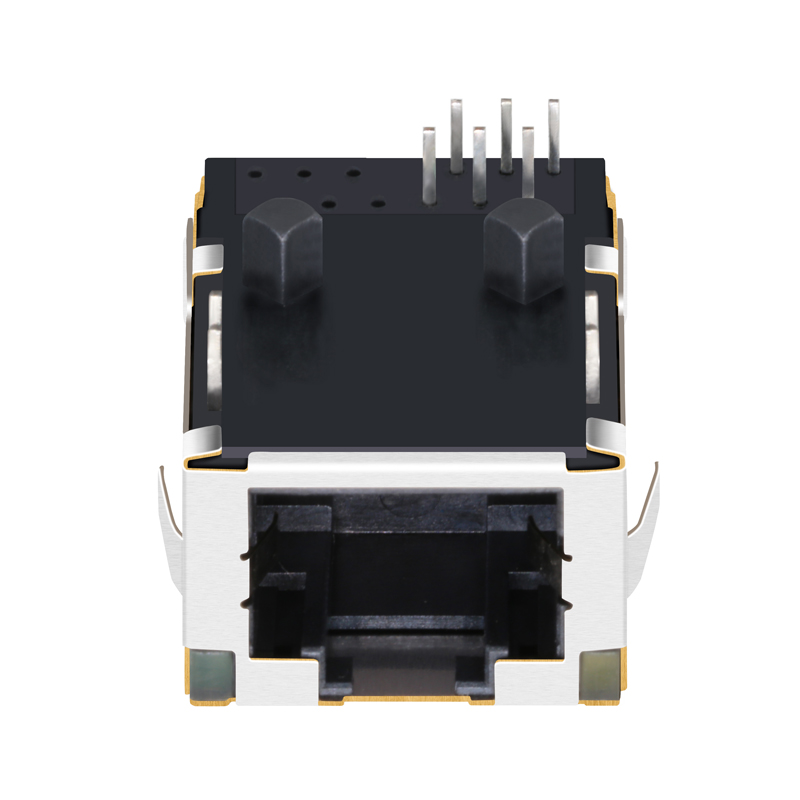

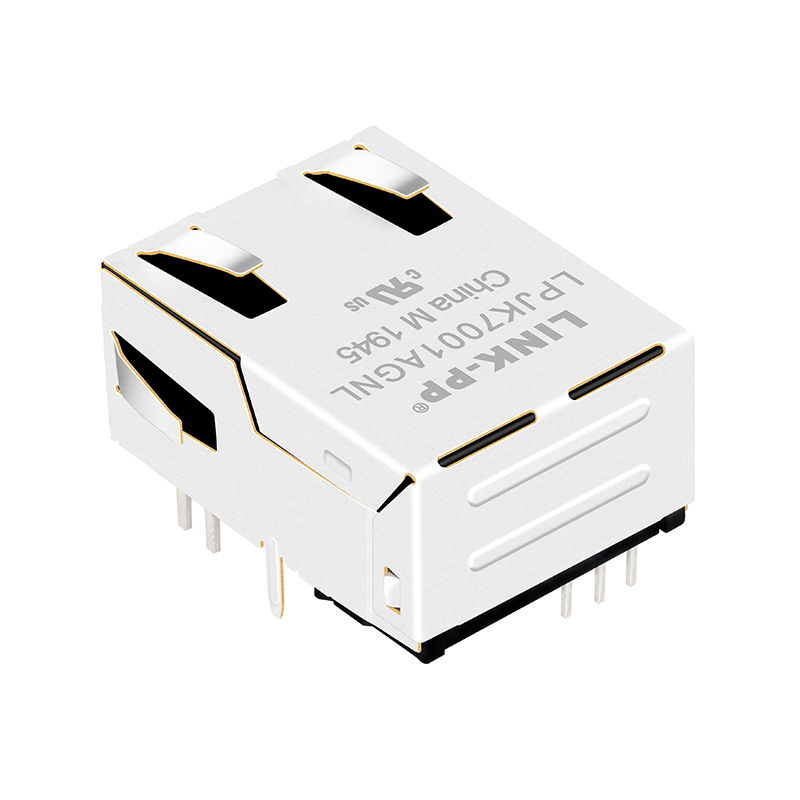

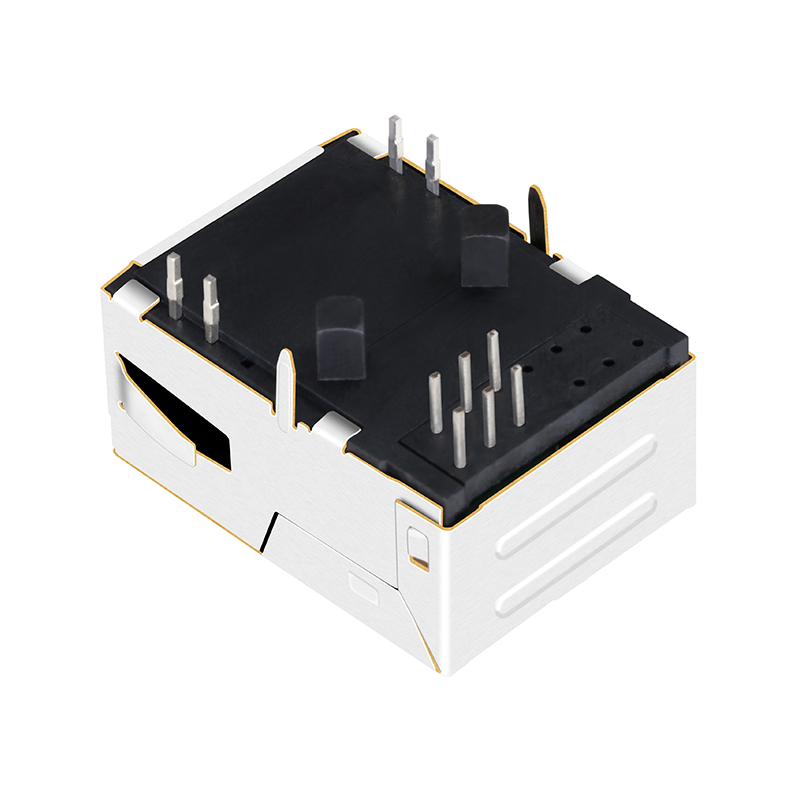

L829-1D1T-91 Tab Up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
Products Description
| Item |
RJ45 Female Connector |
| Part Number |
LPJK7001AGNL |
| Compatible With |
L829-1D1T-91 |
| Part Status |
Active |
| Connector Type |
Jack |
| Number of Positions/Contacts |
8p8c (RJ45, Ethernet) |
| Application-Lan |
Ethernet(NoN PoE) |
| Number of Ports |
1x1 Port |
| Speed |
10/100 Base-T |
| Latch |
Up |
| Cores per Port |
4 |
| Orientation |
90° Angle (Right) |
| PCB Mount Angle |
SIDE ENTRY |
| Shield EMI Tabs |
With |
| LED Option |
With |
| PCB |
FR4 |
| PCB Retaining Post |
T POST |
| Temperature |
0°C TO 70°C |
| Bst Circuit |
Yes |
| AutomDX |
YES |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T,C |
Explore Our Product Range
Technical Drawings & Dimensions
Quality Assurance & Standards
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10000+ customers in over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
FAQ
Q
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping fees are to be covered by the customer.
Q
3. What is your delivery time?
We maintain stock items ready to ship, and lead times for mass production orders range from 15 to 30 days.
Q
4. What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q
5. Can you accept OEM/ODM orders?
Yes, we accept custom orders. Please contact us to discuss the technical details and options.
Q
6. What is your advantage?
We possess over 19 years of professional production experience and have partnered with leading global enterprises for many years.
