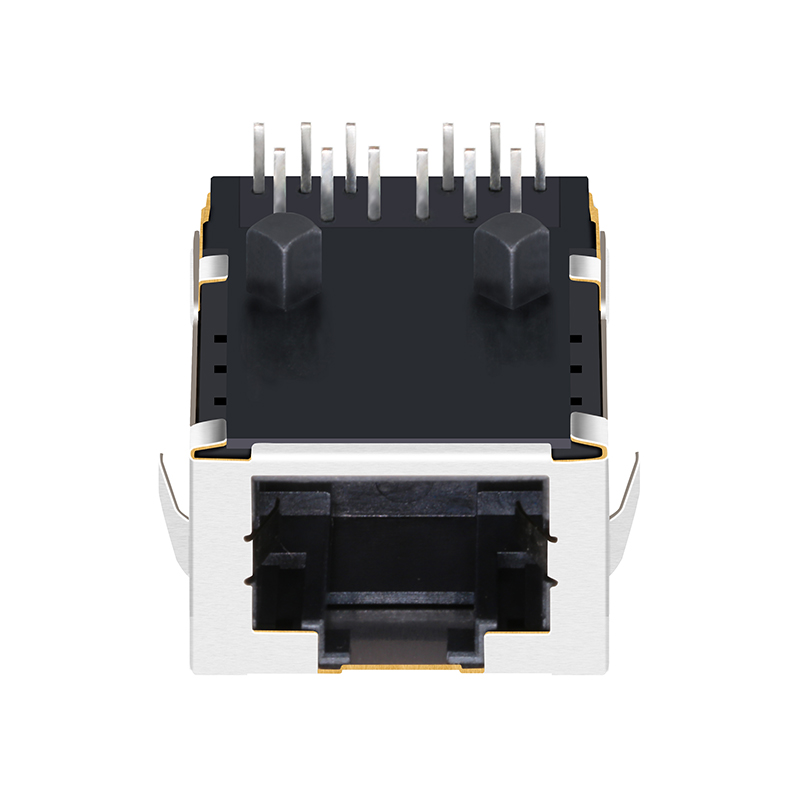

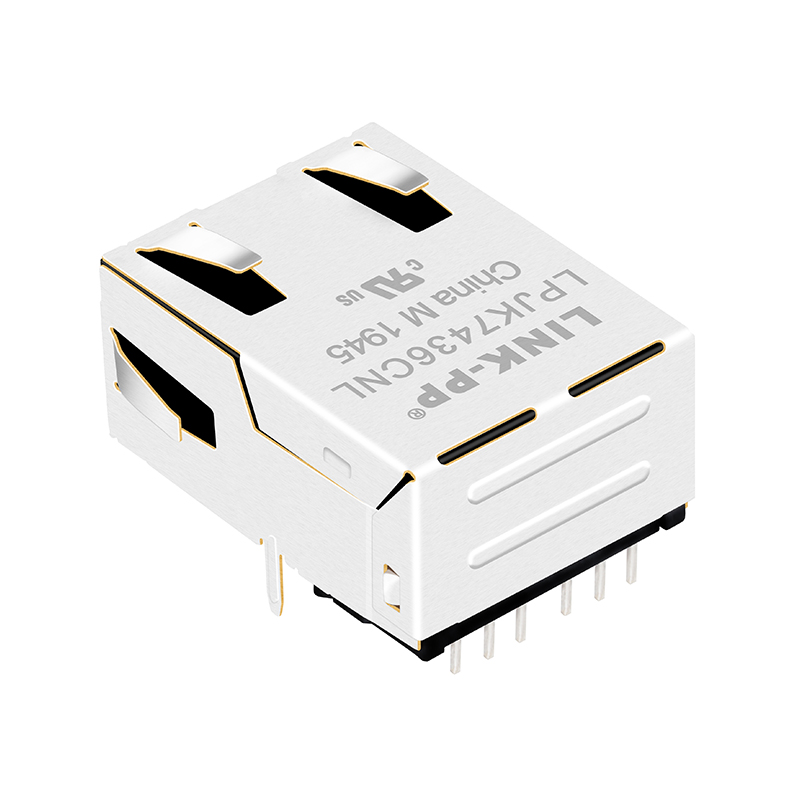

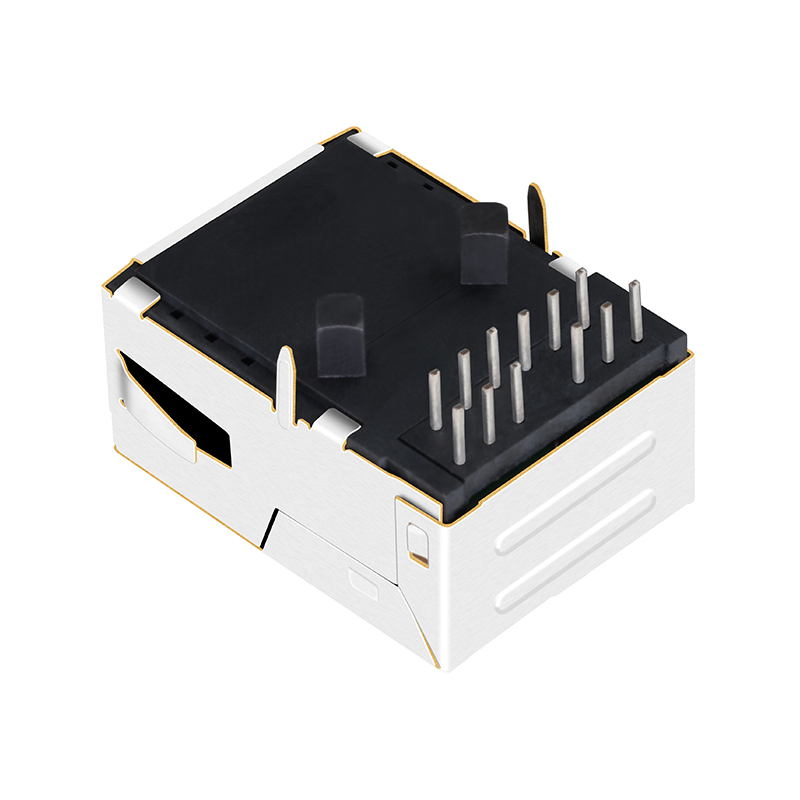

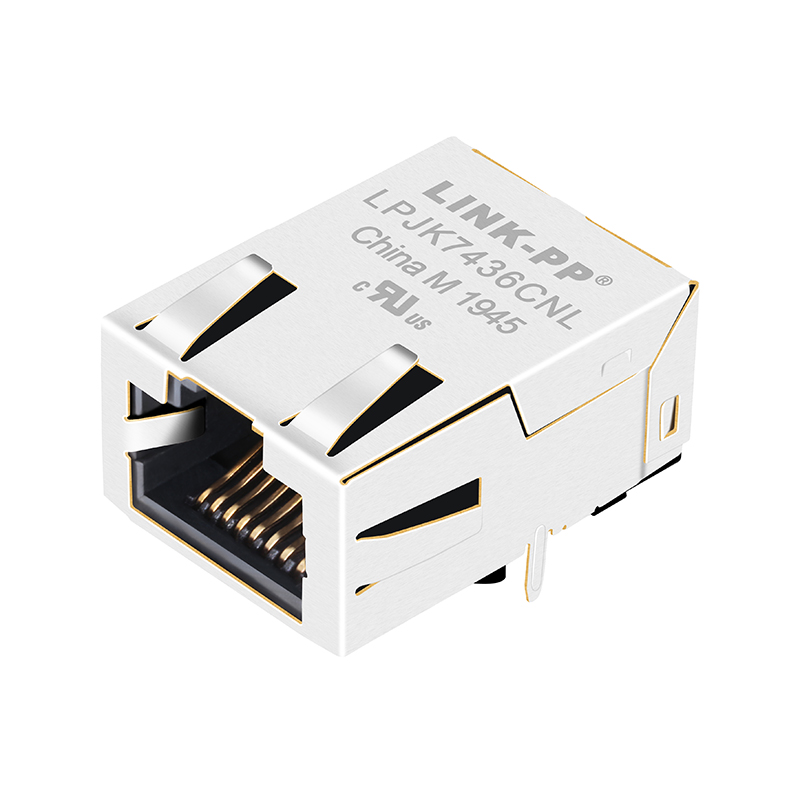

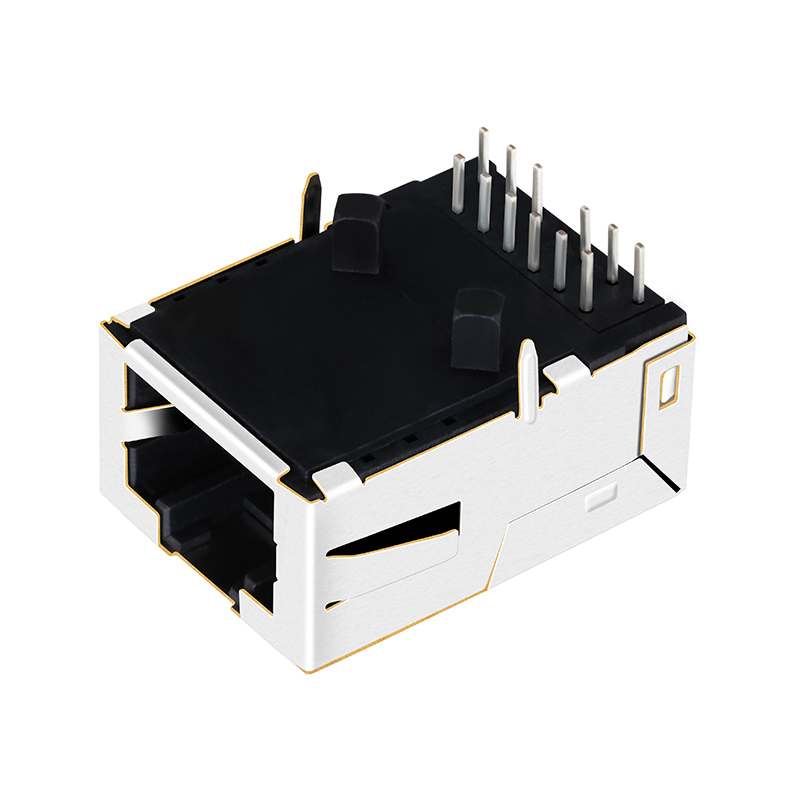

L8AL-1X1T-32A 10/100/1000 Base-t Magnetic Ethernet Low Profile Female RJ45 Connector Without Leds
Products Description
| Item |
RJ45 Female Connector |
| Part Number |
LPJK7436CNL |
| Compatible With |
L8AL-1X1T-32A |
| Part Status |
Active |
| Connector Type |
Jack |
| Number of Positions/Contacts |
8p8c (RJ45, Ethernet) |
| Application-Lan |
Ethernet (Non-PoE) |
| Number of Ports |
1x1 Port |
| Speed |
10/100/1000 Base-T |
| Latch |
Up |
| Cores per Port |
8 |
| Orientation |
90° Angle (Right) |
| PCB Mount Angle |
SIDE ENTRY |
| Shield EMI Tabs |
With |
| LED Option |
Without |
| PCB |
FR4 |
| PCB Retaining Post |
T POST |
| Temperature |
-40°C TO 85°C |
| Bst Circuit |
Yes |
| AutomDX |
YES |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T, C |
