We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Product Specification Parameters | |
|---|---|

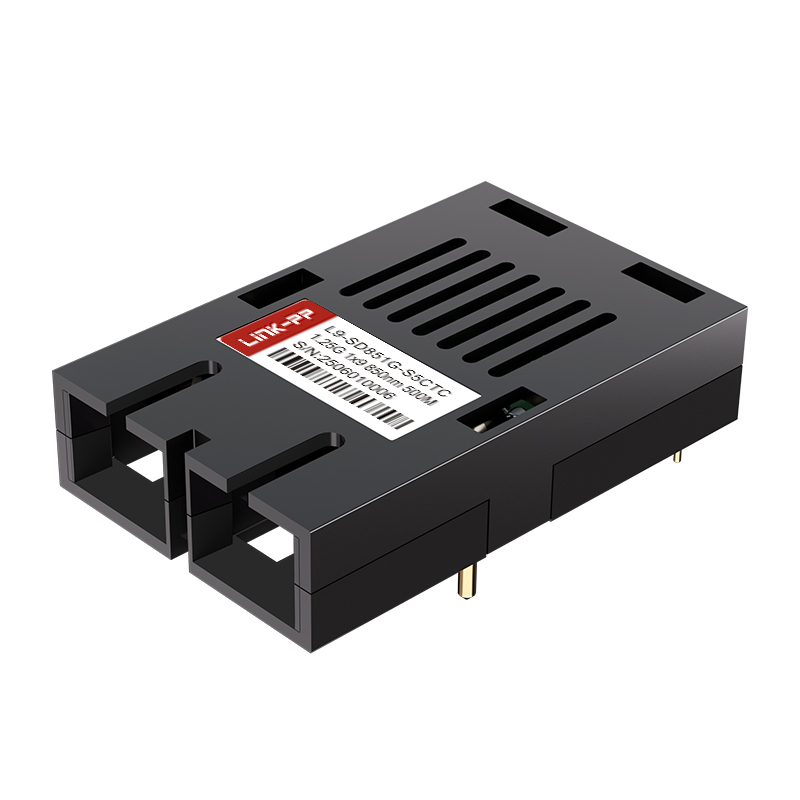

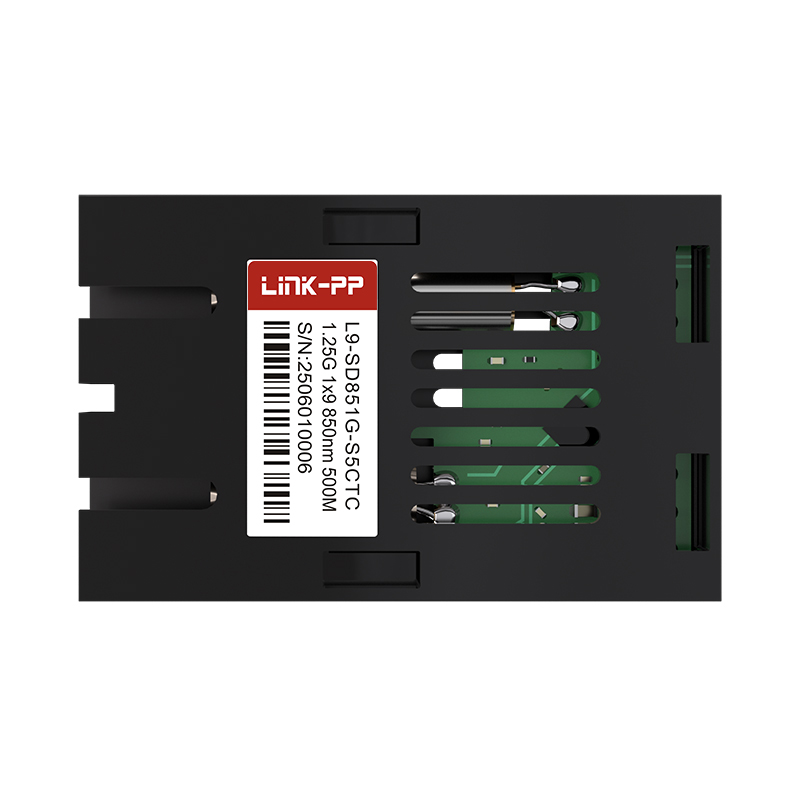

| Part No. | L9-SD851G-S5CTC |
| Form Factor | 1x9 |
| Max Data Rate | 1.25Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 500m |

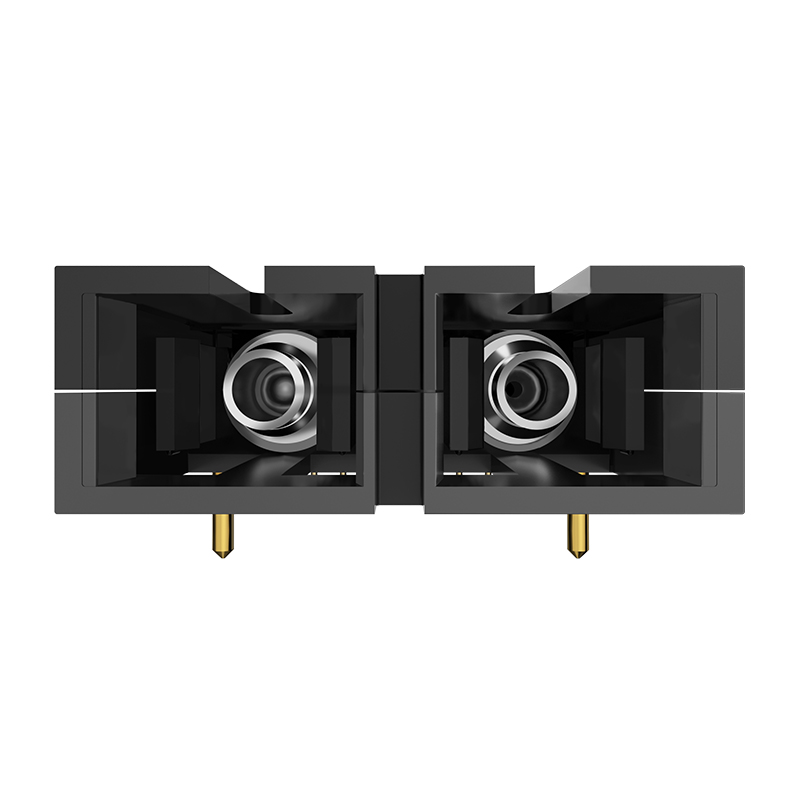

| Connector | Duplex SC |
| Media | MMF |
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
| TX Power | -10 ~ -3dBm |
| Receiver Sensitivity | < -23dBm |
| Protocols | Multi-sourced 1×9 protocol. |
| Temperature Range | 0 to 70°C |
| Warranty | 5 Years |
| Sample | Available |
| Model | Description |
|---|---|
| L9-SD312M-02TTC5 | 1x9 2Mbps, 1310nm(FP), 2km, MMF, Duplex SC, 0°C-70°C |
| L9-SD312M-02TTI5 | 1x9 2Mbps, 1310nm(FP), 2km, MMF, Duplex SC, -40°C-85°C |
| L9-SD312M-20TTC5 | 1x9 2Mbps, 1310nm(FP), 20km, SMF, Duplex SC, 0°C-70°C |
| L9-SD312M-20TTI5 | 1x9 2Mbps, 1310nm(FP), 20km, SMF, Duplex SC, -40°C-85°C |
| L9-SD312M-40TTC5 | 1x9 2Mbps, 1310nm(FP), 40km, SMF, Duplex SC, 0°C-70°C |
| L9-SD312M-40TTI5 | 1x9 2Mbps, 1310nm(FP), 40km, SMF, Duplex SC, -40°C-85°C |
| L9-SD851G-S5CTC | 1x9 1.25Gbps, 850nm(Vcsel), 500m, MMF, Duplex SC, 0°C-70°C |
| L9-SD311G-S5CTC | 1x9 1.25Gbps, 1310nm(FP), 550m, MMF, Duplex SC, 0°C-70°C |
| L9-SD311G-10CTC | 1x9 1.25Gbps, 1310nm(FP), 10km, SMF, Duplex SC, 0°C-70°C |
| L9-SD311G-20CTC | 1x9 1.25Gbps, 1310nm(FP), 20km, SMF, Duplex SC, 0°C-70°C |
| L9-SD311G-40CTC | 1x9 1.25Gbps, 1310nm(DFB), 40km, SMF, Duplex SC, 0°C-70°C |
| L9-SD551G-20CTC | 1x9 1.25Gbps, 1550nm(DFB), 20km, SMF, Duplex SC, 0°C-70°C |
| L9-SD551G-40CTC | 1x9 1.25Gbps, 1550nm(DFB), 40km, SMF, Duplex SC, 0°C-70°C |
| L9-SD551G-80CTC | 1x9 1.25Gbps, 1550nm(DFB), 80km, SMF, Duplex SC, 0°C-70°C |
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, RoHS, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad. Our company was established in 1997, we have about 2000 employees at present. With the abundant production capacity of 3000K per month, we are able to deliver products within a short time.
In addition, we can provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture and sell products worldwide.
