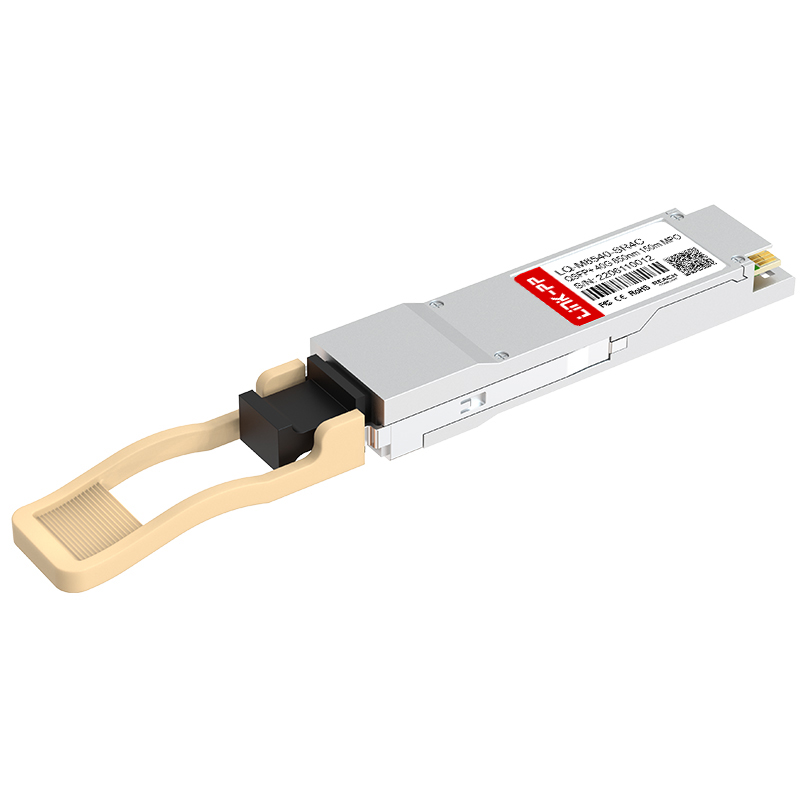

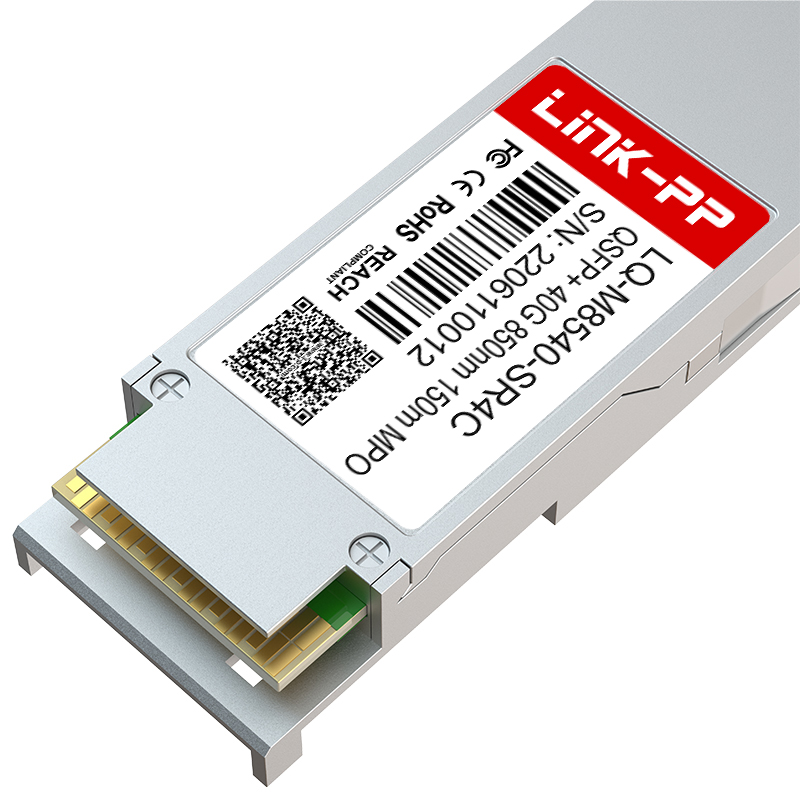

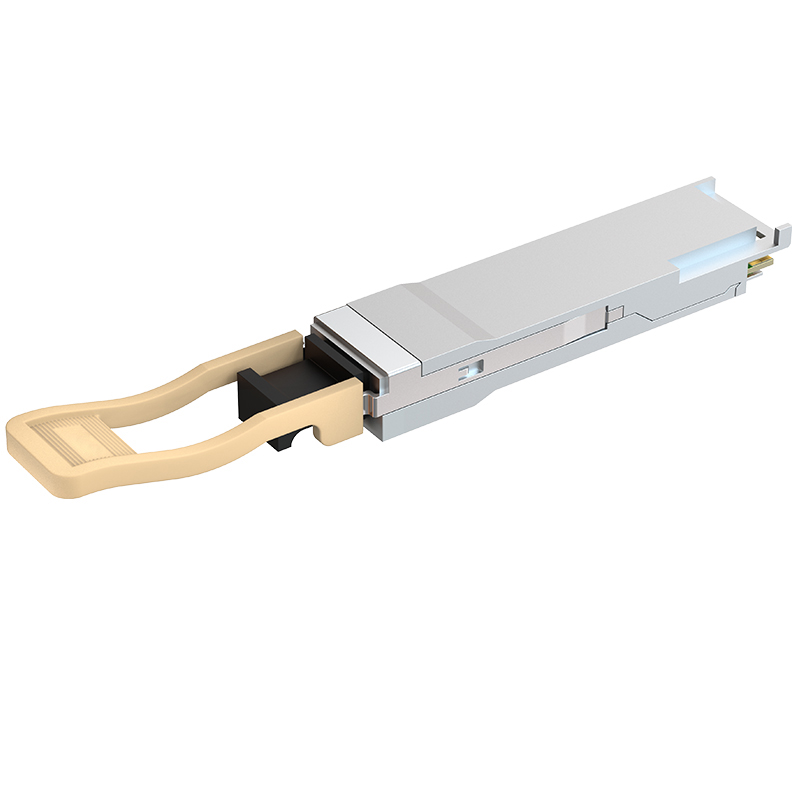

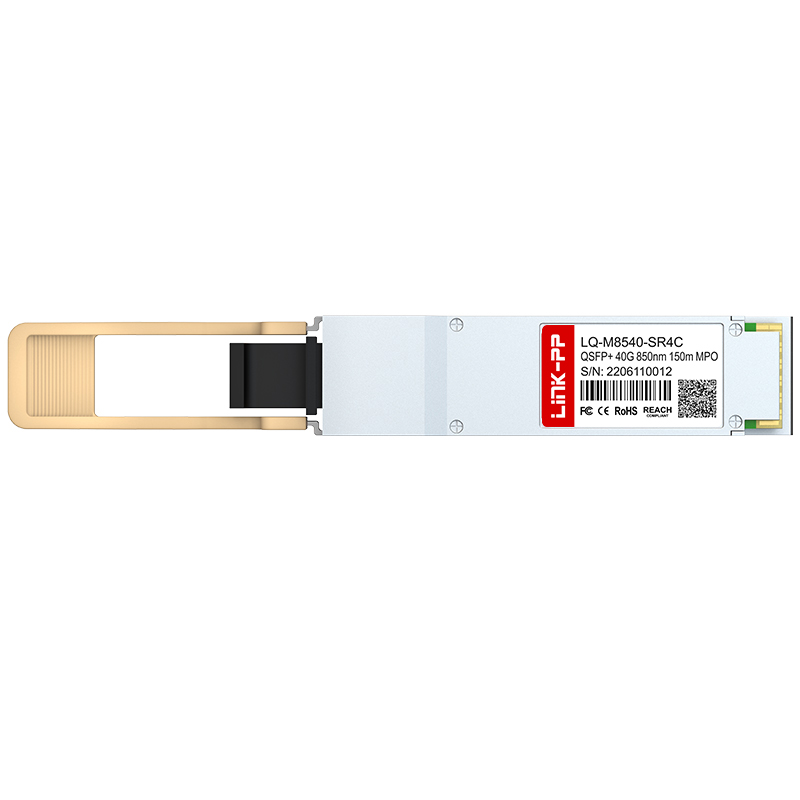

| Item | 40G QSFP+ Module |
| Part Status | Active |
| Form Factor | QSFP+ |
| Max Data Rate | 40G |
| Max Cable Distance | 150m@OM4/100m@OM3 |
| Wavelength | 850NM |

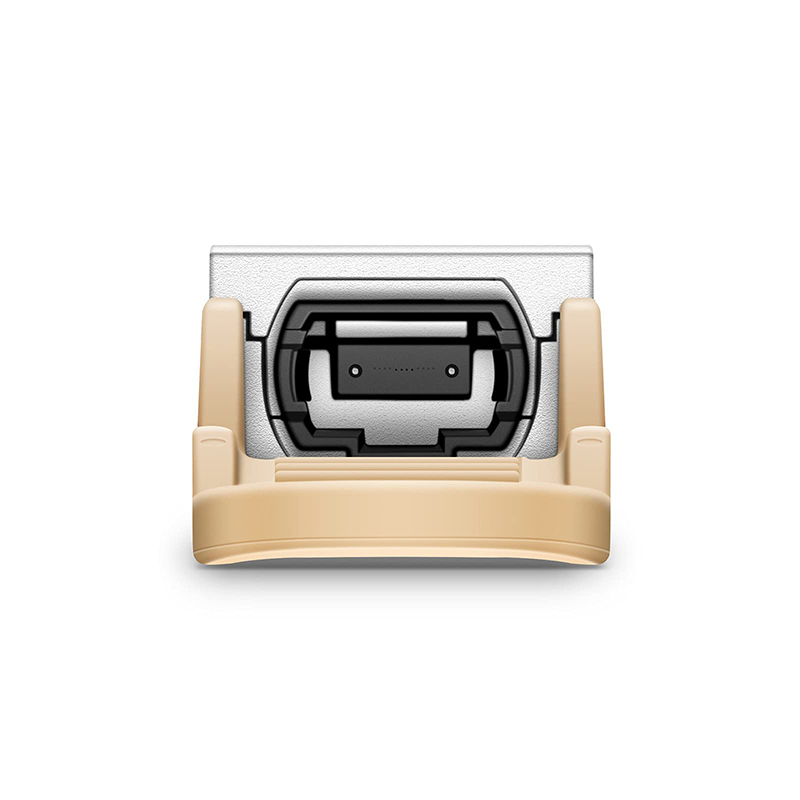

| Connector | MTP/MPO-12 Male |
| Media | MMF |
| Optical Component | VCSEL/PIN |
| TX Power | -7.1~1.9dBm |
| Receiver Sensitivity | <-10.3dBm |
| Receiver Overload | 2.4dBm |
| Power Consumption | <1.5W |
| DDM/DOM | DDM Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636 |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad.
Our business was established in 1997, and we have around 2000 staff at present. With our abundant monthly production capacity, we are able to deliver products within a short time.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
