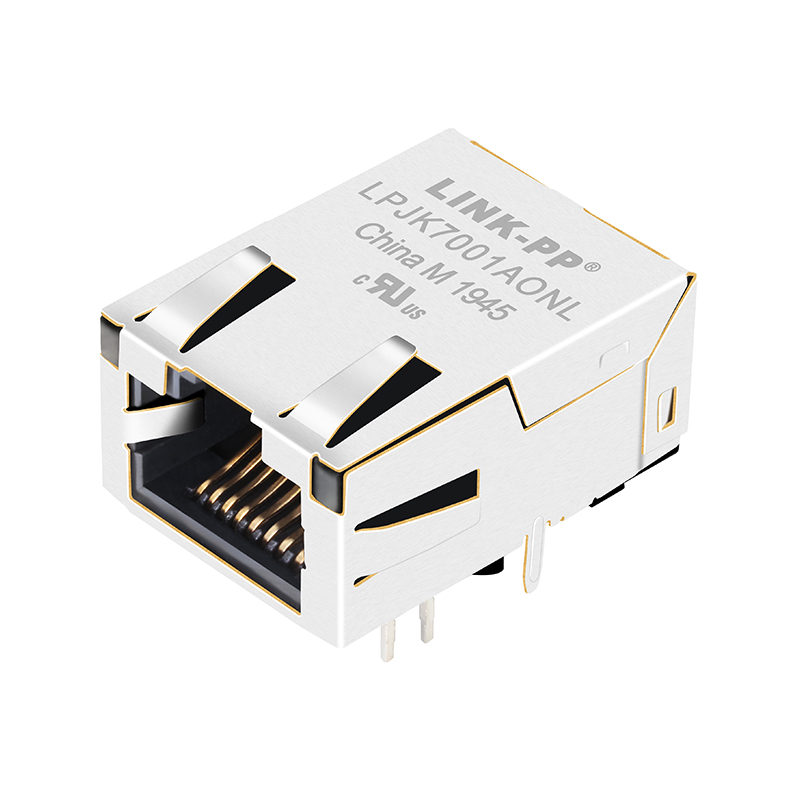

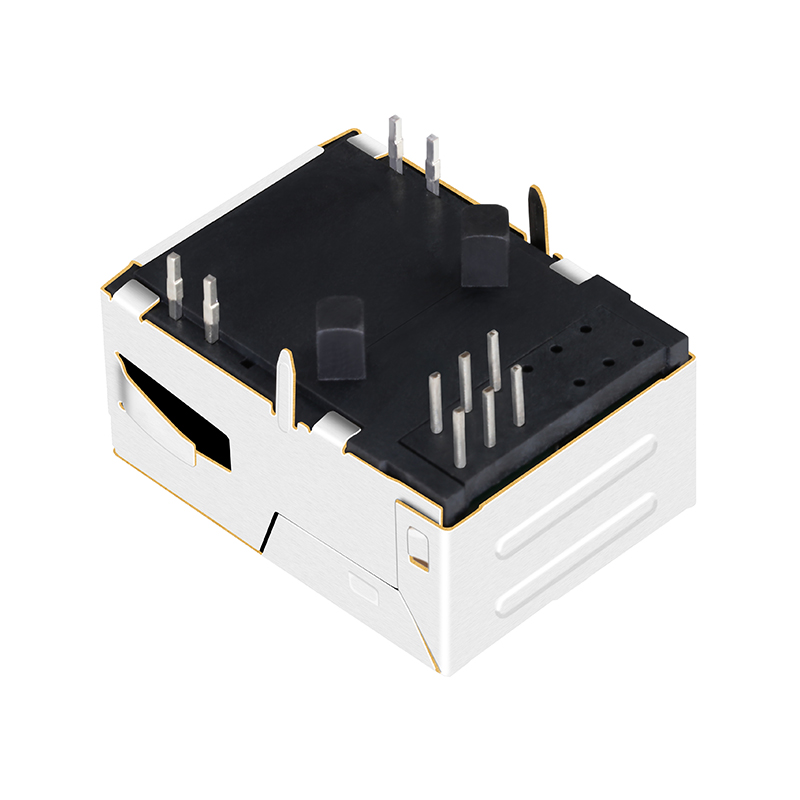

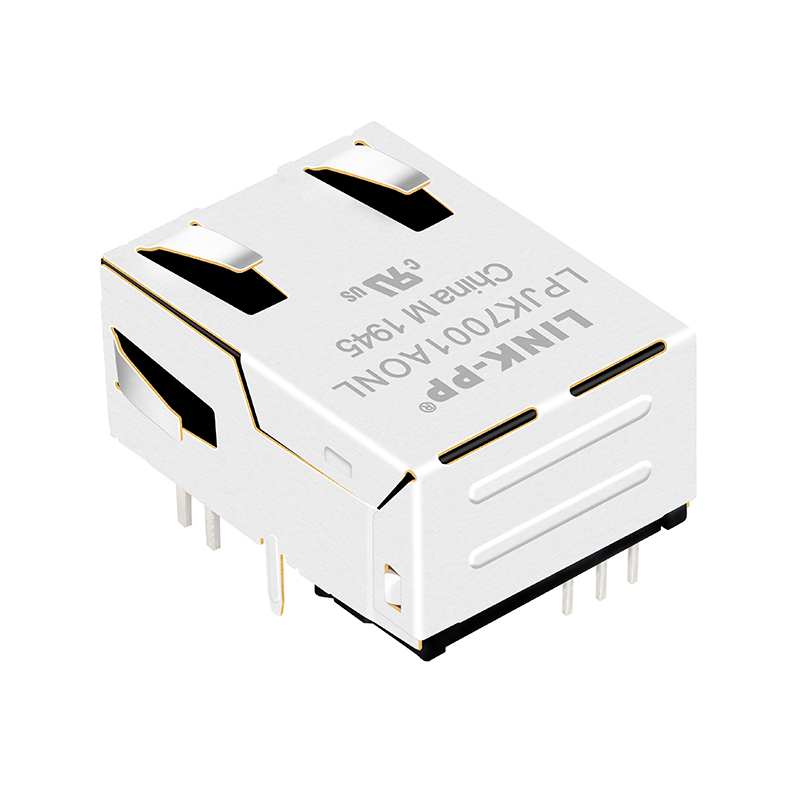

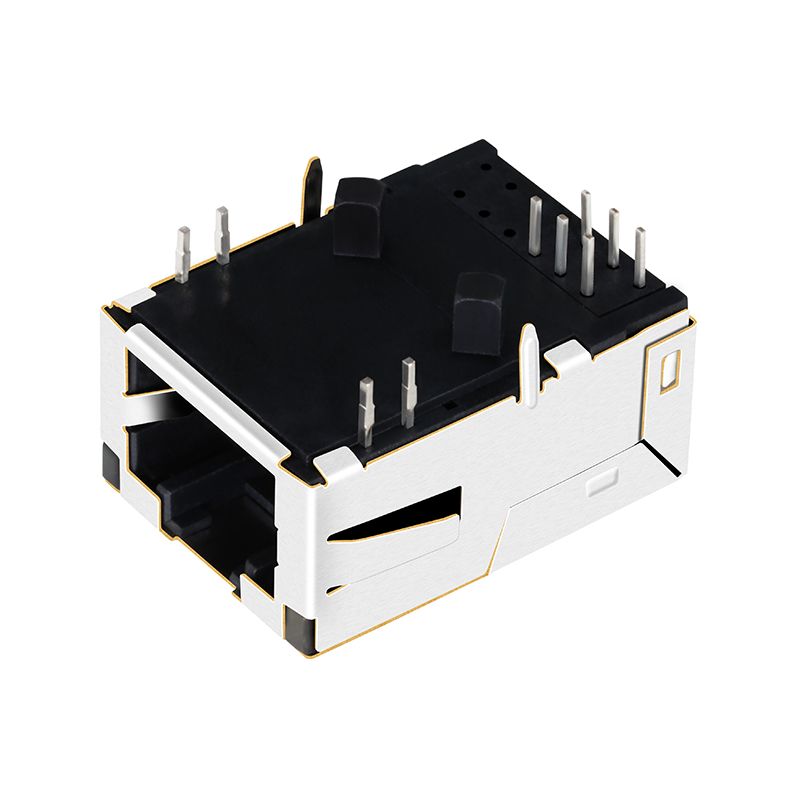

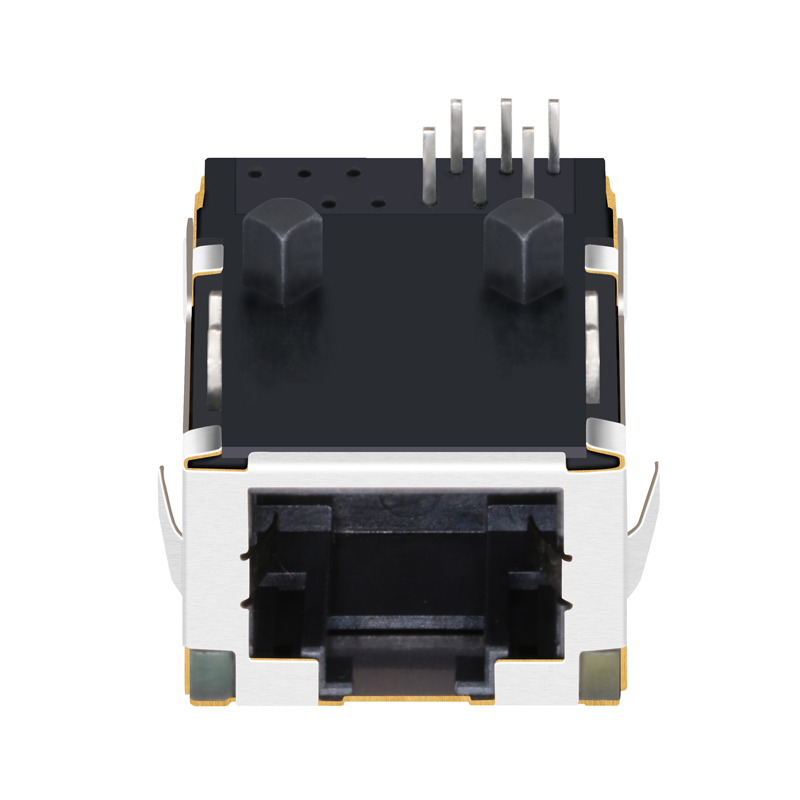

| Item | RJ45 Female Connector |
| Part Number | LPJK7001AONL |
| Compatible With | L829-1X1T-91 |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Latch | Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | With |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries.
By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading Ethernet RJ45 connector and LAN transformer company.
