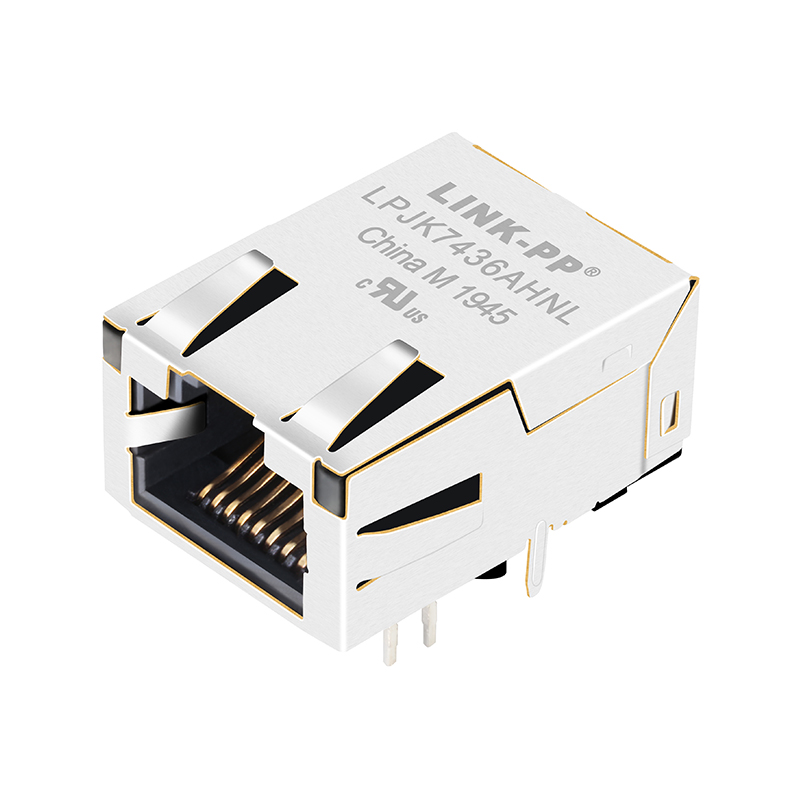

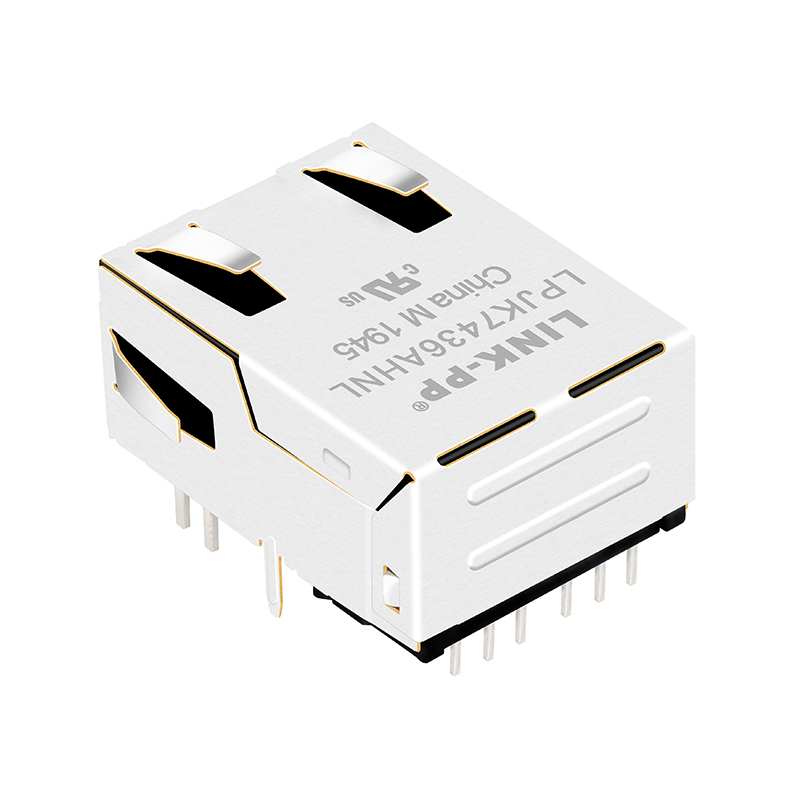

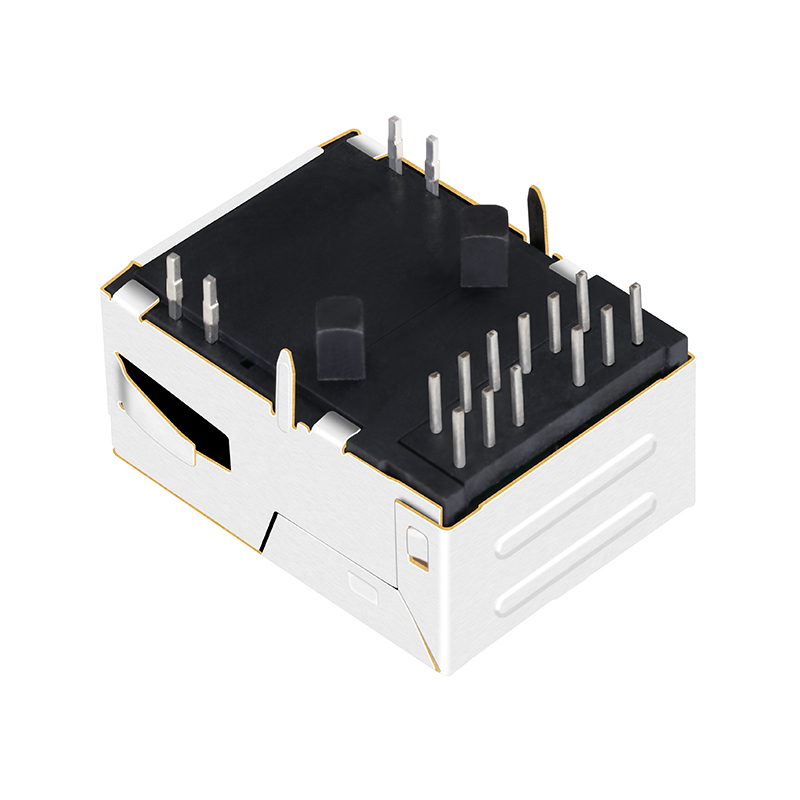

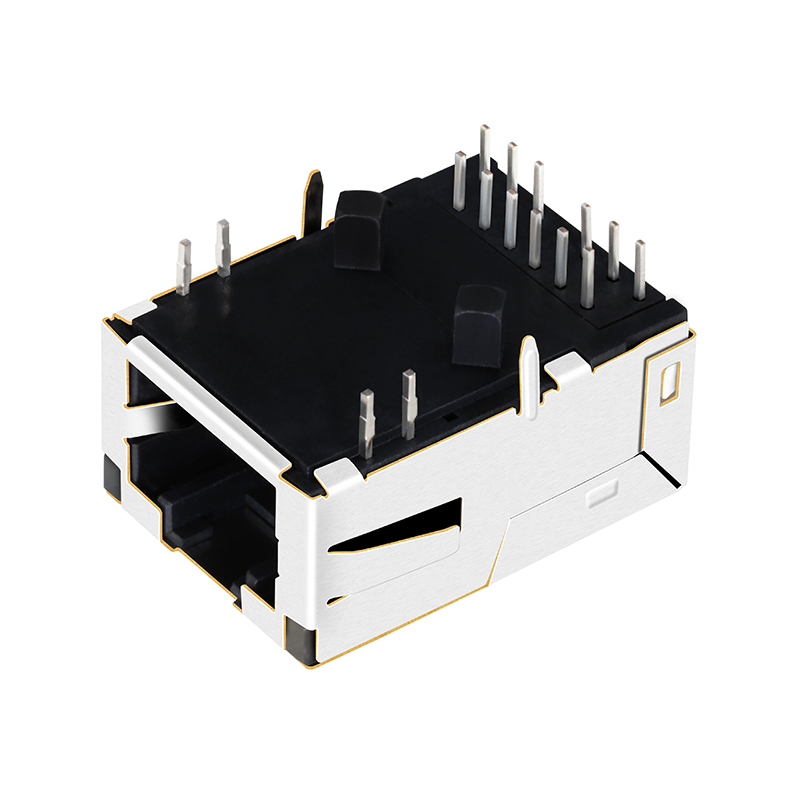

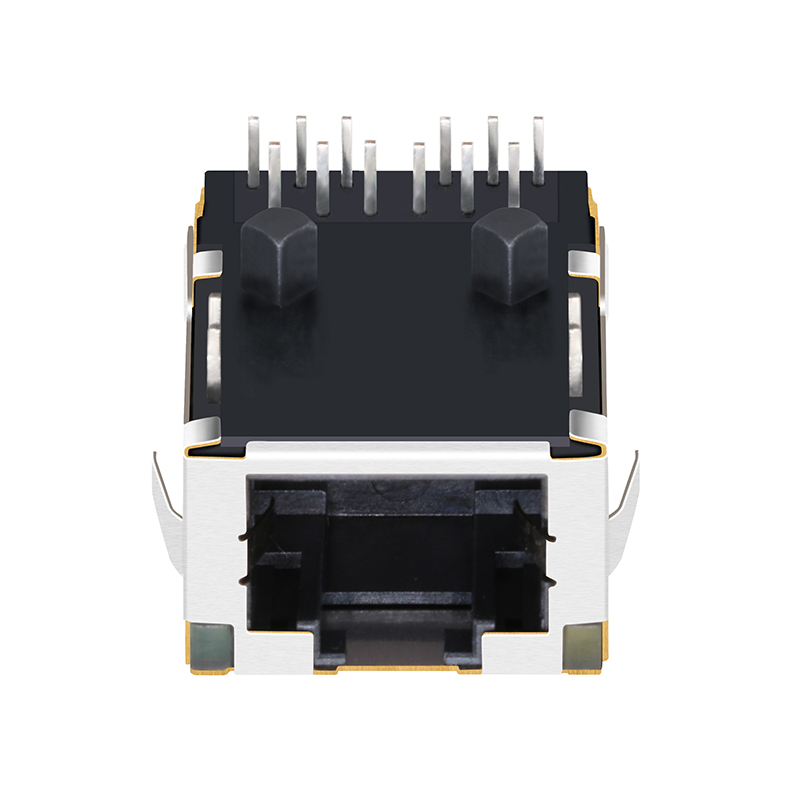

L869-1A1T-32 L834-1G1T-S7 Tab up 10/100/1000 Base-t Low Profile RJ45 Connector With Leds
L869-1A1T-32 L834-1G1T-S7 Tab up 10/100/1000 Base-t Low Profile RJ45 Connector With Leds
L869-1A1T-32 L834-1G1T-S7 Tab up 10/100/1000 Base-t Low Profile RJ45 Connector With Leds
L869-1A1T-32 L834-1G1T-S7 Tab up 10/100/1000 Base-t Low Profile RJ45 Connector With Leds
L869-1A1T-32 L834-1G1T-S7 Tab up 10/100/1000 Base-t Low Profile RJ45 Connector With Leds
1 / 5
L869-1A1T-32 L834-1G1T-S7 Tab up 10/100/1000 Base-t Low Profile RJ45 Connector With Leds
L869-1A1T-32 L834-1G1T-S7 Tab up 10/100/1000 Base-t Low Profile RJ45 Connector With Leds
L869-1A1T-32 L834-1G1T-S7 Tab up 10/100/1000 Base-t Low Profile RJ45 Connector With Leds
L869-1A1T-32 L834-1G1T-S7 Tab up 10/100/1000 Base-t Low Profile RJ45 Connector With Leds
L869-1A1T-32 L834-1G1T-S7 Tab up 10/100/1000 Base-t Low Profile RJ45 Connector With Leds

L869-1A1T-32 L834-1G1T-S7 Tab up 10/100/1000 Base-t Low Profile RJ45 Connector With Leds

Send Inquiry

Product Description

RJ45 Connector Options
L869-1A1T-32 L834-1G1T-S7 Tab Up 10/100/1000 Base-t Low Profile RJ45 Connector With Leds
Products Description
Item RJ45 Female Connector
Part Number LPJK7436AHNL
Compatible With L869-1A1T-32 L834-1G1T-S7
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Up
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Showcase
✦ Product Categories and Variations
RJ45 Variations
Technical Details & Specifications
Dimensional Drawing
Technical Specifications 1
Technical Specifications 2
Technical Specifications 3
Mechanical Layout
Schematic Diagram
Packaging Details
Manufacturer Profile
Established in 1997, the manufacturer is a professional designer and producer of magnetic telecom and networking components. We offer an extensive line of state-of-the-art catalog products as well as custom capabilities.
As a global supplier of magnetic telecom and networking components, we serve OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a leading provider of Ethernet RJ45 connectors and LAN transformers.
Manufacturing Facility
Quality Control
Testing Lab
Frequently Asked Questions
🗹 1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
🗹 2. Can I get a sample before mass production?
Yes, we can offer free samples for quality testing, but shipping fees are to be covered by the customer.
🗹 3. What is the standard delivery time?
Products in stock are ready to ship immediately, while mass production typically takes 15 to 30 days.
🗹 4. What after-service do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
🗹 5. Can you accept OEM/ODM orders?
Yes, OEM and ODM orders are welcome. Please contact us with your specifications to start a detailed discussion.
🗹 6. What is your manufacturing advantage?
We have 19 years of dedicated production experience and serve as a trusted partner for major global technology brands.
Product Quality Verification
