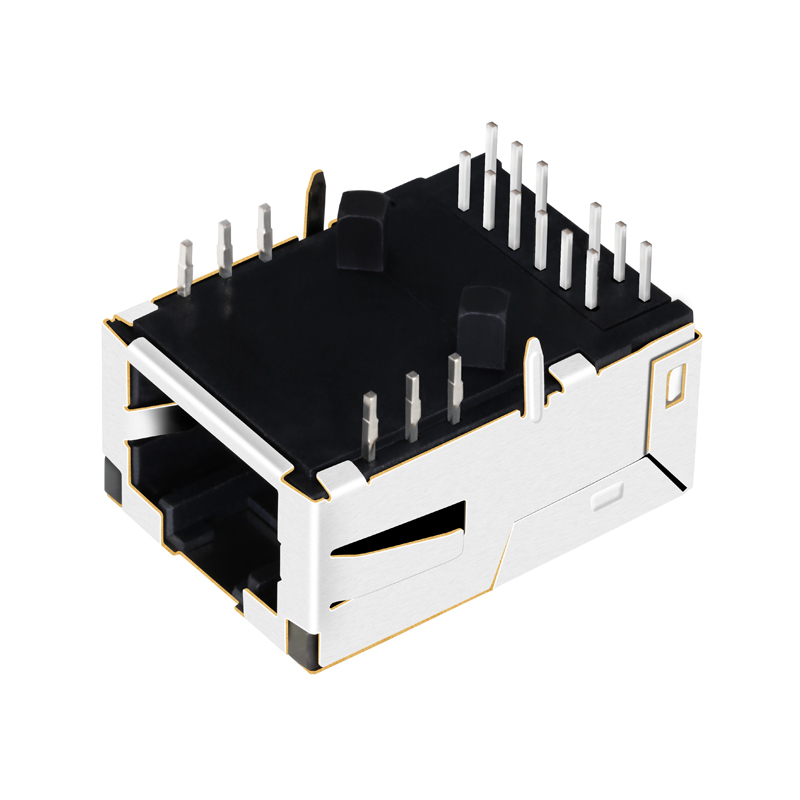

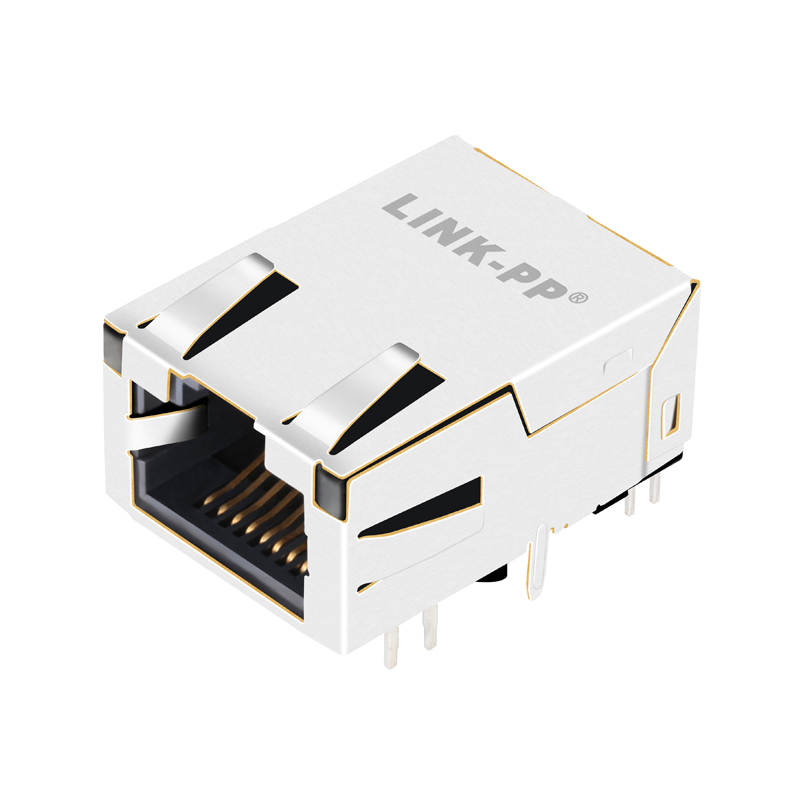

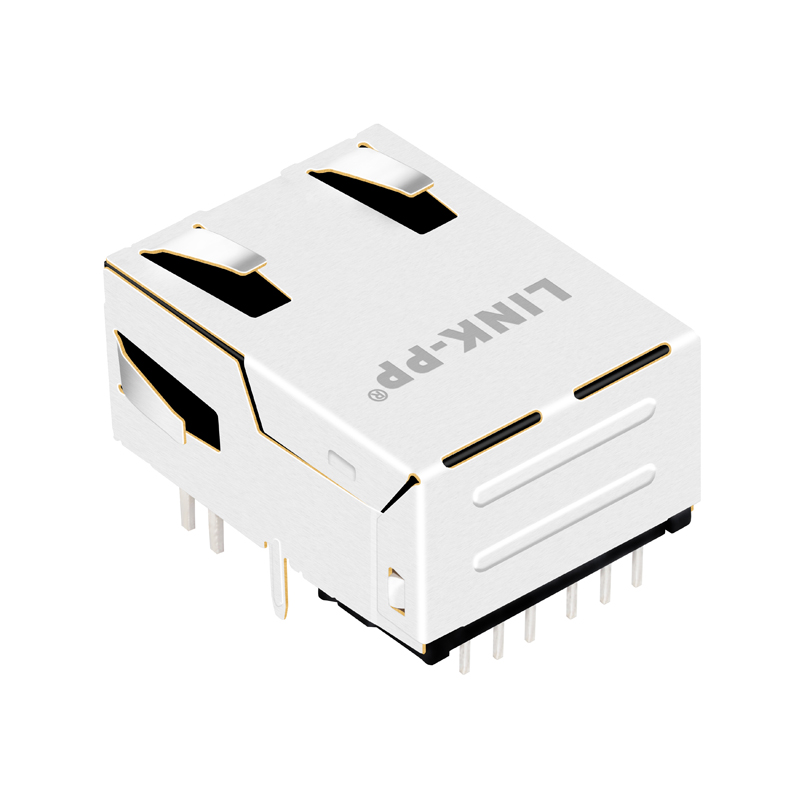

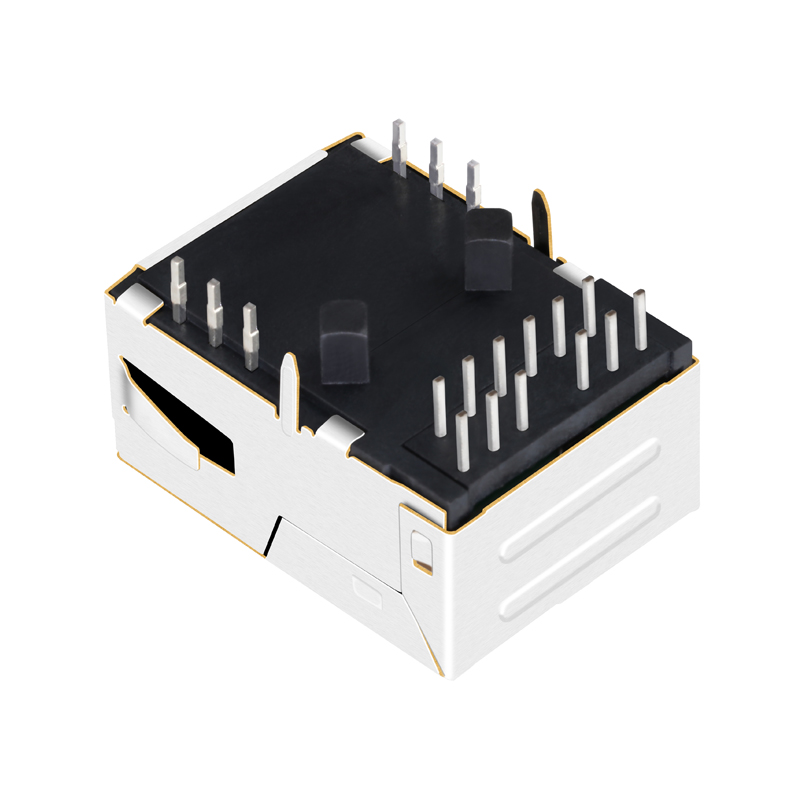

Single Port Low Profile RJ45 Modular Jack L829-1J1T-43

Product Description

Products Range Overview
Single Port Low Profile RJ45 Modular Jack L829-1J1T-43
Products Description
Item RJ45 Female Connector
Bothhand Part Number L829-1J1T-43
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Orange & Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

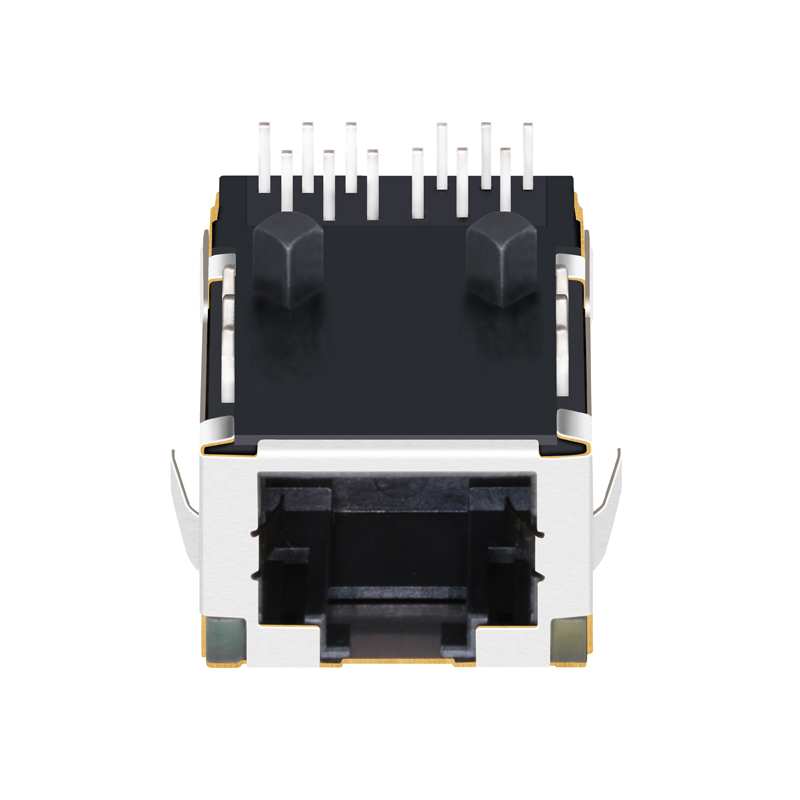

RJ45 Front View
RJ45 Side View
Technical Drawings & Specifications
Mechanical Dimensions 1
Mechanical Dimensions 2
PCB Layout Recommendation
Schematics Diagram
Product Categories Overview
Related Connectors Series
Quality Control & Testing Facilities
Testing Equipment 1
Testing Equipment 2
Testing Equipment 3
Quality Standard Certificate 1
Quality Standard Certificate 2
Quality Standard Certificate 3
Company Profile
Established in 1997, our company is a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer supplier.
Office & Laboratory
Production Workshop
Frequently Asked Questions
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but shipping fees are covered by the buyer.
3. What is your delivery time?
Items currently in stock are ready to ship. For mass production orders, the lead time is approximately 15-30 days.
4. What after-service can you offer?
We offer a one-year guarantee period on our products along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, we support full custom OEM and ODM services. Please send us your specifications for detailed project discussions.
6. What is your advantage?
We have over 19 years of manufacturing and design experience, coupled with long-term partnerships with leading global technology brands.
