| Item | Value |
|---|---|
| Model Number | LPJE101AHNL |
| Part Status | Active |
| Connector Type | RJ45 |
| Applications | Without Magnetics |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Contact Finish Thickness | 6.00µin (0.152µm) |
| LED Color | Yellow/Green |
| Shielding | Shielded, EMI Finger |
| Number of Ports | Single Port |
| Features | Board Guide |
| Tab Direction | Up |
| Contact Finish | Gold |
| Configuration RX/TX | T,C |
| Turns Ratio RX/TX | 1CT:1CT |
| Operating Temperature | -40°C ~ 85°C |

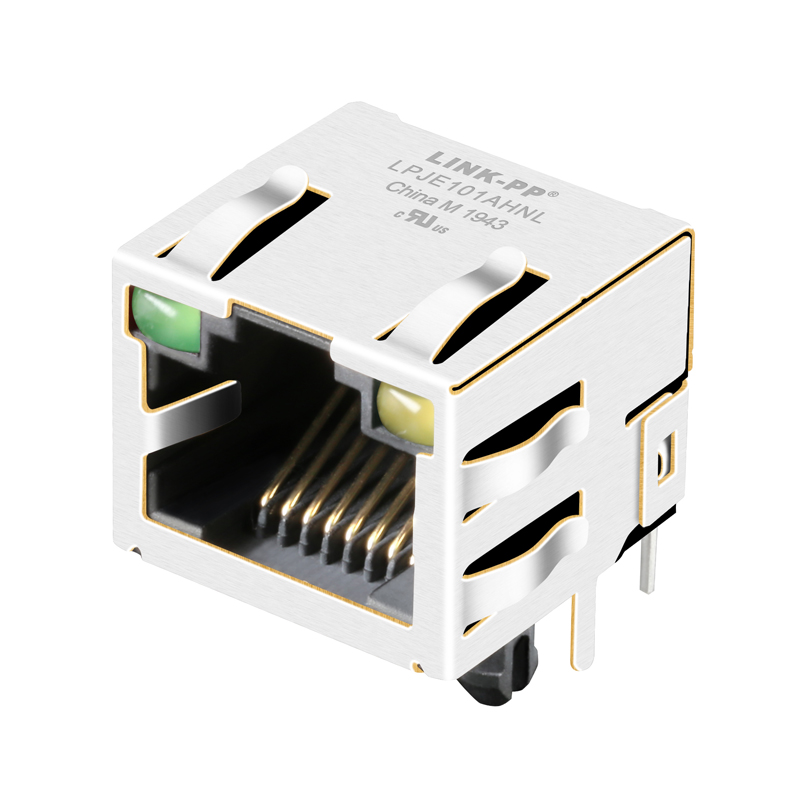

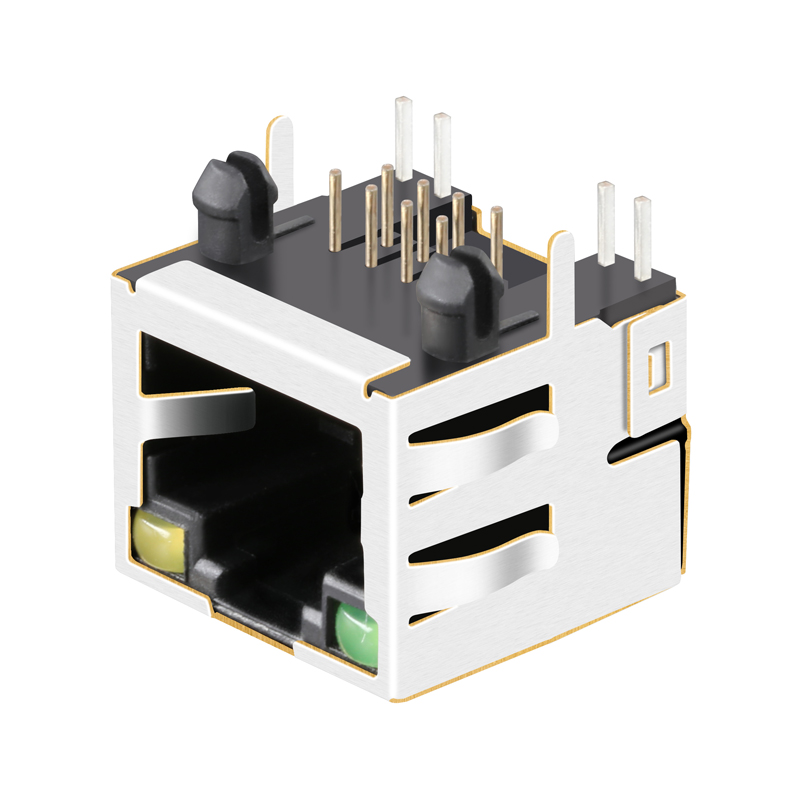

The LPJE101AHNL is a standard RJ45 single port connector designed for through-hole mounting with a 90° angle (right orientation).
No, this specific model is designed for applications without magnetics.
The LPJE101AHNL features a built-in Yellow/Green LED configuration to display network connection status.
It is designed to operate reliably in harsh environments, with a supported operating temperature range of -40°C to 85°C.
The connectors are packaged in protective trays, with 100 pieces per Standard Packing Quantity (SPQ) and 3000 pieces per carton.
