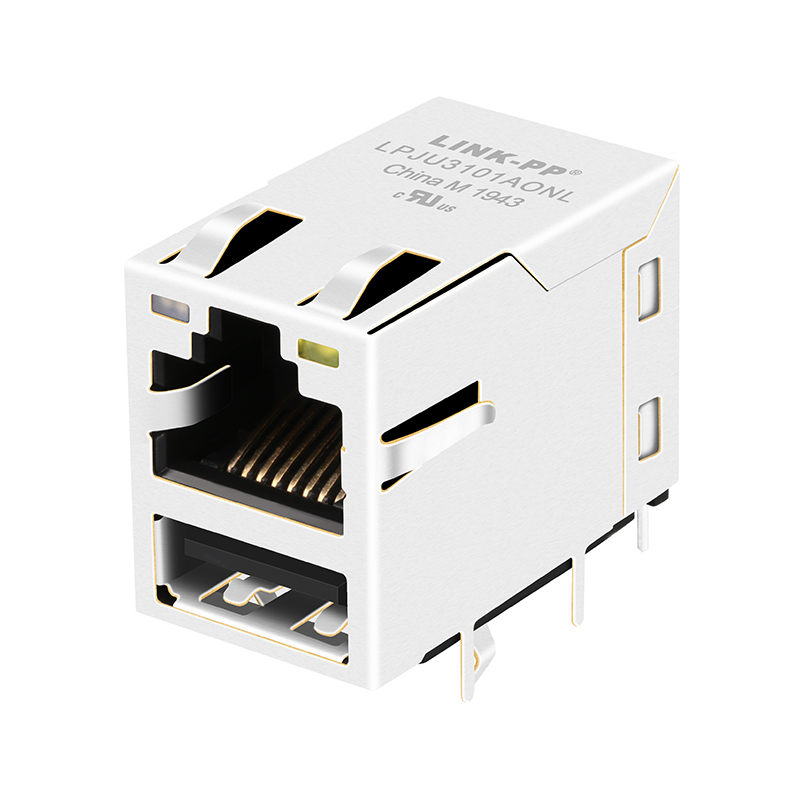

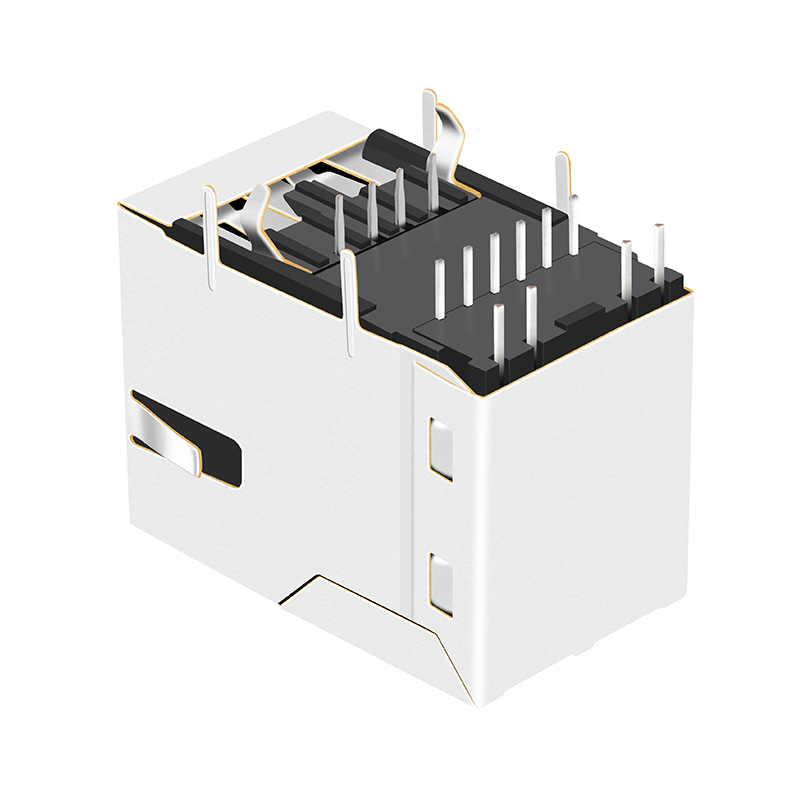

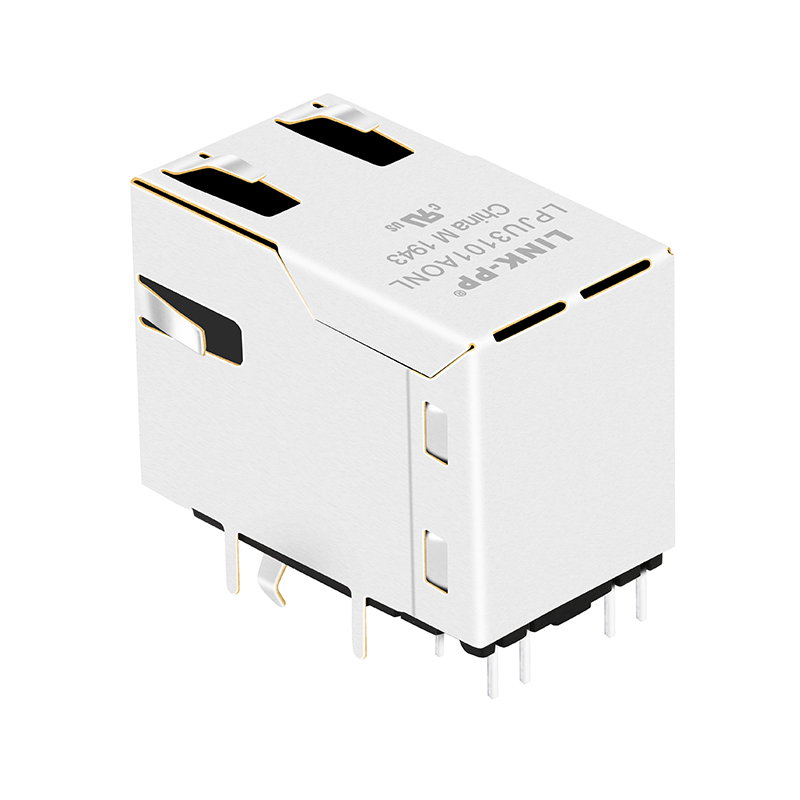

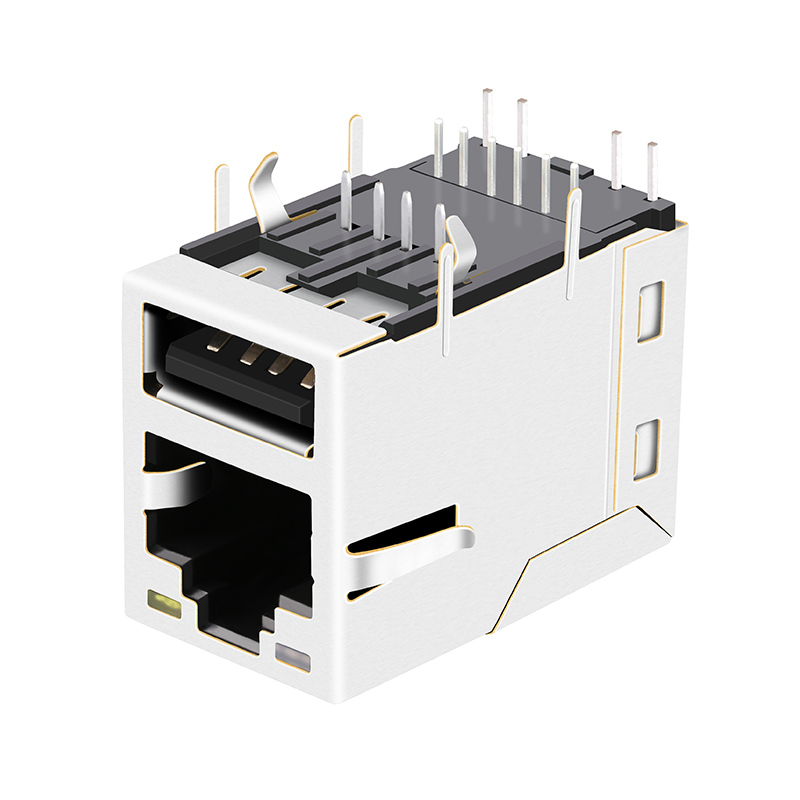

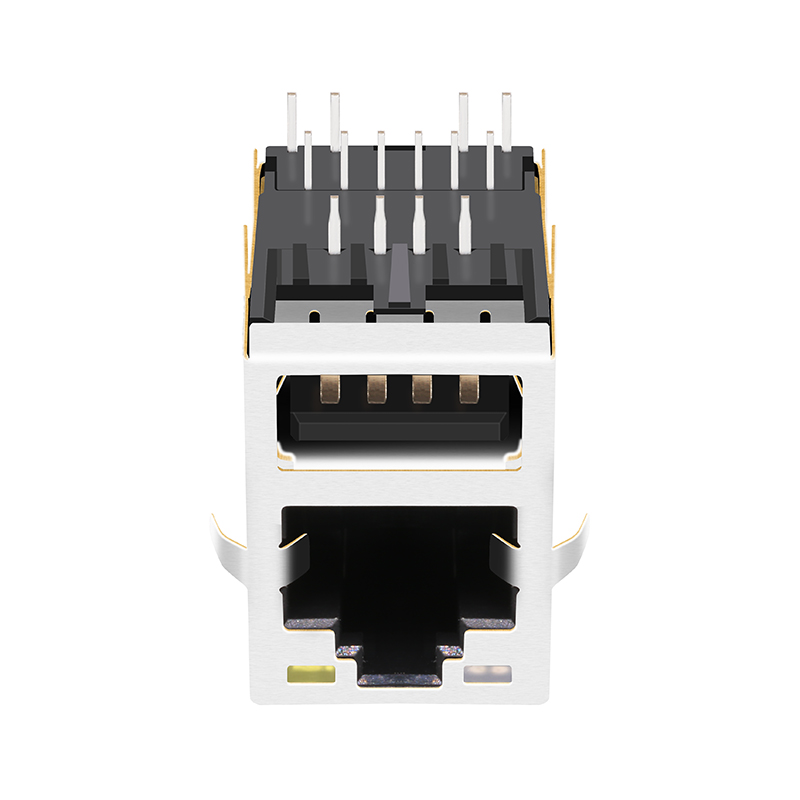

| Item | RJ45 Female Connector |
| Part Number | LPJU3101AONL |
| Alternative Part Number | GTI07-30113 |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Latch | Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0°C TO 70°C |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Yes, we can offer you free samples to test quality, but shipping costs are to be covered by the customer.
Items in stock are ready to ship immediately, while mass production typically takes 15-30 days.
We provide a one-year guarantee period along with 24-hour online technical support.
Yes, please send us an inquiry so we can discuss your specific requirements in detail.
We have 19 years of dedicated production experience and have been a trusted partner for leading global technology firms for many years.
