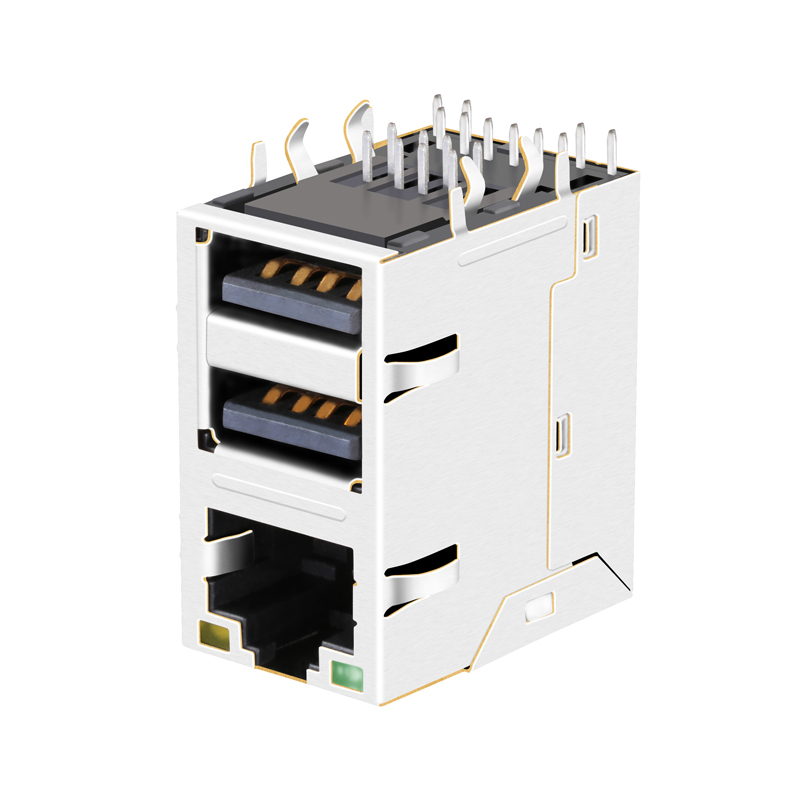

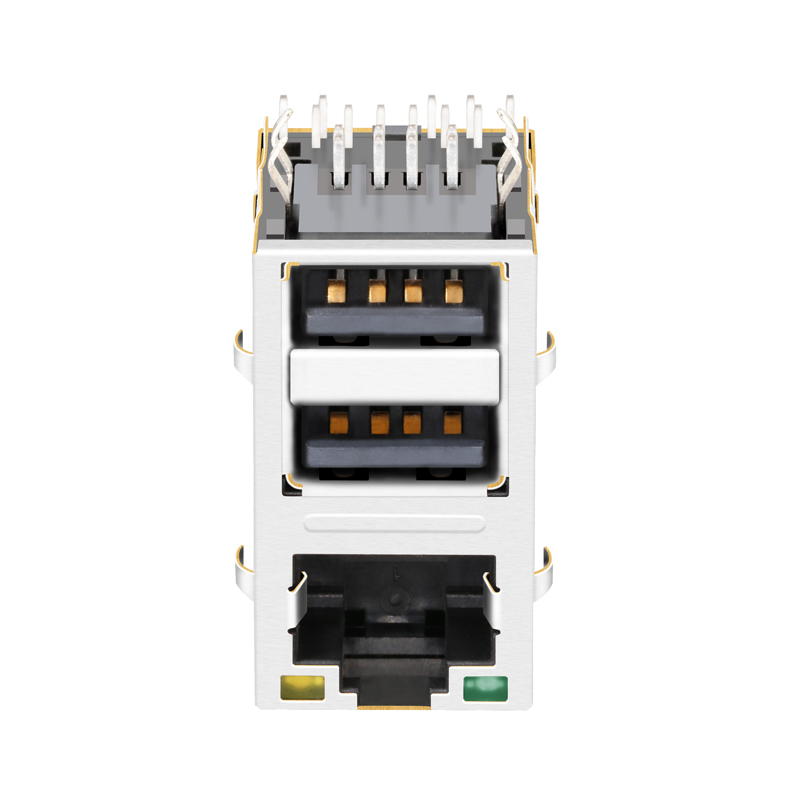

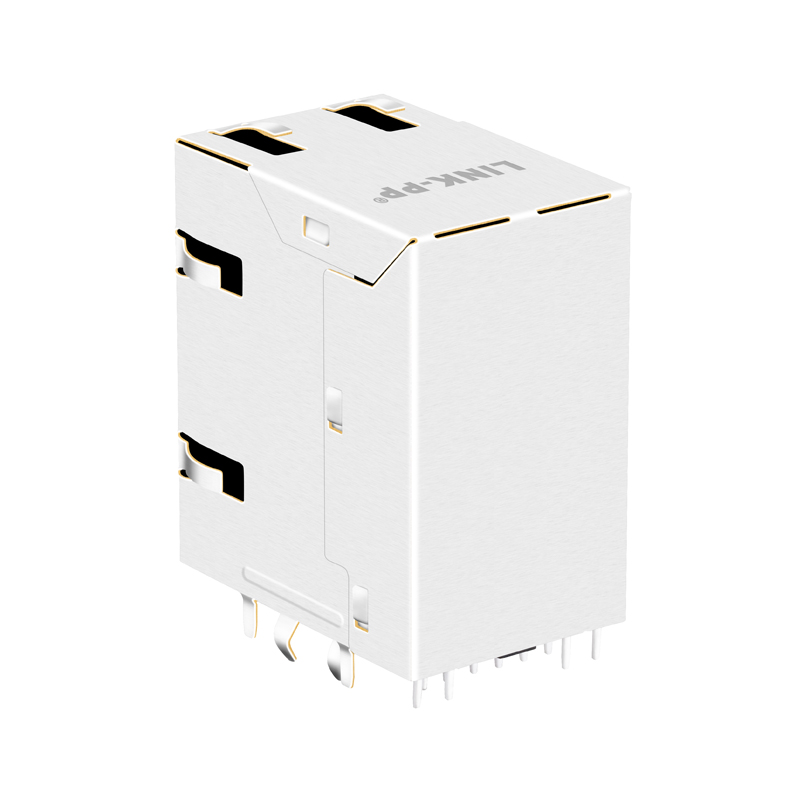

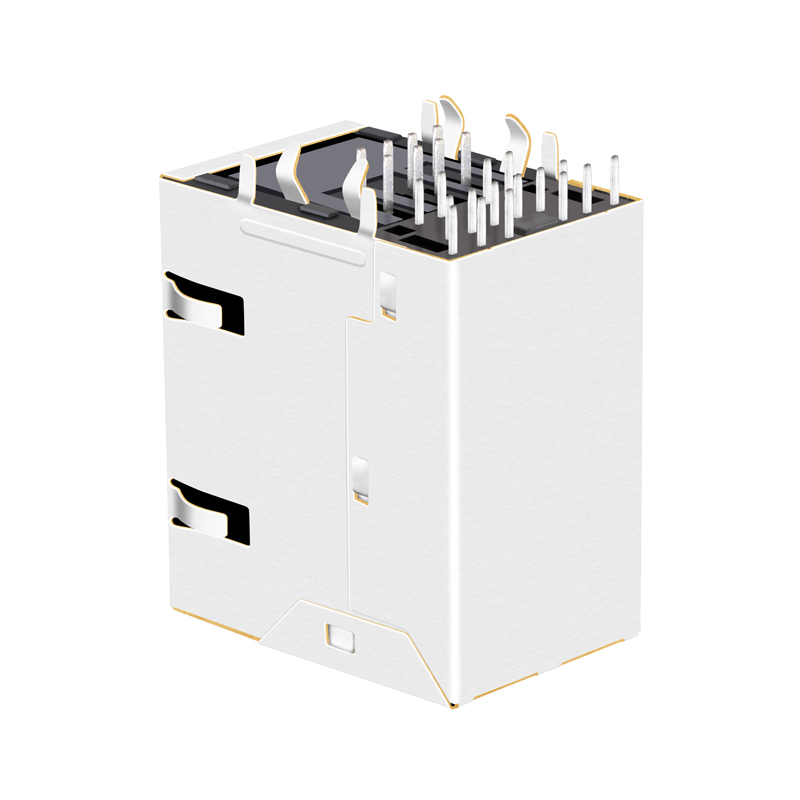

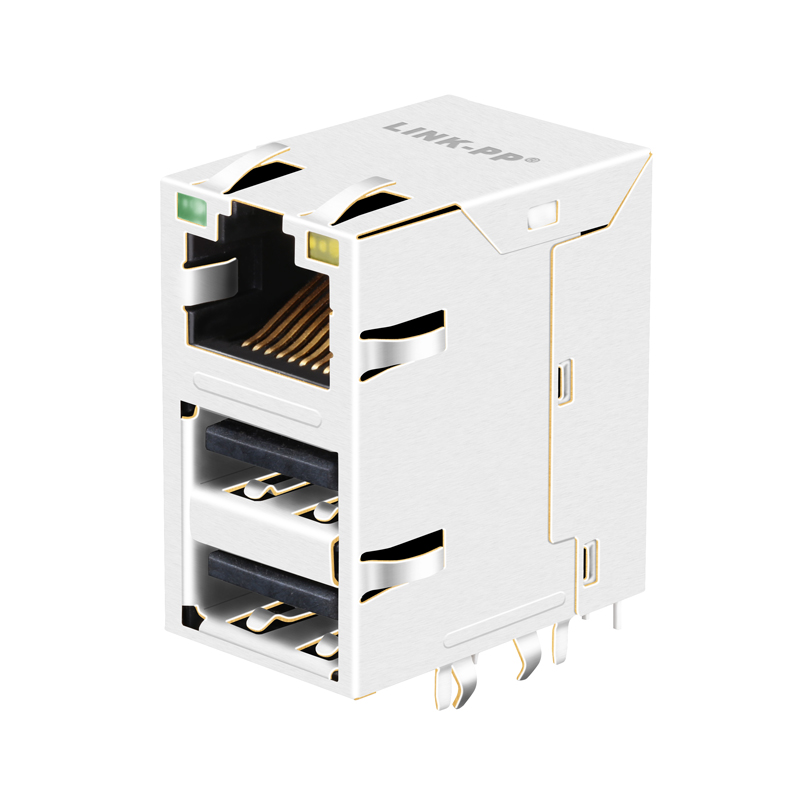

One Port With USB RJ 45 Mag-jack HR872635H HR981121C
One Port With USB RJ 45 Mag-jack HR872635H HR981121C
One Port With USB RJ 45 Mag-jack HR872635H HR981121C
One Port With USB RJ 45 Mag-jack HR872635H HR981121C
One Port With USB RJ 45 Mag-jack HR872635H HR981121C
1 / 5
One Port With USB RJ 45 Mag-jack HR872635H HR981121C
One Port With USB RJ 45 Mag-jack HR872635H HR981121C
One Port With USB RJ 45 Mag-jack HR872635H HR981121C
One Port With USB RJ 45 Mag-jack HR872635H HR981121C
One Port With USB RJ 45 Mag-jack HR872635H HR981121C

One Port With USB RJ 45 Mag-jack HR872635H HR981121C

Send Inquiry

Product Description

RJ45 Connector Overview
One Port with USB RJ 45 Mag-jack HR872635H HR981121C
Products Description
Item RJ45 Female Connector
Compatible With HR872635H HR981121C
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports Single Port With USB
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Specifications Drawing
Product Options Grid
Dimensional Drawing 1
Dimensional Drawing 2
Schematic Diagram 1
Schematic Diagram 2
Quality Standard Image
Certification Certificate 1
Certification Certificate 2
Company Profile
Established in 1997, the company is a professional designer and manufacturer of magnetic telecom and networking components, offering an extensive line of state-of-the-art catalog products as well as custom design capabilities.
As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading provider of Ethernet RJ45 connectors and LAN transformers.
Production Line Facility
Testing Laboratory
Warehouse and Stock Center
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, with the shipping cost covered by the buyer.
What is your delivery time?
Stock products are ready to ship immediately, while mass production typically takes 15 to 30 days.
What after-sales service can you offer?
We offer a one-year warranty and online technical support 24 hours a day.
Can you accept OEM/ODM orders?
Yes, please contact us with your specifications so we can discuss the details of your project.
What is your advantage?
We have 19 years of professional manufacturing experience and have maintained partnerships with leading global enterprises for many years.
