Product Description

RJ45 Modular Jacks and LAN Transformers

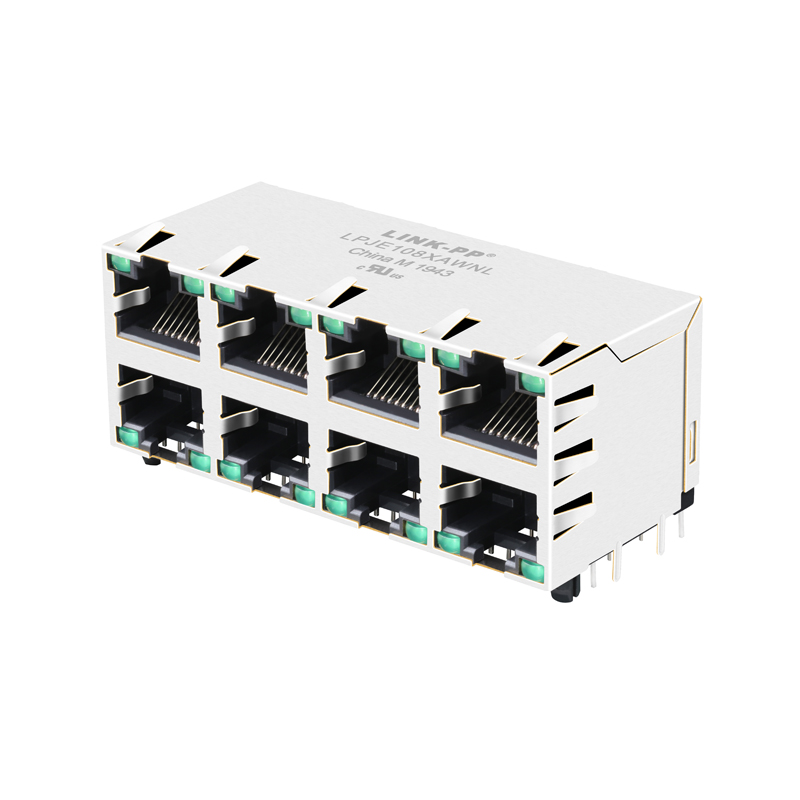

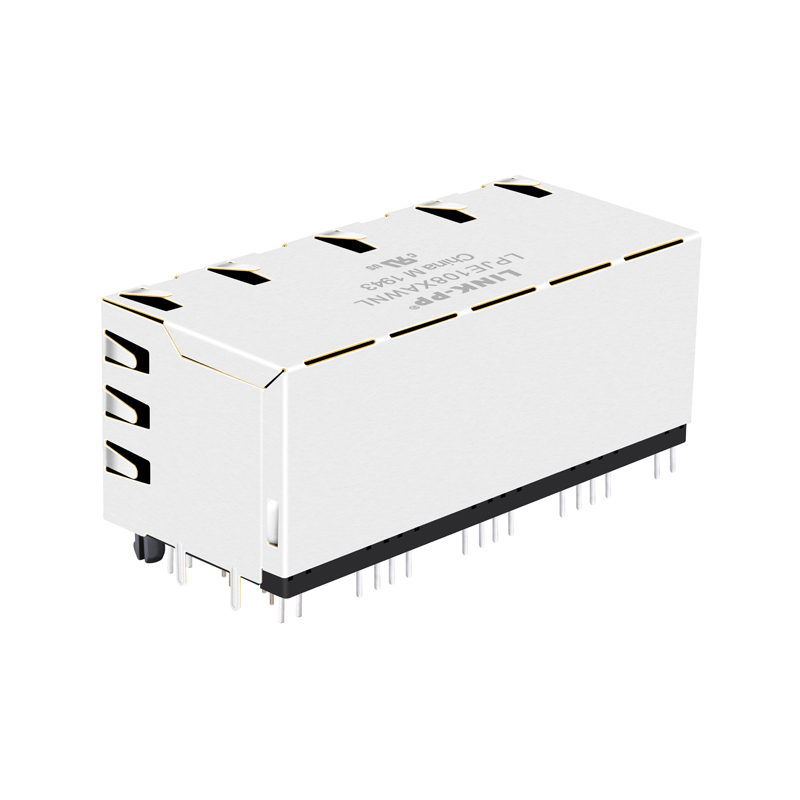

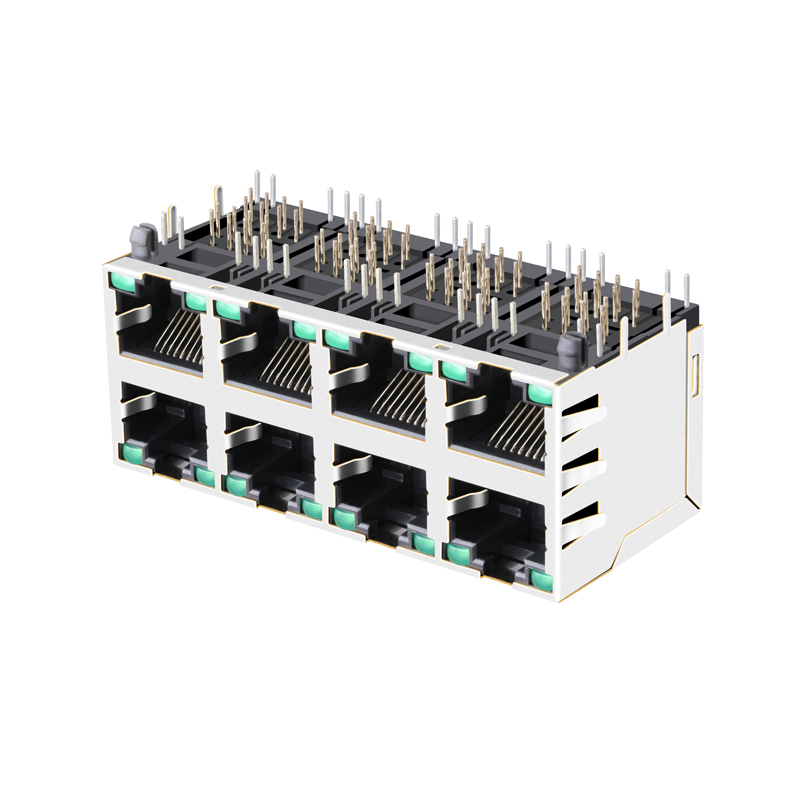

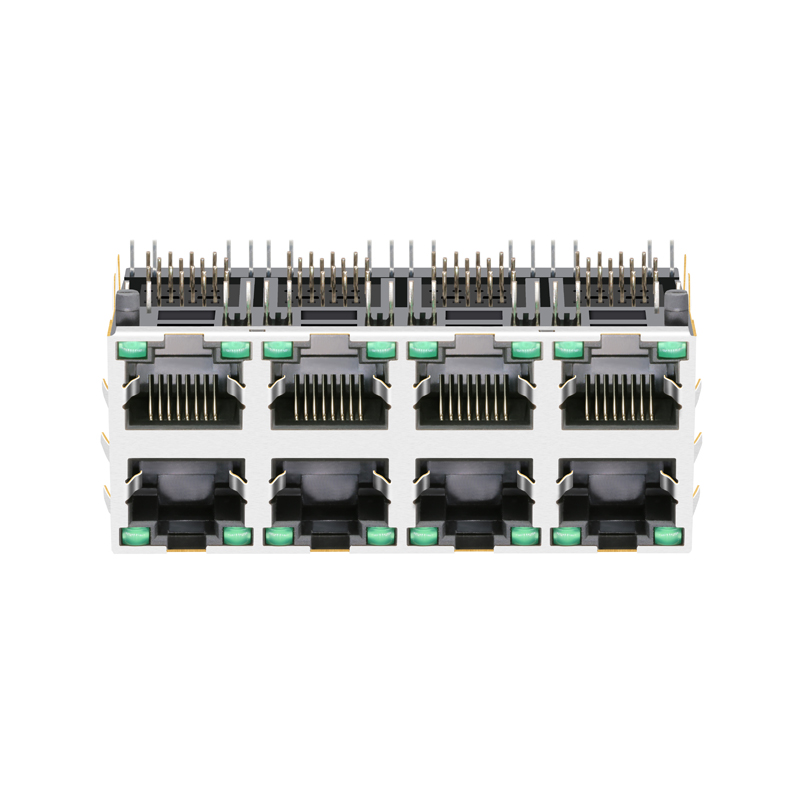

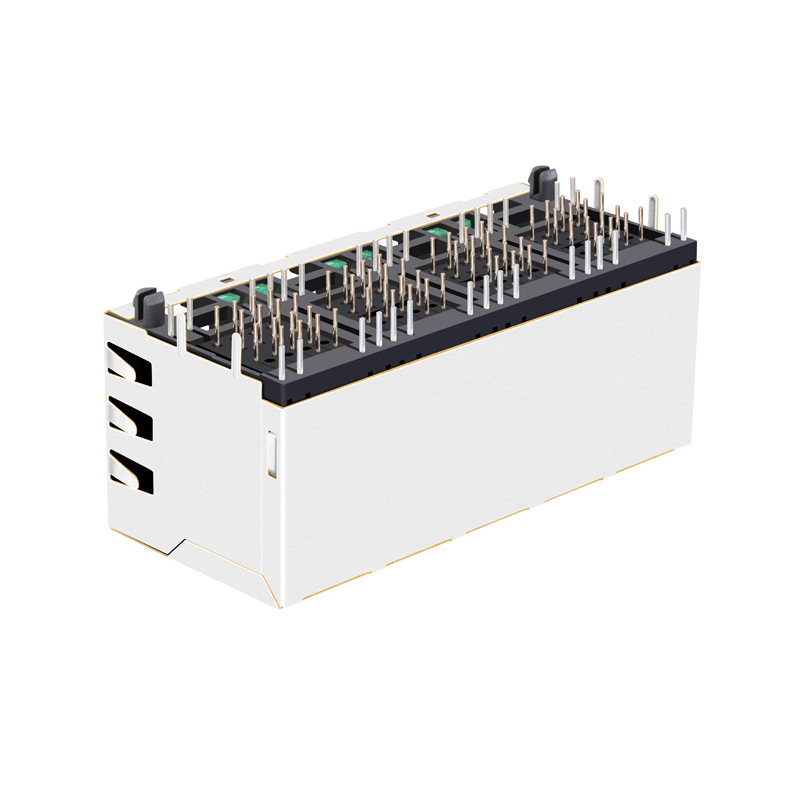

RJSAE-5385-08 Without Transformer Shielded 2X4 Port RJ45 Modular Jack
Products Description
Item RJ45 Female Connector
Compatible With RJSAE-5385-08
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 2x4 Port
Speed Without Magnetics
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Green
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Modular Jack Dimension Drawing
Product Categories Overview
RJ45 Connector Internal Structure Modular Jack PCB Layout RJ45 Gold Plating Details RJ45 Connector Durability Testing
Automated Production Line Quality Inspection Process
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier to OEMs, contract manufacturers, and CEMs, serving more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading provider of Ethernet RJ45 connectors and LAN transformers.
Factory Workshop Overview Testing Equipment International Quality Certifications
Frequently Asked Questions
Q Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, and more.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but shipping costs are to be covered by the buyer.
Q What is your delivery time?
Ready-to-ship items in stock are sent out immediately, while mass production typically takes 15 to 30 days.
Q What after-sales service do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion regarding your custom specifications.
Q What is your advantage?
We have over 19 years of manufacturing experience and have partnered with major global technology leaders for many years.
