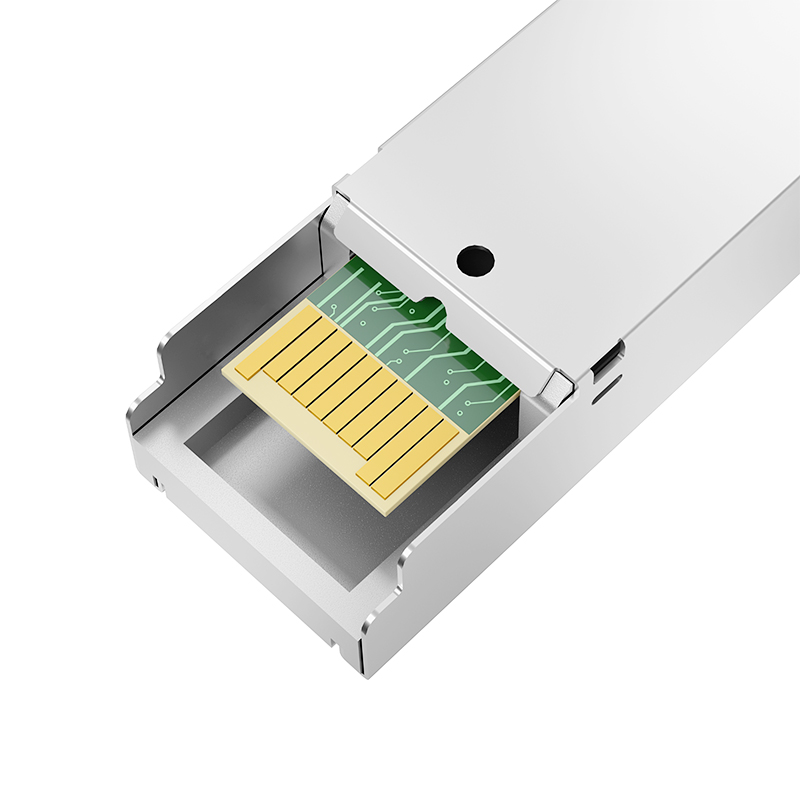

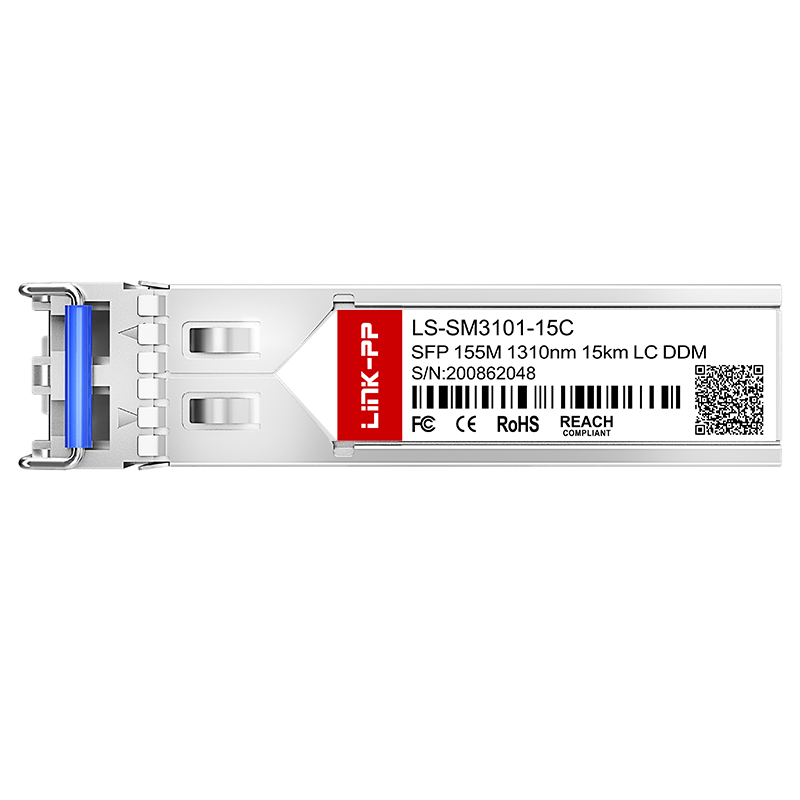

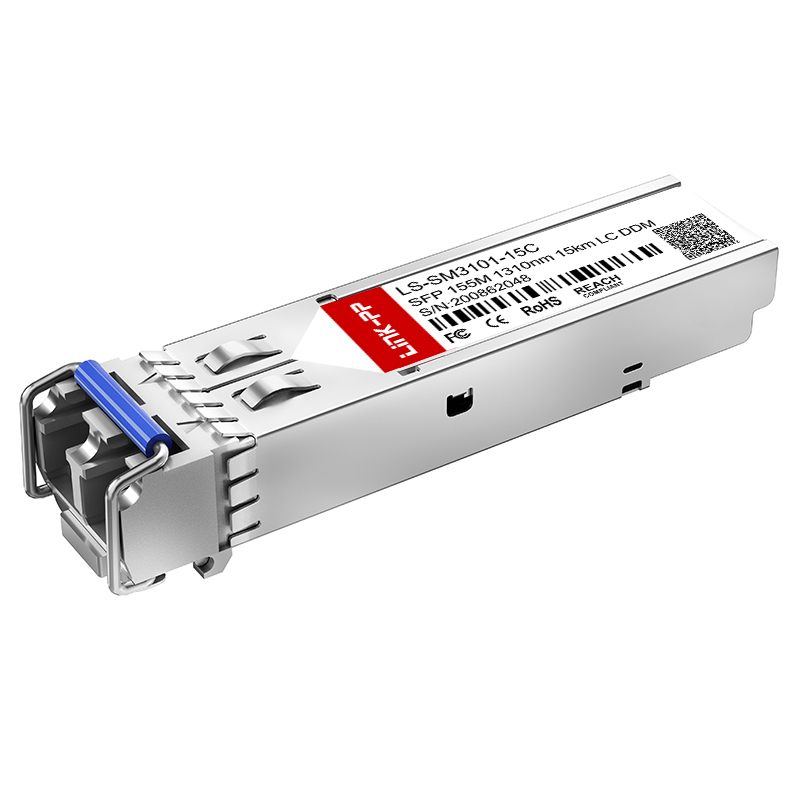

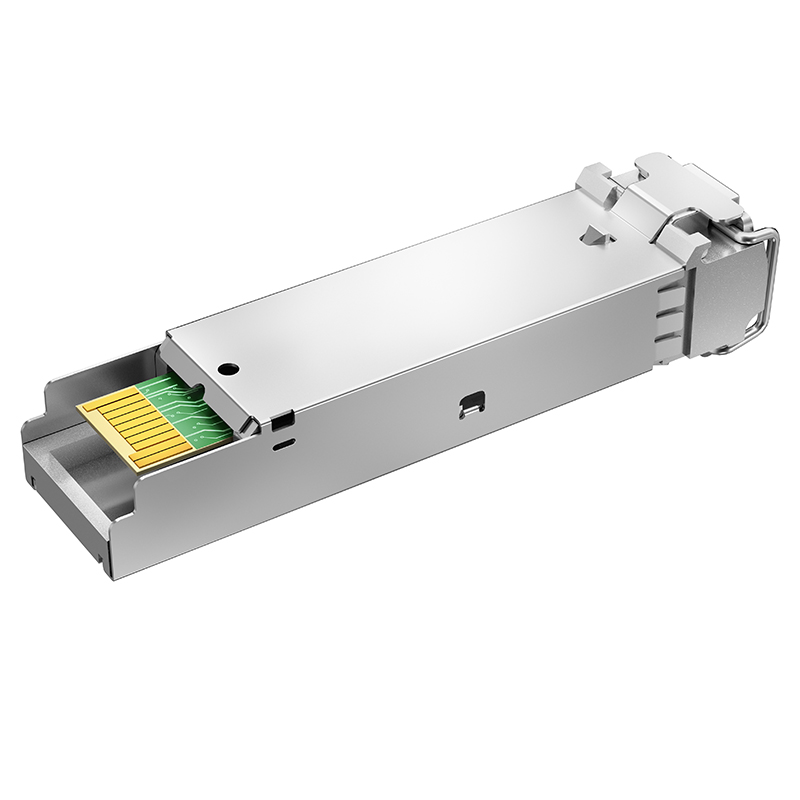

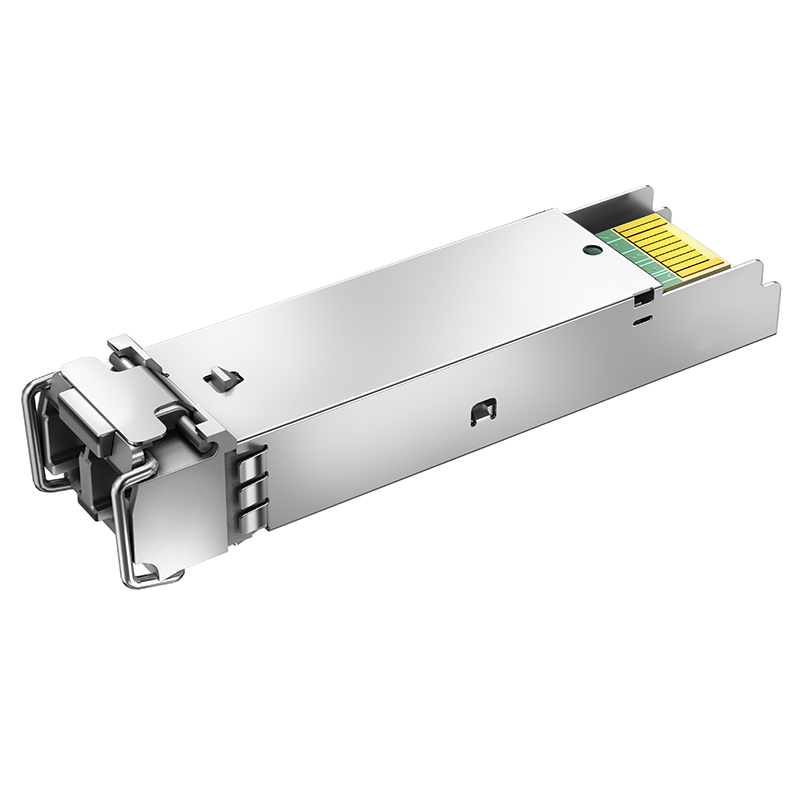

| Item | 100BASE SFP |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 100Mbps |
| Wavelength | 1310nm |
| Max Cable Distance | 15km |
| Media | SMF |
| Connector | Duplex LC |
| Optical Component | FP 1310nm |
| TX Power | -15~-8dBm |
| Receiver Sensitivity | < -32.5dBm |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE802.3ab, GR-468, MSA Compliant |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We provide end-to-end DWDM devices with almost all optical elements—from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.
To meet the demand for massive data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for modern data centers.
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers worldwide. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul, which meet all the needs of various scenarios in 4G/5G systems.
Aimed at global communication network constructors, we provide total FTTx optical fiber access solutions covering from all-optical or optical copper combined access solutions and products.
To ensure the normal operation of communication lines, we provide an optical cable O&M solution that integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE, and UL, owning advanced manufacturing facilities and testing equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant monthly production capacity of 3000K, we are able to deliver products within a short time frames.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and distribute products globally.
