We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We provide end-to-end DWDM devices with almost all optical elements - from active modules to optical passive components, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul, meeting all the requirements of various scenarios in 4G/5G systems.
Aimed at global communication network constructors, we provide complete FTTx optical fiber access solutions, covering all-optical or optical copper combined access setups and products.
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
| Vendor Name | OEM Compatible |

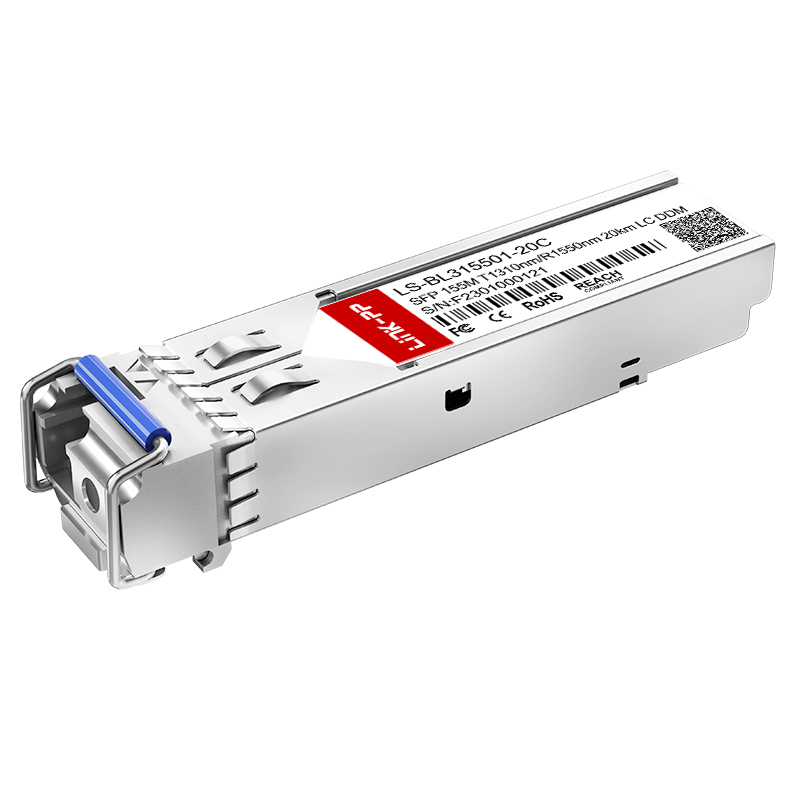

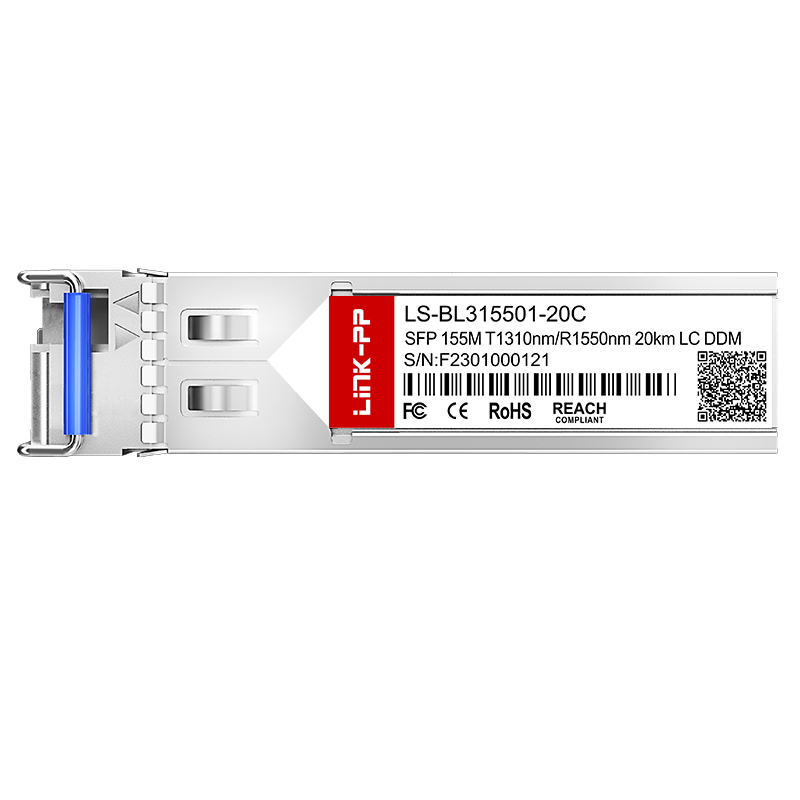

| Part No. | LS-BL315501-20C |
| Form Factor | SFP |
| Max Data Rate | 155Mbps |
| Wavelength | 1310nm-TX/1550nm-RX |
| Max Cable Distance | 20km |
| Connector | Simplex LC |
| Media | SMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| TX Power | -15 ~ -8dBm |
| Receiver Sensitivity | < -30dBm |
| EMC (Electro Magnetic Compatibility) | Supported |
| DDM/DOM | Supported |
| Protocols | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
| Part Number | Description |
|---|---|
| LS-MM8501-S5C | SFP 155M, 850nm, 550m, LC, DDM, 0°C to 70°C (-40°C to 85°C) |
| LS-MM8501-02C | SFP 155M, 850nm, 2km, LC, DDM, 0°C to 70°C (-40°C to 85°C) |
| LS-MM3101-02C | SFP 155M, 1310nm, 2km, LC, DDM, 0°C to 70°C (-40°C to 85°C) |
| LS-SM3101-10C | SFP 155M, 1310nm, 10km, LC, DDM, 0°C to 70°C (-40°C to 85°C) |
| LS-SM3101-15C | SFP 155M, 1310nm, 15km, LC, DDM, 0°C to 70°C (-40°C to 85°C) |
| LS-SM3101-20C | SFP 155M, 1310nm, 20km, LC, DDM, 0°C to 70°C (-40°C to 85°C) |
| LS-SM3101-40C | SFP 155M, 1310nm, 40km, LC, DDM, 0°C to 70°C (-40°C to 85°C) |
| LS-SM5501-80C | SFP 155M, 1550nm, 80km, LC, DDM, 0°C to 70°C (-40°C to 85°C) |
| LS-SM5501-A2C | SFP 155M, 1550nm, 120km, LC, DDM, 0°C to 70°C (-40°C to 85°C) |
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, RoHS, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad. Established in 1997, our facility currently employs around 2000 professionals. With a production capacity of 3000K per month, we deliver products within short turnaround times.
In addition, we provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture, and distribute products globally.
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer free samples to test the quality, and you would only need to cover the shipping fees.
Stock products are ready to ship immediately, while mass production orders typically take 15 to 30 days.
We offer a standard warranty period and provide comprehensive online technical support 24 hours a day.
Yes, please send us your requirements so that we can have a detailed discussion on your specific needs.
We bring over 19 years of production experience and have served as a trusted partner for leading global technology enterprises for many years.
