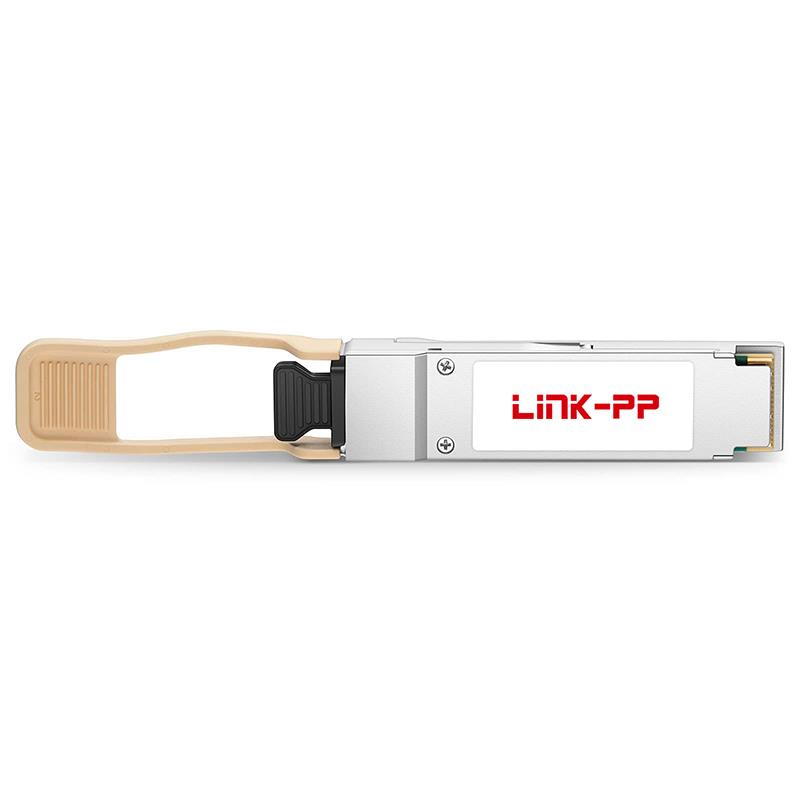

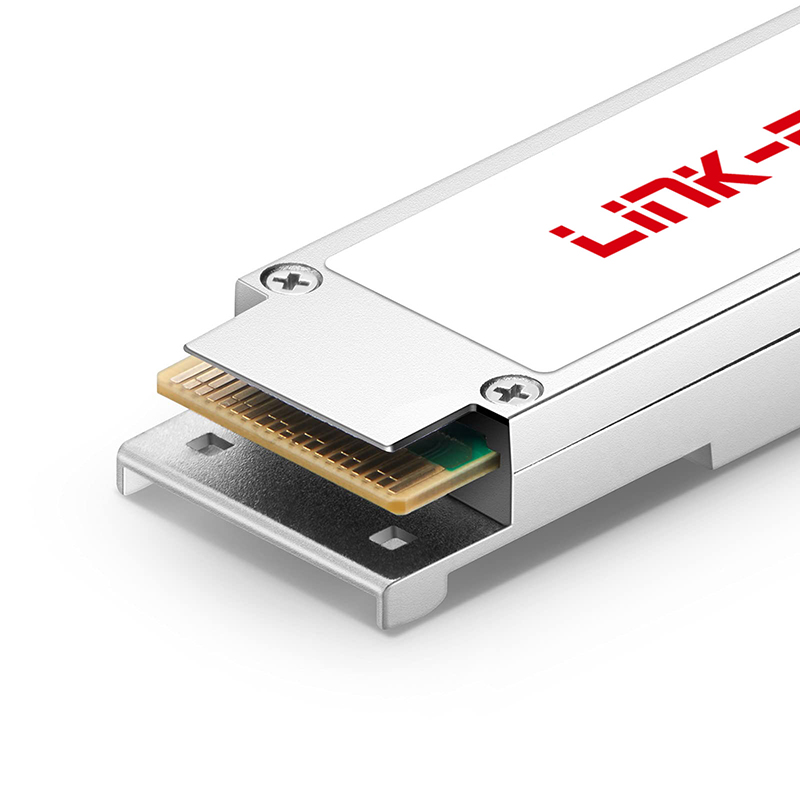

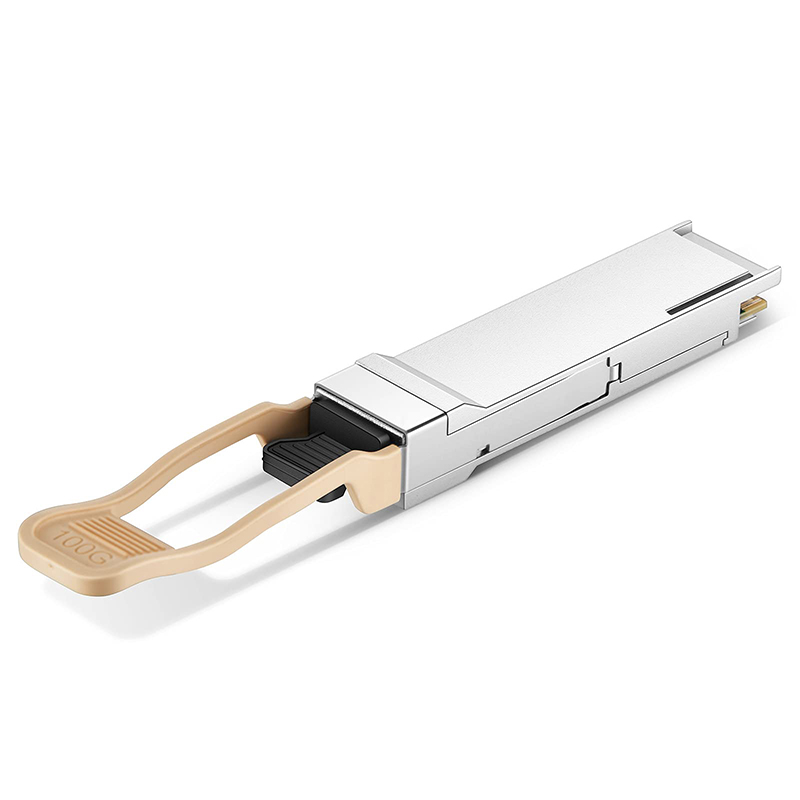

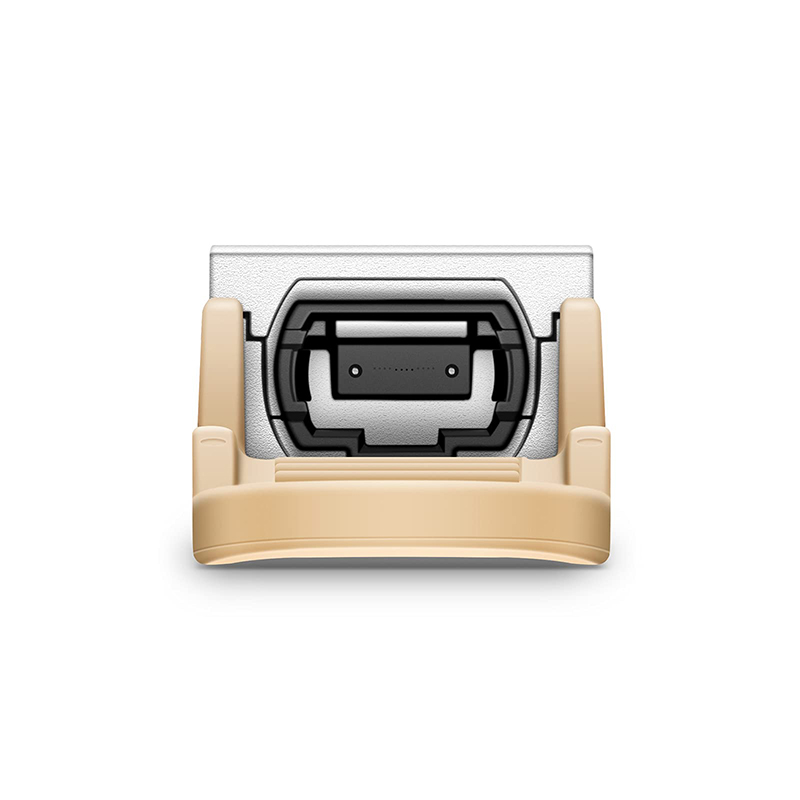

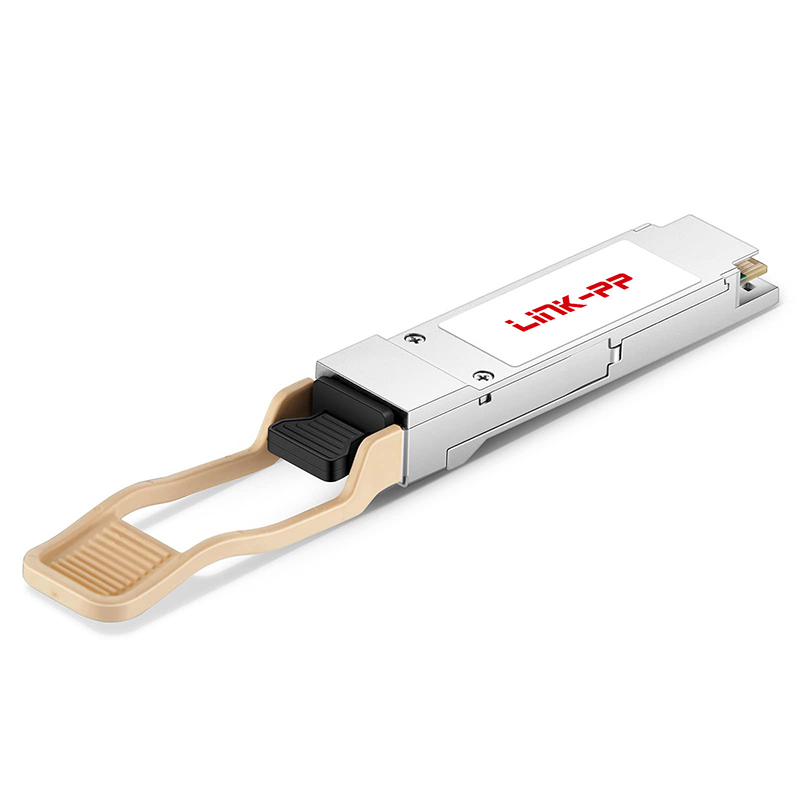

200GBASE-SR4 Optical Transceiver Module MTP/MPO-12 MMF Multimode 850nm 200G QSFP56 100m

Product Description

200GBASE-SR4 Optical Transceiver Module MTP/MPO-12 MMF Multimode 850nm 200G QSFP56 100m
Products Description
ItemFiber Optical Modules
Part StatusActive
Form FactorQSFP56
Max Data Rate200Gbps
Max Cable Distance70m@OM3/100m@OM4
Wavelength850nm
ConnectorMTP/MPO-12 UPC
MediaMMF
Optical ComponentVCSEL/PIN
TX Power-3~3dBm
Receiver Sensitivity-6.5dBm
Powerbudget3.5dB
Receiver Overload5dBm
Power Consumption≤5W
Extinction Ratio3dB
DDM/DOMDDM Supported
Commercial Temperature Range0 to 70°C (32 to 158°F)
Warranty5 Years
SampleAvailable
Protocols200G Ethernet, Data centers Interconnect, High performance computing
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transceiver Module Solution 1
Optical Transceiver Module Solution 2
Optical Transceiver Module Solution 3
Optical Transceiver Module Specification
Optical Modules Options
Optical Performance Matrix
Transceiver Module Structure Details
Transceiver Module Interfaces
Related Products SFP Cage
SFP Cage Related Products
Why Choose Us
Core Value 1
Core Value 2
Core Value 3
Core Value 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE, and UL. We own advanced manufacturing facilities and test equipment imported from abroad.

Established in 1997, we currently have around 2,000 staff members. With an abundant production capacity of 3,000K per month, we are able to deliver products within a short time.

Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
Manufacturing Facility 1
Manufacturing Facility 2
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
3. What is your delivery time?
We are ready to ship for stock items and require 15-30 days for mass production.
4. What after-service can you offer?
We offer a one-year warranty period and provide 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please contact us with your inquiry so that we can have a detailed discussion.
6. What is your advantage?
We have 19 years of professional production experience and have partnered with major global technology leaders for many years.
