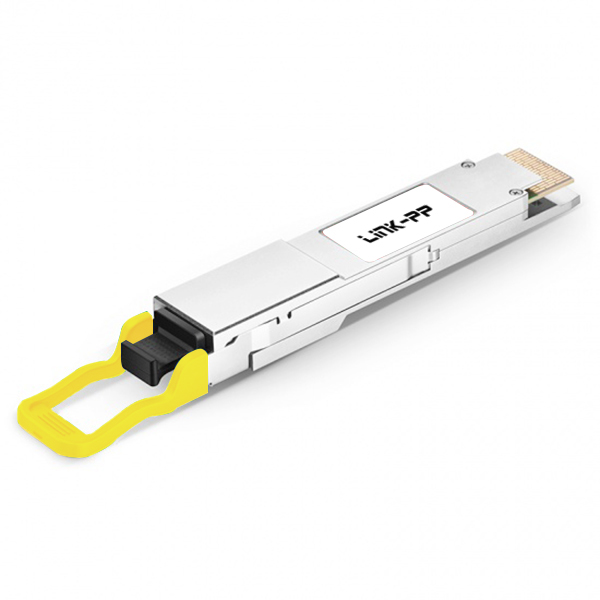

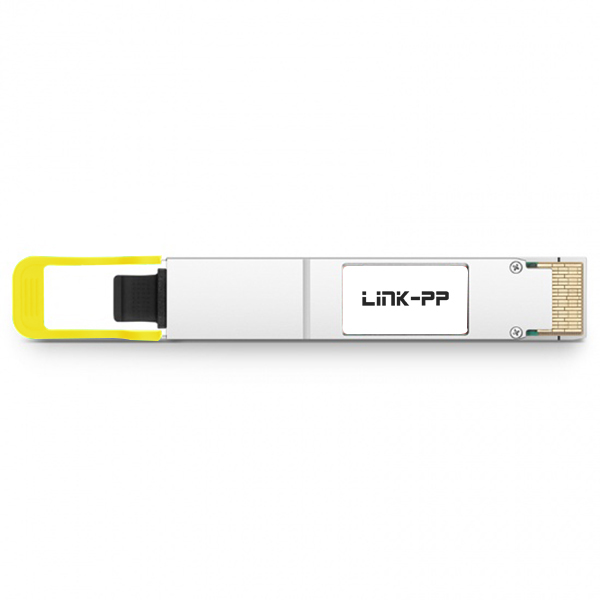

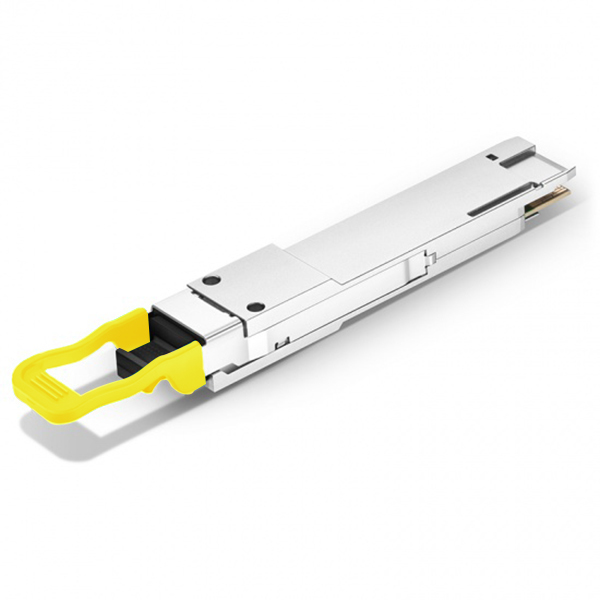

400G DR4 QSFP-DD PAM4 1310nm 500m MTP/MPO-12 APC SMF Optical Transceiver Module
| Item |
Fiber Optical Modules |
| Part Status |
Active |
| Form Factor |
QSFP-DD |
| Max Data Rate |
425Gbps (4x106.25Gb/s) |
| Max Cable Distance |
500m |
| Wavelength |
1310nm |
| Connector |

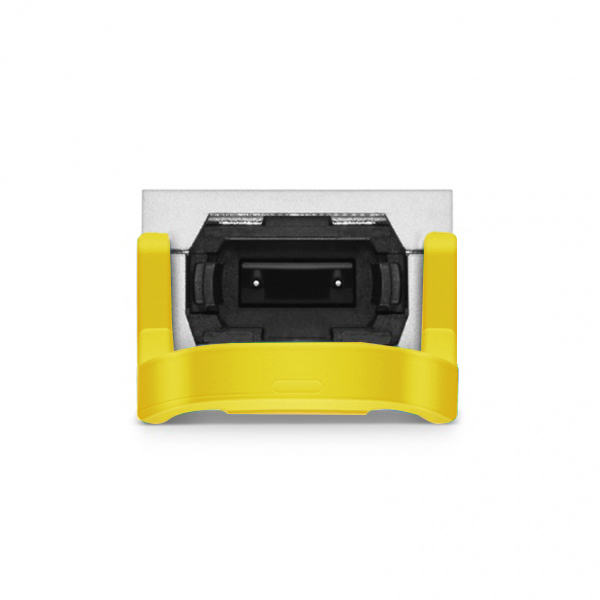

MTP/MPO-12 APC |
| Media |
SMF |
| Optical Component |
DFB/PIN |
| TX Power |
-2.9~4dBm |
| RX Power |
-5.9~4.0dBm |
| Receiver Sensitivity |
-6.5dBm |
| Powerbudget |
3dB |
| Power Consumption |
≤10W |
| Extinction Ratio |
3.5dB |
| DDM/DOM |
DDM Supported |
| Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
| Warranty |
5 Years |
| Sample |
Available |
| Protocols |
IEEE 802.3bs, QSFP-DD MSA, CMIS 4.1 |
