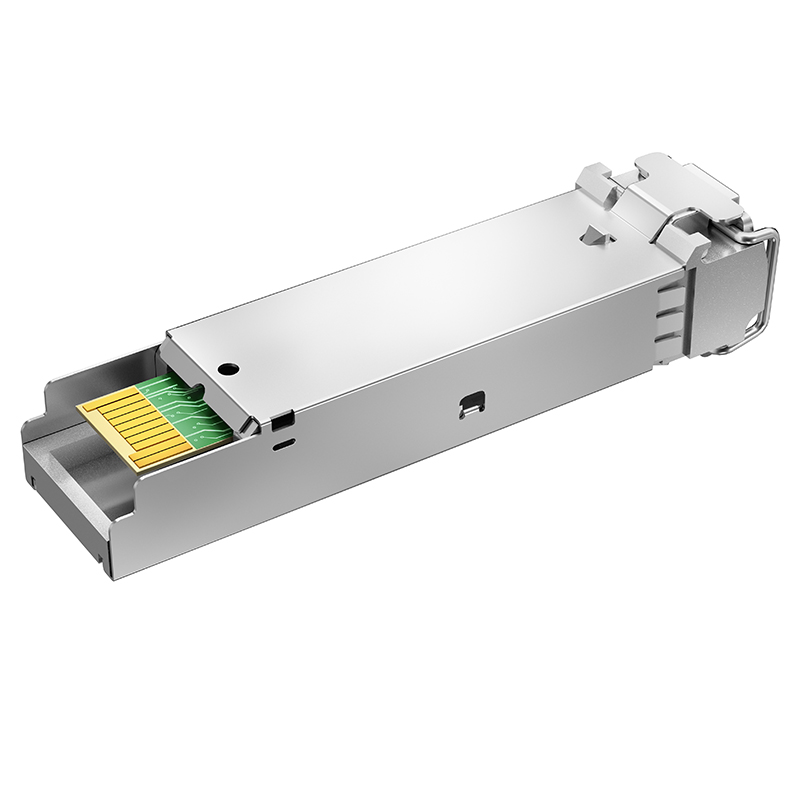

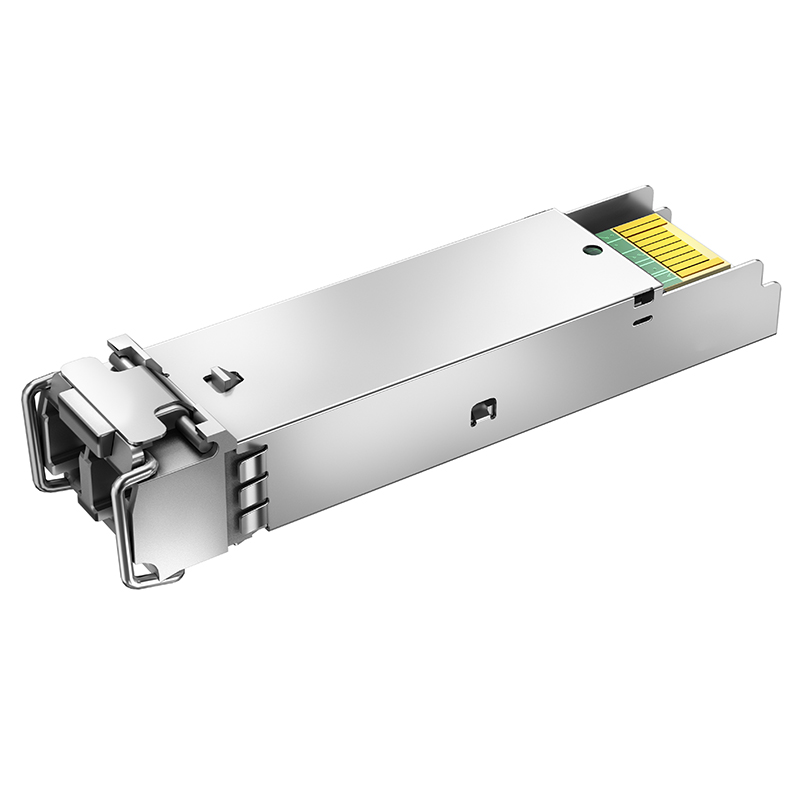

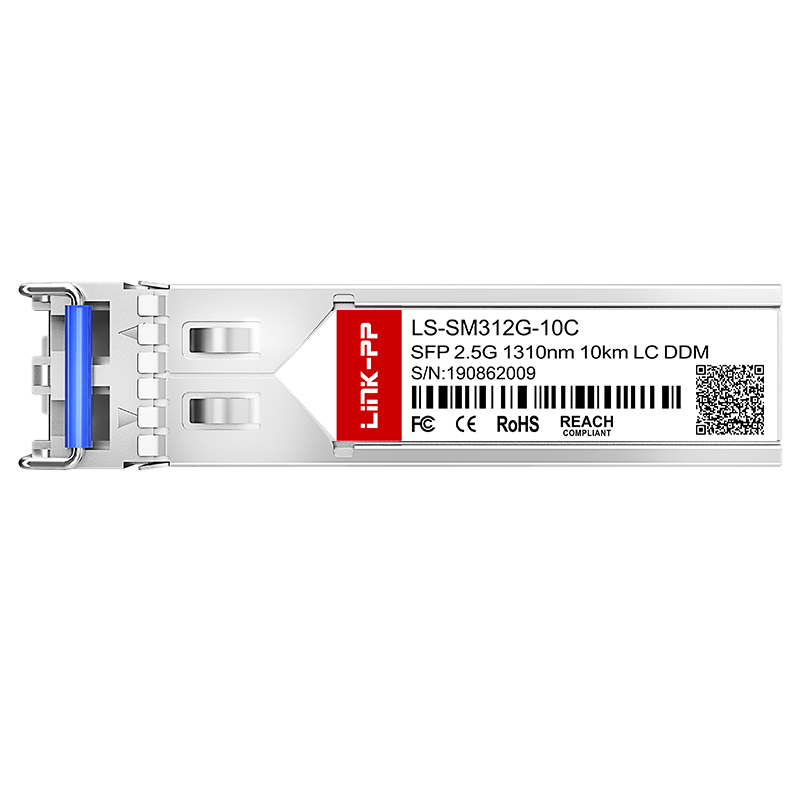

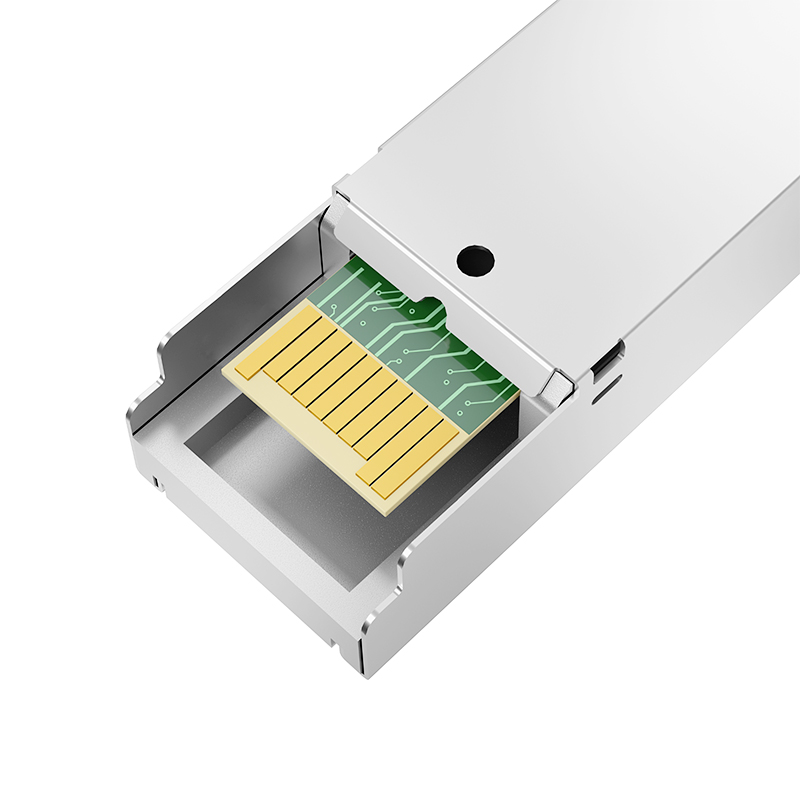

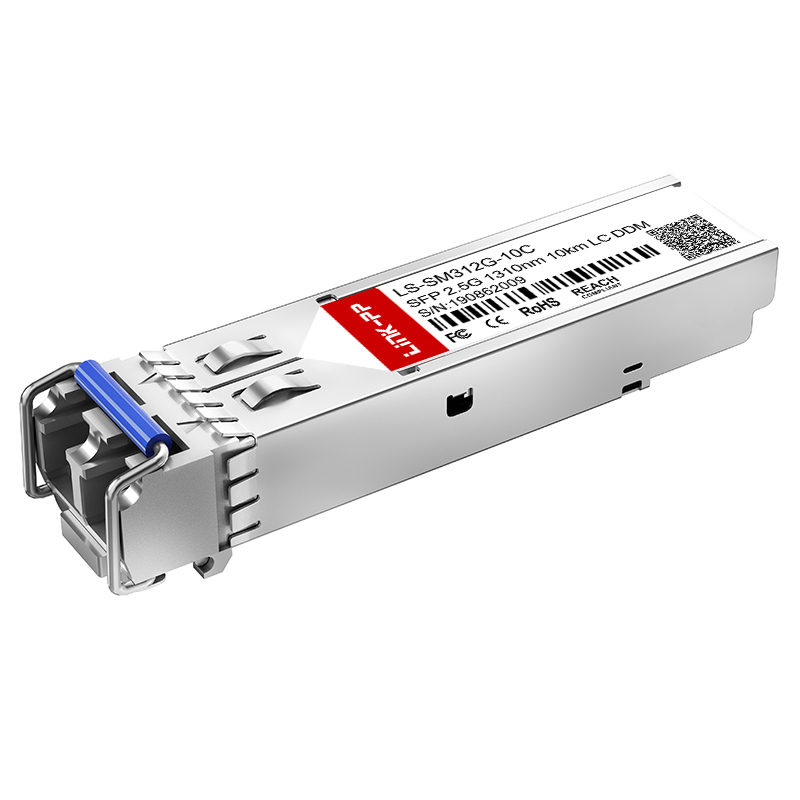

| Part No. | LS-SM312G-10C |
| Form Factor | SFP |
| Max Data Rate | 2.5Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 10km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| TX Power | -11.7 ~ -3dBm |
| Receiver Sensitivity | < -18dBm |
| Receiver Overload | -3dBm |
| EMC Support | Supported |
| DDM/DOM | Supported |
| Protocols | MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|
| LS-MM852G-S3C | 2.5Gbps | 850nm | 300m | Multi-mode | Yes |
| LS-MM852G-S5C | 2.5Gbps | 850nm | 550m | Multi-mode | Yes |
| LS-SM312G-02C | 2.5Gbps | 1310nm | 2km | Single Mode | Yes |
| LS-SM312G-10C | 2.5Gbps | 1310nm | 10km | Single Mode | Yes |
| LS-SM312G-20C | 2.5Gbps | 1310nm | 20km | Single Mode | Yes |
| LS-SM552G-80C | 2.5Gbps | 1550nm | 80km | Single Mode | Yes |
Providing end-to-end DWDM devices including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
High-speed optical interconnect solutions from 10G to 800G, designed for mass data transmission in modern data centers.
Reliable solutions including WDM and Radio over Fiber for 4G/5G systems, covering Mid-haul and Back-haul scenarios.
Total fiber access solutions covering all-optical or combined optical-copper products for global network constructors.
As a specialized manufacturer of magnetic telecom and network components, we are certified by ISO9001:2000, ROSH, REACH, CE and UL. Our facility uses advanced manufacturing and testing equipment. With an abundant production capacity of 3000K per month, we ensure short lead times and reliable delivery for global clients.
