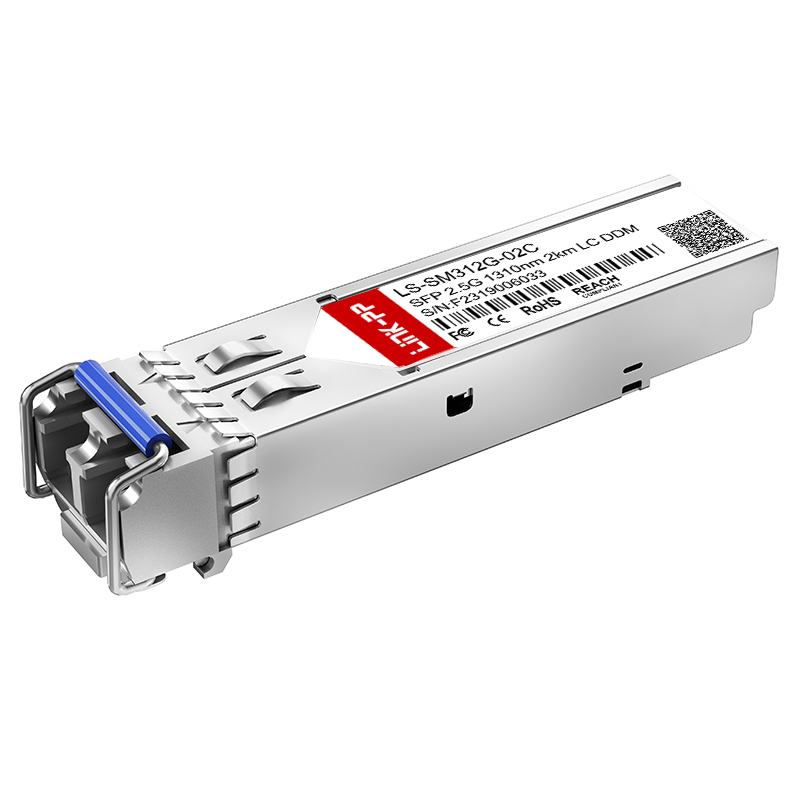

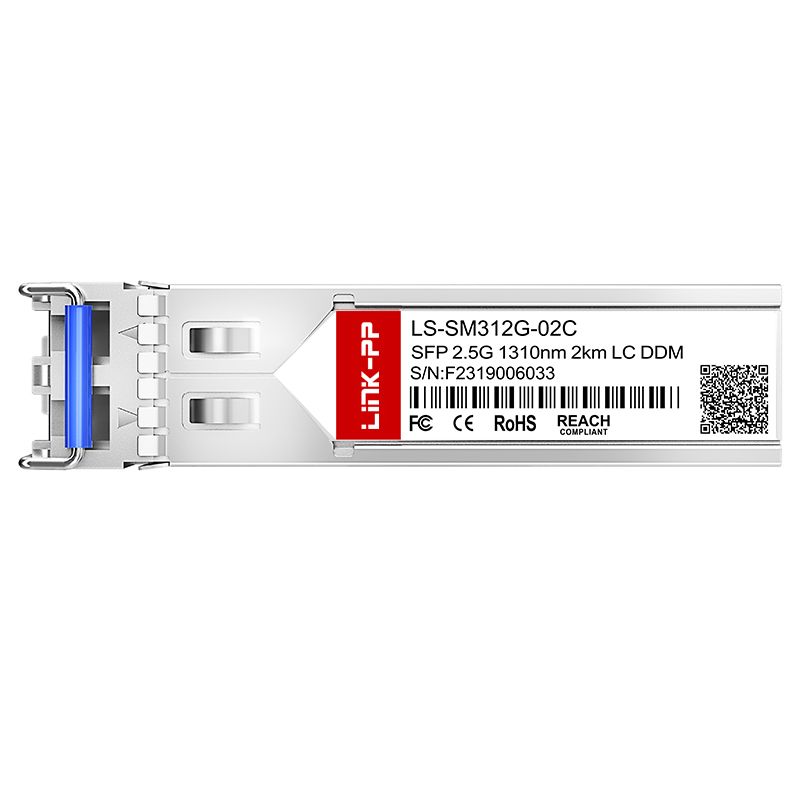

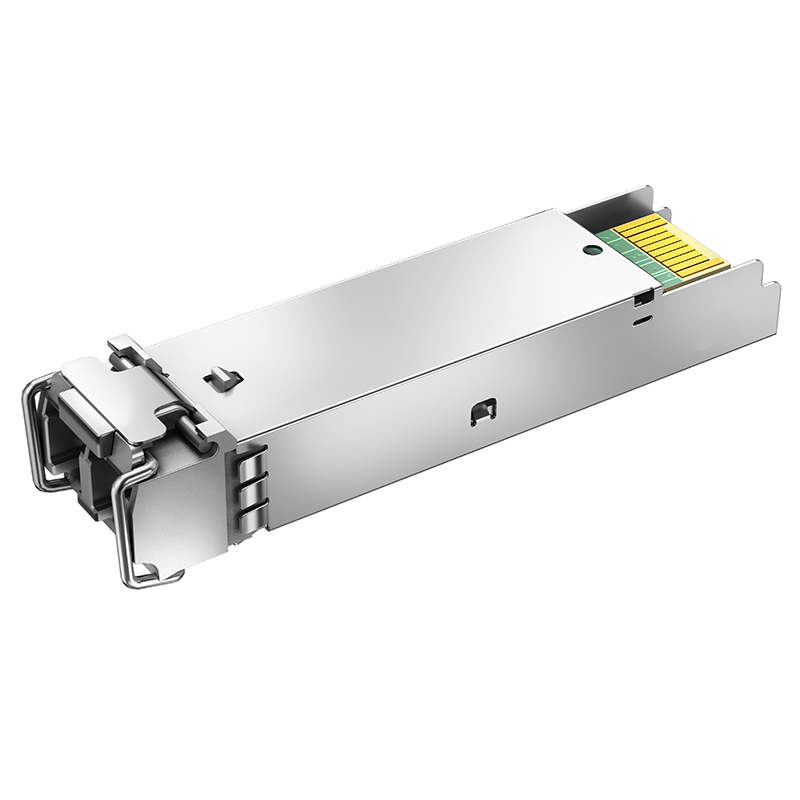

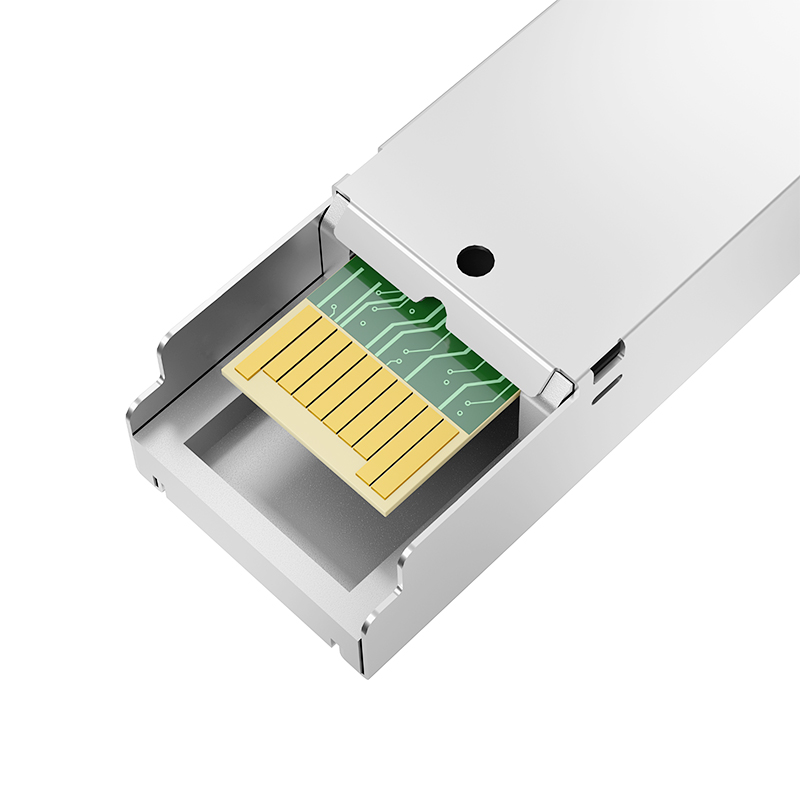

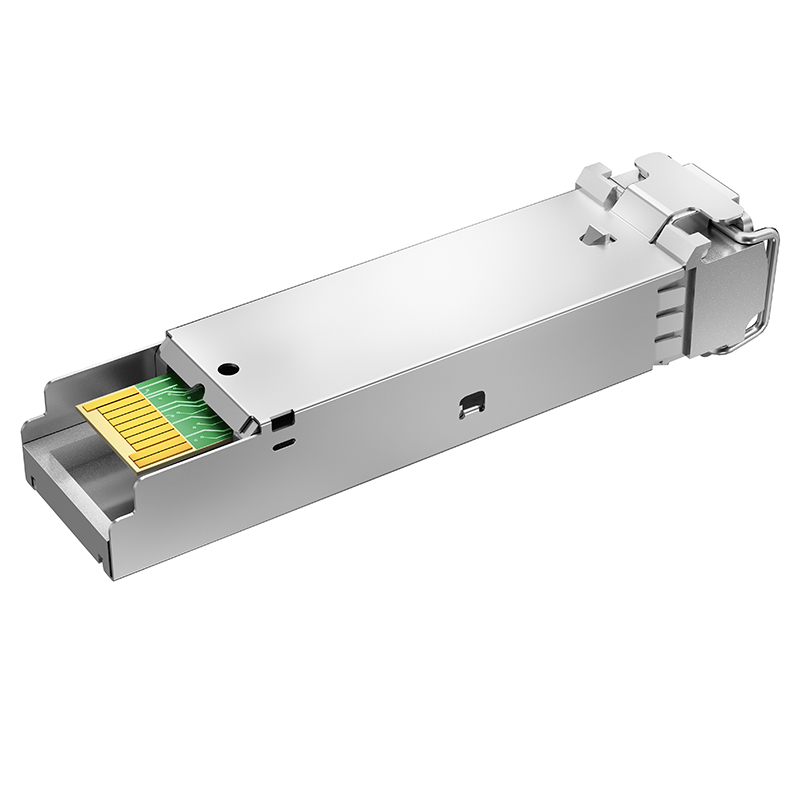

2.5GBASE-IX Duplex LC SMF Optical Transceiver Module Single Mode 1310nm 2.5G SFP Module 2km
2.5GBASE-IX Duplex LC SMF Optical Transceiver Module Single Mode 1310nm 2.5G SFP Module 2km
2.5GBASE-IX Duplex LC SMF Optical Transceiver Module Single Mode 1310nm 2.5G SFP Module 2km
2.5GBASE-IX Duplex LC SMF Optical Transceiver Module Single Mode 1310nm 2.5G SFP Module 2km
2.5GBASE-IX Duplex LC SMF Optical Transceiver Module Single Mode 1310nm 2.5G SFP Module 2km
1 / 5
2.5GBASE-IX Duplex LC SMF Optical Transceiver Module Single Mode 1310nm 2.5G SFP Module 2km
2.5GBASE-IX Duplex LC SMF Optical Transceiver Module Single Mode 1310nm 2.5G SFP Module 2km
2.5GBASE-IX Duplex LC SMF Optical Transceiver Module Single Mode 1310nm 2.5G SFP Module 2km
2.5GBASE-IX Duplex LC SMF Optical Transceiver Module Single Mode 1310nm 2.5G SFP Module 2km
2.5GBASE-IX Duplex LC SMF Optical Transceiver Module Single Mode 1310nm 2.5G SFP Module 2km

2.5GBASE-IX Duplex LC SMF Optical Transceiver Module Single Mode 1310nm 2.5G SFP Module 2km

Send Inquiry

Product Description

Optical Transceiver Interface
2.5GBASE-IX Duplex LC SMF Optical Transceiver Module Single Mode 1310nm 2.5G SFP Module 2km
Products Description
Item 2.5G SFP
Part Status Active
Form Factor SFP
Max Data Rate 2.5Gbps
Wavelength 1310nm
Max Cable Distance 2km
Media SMF
Connector Duplex LC
Optical Component FP/PIN
TX Power -10~-3dBm
Receiver Sensitivity <-18dBm
Receiver Overload -3dBm
Power Consumption 1W
Extinction Ratio >8.2dB
DDM/DOM Supported
Commercial Temperature Range -10 to 70°C (-37 to 158°F)
Protocols SFP MSA(INF-8074i), GR-253-CORE, ITU-T G.957, FC-PI v2.0, SFF-8472 v9.5
Warranty 5 Years
Sample Available
SFP Module Detail SFP Specifications Detail
SFP Application 1 SFP Application 2 SFP Application 3 SFP Application 4 SFP Application 5
SFP Structural Design
☞ Related Products SFP Cage ☞
SFP Cage Option 1 SFP Cage Option 2
Why Choose Us
Quality Standard 1 Quality Standard 2 Quality Standard 3 Quality Standard 4 Quality Standard 5
Testing Facility Production Line
FAQ
1 Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2 Can I get a sample before mass production?
Yes, we can offer you a free sample to test quality, but the shipping fee needs to be covered.
3 What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production orders.
4 What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
5 Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion on your requirements.
6 What is your advantage?
We have 19 years of production experience and have partnered with major industry leaders for many years.
