Equip-Link
Equip-Link

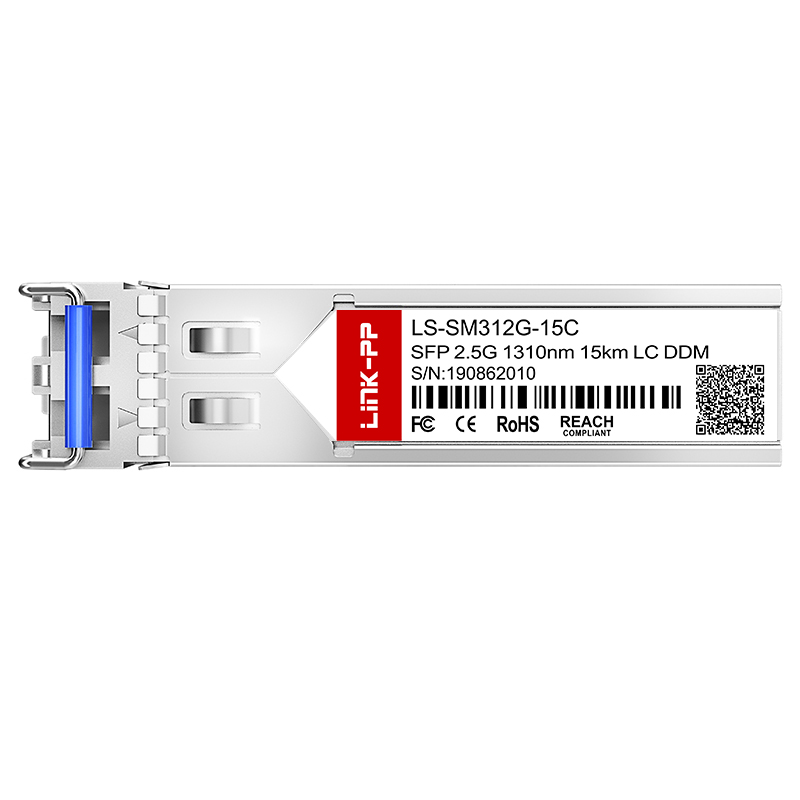

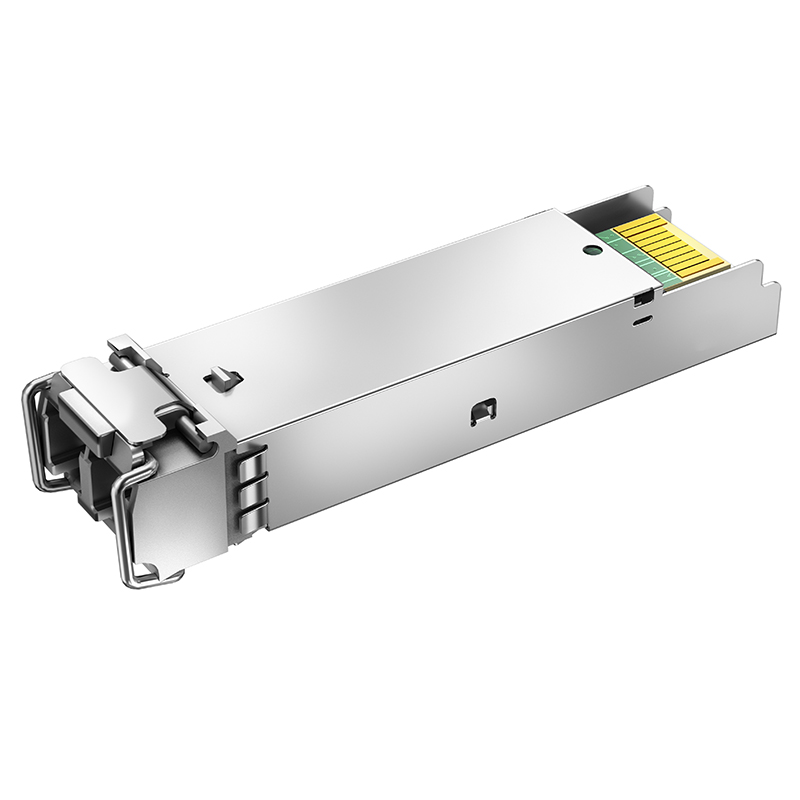

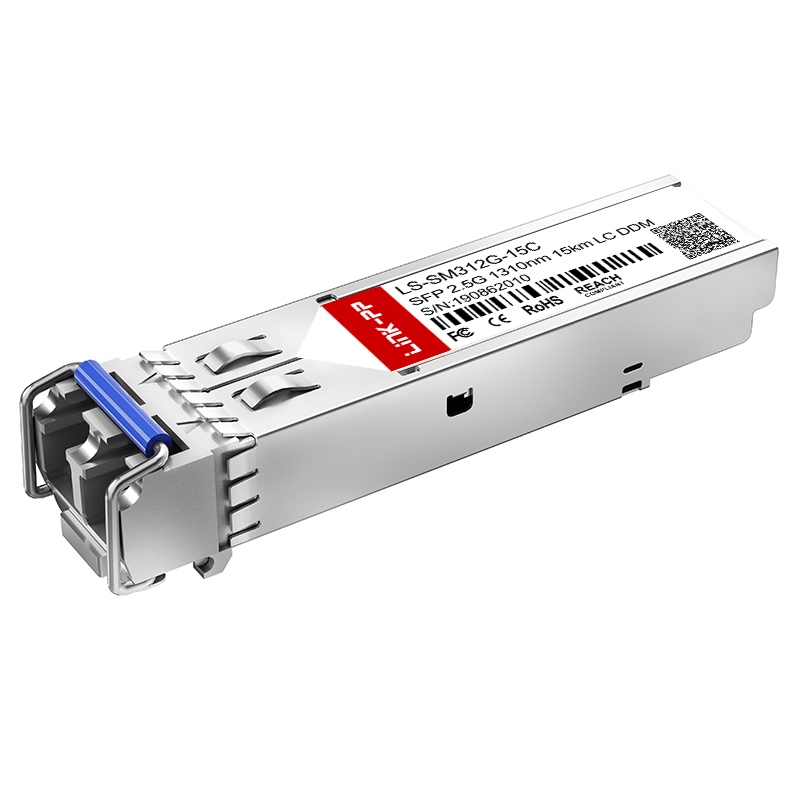

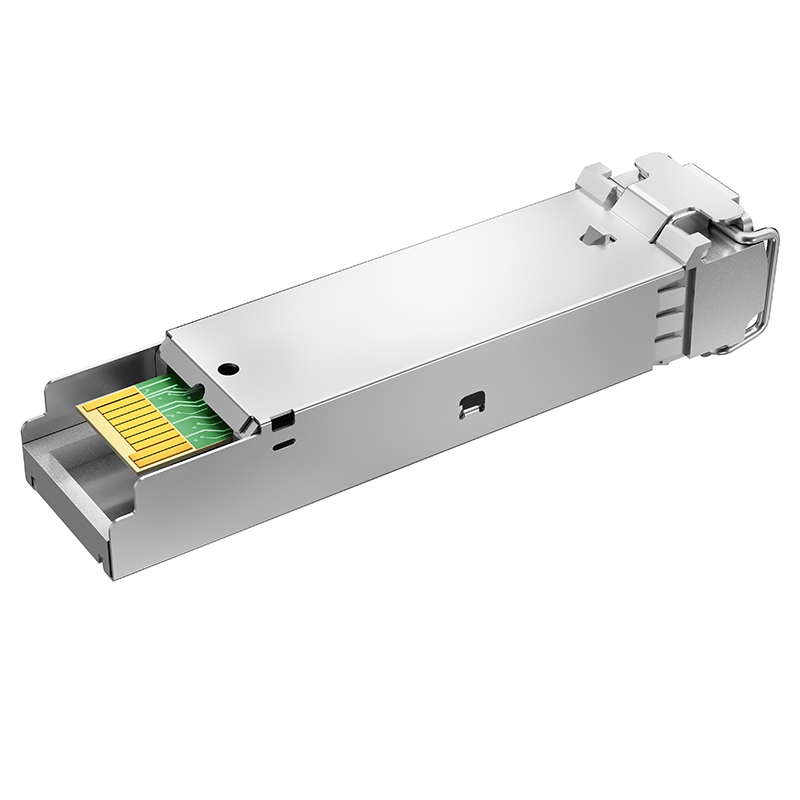

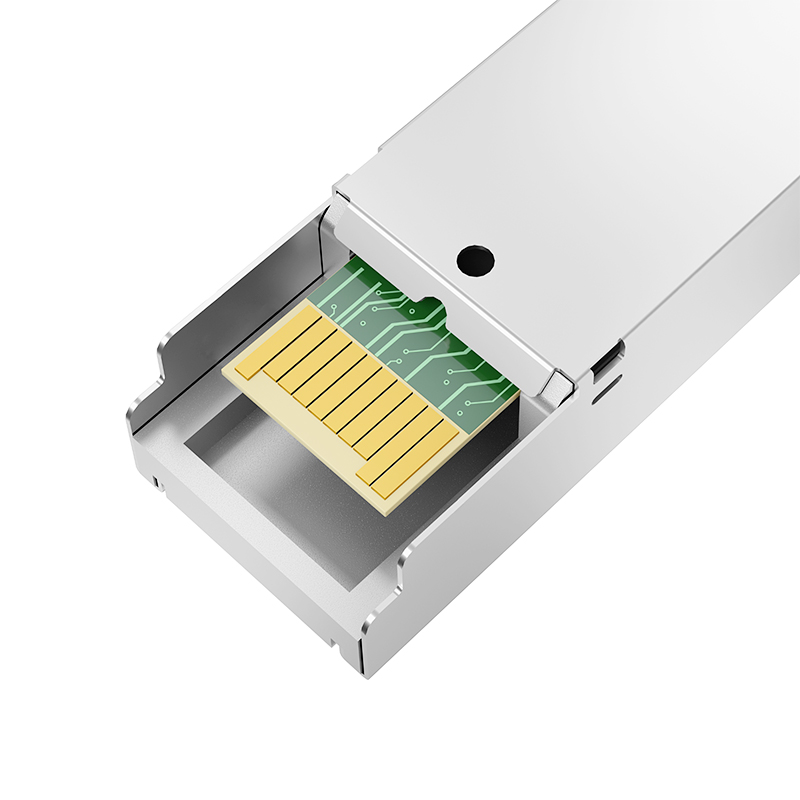

| Item | 2.5G SFP |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 2.5Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 15km |
| Media | SMF |
| Connector | Duplex LC |
| Optical Component | DFB/PIN |
| TX Power | -5~0dBm |
| Receiver Sensitivity | <-18dBm |
| Receiver Overload | 0dBm |
| Power Consumption | 1W |
| Extinction Ratio | >8.2dB |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | SFP MSA(INF-8074i), GR-253-CORE, ITU-T G.957, FC-PI v2.0, SFF-8472 v9.5 Compliant |
| Warranty | 5 Years |
As a specialized manufacturer of magnetic telecom and networking components, we are certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing and test equipments. Established in 1997, we have a dedicated team of around 2000 staff. With an abundant productive capacity of 3000K per month, we ensure delivery within short lead times. We provide professional complete solutions for magnetic components along with strong technical support.
Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported to more than 30 countries and regions globally, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.
