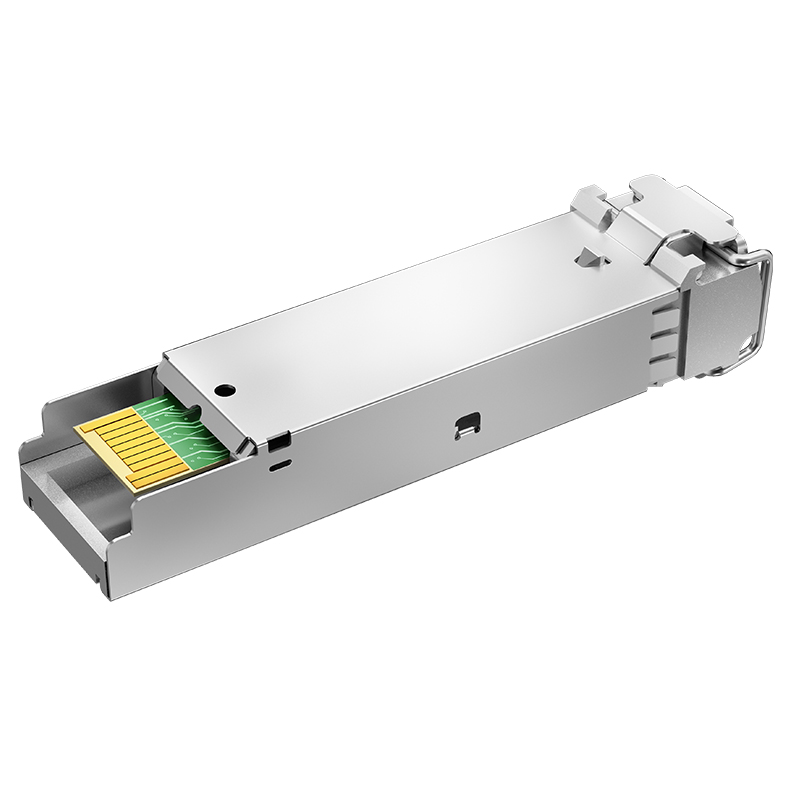

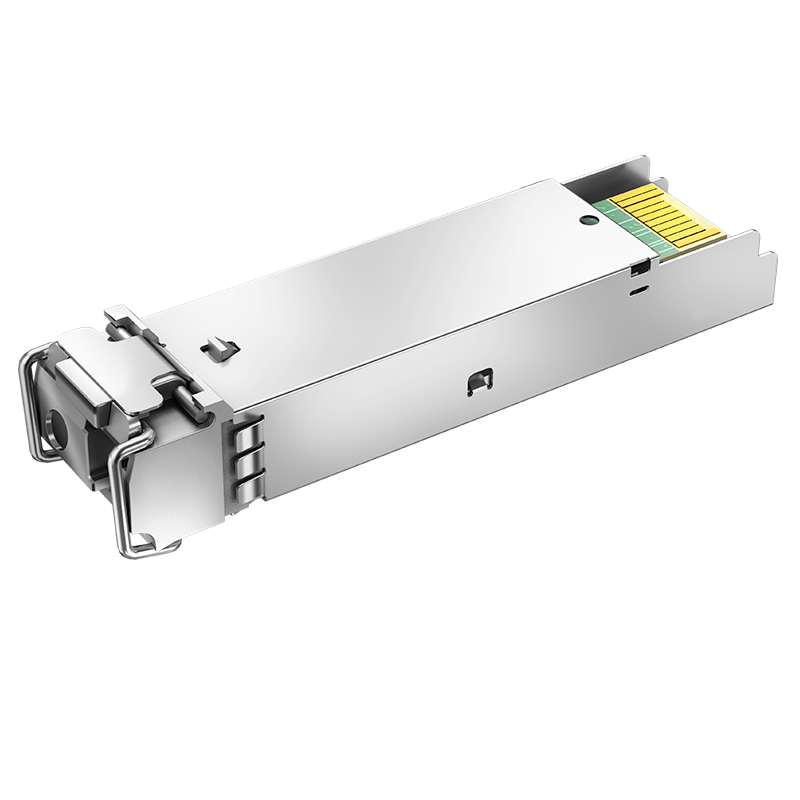

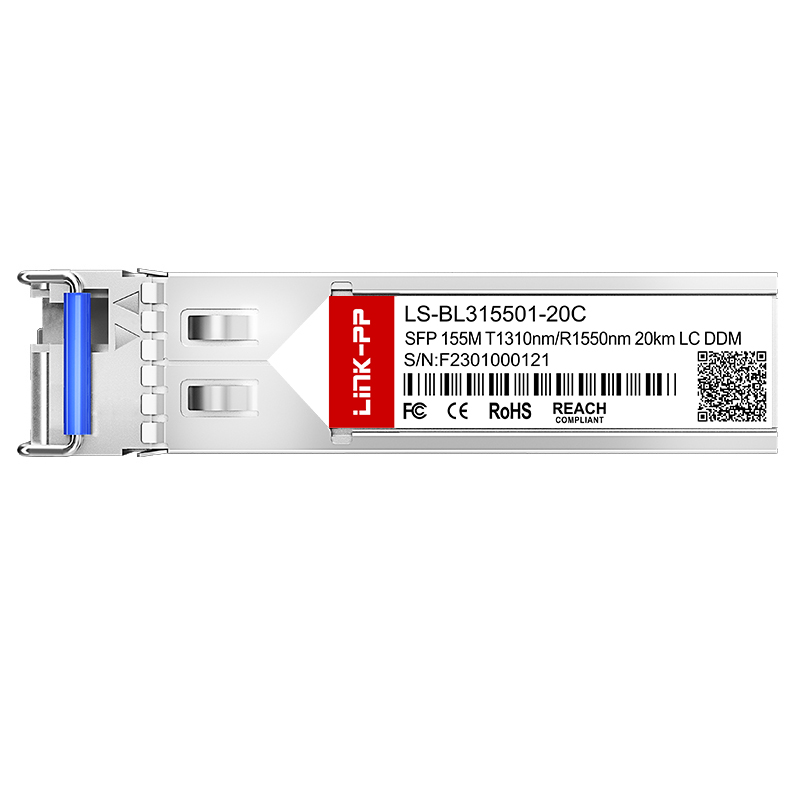

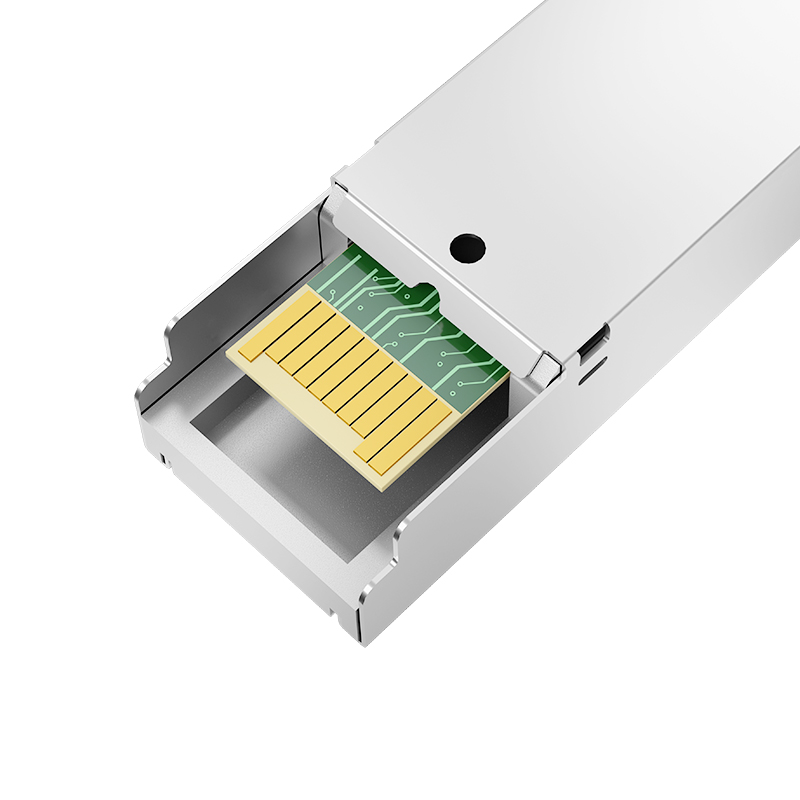

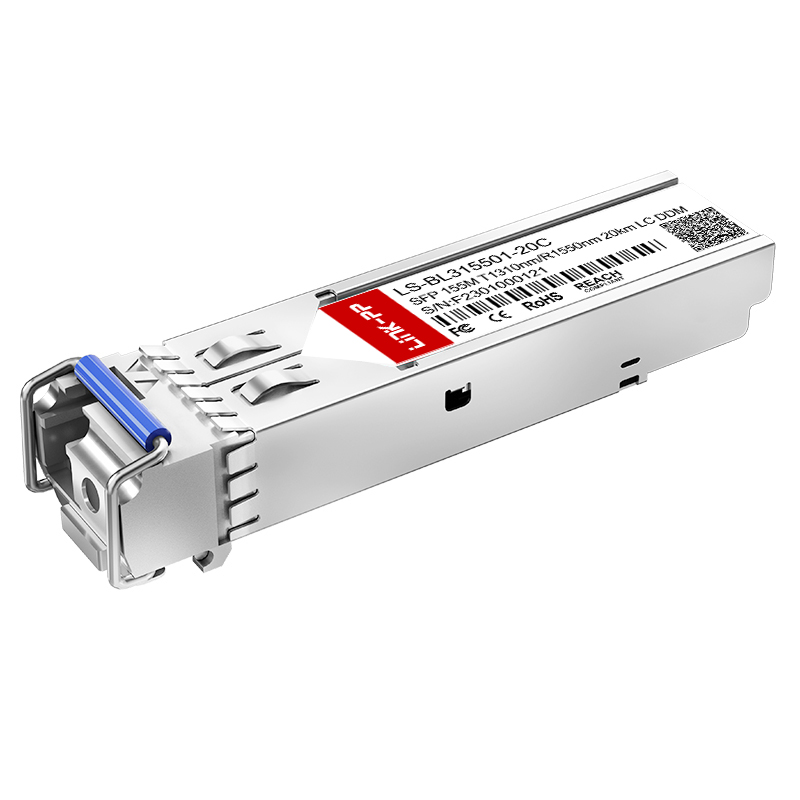

1310nm-TX/1550nm-RX Bidirectional Single Mode SFP 155M Bidi 20km LC Optical Transceiver Module
| Form Factor | SFP |
|---|---|
| Max Data Rate | 155Mbps |
| Wavelength | 1310nm-TX/1550nm-RX |
| Max Cable Distance | 20km |
| Connector | Simplex LC |
| Media | SMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| TX Power | -14 ~ -8dBm |
| Receiver Sensitivity | < -30dBm |
| EMC Supported | Yes |
| DDM/DOM | Supported |
| Protocols | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
Drawing on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
End-to-end DWDM solutions with comprehensive optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
To meet the demand for mass data transmission in data centers, a series of high-speed optical modules with rates ranging from 10G to 800G has been developed, providing high-quality interconnection solutions.
High reliability and performance products using mature lasers and mainstream chip solutions. Solutions include Dark Fiber, WDM, Radio over Fiber, and Back-haul for 4G/5G systems.
A specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROHS, REACH, CE, and UL. Equipped with advanced manufacturing and testing equipment. With an abundant production capacity of 3000K per month, we ensure short delivery times and high-quality optical interconnect solutions for cloud computing and ultra-broadband networks.
