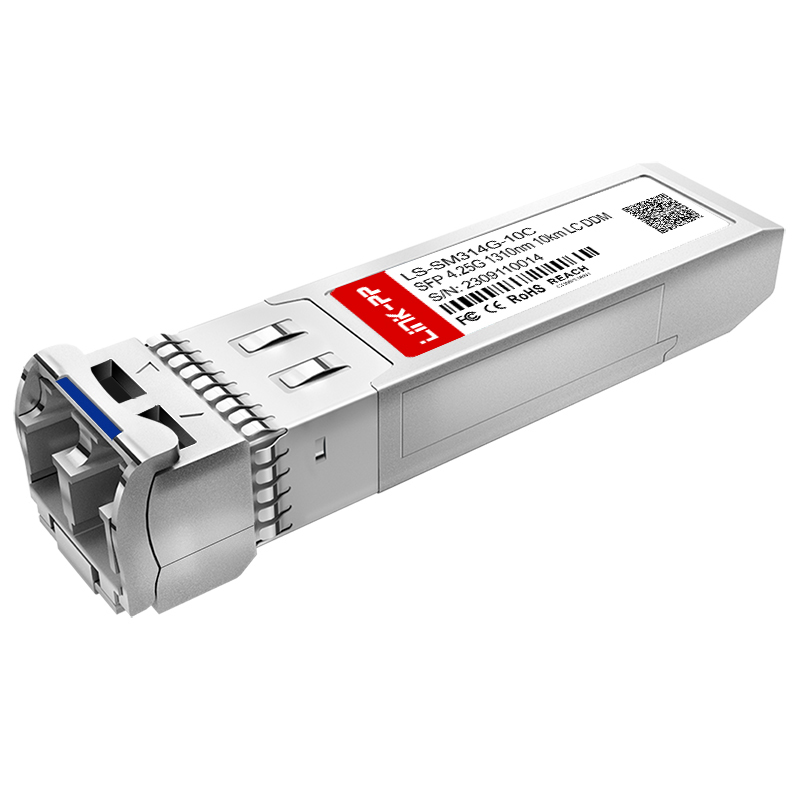

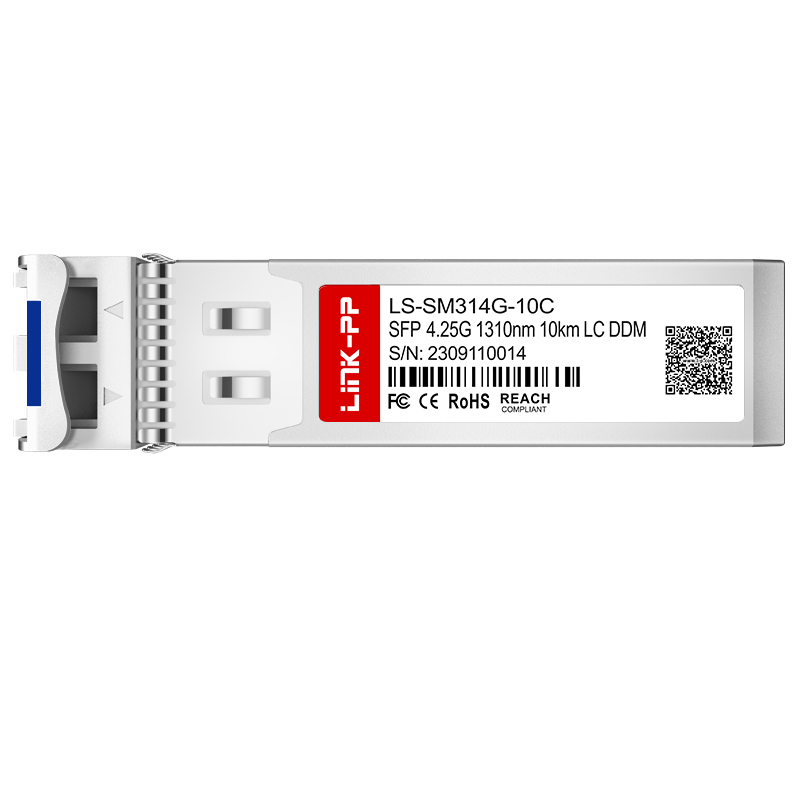

Single Mode SFP 4G Fibre Channel 1310nm 10km Duplex LC Optical Transceiver Module
| Product Specifications |
| Part No. |
LS-SM314G-10C |
| Form Factor |
SFP |
| Max Data Rate |
4.25Gbps |
| Wavelength |
1310nm |
| Max Cable Distance |
10km |
| Connector |
Duplex LC |
| Media |
SMF |
| Transmitter Type |
DFB |
| Receiver Type |
PIN |
| TX Power |
-8 ~ -1dBm |
| Receiver Sensitivity |
< -18dBm |
| EMC (Electro Magnetic Compatibility) |
Supported |
| DDM/DOM |
Supported |
| Protocols |
MSA Compliant |
| Temperature Range |
0 to 70°C / -40 to 85°C |
| Warranty |
5 Years |
| Sample |
Available |
VIEW OUR SOLUTIONS
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Support Full Range Of 4.25G SFP
| Part Number |
Data Rate |
Wavelength |
Distance |
Media |
DDM |
| LS-MM854G-S1C |
4.25Gbps |
850nm |
150m |
Multi-mode |
Yes |
| LS-MM852G-S3C |
4.25Gbps |
850nm |
300m |
Multi-mode |
Yes |
| LS-MM854G-S5C |
4.25Gbps |
850nm |
500m |
Multi-mode |
Yes |
| LS-SM314G-02C |
4.25Gbps |
1310nm |
2km |
Single Mode |
Yes |
| LS-SM314G-04C |
4.25Gbps |
1310nm |
4km |
Single Mode |
Yes |
| LS-SM314G-10C |
4.25Gbps |
1310nm |
10km |
Single Mode |
Yes |
| LS-SM314G-40C |
4.25Gbps |
1310nm |
40km |
Single Mode |
Yes |
| LS-SM554G-40C |
4.25Gbps |
1550nm |
40km |
Single Mode |
Yes |
Applications & Infrastructure
Related Products SFP Cage
Why Choose Us
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee needs to be covered.
What is your delivery time?
Ready to ship for stock items and 15-30 days for mass production.
What after-service can you offer?
We provide a warranty period and offer online technical support 24 hours.
Can you accept OEM/ODM orders?
Yes, please send your details to us so that we can have a detailed discussion.
What is your advantage?
We have over 19 years of production experience and maintain long-term partnerships with global industry-leading enterprises.
