Send Inquiry

Product Description

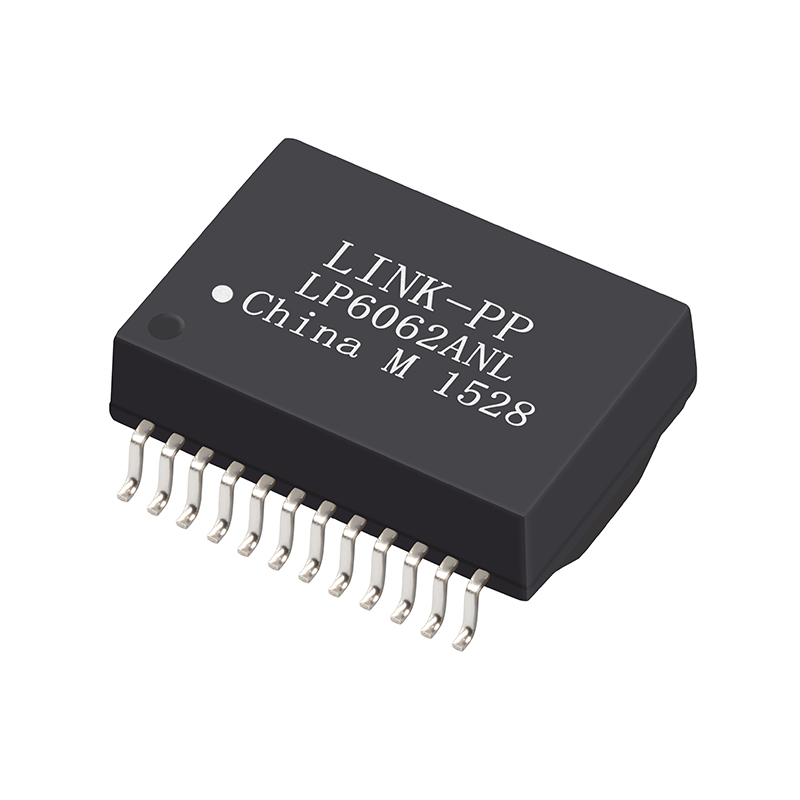

LAN Transformer LP6062ANL

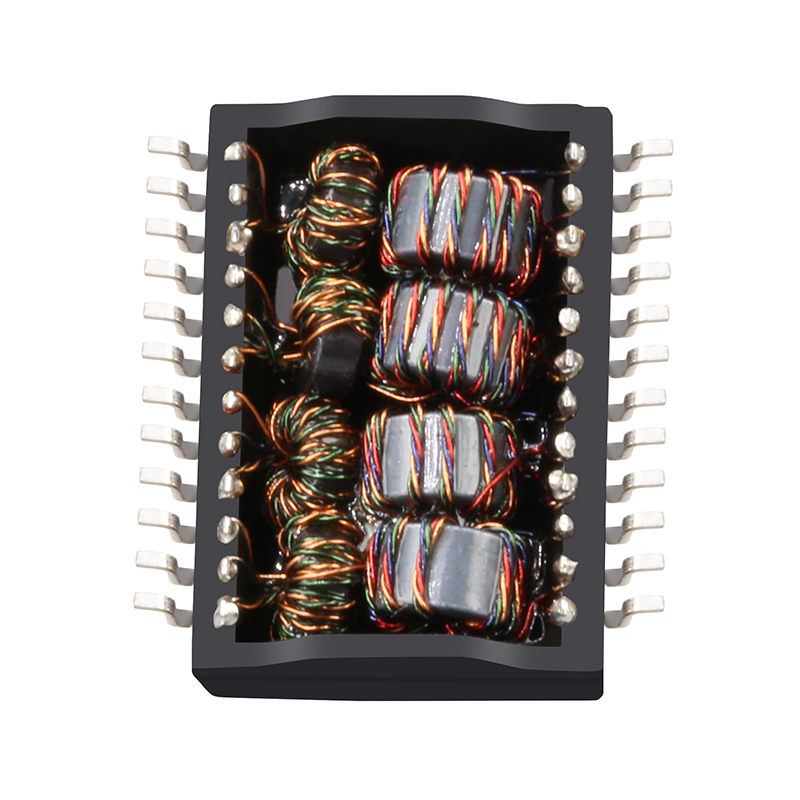

LAN Transformer Product View 1

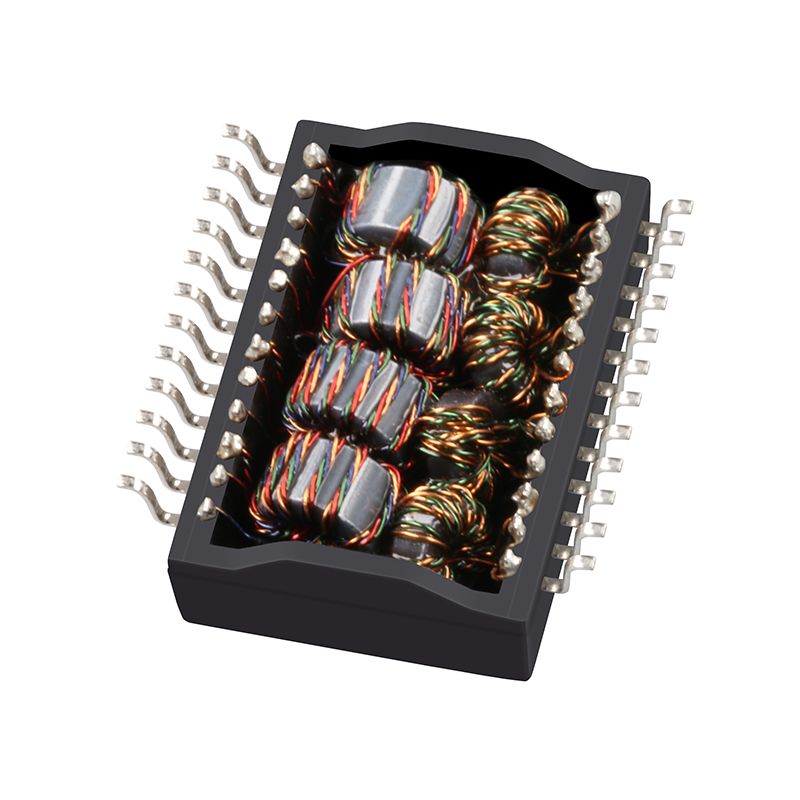

LAN Transformer Product View 2

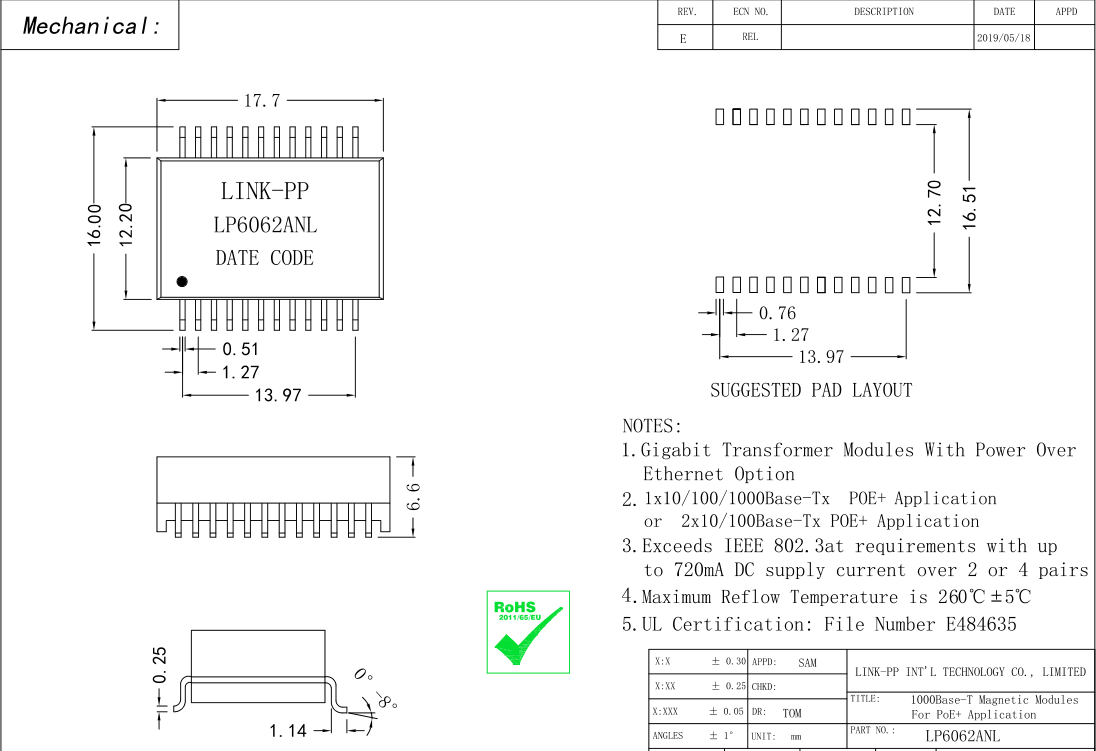

LAN Transformer Pin Diagram
LAN Transformer Technical Layout
Item Value
Place of Origin China
LINK-PP Part Number LP6062ANL
Halo Part Number TG1G-S012NZRL
Transformer Type Lan Transformer
Application-Lan Ethernet(PoE+)
Number of Ports Single Port
Speed 10/100/1000 Base-T
Package Tape & Reel
Cores per Port 8
PIN number 24 Pin
Mounting Type Surface Mount
Temperature -40℃ TO +85℃
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
LAN Transformer Dimensions
Packaging Specifications
N.W/pcs: 0.004kg,   Package: Reel,   SPQ: 400pcs,   Qty/carton: 1600pcs,   Carton size: 37*37*25cm,   G.W/carton: 5.8kg
LAN Transformer Reel Layout
LAN Transformer Solder Pad Layout
LAN Transformer Standard Packaging

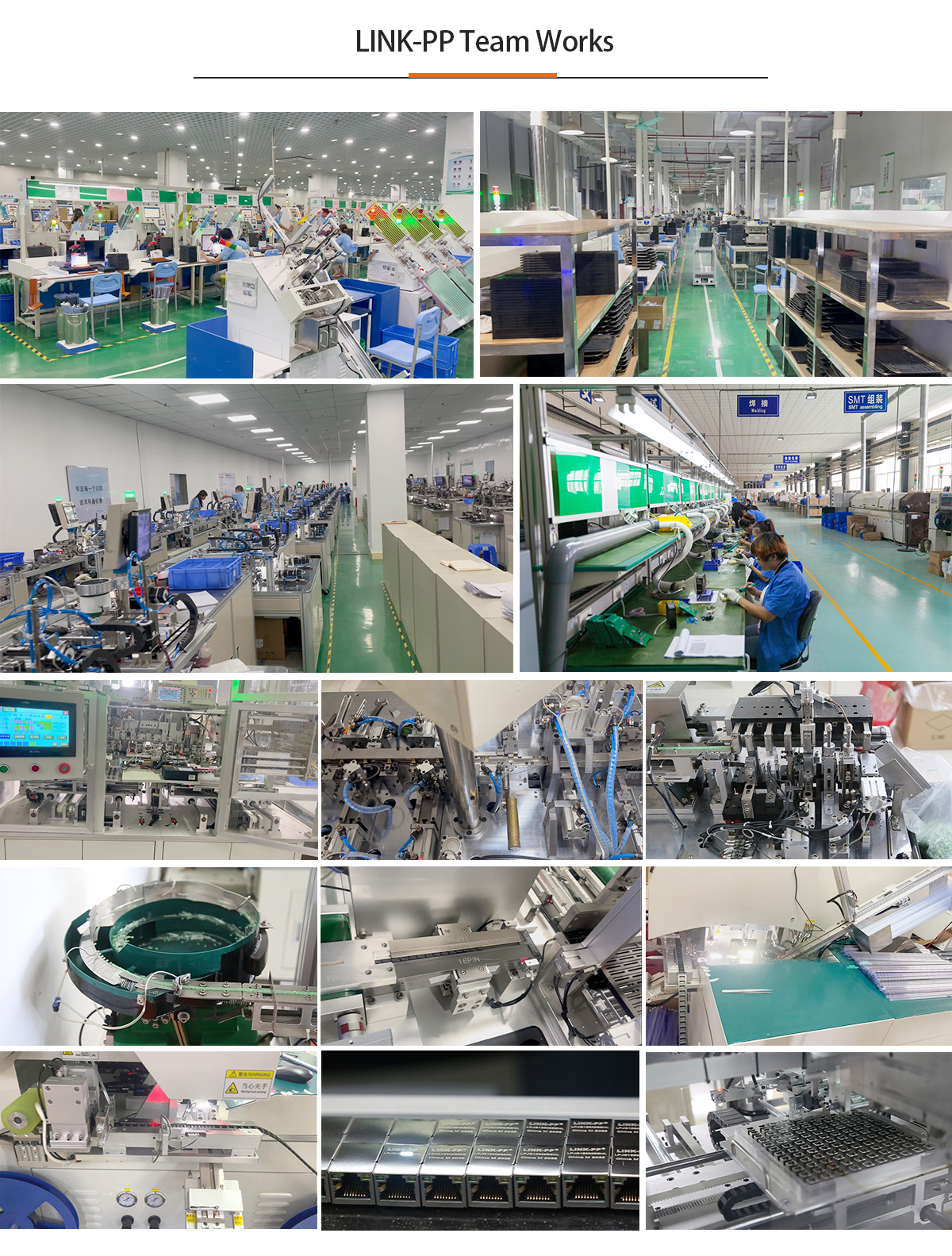

LAN Transformer Manufacturing Line
LAN Transformer Testing Phase
LAN Transformer Quality Inspection
LAN Transformer Certification and Logistics
Frequently Asked Questions
What is the cross-reference compatibility for the LP6062ANL?
The LP6062ANL LAN transformer is equivalent to the Halo part number TG1G-S012NZRL, offering matching technical performance and footprint layout.
What network speed and applications does this LAN transformer support?
This transformer supports high-speed 10/100/1000 Base-T Gigabit Ethernet connections and is optimized for PoE+ (Power over Ethernet) systems.
What is the operating temperature range for LP6062ANL?
It is designed for industrial durability, supporting a wide operating temperature range from -40℃ to +85℃.
How is the transformer packaged and what are the shipping box details?
The product is supplied in Tape & Reel packaging with a standard packing quantity (SPQ) of 400pcs per reel. A full carton contains 1600pcs, measures 37*37*25cm, and has a gross weight of 5.8kg.
What are the core parameters and pin count for this model?
This LAN transformer features a 24-pin design with 8 cores per port, surface mount configuration, and a turns ratio of 1CT:1CT.
