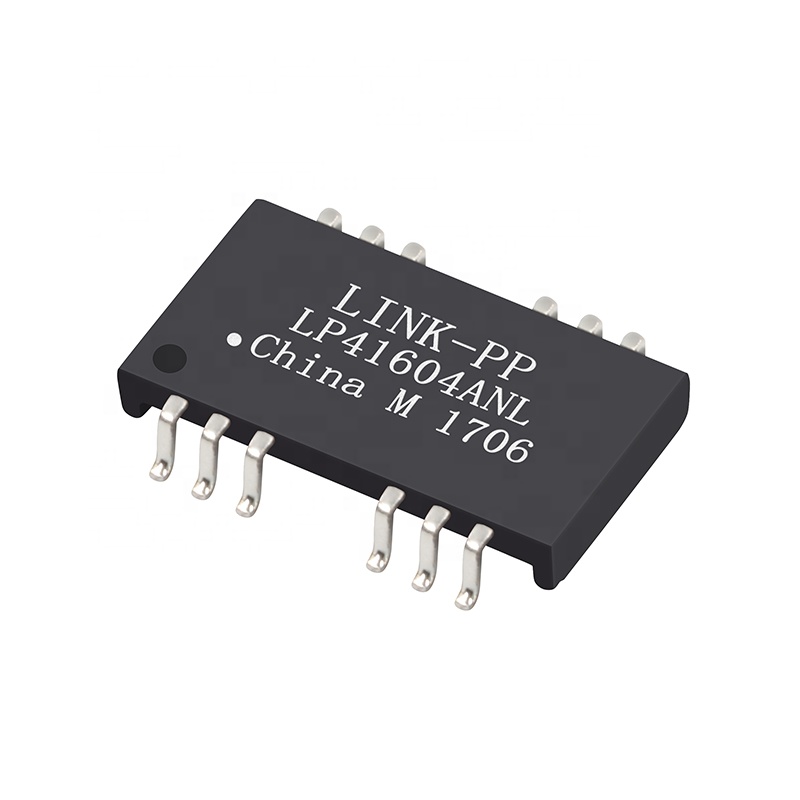

H81621S 10/100 Base-T SMD Lan Filter Ethernet Transformer
Products Description
Item Lan Transformer
Replaceable Brand Model H81621S
Part Status Active
Construction Open frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports Single / Dual / Quad
Speed 10 / 100 / 1000 Base-T
Cores per Port 4 / 8 / 12
Pin Number 10 Pin / 12 Pin / 24 Pin / 48 Pin
Mounting Type DIP / SMT
Temperature 0℃ To 70℃ / -40℃ To 85℃
AutoMDIX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C, S
Package Tape & Reel

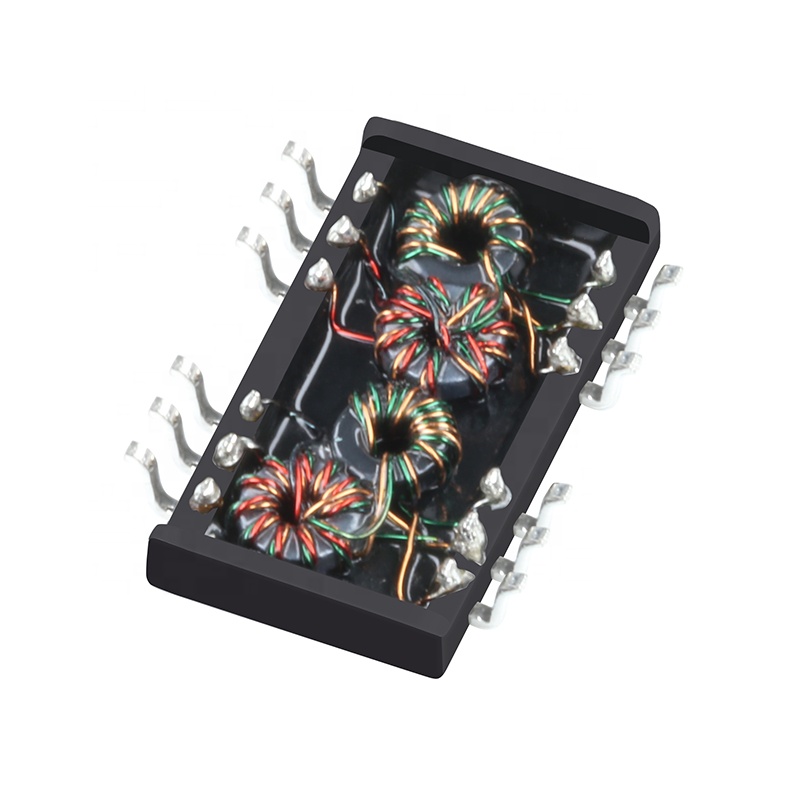

Lan Filter Detail 1
Lan Filter Detail 2
Lan Filter Detail 3
Lan Filter Detail 4
Lan Filter Detail 5
Technical Layout 1
Technical Layout 2
Why Choose Us
Feature Advantage 1
Feature Advantage 2
Feature Advantage 3
Feature Advantage 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components alongside strong technical support.
Main Products:
  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions worldwide, covering Germany, France, England, USA, Singapore, Korea, Canada, and Japan.
Main Customers:
ZNE, JABIL, FOXCONN, H3C, FLEXTRONICS, IBM, TEXAS INSTRUMENTS TELECOMMUNICATION TECHNOLOGIES LLC. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our dedication to excellence will establish a long-term partnership.
Production Workshop 1
Production Workshop 2
Testing Equipment 1
Testing Equipment 2
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you should cover the shipping costs.
3. What is your delivery time?
Items currently in stock are ready to ship. For mass production orders, the lead time is approximately 15-30 days.
4. What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send us an inquiry so we can proceed with a detailed discussion regarding your specific requirements.
6. What is your advantage?
We bring over 19 years of dedicated production experience and have been a trusted partner for major global technology brands for many years.
