Huge Stocks 100/1000 Base-T 48 Pin Dual Port Magnetics Modules Telecom Transformer S558-5999-Q2-F
Huge Stocks 100/1000 Base-T 48 Pin Dual Port Magnetics Modules Telecom Transformer S558-5999-Q2-F
1 / 2
Huge Stocks 100/1000 Base-T 48 Pin Dual Port Magnetics Modules Telecom Transformer S558-5999-Q2-F
Huge Stocks 100/1000 Base-T 48 Pin Dual Port Magnetics Modules Telecom Transformer S558-5999-Q2-F

Huge Stocks 100/1000 Base-T 48 Pin Dual Port Magnetics Modules Telecom Transformer S558-5999-Q2-F

Send Inquiry

Product Description

Product Description

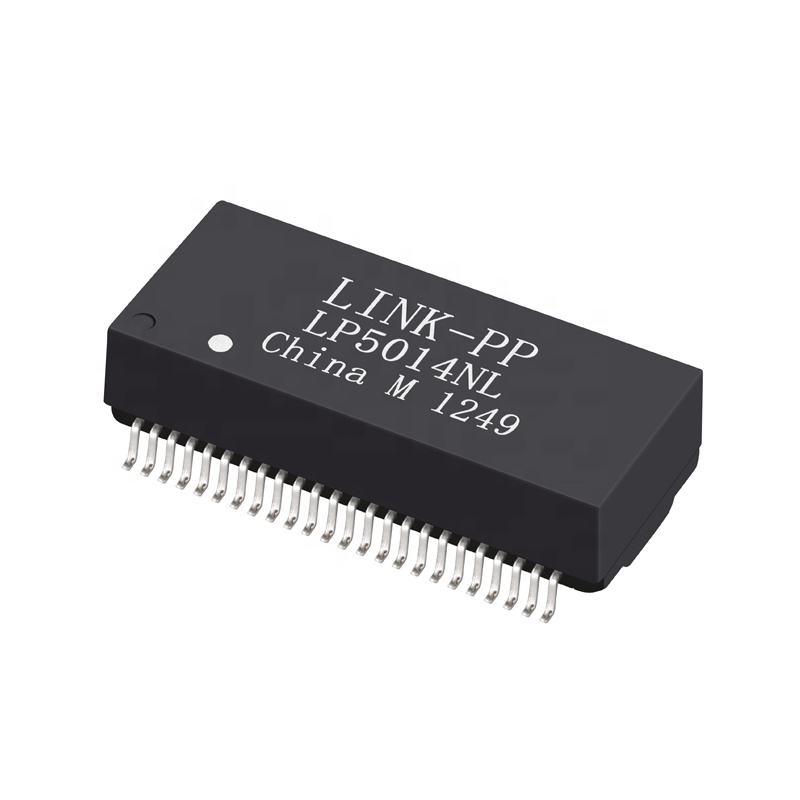

Product Image 1

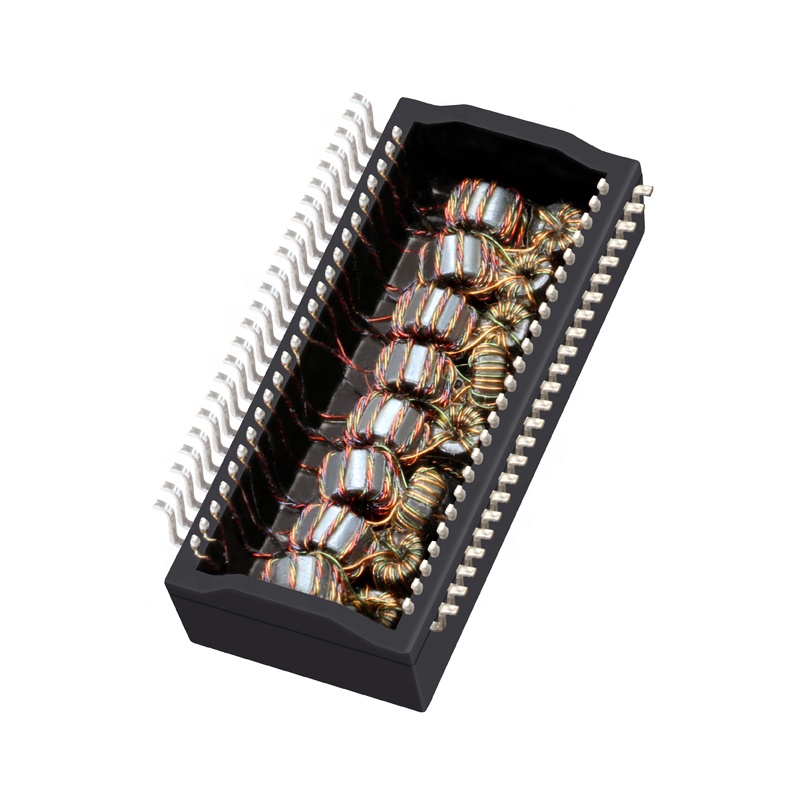

Product Image 2
Specification
Item Value
Place of Origin China, Guangdong
Brand Name LINK-PP
Model Number LP5014NL
Usage Electronic
Phase Single
Coil Structure TOROIDAL
Coil Number AUTOTRANSFORMER
Part Number S558-5999-Q2-F
Part Status Active
Application-Lan Ethernet (Non-PoE)
Number of Ports Dual Port
Speed 10/100/1000 Base-TX
Package Tape & Reel
Cores per Port 16
PIN number 48 PIN
Mounting Type Surface Mount
Temperature 0°C to +70°C
Packing & Delivery
Packing Image
Package Details
■ N.W/pcs: 0.005kg
■ Package: Reel
■ SPQ: 350pcs
■ Qty/carton: 1400pcs
■ Carton size: 37*37*25cm
■ G.W/carton: 7kg
Manufacturing Overview
Production Facility 1
Production Facility 2
Production Facility 3
Production Facility 4
Production Facility 5
Production Facility 6
Production Facility 7
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE and UL. Our facility owns advanced manufacturing processes and test equipment imported from abroad. Established in 1997, we currently support around 2000 staff members. With a monthly production capacity of 3000K, we ensure prompt delivery and short lead times. Furthermore, we provide complete professional solutions for magnetic components alongside strong technical support. Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.
Main Products:
  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Our products are exported to more than 30 countries and regions worldwide, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.
Main Customer Base:
  • ZNE, JABIL, FOXCONN, H3C, FLEXTRONICS, IBM
  • TEXAS INSTRUMENTS
  • TELECOMMUNICATION TECHNOLOGIES LLC
Our engineering staff is dedicated to identifying, developing, and manufacturing optimal solutions customized to our clients' unique requirements. We are committed to building long-term partnerships based on high quality and industry expertise.
Frequently Asked Questions

Q What is the main function of the LP5014NL?

The LP5014NL is a dual-port 10/100/1000 Base-TX LAN pulse transformer designed for electronic, networking, and communication equipment applications.

Q Is the LP5014NL compatible with S558-5999-Q2-F?

Yes, it corresponds to part number S558-5999-Q2-F and serves as an active, compatible solution.

Q Does this component support Power over Ethernet (PoE)?

No, the LP5014NL is designed for Ethernet (Non-PoE) configurations.

Q What are the mounting type and pin configurations for this model?

This component features a surface mount (SMD) design with 48 pins and 16 cores per port.

Q What is the standard operating temperature range?

The standard operating temperature range for the LP5014NL is from 0°C to +70°C.

Q How is this product packaged for shipment?

It is packaged in Tape & Reel format. The standard packing quantity (SPQ) is 350 pieces per reel, with 1,400 pieces packed per carton.
