1000BASE-TX 1000mA Max Telecom Magnetics Modules HST-24040SXR

Product Description

Telecom Magnetics Modules

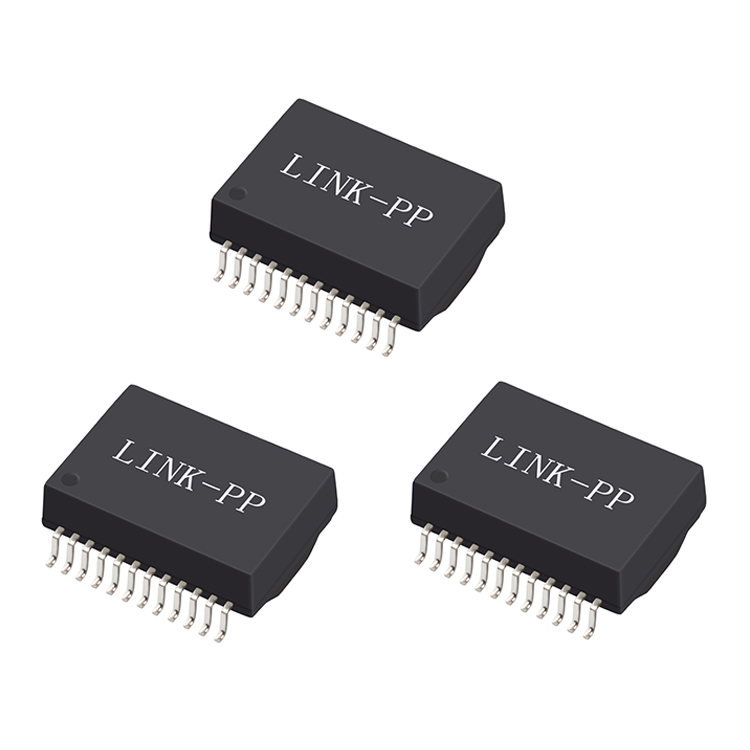

1000BASE-TX 1000mA Max Telecom Magnetics Modules HST-24040SXR

Products Description
Item Lan Transformer
Replaceable Brand Model HST-24040SXR
Part Status Active
Construction Open Frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1 Port
Speed 1000 Base-T
Pin Number 24 Pin
Mounting Type SMT
Temperature 0°C TO 70°C
AutoMDIX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C, S
Package Tape & Reel
LAN Transformer Detail 1
LAN Transformer Detail 2
LAN Transformer Detail 3
LAN Transformer Detail 4
LAN Transformer Detail 5
Product Specification Drawing
Product Circuit Schematic
Why Choose Us
Quality Assurance Process
Advanced Equipment
Precision Manufacturing
Strict Testing
Company Profile

We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE, and UL. We own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we currently have around 2,000 staff. With an abundant production capacity of 3,000K per month, we are able to deliver goods within a short time. Moreover, we can provide professional complete solutions for magnetic components alongside strong technical support.

Main Products:
10/100/1000M LAN pulse transformer and filter; RJ45 connector with 10/100/1000M magnetic; T1/E1, T3/DS3/E3/STS-1 interface line transformer; ISDN, HDSL, ADSL, and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems. We have exported our products to more than 30 countries and regions worldwide, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.

Main Customers:
ZNE, JABIL, FOXCONN, H3C, FLEXTRONICS, IBM, TEXAS INSTRUMENTS TELECOMMUNICATION TECHNOLOGIES LLC. Our engineering staff is dedicated to identifying, developing, and manufacturing optimal solutions for our customers' unique requirements. We trust that our strength in this field and our commitment to excellence will make us your long-term partner.

Production Facility Office
Manufacturing Workshop
Automated Production Line
Storage and Logistics
Frequently Asked Questions (FAQ)
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping costs must be covered by the customer.
3. What is your delivery time?
For stocked items, they are ready to ship. For mass production, the delivery time is approximately 15 to 30 days.
4. What after-service can you offer?
We provide a one-year warranty period and offer online technical support 24 hours a day.
5. Can you accept OEM/ODM orders?
Yes, we accept OEM/ODM orders. Please send an inquiry to us so we can discuss the details of your project.
6. What is your advantage?
We have over 19 years of manufacturing experience and have partnered with leading global technology brands for many years.
Product Quality Verification
