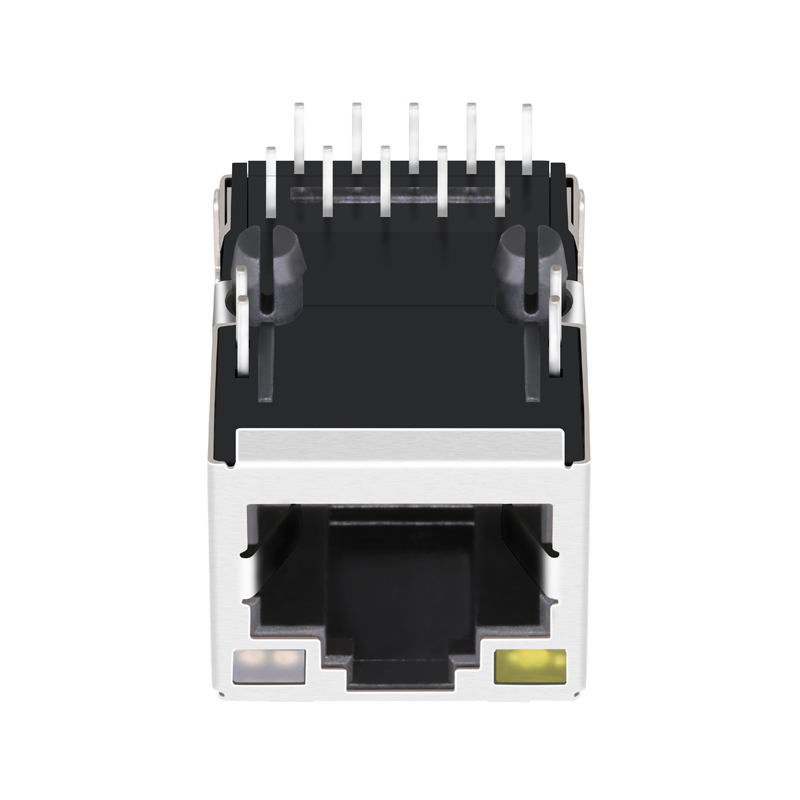

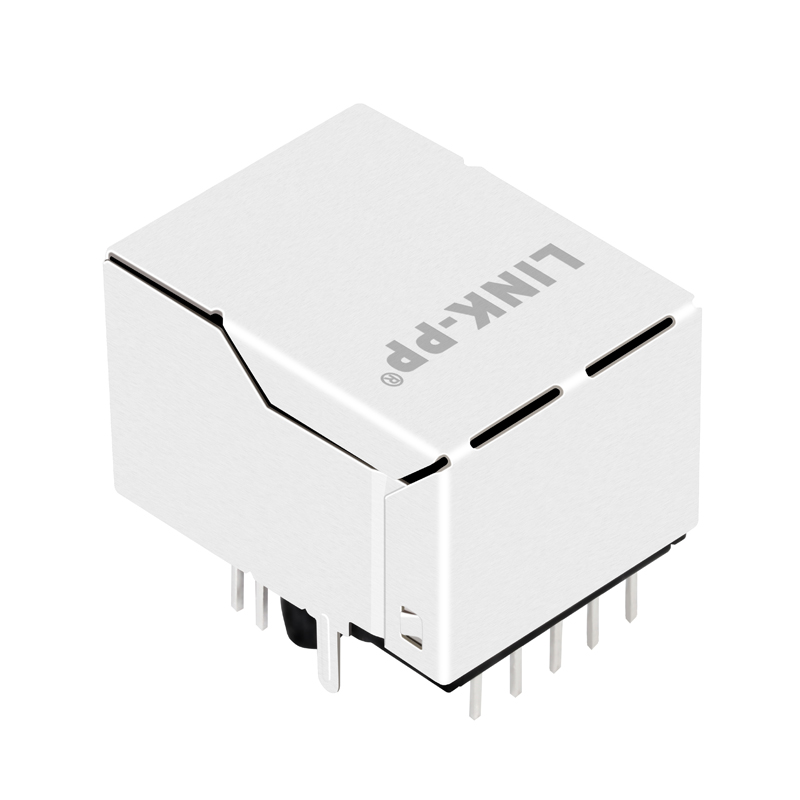

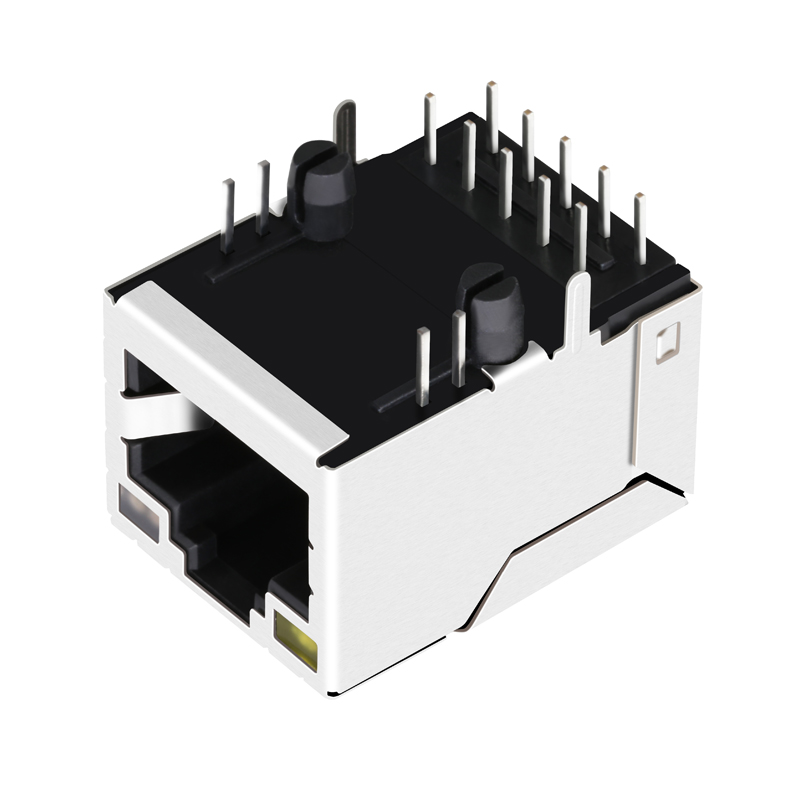

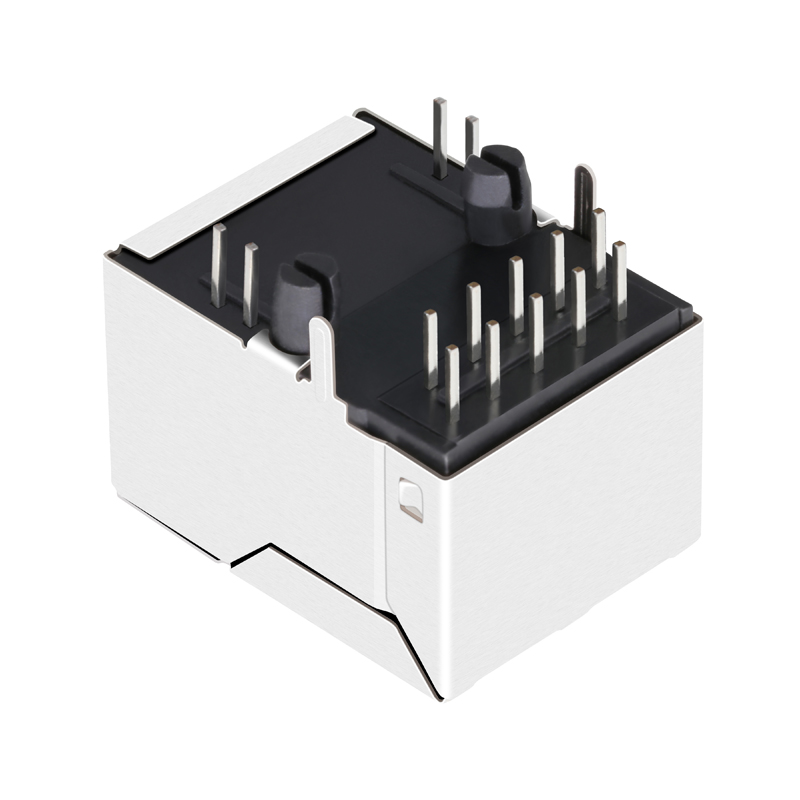

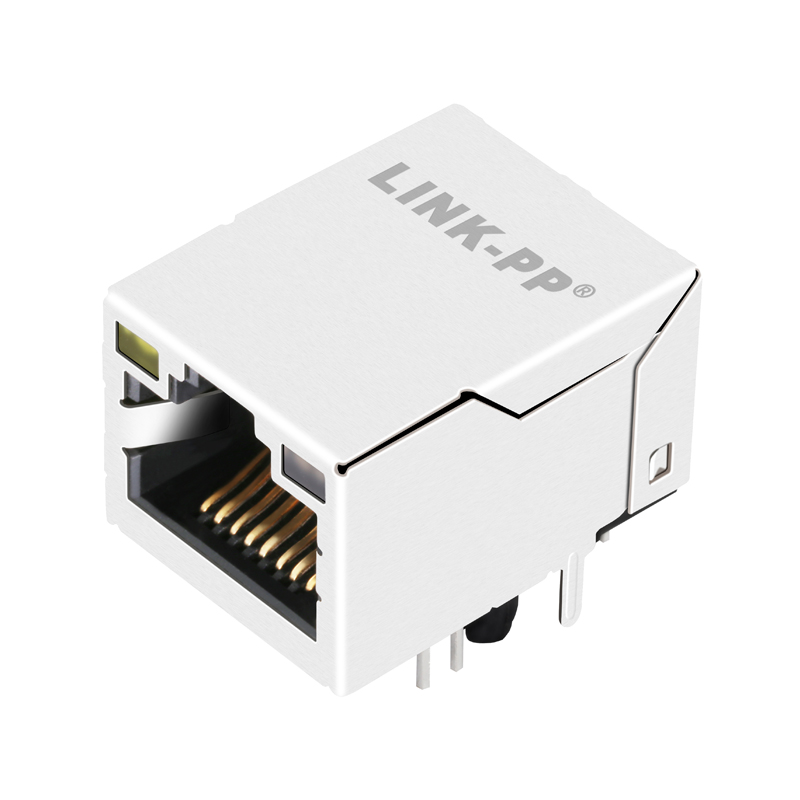

Custom Ethernet RJ45 Magnetic Female Connector Module RT7-195AAM1F
Custom Ethernet RJ45 Magnetic Female Connector Module RT7-195AAM1F
Custom Ethernet RJ45 Magnetic Female Connector Module RT7-195AAM1F
Custom Ethernet RJ45 Magnetic Female Connector Module RT7-195AAM1F
Custom Ethernet RJ45 Magnetic Female Connector Module RT7-195AAM1F
1 / 5
Custom Ethernet RJ45 Magnetic Female Connector Module RT7-195AAM1F
Custom Ethernet RJ45 Magnetic Female Connector Module RT7-195AAM1F
Custom Ethernet RJ45 Magnetic Female Connector Module RT7-195AAM1F
Custom Ethernet RJ45 Magnetic Female Connector Module RT7-195AAM1F
Custom Ethernet RJ45 Magnetic Female Connector Module RT7-195AAM1F

Custom Ethernet RJ45 Magnetic Female Connector Module RT7-195AAM1F

Send Inquiry

Product Description

Ethernet RJ45 Connector Modules
Custom Ethernet RJ45 Magnetic Female Connector Module RT7-195AAM1F
Products Description
Item RJ45 Female Connector
Bothhand Part Number RT7-195AAM1F
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without / With
LED Option Green/Yellow / Without
PCB FR4
PCB Retaining Post T POST
Temperature 0°C to 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

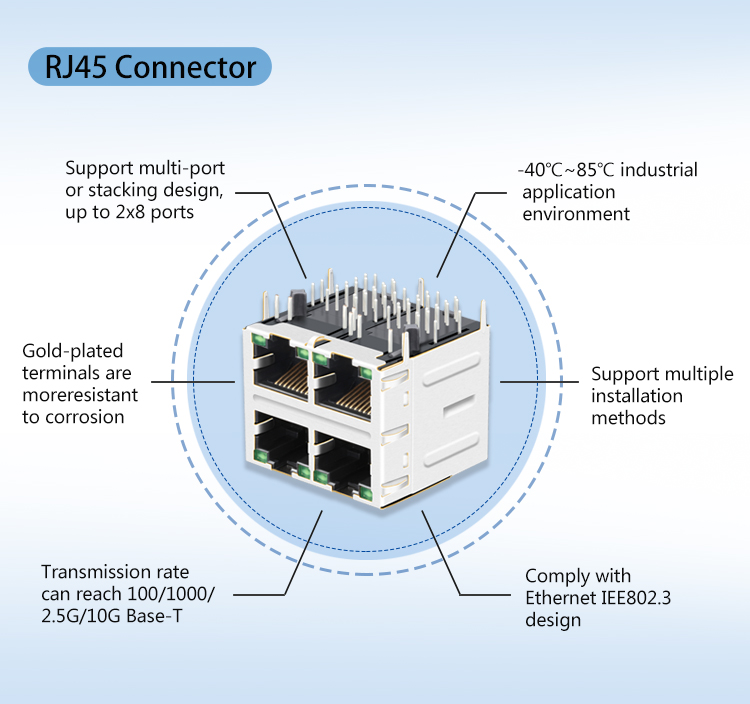

Product Layout 1
Product Layout 2
Product Layout 3
Product Layout 4
Click Below Products Link To Get More
Product Range Specifications
Technical Specifications Diagram
Factory Machine Inspection
Product Testing Environment
Quality Control Process
Storage and Logistics
Package Testing
Workshop Assembly Line
Company Profile
Established in 1997, is a professional designer and Manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. A global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Corporate Environment and Production Area
Production Line View
FAQ
? Are you factory or trading company?
A specialized manufacturer of magnetic telecom and networking components, such as RJ45 connector, lan transformer, RJ11 connector and SFP modules, etc.
? Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
? What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
? What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
? Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
? What is your advantage?
19 years of production experience and we are Intel's and Jabil's partner for many years.
