Cat5 Cat5e 8 Pin Led Connector RJ45 Magjack Network Connector Female PCB Connector RJ45 Modular Jack

Product Description

Network Connector Feature Image
Specifications
Item Value
Model Number Network connector
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(PoE/Non_PoE)
Speed 10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack 4/6/8/12
Shielding Shielded, Emi Finger

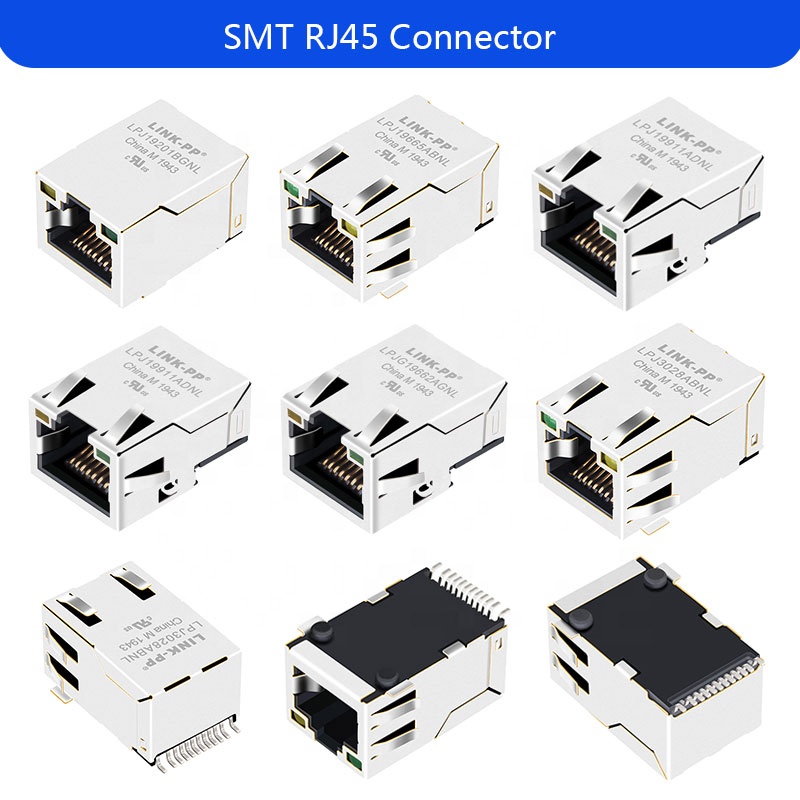

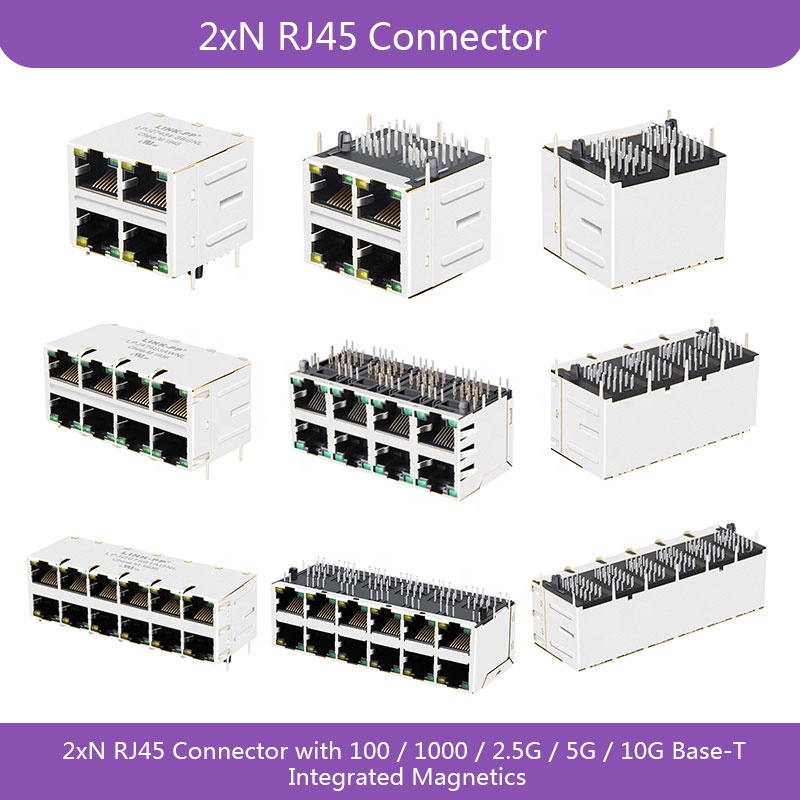

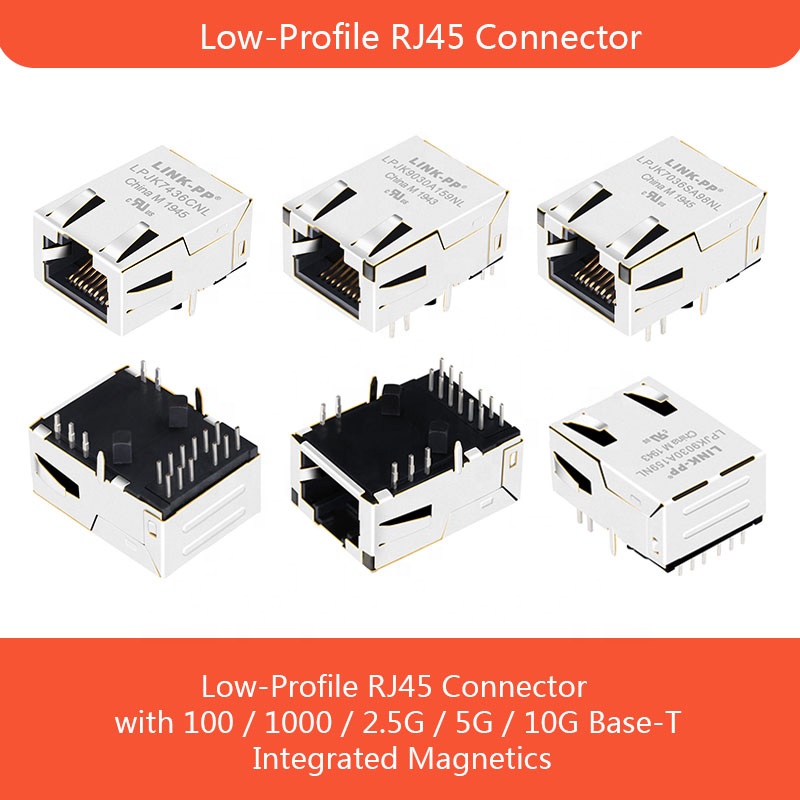

Number of Ports Multi-port rj45, stacked rj45, low profile rj45 , vertical rj45 , smt rj45
Features Board Guide
Tab Direction Down/Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C/-40°C ~ +85°C

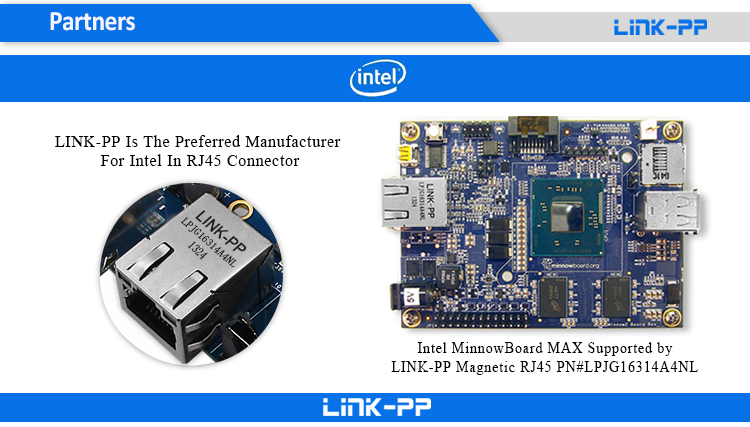

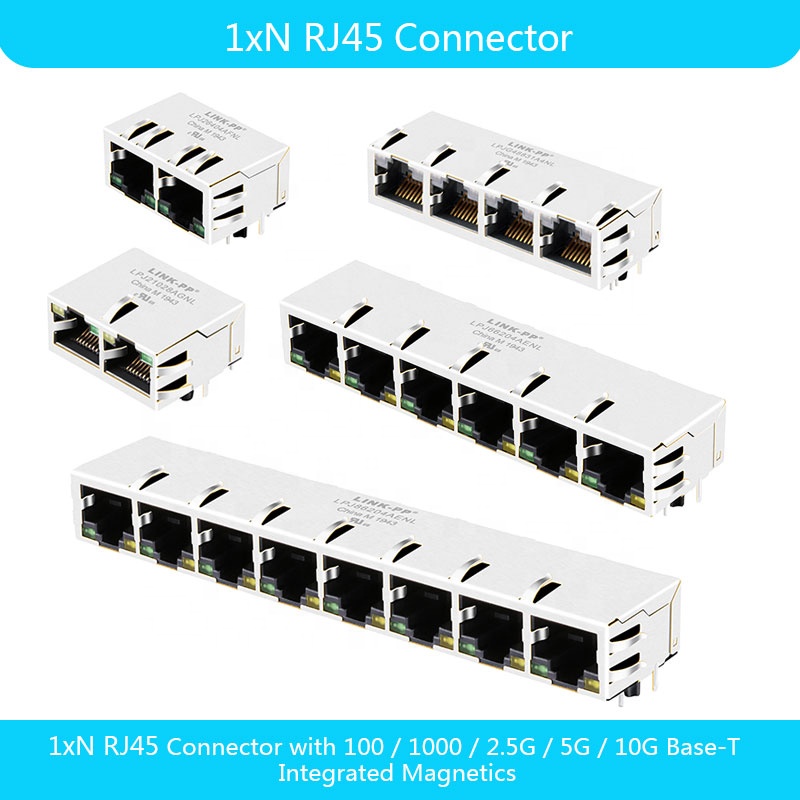

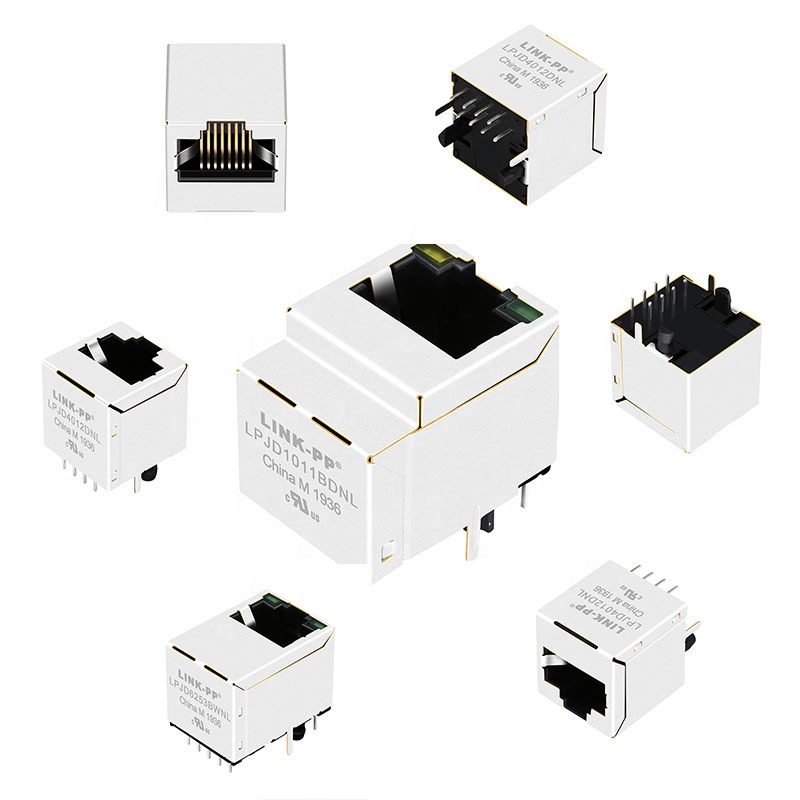

Product View 1

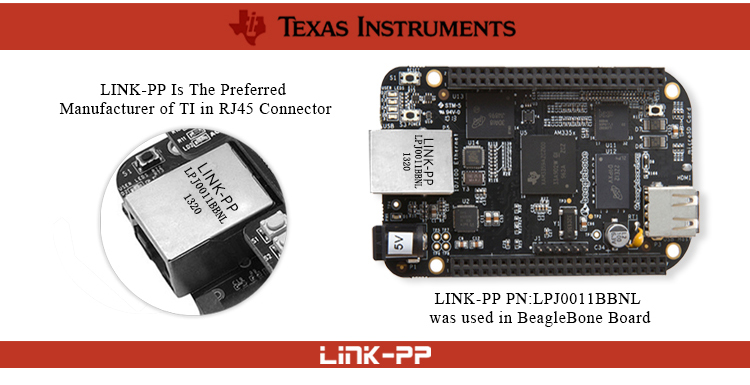

Product View 2
Product View 3
Product View 4
Product View 5
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem.
Main Products
10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
T1/E1, T3/DS3/E3/STS-1 interface line transformer
ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Production Process 1

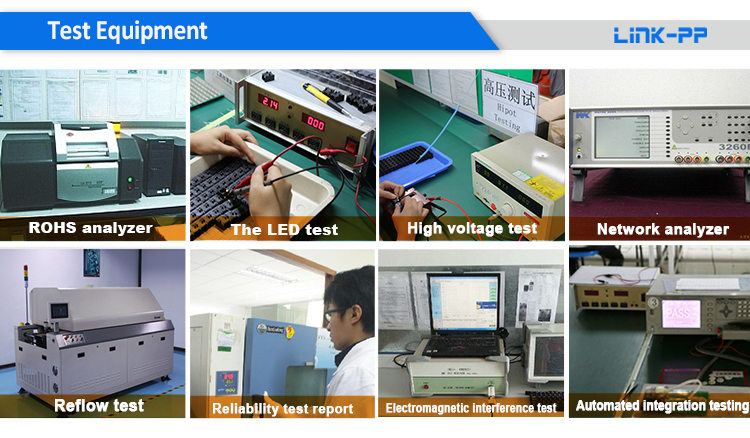

Production Process 2
Production Process 3
FAQ
Q1Are you a manufacturer or trade company?
We are a manufacturer that specialized in RJ45 connectors and LAN Transformer for more than 23 years.
Q2Can I get some samples for evaluation?
Yes, 3-5 pcs free samples are available for your test. Small batches are also acceptable.
Q3Is OEM service available for products?
Yes. We have rich experience and good ability to put your design and idea into real products. We can laser print your brand on the products.
Q4What is your typical lead time?
We have a very professional team with high quality, usually we can ship within 30 days.
Q5What certifications do you possess?
Our operations and components are certificated by ISO9001:2000, ROSH, REACH, CE, and UL standards.
Q6What is your monthly production capacity?
We possess an abundant productive capacity of approximately 3,000K units per month to ensure timely delivery.
