| Part Number | ARJ11E-MCSS |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port | 4 |
| Diodes | NO DIODES |
| LED Option | GREEN/RED |
| Latch | UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH OR WITHOUT |
| Speed | 1000 BASE-T |
| Temperature | 0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |

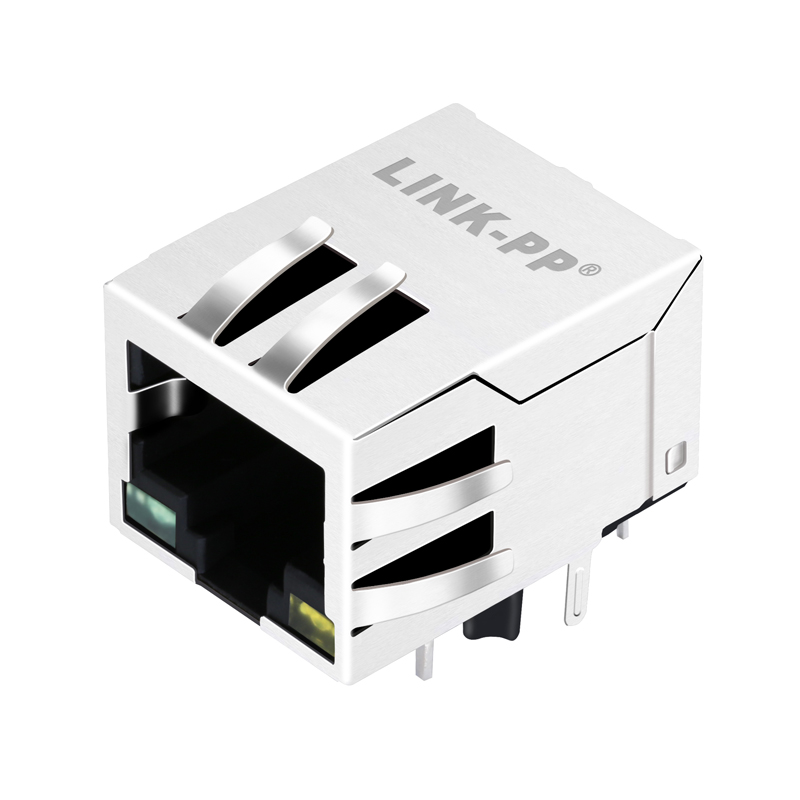

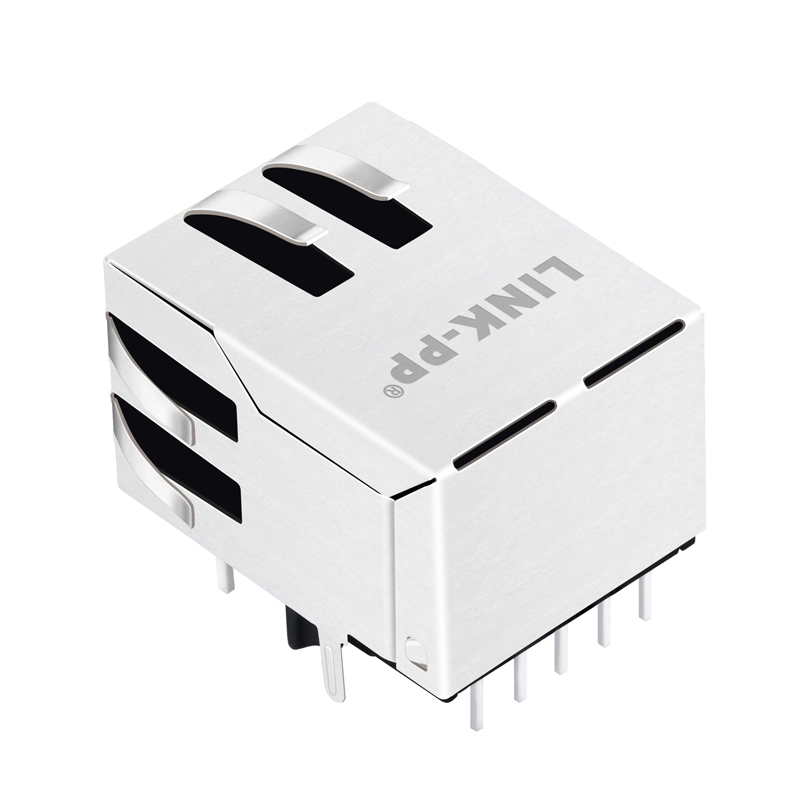

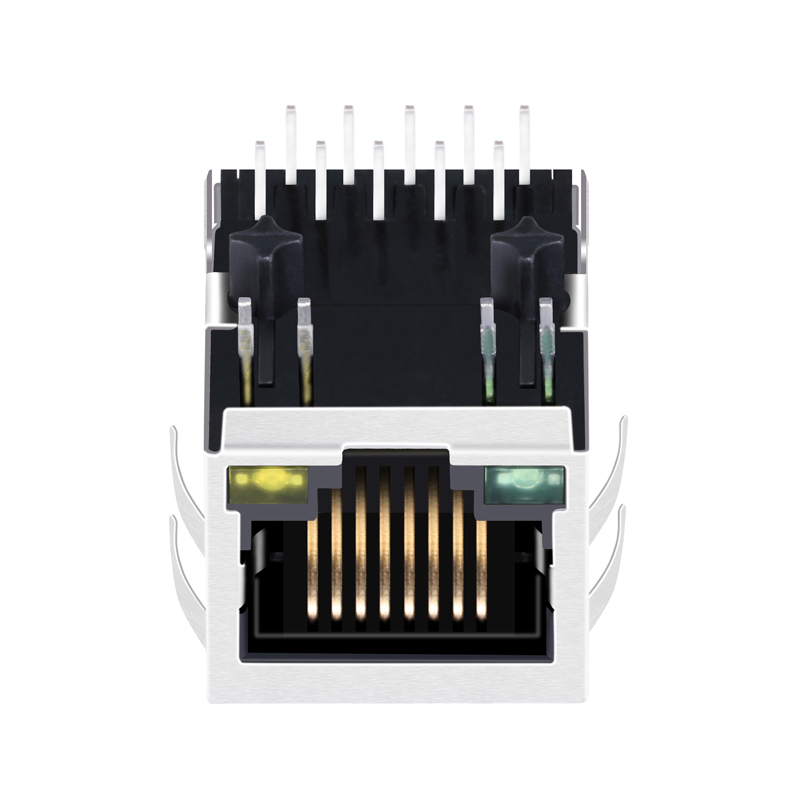

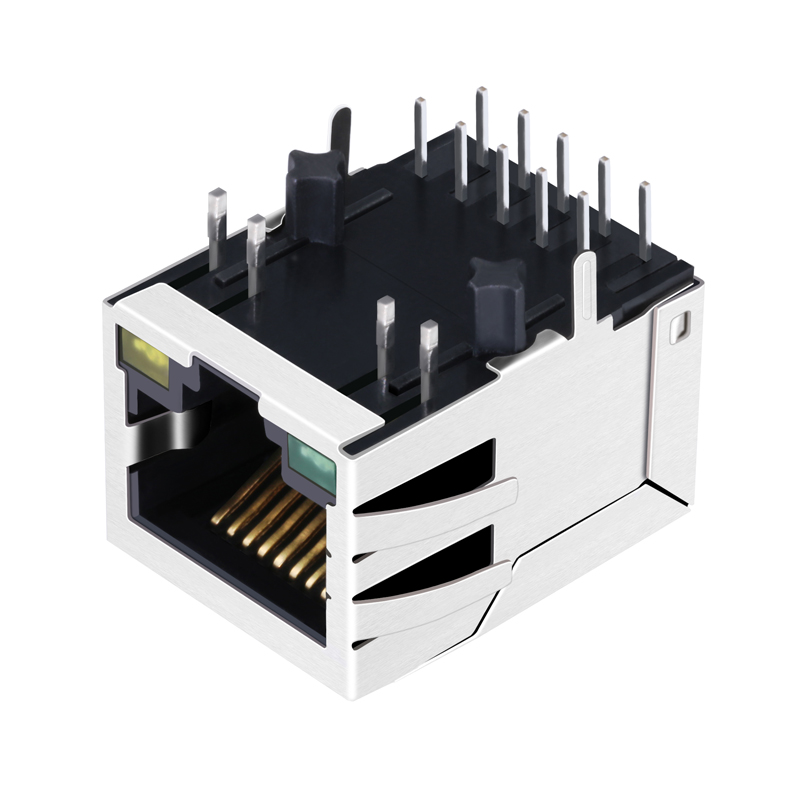

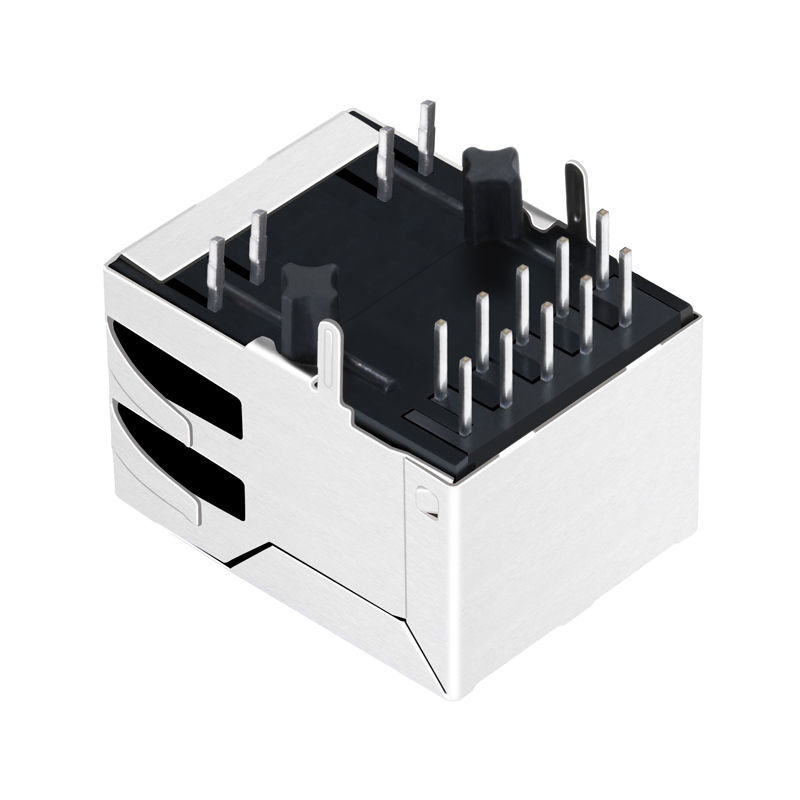

This connector is designed for high-performance Gigabit Ethernet (1000 BASE-T) networking equipment, routing devices, switches, and other network interfaces requiring PoE (Power over Ethernet) support.
The standard operating temperature ranges from 0°C to 70°C, with an industrial-grade option available that supports temperatures from -40°C to 85°C.
Yes, it features integrated PoE capabilities. The mechanical configuration is a 1X1 single port with a side-entry PCB mount angle, Latch-Up orientation, and 4 cores per port.
To ensure long-term reliability and signal integrity, the contact mating area is gold-plated, available in thicknesses of 6u", 15u", 30u", or 50u".
Yes, it is RoHS compliant (RoHS-5 status with lead in solder exemption) and is manufactured under strict quality standards with ISO 9001:2008 and UL certifications.
