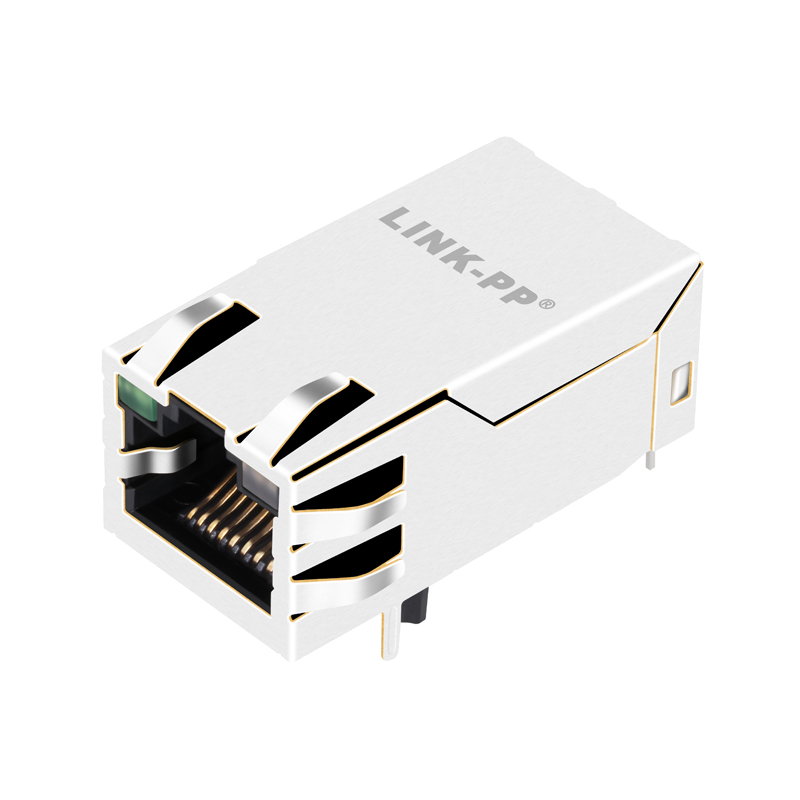

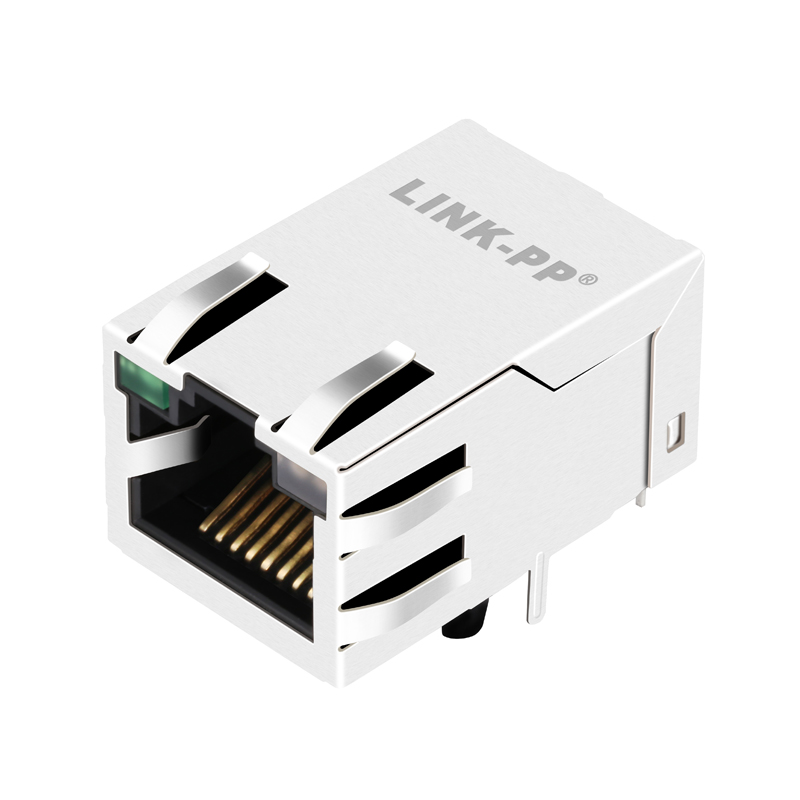

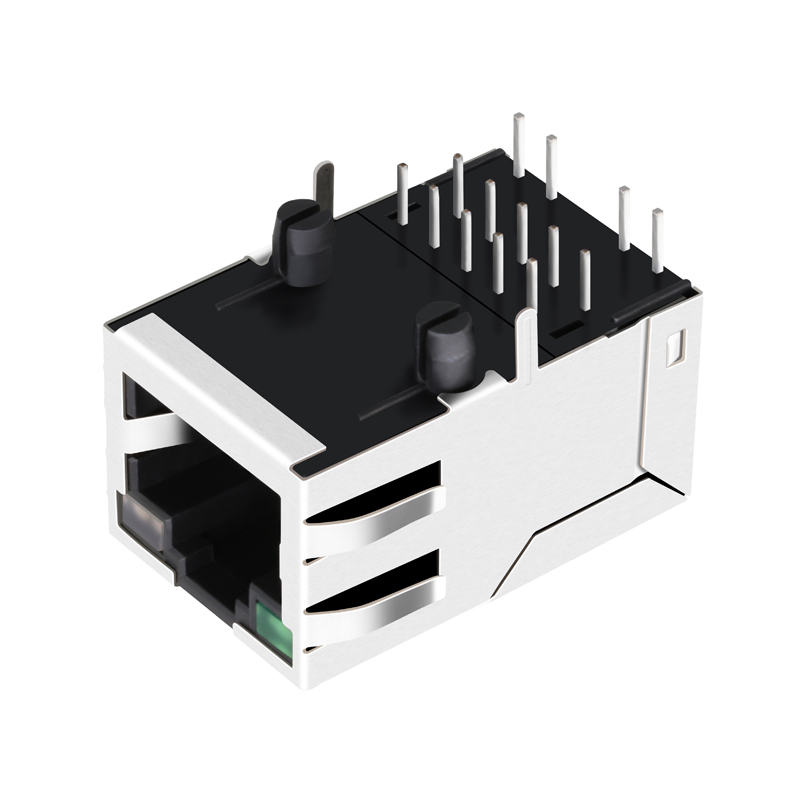

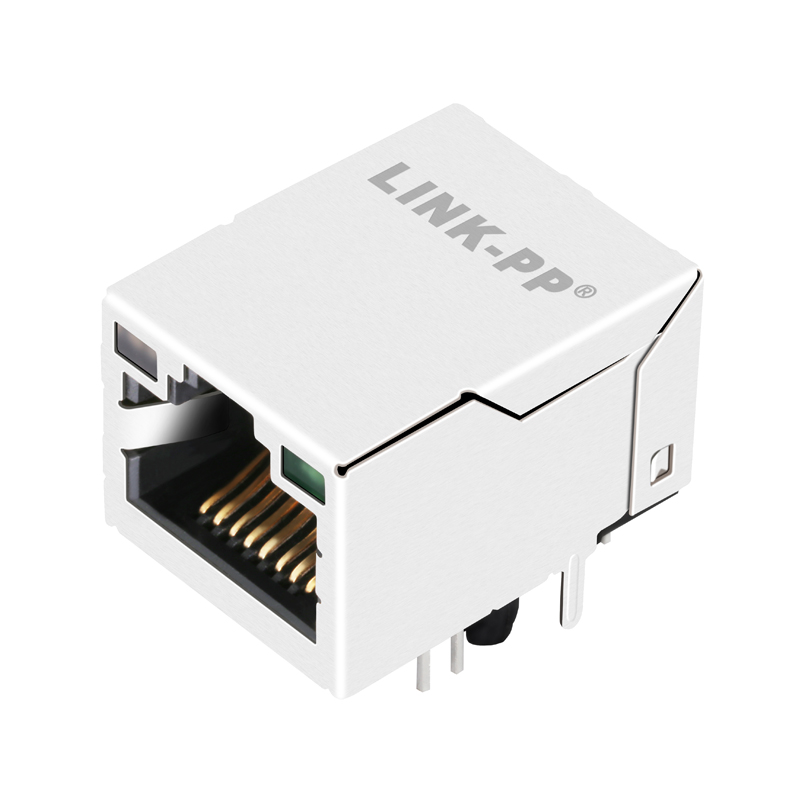

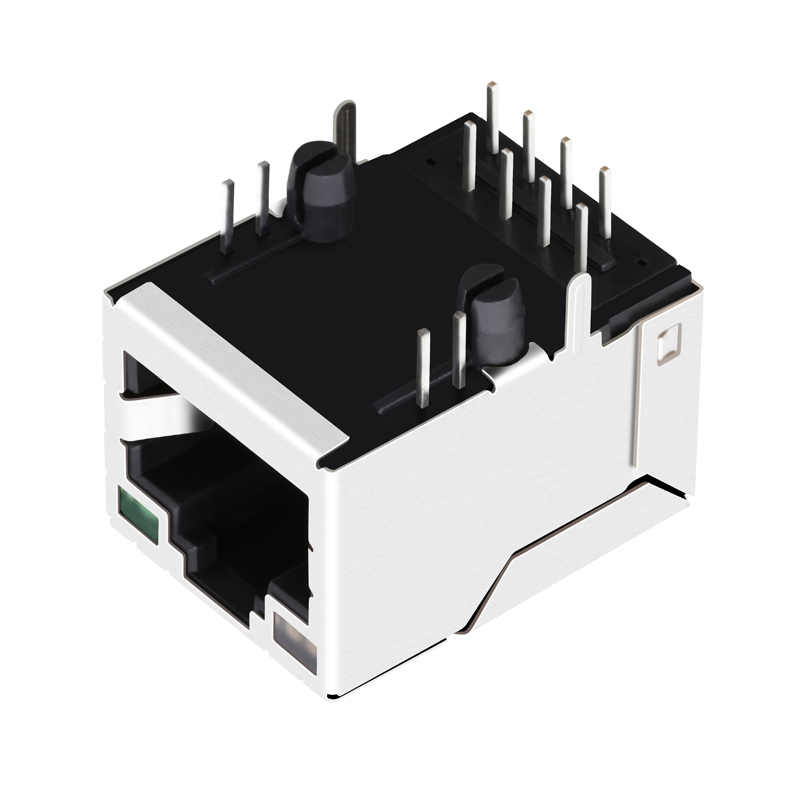

Single Port Ethernet Female Jack RJ45 Connector 7499161005A
Single Port Ethernet Female Jack RJ45 Connector 7499161005A
Single Port Ethernet Female Jack RJ45 Connector 7499161005A
Single Port Ethernet Female Jack RJ45 Connector 7499161005A
Single Port Ethernet Female Jack RJ45 Connector 7499161005A
1 / 5
Single Port Ethernet Female Jack RJ45 Connector 7499161005A
Single Port Ethernet Female Jack RJ45 Connector 7499161005A
Single Port Ethernet Female Jack RJ45 Connector 7499161005A
Single Port Ethernet Female Jack RJ45 Connector 7499161005A
Single Port Ethernet Female Jack RJ45 Connector 7499161005A

Single Port Ethernet Female Jack RJ45 Connector 7499161005A

Send Inquiry

Product Description

Single Port Ethernet Female Jack RJ45 Connector
Single Port Ethernet Female Jack RJ45 Connector 7499161005A
Products Description
Item RJ45 Female Connector
Compatible With 7499161005A
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Connector Technical Diagram
Related Products & Specifications
RJ45 Category Range Overview
Feature Diagram 1 Feature Diagram 2
Connector Dimensions Detail Packaging Standard Specification
Quality Standard Assurance
Internal Structure Details Testing Parameters Analysis
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components, offering an extensive line of state-of-the-art catalog products as well as custom design capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Production Facility Office Automated Manufacturing Workshop Testing and Packaging Process
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but the shipping cost should be covered by the buyer.
What is your delivery time?
Items in stock are ready to ship immediately, while mass production orders typically require 15 to 30 days.
What after-service can you offer?
We provide a one-year warranty period and offer online technical support 24 hours a day.
Can you accept OEM/ODM orders?
Yes, we accept custom orders. Please contact us with your specifications so we can discuss the details.
What is your core advantage?
We have 19 years of professional production experience and have been a trusted partner for industry leaders for many years.
