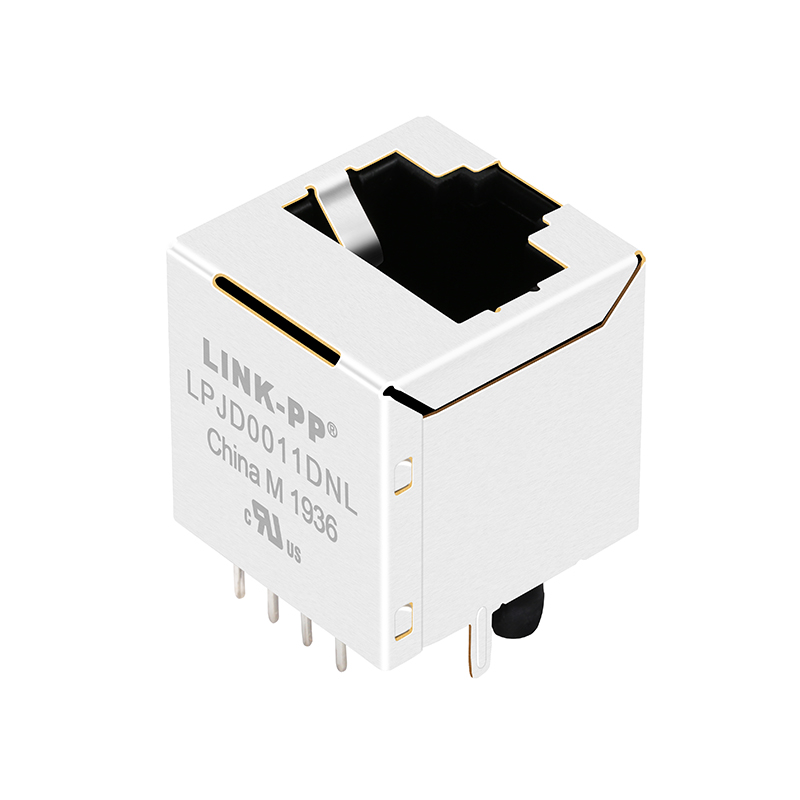

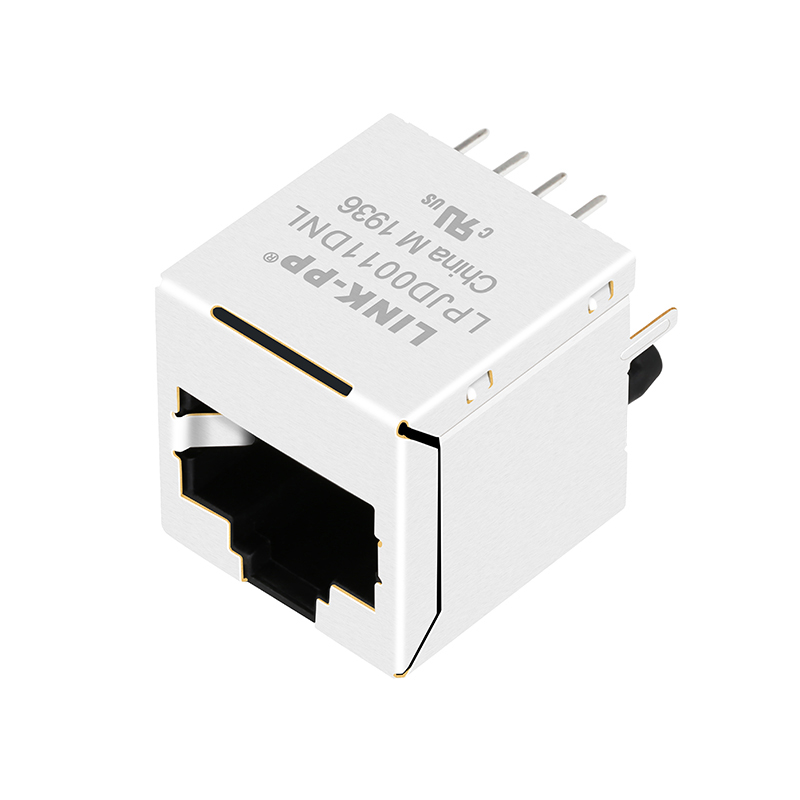

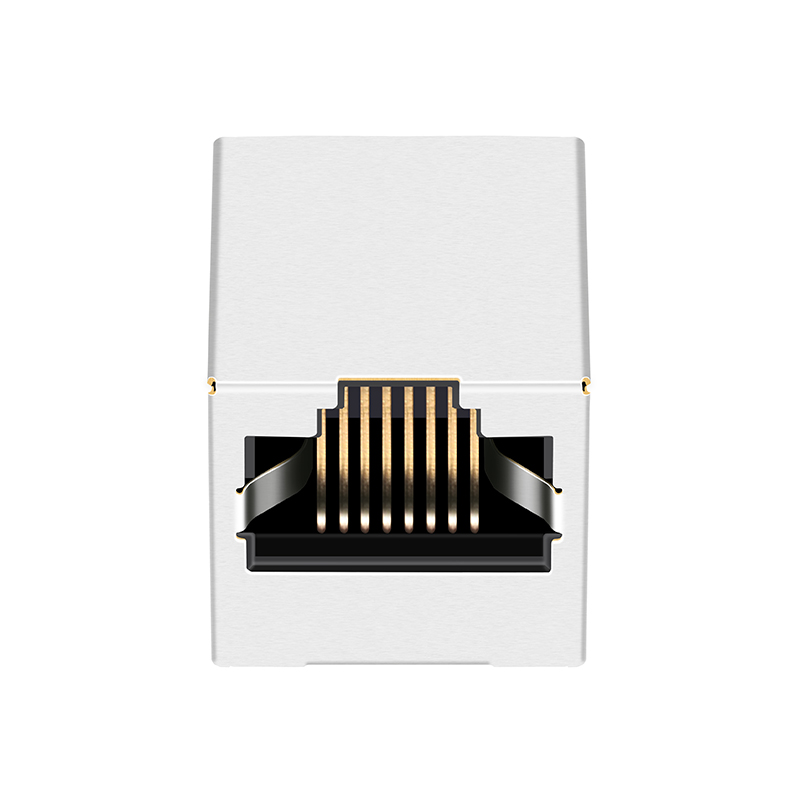

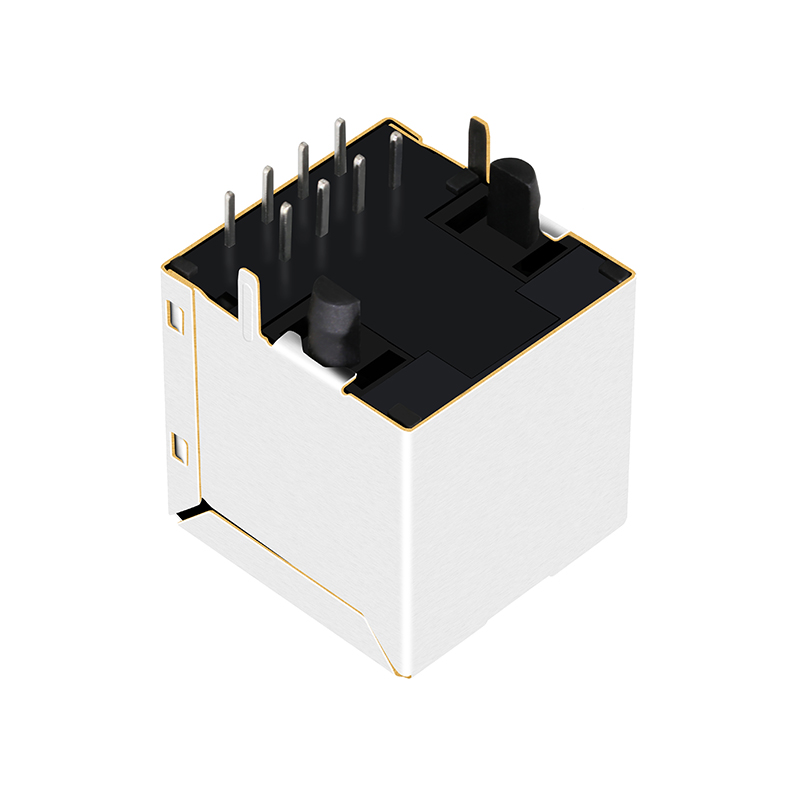

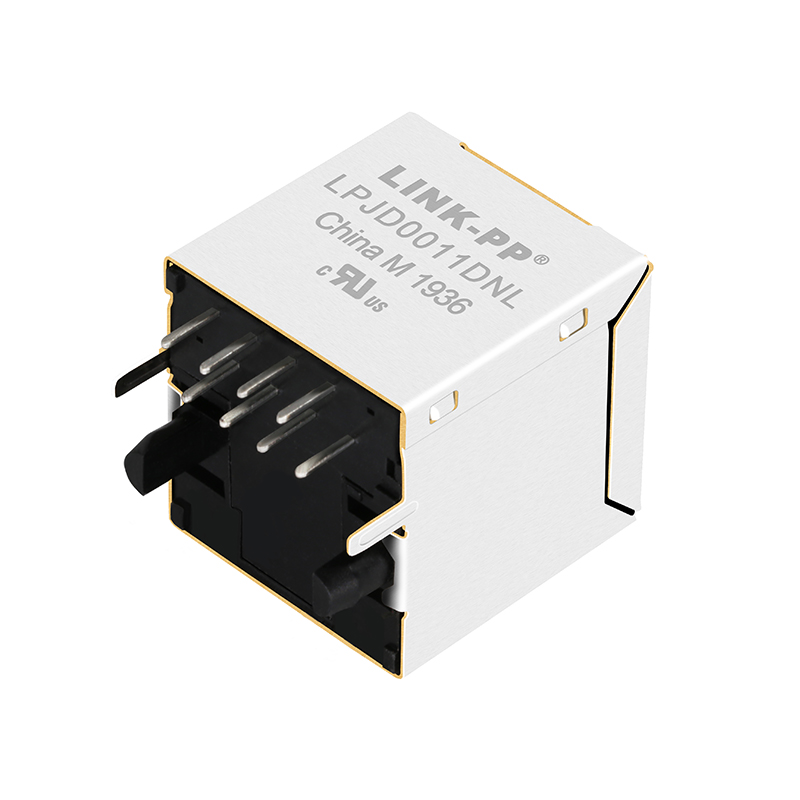

KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
1 / 5
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds

KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds

Send Inquiry

Product Description

RJ45 Jack Connector Banner
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without LEDs
Products Description
Item RJ45 Female Connector
Part Status Active
Part Number LPJD0011DNL
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Cores per Port 4
Orientation 180° Angle (Right)
PCB Mount Angle Top Entry
Shield EMI Tabs Without
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutoMDIX Yes
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
Product Diagram
Product Specifications Guide
Connector Drawing 1
Connector Drawing 2
Connector Drawing 3
Production Process 1
Production Process 2
Production Process 3
Facility Equipment
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components, with an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading global provider of Ethernet RJ45 connectors and LAN transformers.
Factory Workshop 1
Factory Workshop 2
Testing Equipment
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you should pay the shipping fee.
What is your delivery time?
Items in stock are ready to ship, and mass production typically takes 15-30 days.
What after-sales service do you offer?
We provide a one-year warranty period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your inquiries to us so we can proceed with a detailed discussion.
What is your advantage?
With over 19 years of professional production experience, we maintain strict quality standards and provide reliable, high-performance components worldwide.
