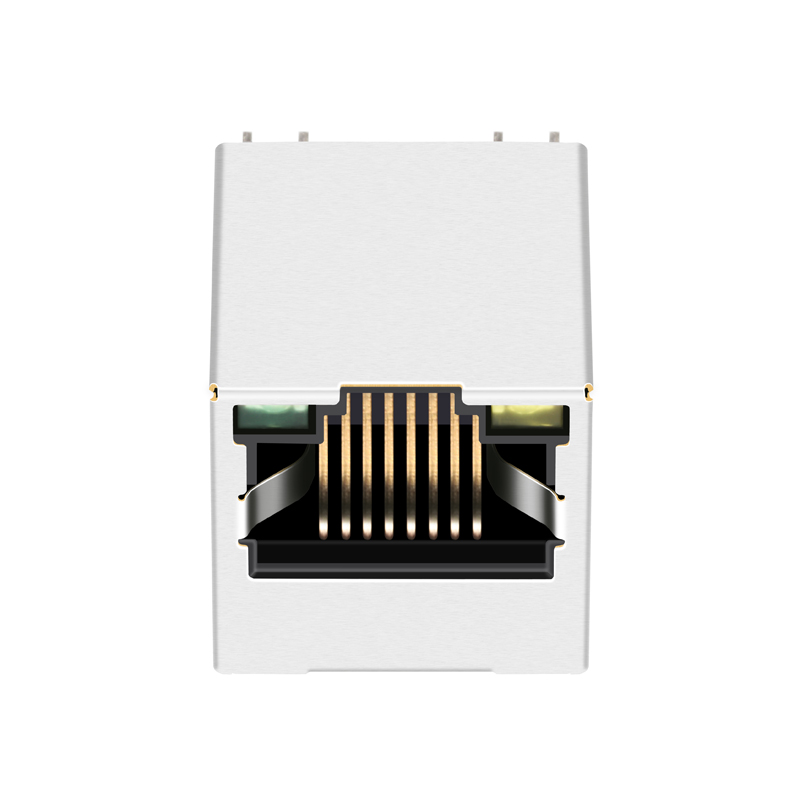

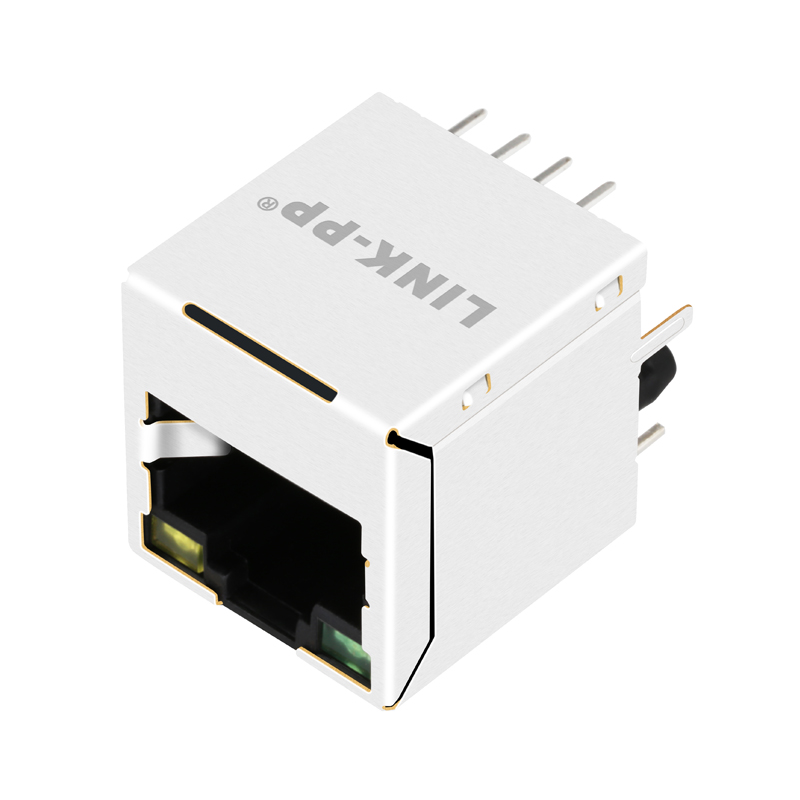

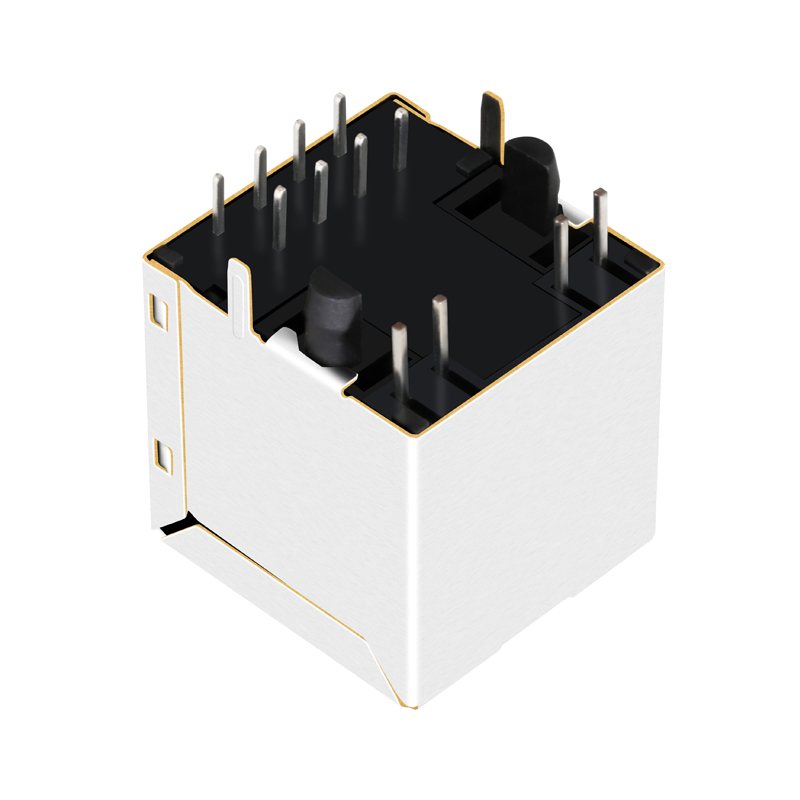

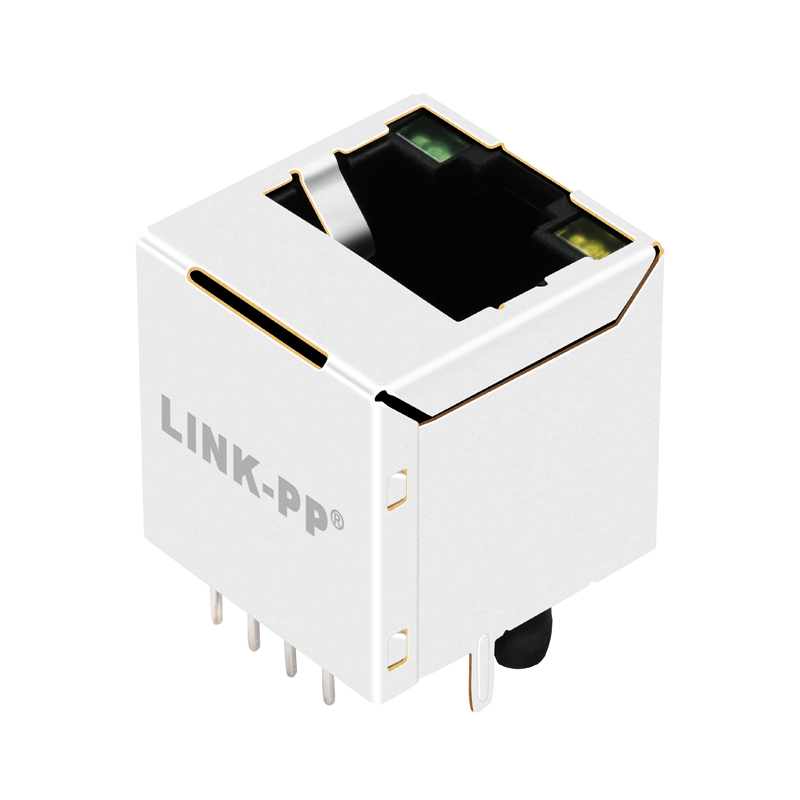

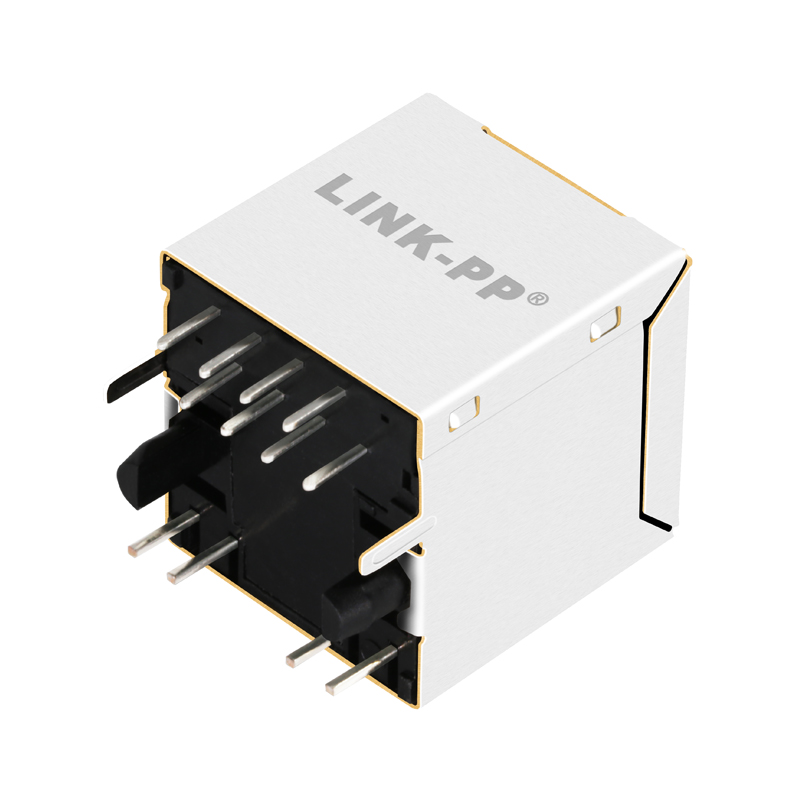

Vertical And Bottom-Entry Model RJ45 Female Jack 855075002
⚙ Products Description
| Item |
RJ45 Female Connector |
| Compatible With |
855075002 |
| Part Status |
Active |
| Connector Type |
Jack |
| Number of Positions/Contacts |
8p8c (RJ45, Ethernet) |
| Application-Lan |
Ethernet(NoN PoE) |
| Number of Ports |
1x1 Port |
| Speed |
10/100/1000 Base-T |
| Latch |
Down/Up |
| Cores per Port |
4 |
| Orientation |
90° Angle (Right) |
| PCB Mount Angle |
SIDE ENTRY |
| Shield EMI Tabs |
Without/With |
| LED Option |
Green/Yellow |
| PCB |
FR4 |
| PCB Retaining Post |
T POST |
| Temperature |
0°C TO 70°C / -40°C TO 85°C |
| Bst Circuit |
Yes |
| AutomDX |
YES |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T,C |
✔ Technical Specifications & Visuals
🏢 Company Profile
Established in 1997, our enterprise is a professional designer and manufacturer of magnetic telecom and networking components. We offer an extensive line of state-of-the-art catalog products as well as custom capabilities.
As a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a leading global provider of Ethernet RJ45 connectors and LAN transformers.
❓ FAQ
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but shipping costs must be covered.
3. What is your delivery time?
Items are ready to ship for stock, and production takes 15-30 days for mass orders.
4. What after-service do you offer?
We provide a one-year warranty period and offer 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send your inquiries to us so that we can have a detailed discussion.
6. What is your advantage?
We have 19 years of professional production experience and serve as a trusted partner to global technology leaders.
