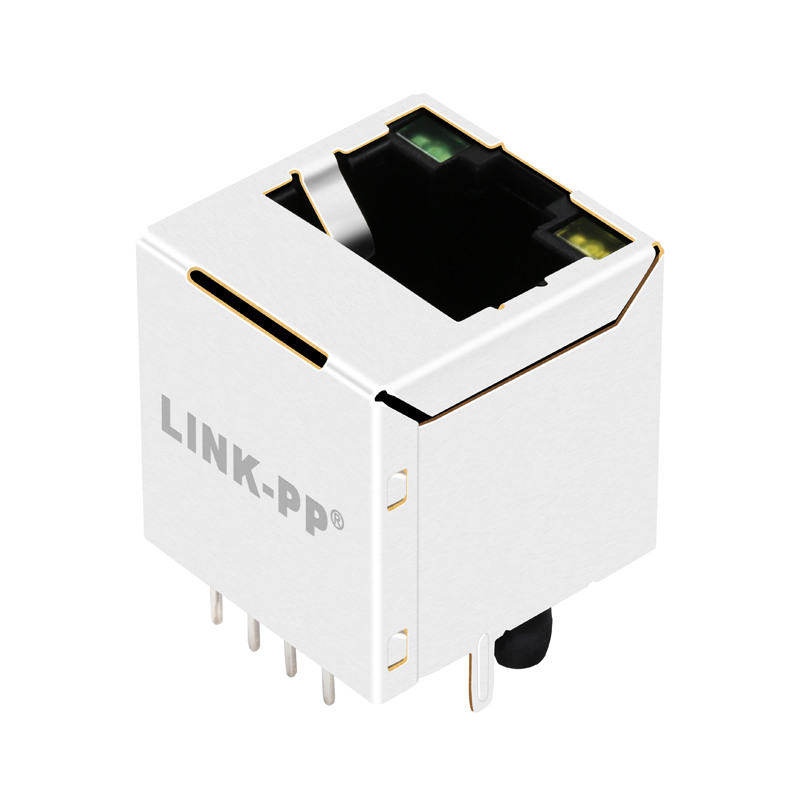

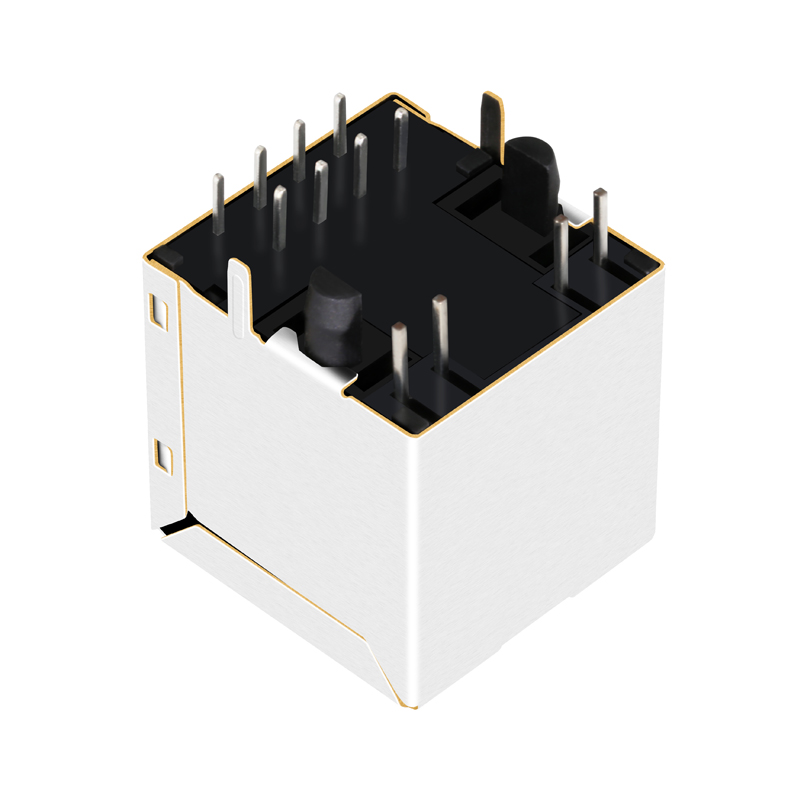

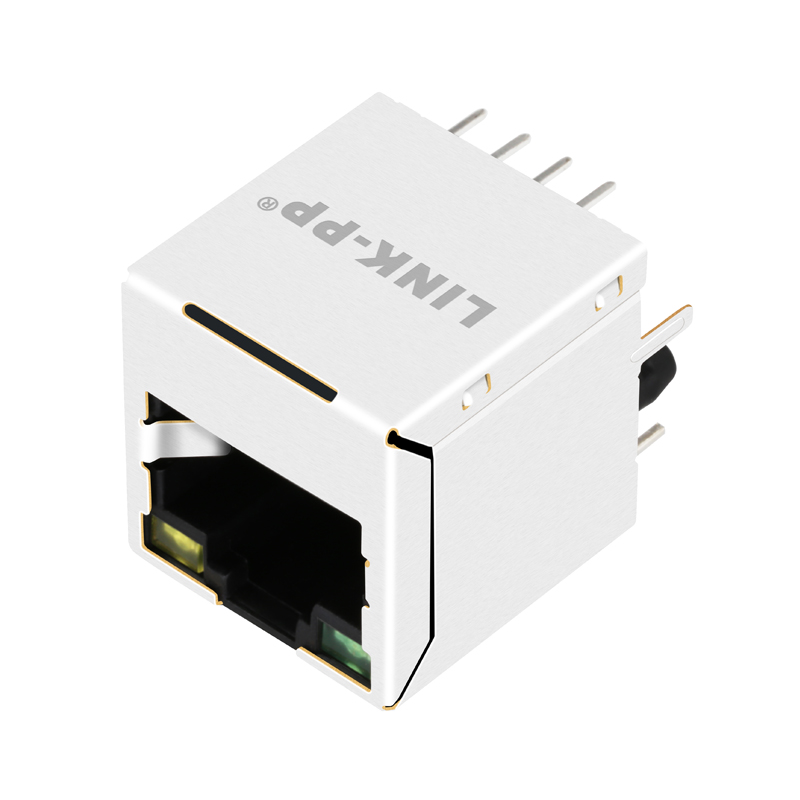

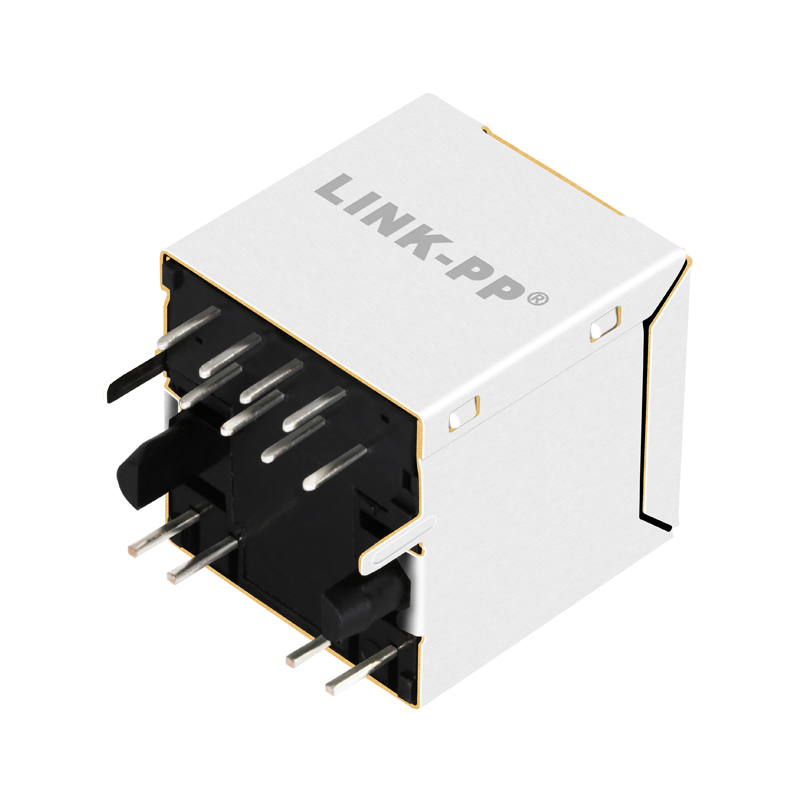

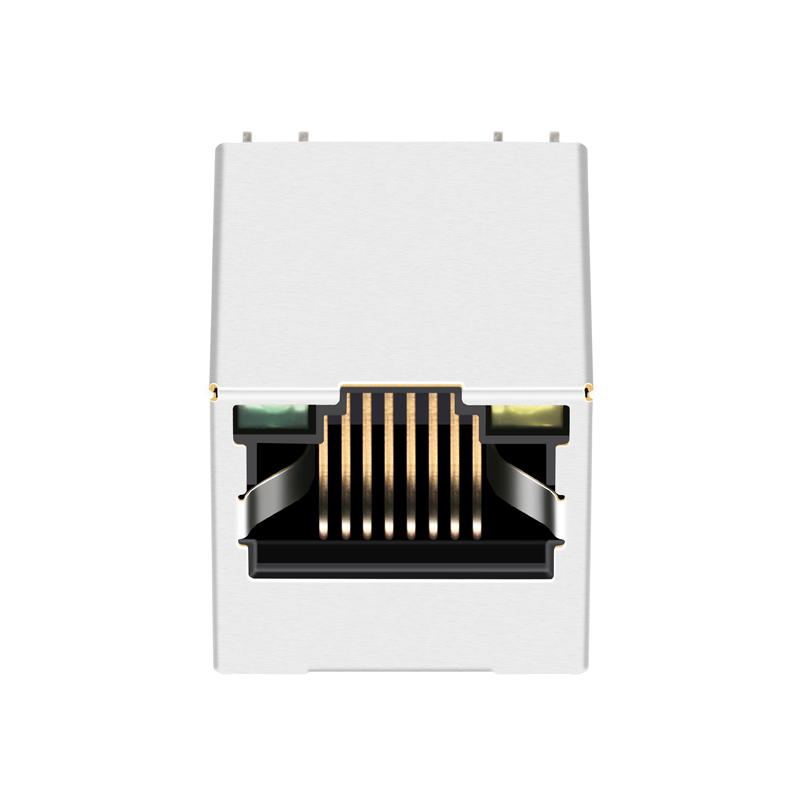

Vertical Gigabit Ethernet RJ45 Female Connector Modular Jack 1840453-2

Product Description

Ethernet Connectors Overview
Vertical Gigabit Ethernet RJ45 Female Connector Modular Jack 1840453-2
Products Description
Item RJ45 Female Connector
Bothhand Part Number 1840453-2
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Angle View 1 Product Angle View 2
Detailed Dimensions Pin Configuration PCB Footprint Schematics Diagram
Explore Related Products Below
Product Category Matrix
Quality Support Banner
Technical Layout 1 Technical Layout 2 Technical Layout 3 Technical Layout 4 Technical Layout 5 Technical Layout 6
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we operate as a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a leading provider in the global Ethernet RJ45 connector and LAN transformer market.
Manufacturing Area Testing and Assembly Lines
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but shipping and logistics fees are to be covered by the buyer.
3. What is your delivery time?
Products currently in stock are ready to ship immediately. For mass production orders, the standard lead time is 15-30 days.
4. What after-service can you offer?
We provide a one-year warranty period along with round-the-clock online technical support.
5. Can you accept OEM/ODM orders?
Yes, please submit an inquiry with your specifications so that we can proceed with a detailed technical discussion.
6. What is your main advantage?
We bring over 19 years of manufacturing and design expertise to the table, delivering reliable, high-performance network components for top tier projects globally.
