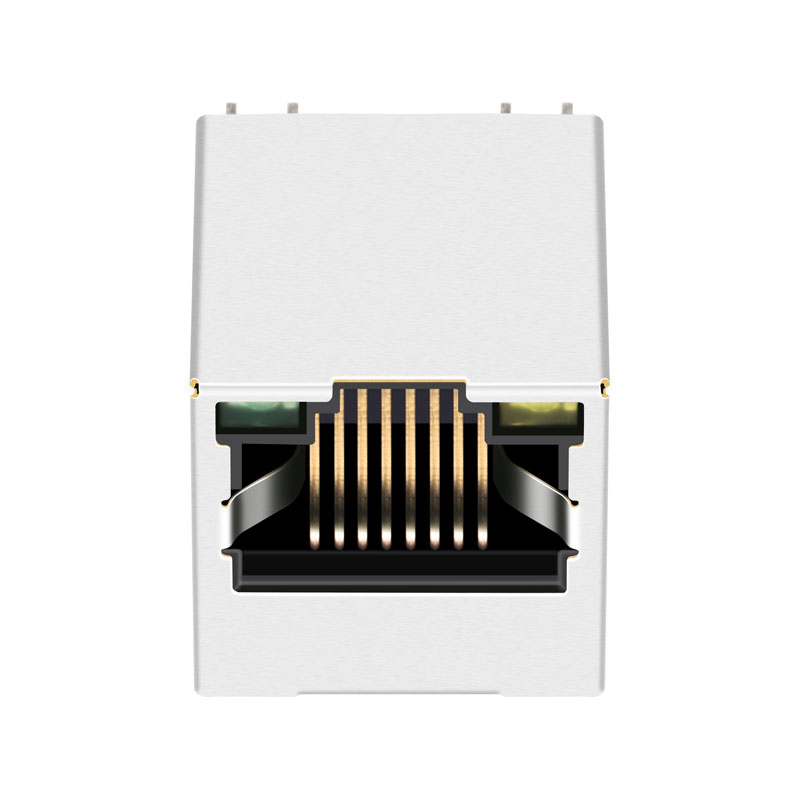

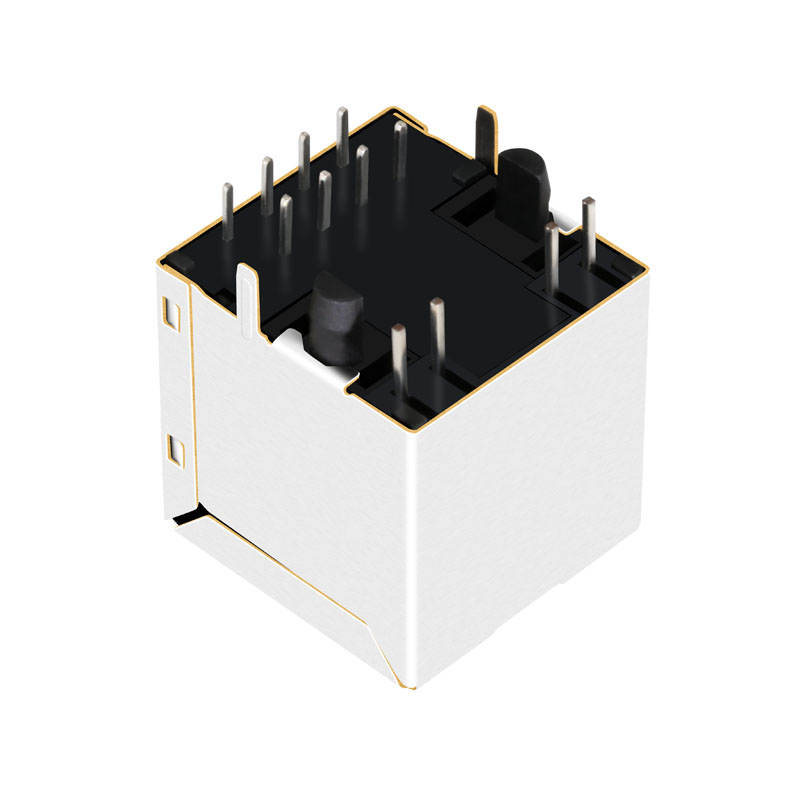

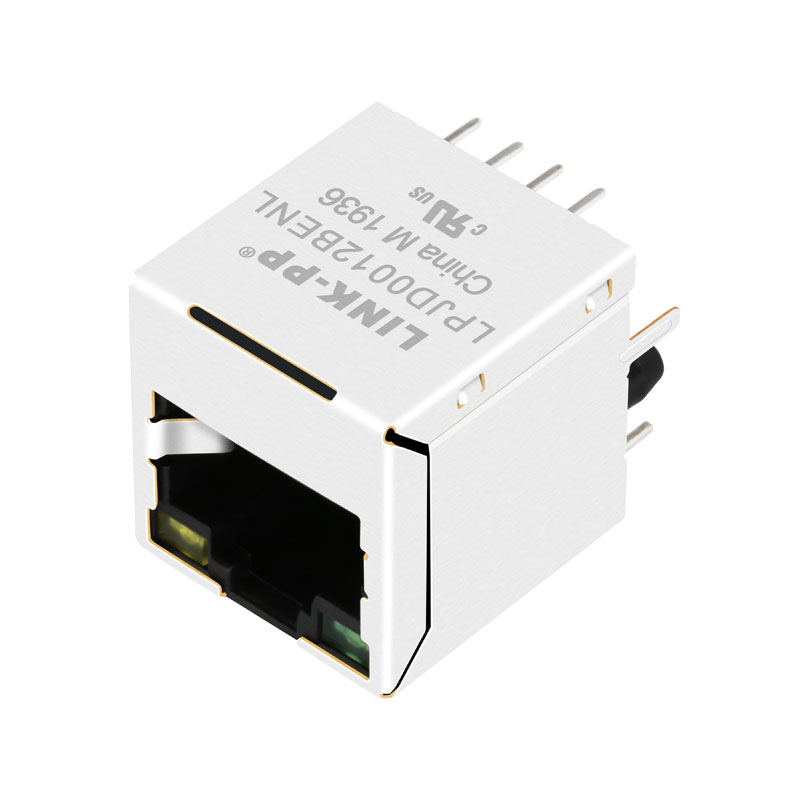

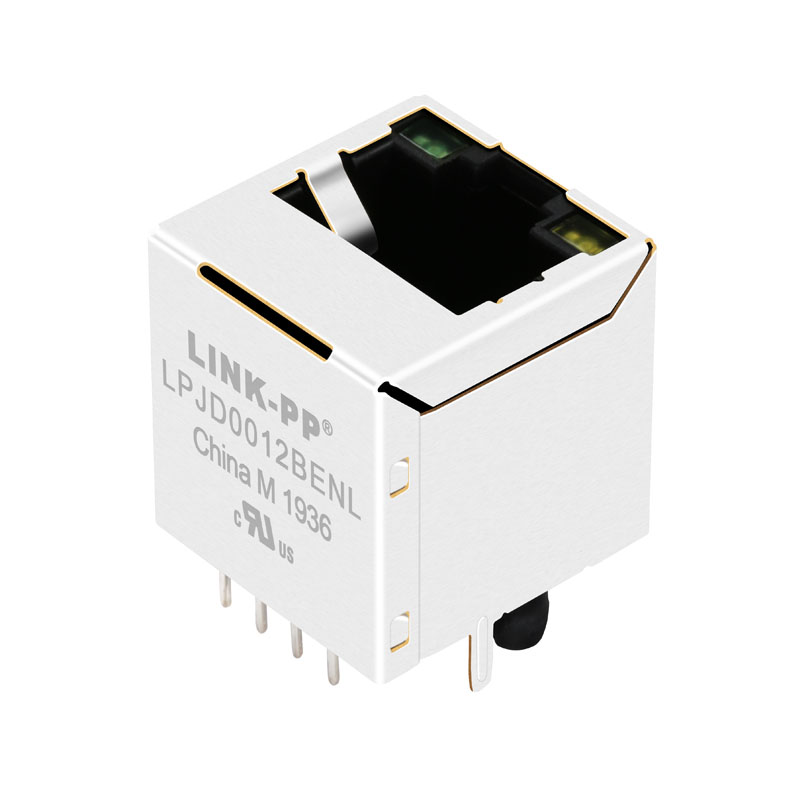

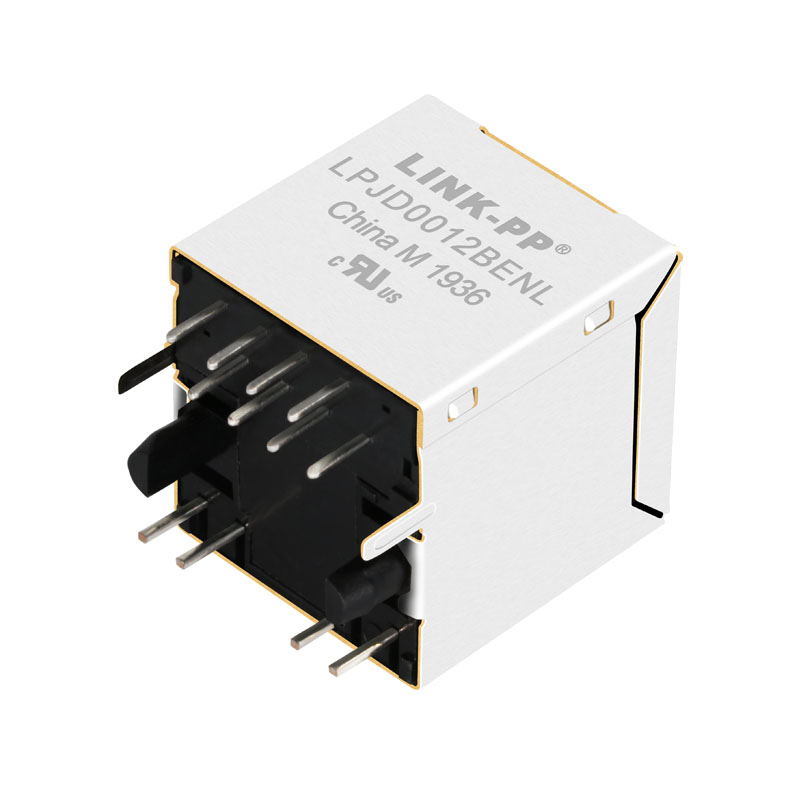

| Item | RJ45 Female Connector |
| Part Status | Active |
| Part Number | LPJD0012BENL |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Cores per Port | 4 |
| Orientation | 180° Angle (Right) |
| PCB Mount Angle | Top Entry |
| Shield EMI Tabs | Without |
| LED Option | With |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutomDX | Yes |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can provide you with free samples to test quality, though shipping fees will apply.
Stock items are ready to ship immediately, while standard mass production takes 15 to 30 days.
We offer a one-year guarantee period along with 24-hour online technical support.
Yes, we support customized solutions. Please send your requirements to us so we can discuss the details.
We bring 19 years of professional production experience and have served as a trusted component partner for leading global technology enterprises for many years.
