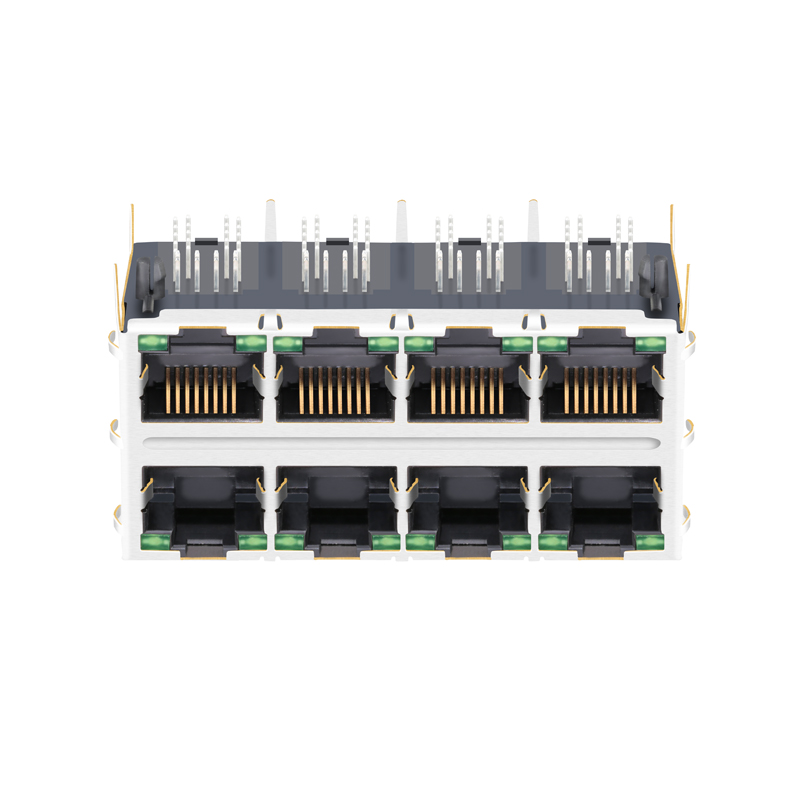

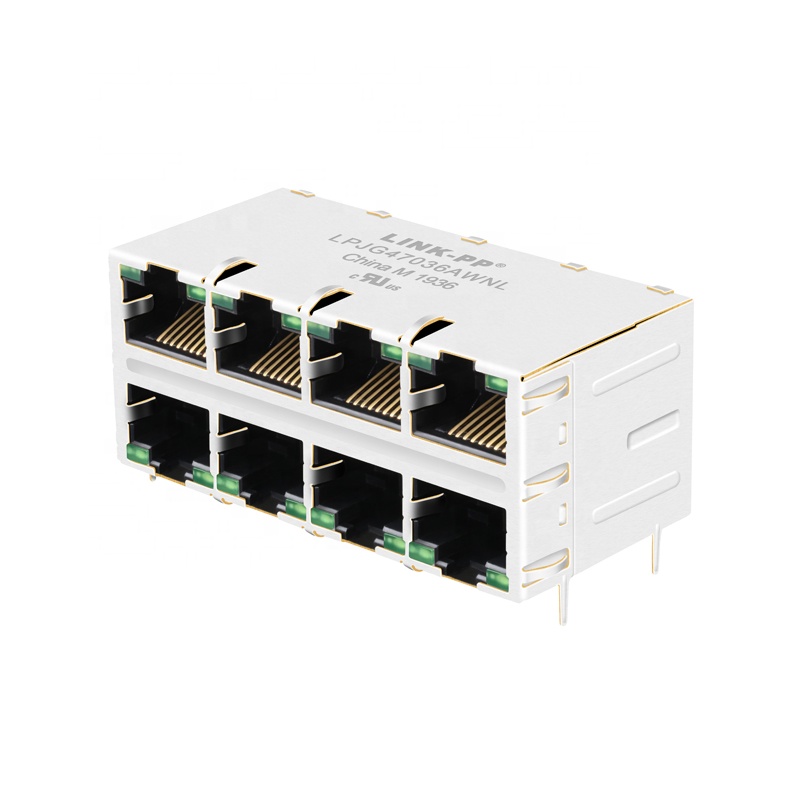

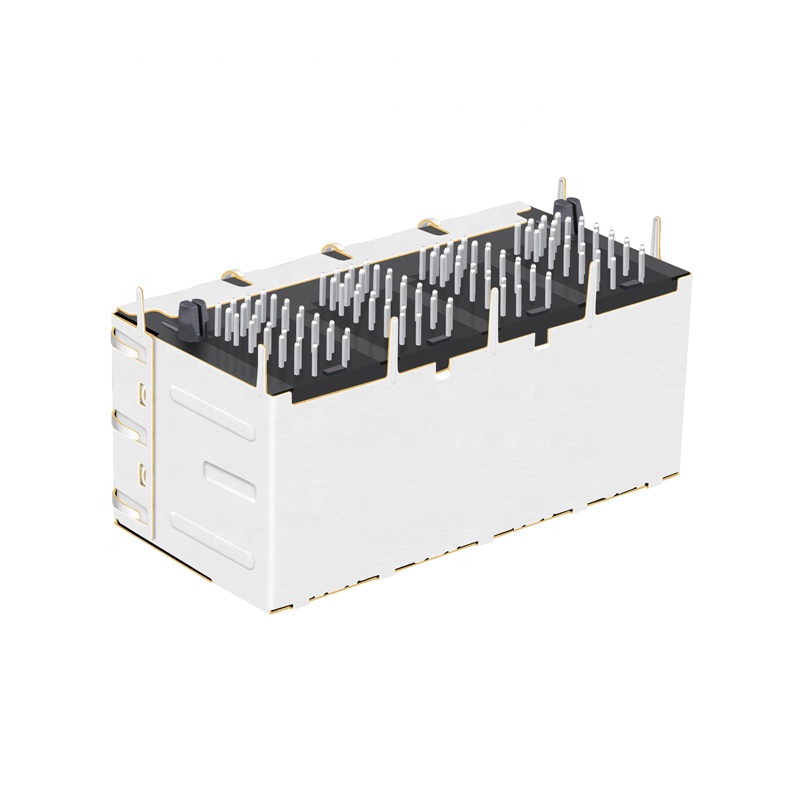

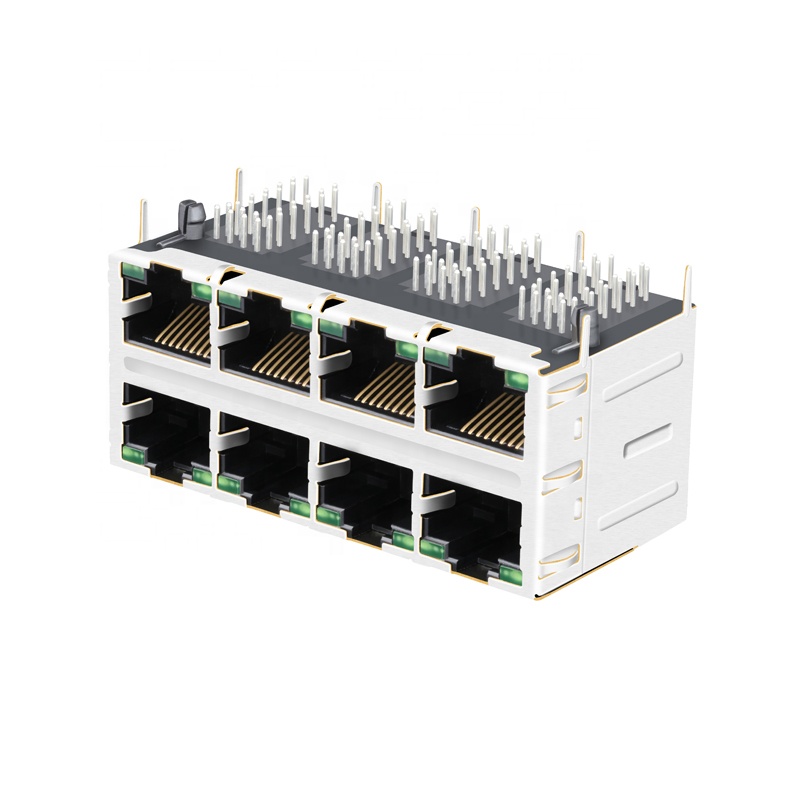

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector

1 / 5

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector

Send Inquiry

Product Description

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector

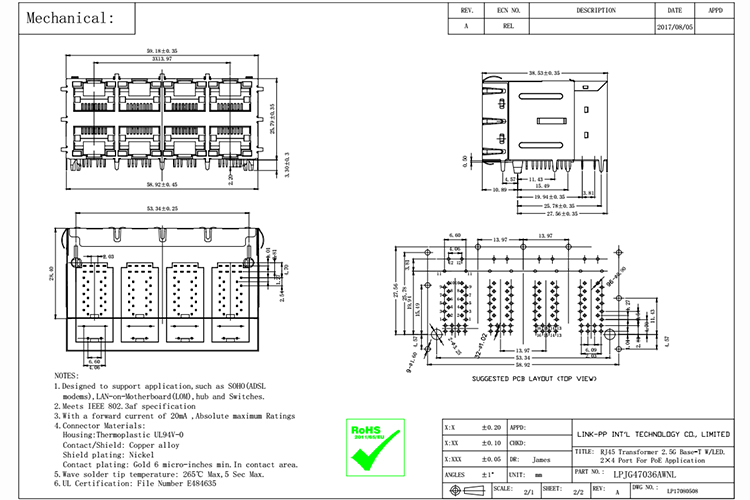

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector Structure

Part Number	LPJG47036AWNL
Application-LAN	ETHERNET(POE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"/50u"
Cores Per Port	8
Diodes	NO DIODES
LED Option	GREEN/GREEN
Latch	UP/DOWN
Number of Ports	2X4
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH
Shielding	Shielded
Speed	2.5G BASE-T
Temperature	-20~+70℃
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

Preferred Supplier Of TI Samsung Cisco Siemens

Featured on TI Website BeagleBone Board

Logo Featured on BeagleBone Board

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Professional Certification

ISO 9001:2008
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy

100% Guarantee Quality

Manufactured Under Strict Controls
100% Tested (Not Just Batch Tested)
OEM Of TE (Tyco) For 9 Years
Successful Customer: Texas Instruments, Samsung, Cisco, Siemens And Intel...
Preferred Supplier Of TI (Texas Instruments)
Quality Guarantee: 6 Years

Competitive Price & Service

More Competitive Price Than Pulse, Tyco, Halo, Wurth And Amphenol
Delivery Time: 2-3 Weeks After Orders
Free Samples Are Available
Provide New Design For Customer Requirements
90% Off Shipping Cost By DHL, UPS, FEDEX Or TNT

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector

Frequently Asked Questions (FAQ)

What is the transmission speed of this RJ45 connector?

This connector supports high-speed network transmissions up to 2.5G Base-T, making it compatible with fast Ethernet and Cat5e application demands.

Does this RJ45 connector support Power over Ethernet (PoE)?

Yes, it is designed specifically for ETHERNET (PoE) applications, allowing the simultaneous transmission of data and power over a single network cable.

What configurations are available for the LED options?

This specific model features a Green/Green LED configuration to indicate normal active connections and port statuses.

What is the gold plating thickness on the contact mating area?

The contact mating area is available in multiple standard gold plating options including 6u", 15u", 30u", and 50u" depending on custom requirement levels.

Is this connector compatible with standard manufacturing certifications?

Absolutely. It complies with ISO 9001:2008 standards, is UL certified, Reach certified, and features RoHS-5 compliance with lead-in-solder exemption.
