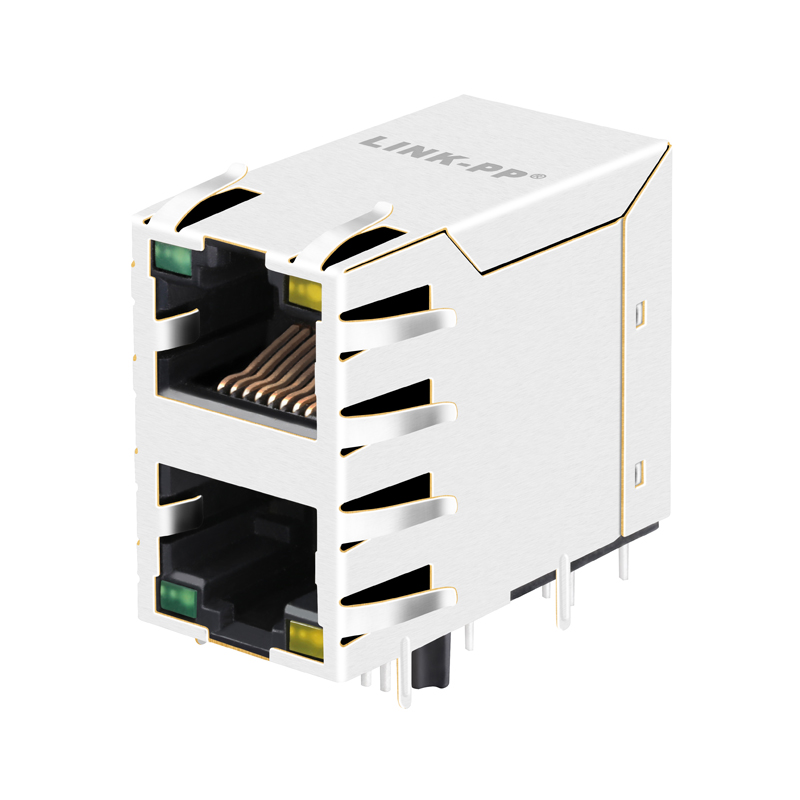

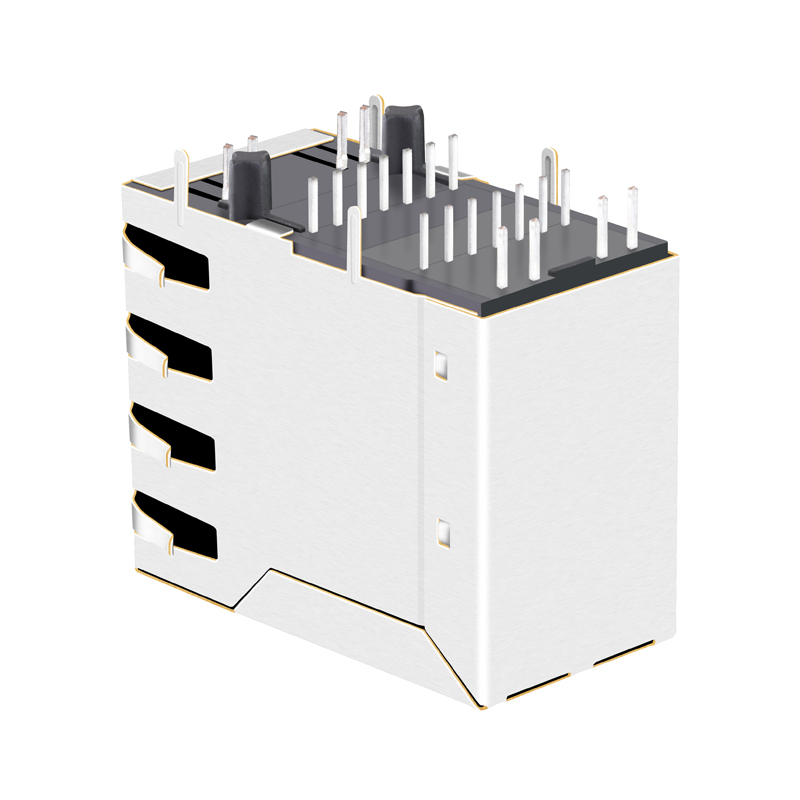

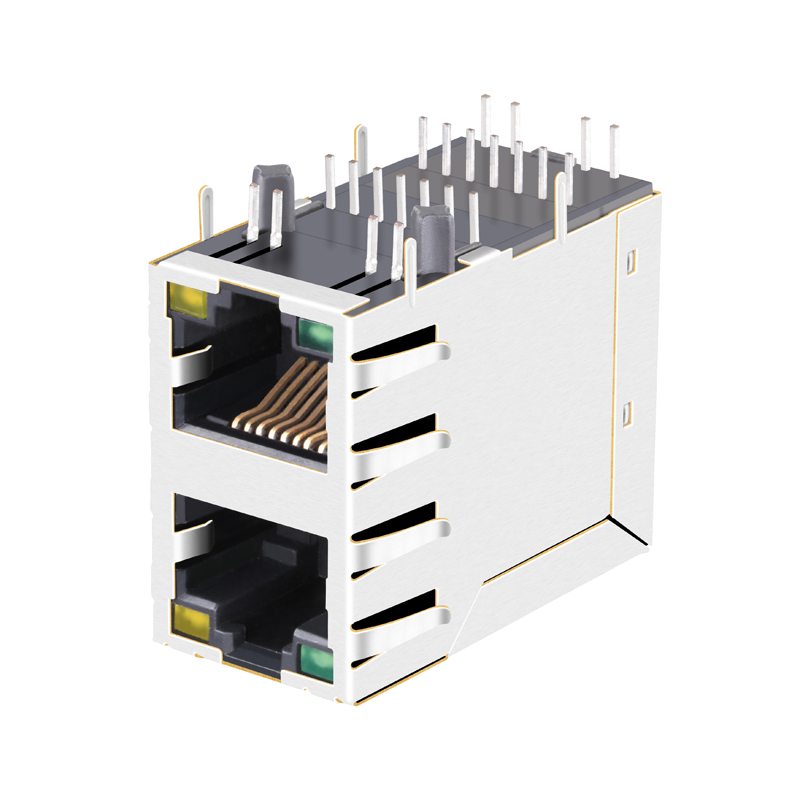

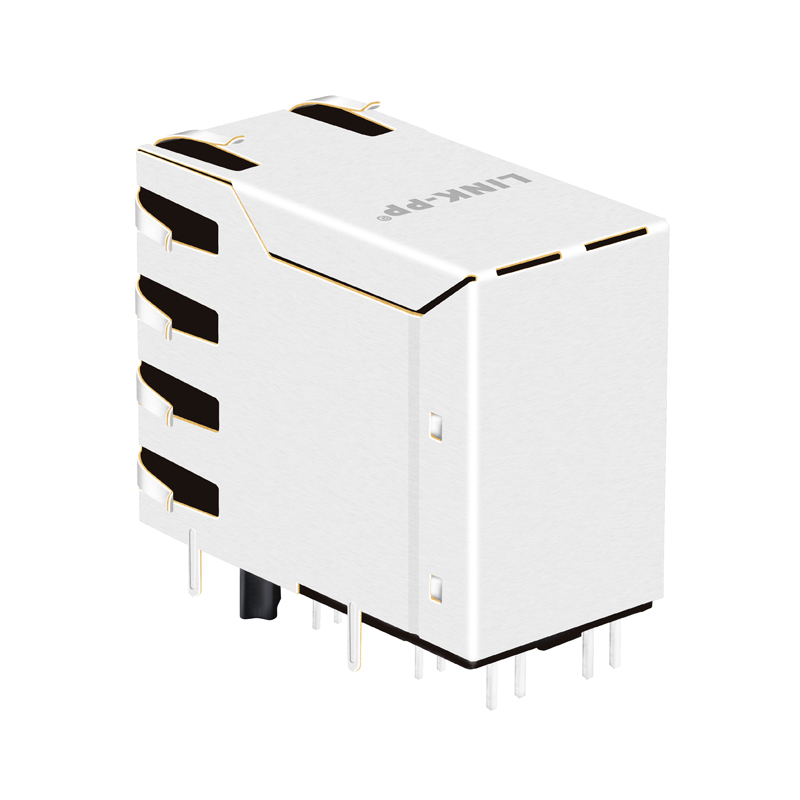

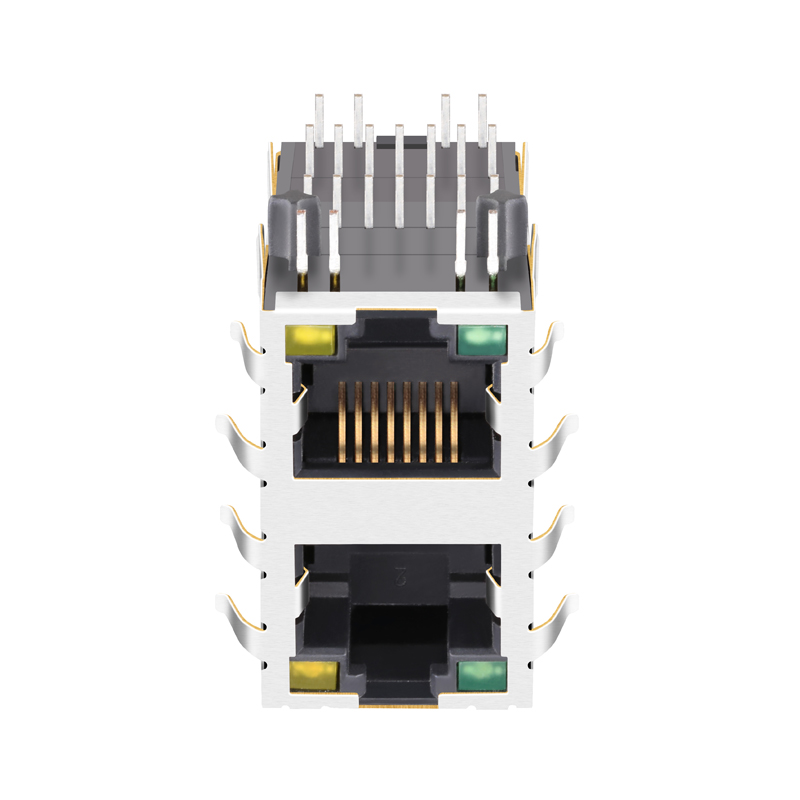

China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
1 / 5
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack

China Manufactures 2x1 Port Shielded RJ45 Modular Jack

Send Inquiry

Product Description

2x1 Port Shielded RJ45 Modular Jack Banner

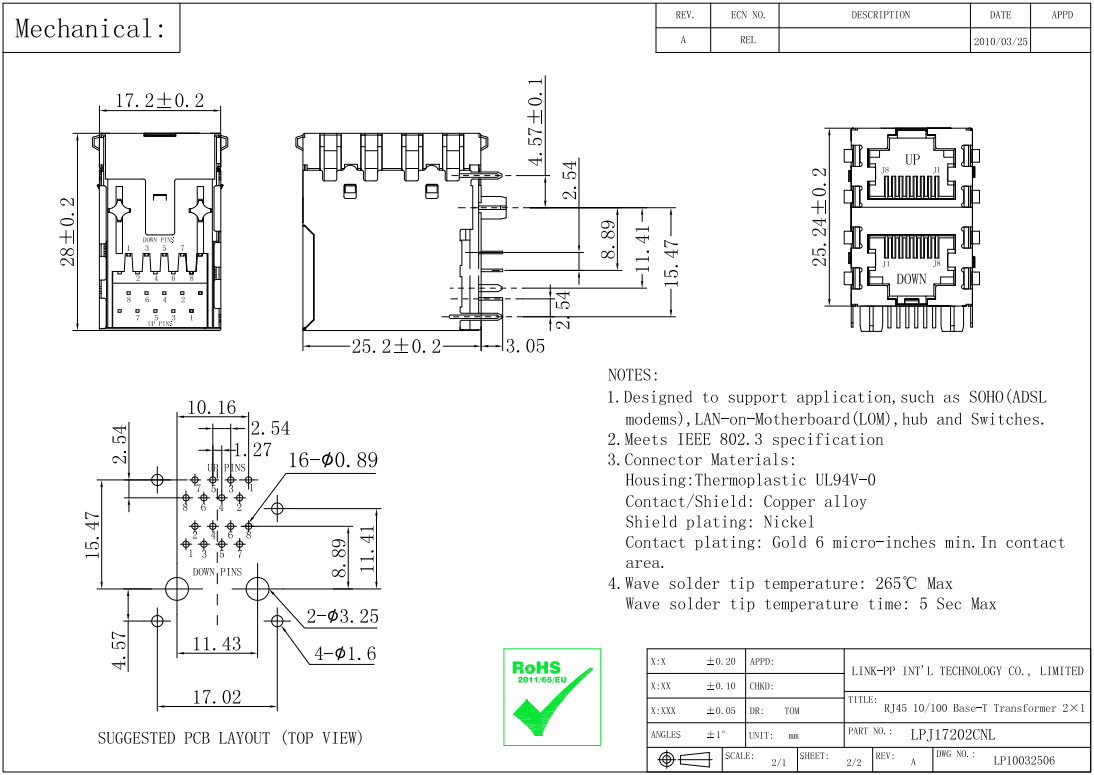

2x1 Port Shielded RJ45 Modular Jack Product View 2x1 Port Shielded RJ45 Modular Jack Structural Diagram
Specification Divider Banner
2x1 Port RJ45 Connector 10/100 Base-t Integrated Magnetics, Without LED, Tab Down/Up, RoHS
Part Number LPJ17202CNL
Cross Part Number MIC24A10-0101W-LF3 / 7499051002
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port NO
Diodes NO DIODES
LED Option Without
Latch TAB DOWN / Up
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 10/100 Base-T
Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
Why Choose Us
World’s Leading Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
  • ISO 9001:2008
  • UL Certification
  • Reach Certification
  • RoHS Compliance
  • Active Environmental Policy
100% Guarantee Quality
  • Manufactured Under Strict Controls.
  • 100% Tested (Not Just Batch Tested)
  • OEM Partner Of TE (Tyco) For 9 Years
  • Successful Customer: Texas Instruments, Samsung, Cisco, Siemens, and Intel...
  • Preferred Supplier Of TI (Texas Instruments)
  • Quality Guarantee: 6 Years
Competitive Price & Service
  • More Competitive Price Than Pulse, Tyco, Halo, Wurth, and Amphenol
  • Delivery Time: 2-3 Weeks After Orders
  • Free Samples Are Available
  • Provide New Design For Customer Requirements
  • 90% Off Shipping Cost By DHL, UPS, DEDEX, Or TNT
Corporate Policy
  • Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery, And Service.
  • Committed To And Expects Quality Performance From Every Employee.
  • The Company Standard Is Defect-Free Products And Services.
2x1 Port Shielded RJ45 Modular Jack Dimensional Details 2x1 Port Shielded RJ45 Modular Jack Interface
2x1 Port Shielded RJ45 Modular Jack Pin Definition 2x1 Port Shielded RJ45 Modular Jack Packaging Specification

• Preferred Supplier Of TI, Samsung, Cisco, Siemens ...

Welcome To Visit The TI Website: //www.ti.com/tool/beaglebk#0

You Will Look At Our Logo On BeagleBone Board

Final Divider Banner
RJ45 Modular Jack Mounted on PCB Board PCB Mount Angle Diagram
Frequently Asked Questions (FAQ)
What is the speed rating of this 2x1 Port Shielded RJ45 Modular Jack?
This modular jack is rated for 10/100 Base-T Fast Ethernet speeds and features integrated magnetic transformers for noise reduction.
Does this RJ45 connector include integrated LED status lights?
No, this specific version of the 2x1 port connector comes without LEDs.
What is the operating temperature range of these modular jacks?
These connectors are built for industrial-grade performance, with a working temperature range of -40°C to +85°C.
What contact plating options are available?
We support gold plating options for the contact mating area in 6u", 15u", or 30u" thicknesses depending on your durability and conductivity requirements.
Is this product compliant with RoHS standards?
Yes, the connector is compliant under RoHS-5 with lead in solder exemption rules, aligning with standard industrial manufacturing qualifications.
