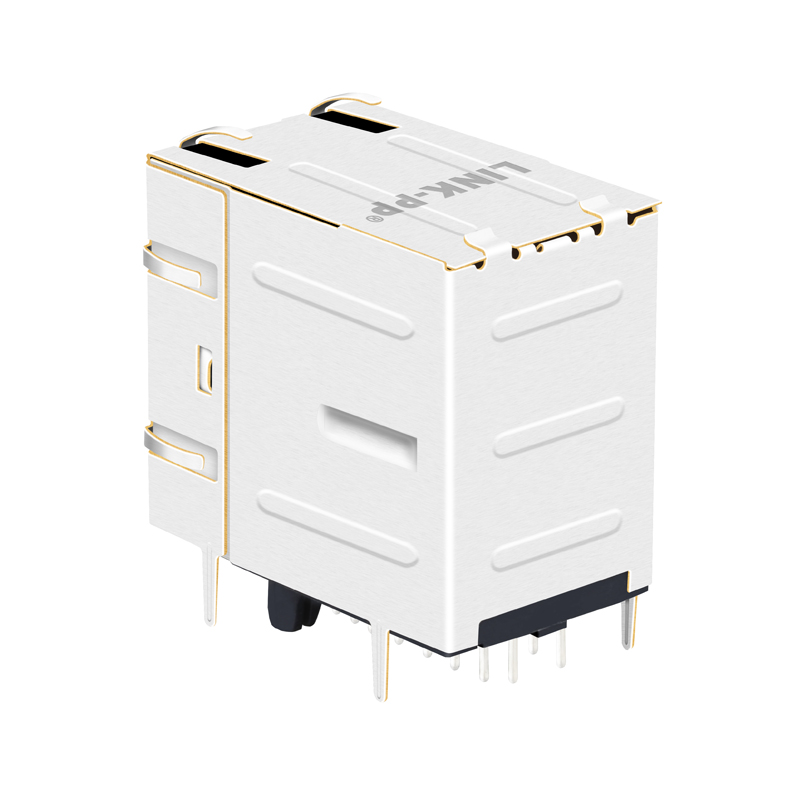

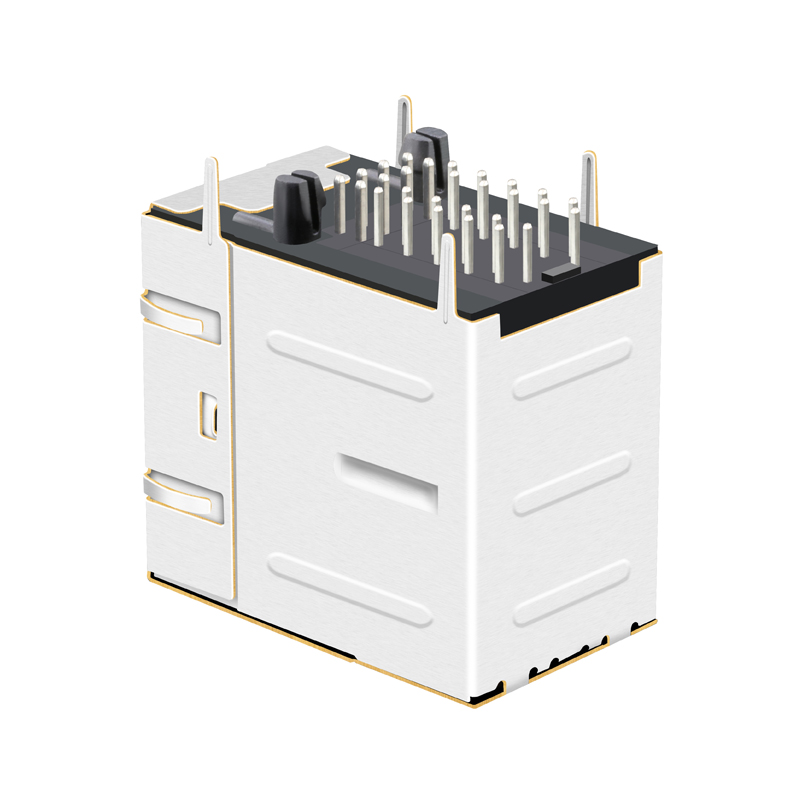

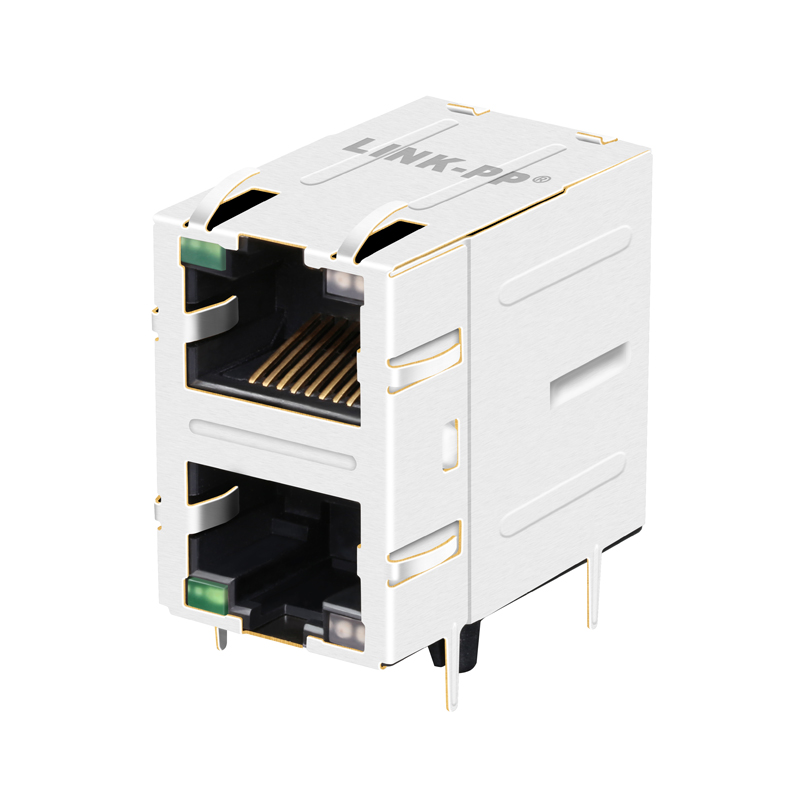

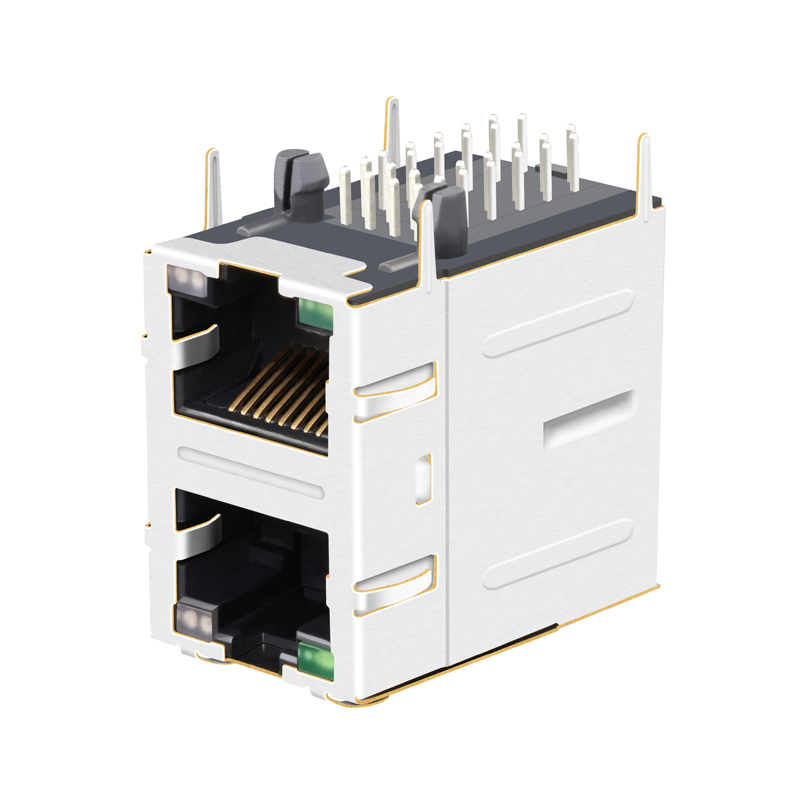

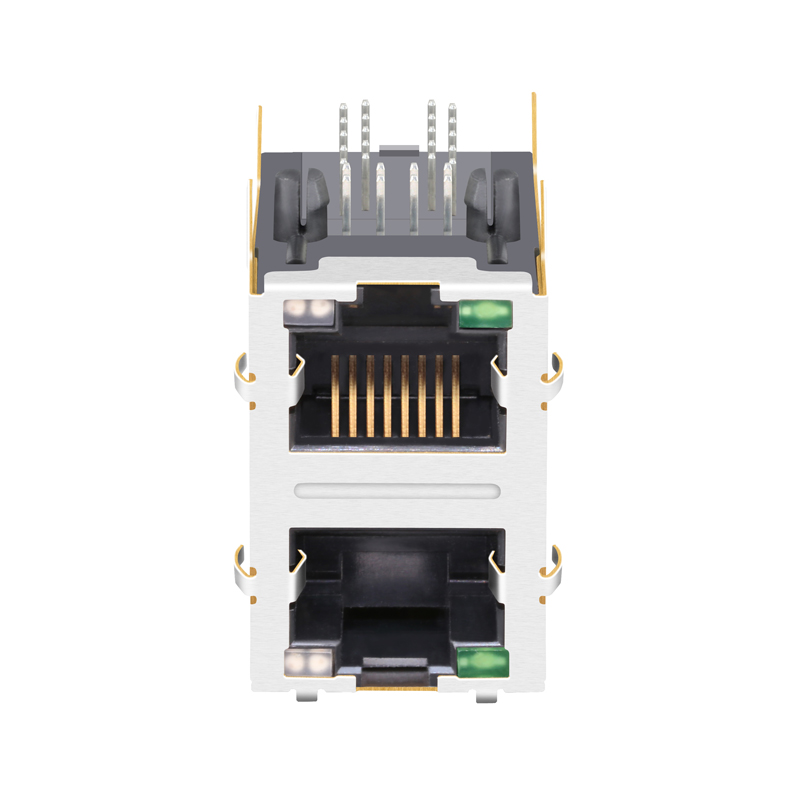

Multi-Port 2X1 Side Entry Through Hole Stacked RJ45 Connector SS-7188S-A-PG4-1-BA-50 0844-2B1T-33-F E5908-0T0343-L 0845-2R1T-W2
Products Description
| Item |
RJ45 Female Connector |
| Compatible With |
E5908-0T0343-L 0845-2R1T-W2 |
| Part Status |
Active |
| Connector Type |
Jack |
| Number of Positions/Contacts |
8p8c (RJ45, Ethernet) |
| Application-Lan |
Ethernet(NoN PoE) |
| Number of Ports |
2xN Port |
| Speed |
10/100/1000 Base-T |
| Latch |
Down/Up |
| Cores per Port |
4 |
| Orientation |
90° Angle (Right) |
| PCB Mount Angle |
SIDE ENTRY |
| Shield EMI Tabs |
Without/With |
| LED Option |
Green/Yellow |
| PCB |
FR4 |
| PCB Retaining Post |
T POST |
| Temperature |
0℃ TO 70℃/-40℃ TO 85℃ |
| Bst Circuit |
Yes |
| AutomDX |
YES |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T,C |
☞ Click Below Products Link To Get More ☞
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
FAQ
Q: Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Q: Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee is covered by the customer.
Q: What is your delivery time?
Ready to ship for stock items and 15-30 days for mass production.
Q: What after-service can you offer?
We provide a one-year guarantee period and offer online technical support 24 hours a day.
Q: Can you accept OEM/ODM orders?
Yes, please send your detailed requirements and inquiries to us so we can proceed with a discussion.
Q: What is your advantage?
We have over 19 years of manufacturing and production experience, and have been a trusted partner for Intel and Jabil for many years.
