China Manufacturer for PoE+ 2.5G Jack Connector RJ45 Socket

Product Description

Product Categories Overview
LAN Transformer Overview
Send Inquiry To Get Latest Price List
Product Features
Product Details
Products Description
Item RJ45 Female Connector
Part Number LPJG47039AWNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(PoE+)
Number of Ports 2x4 Port
Speed 2.5G Base-T
Latch Both
Cores per Port 10
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

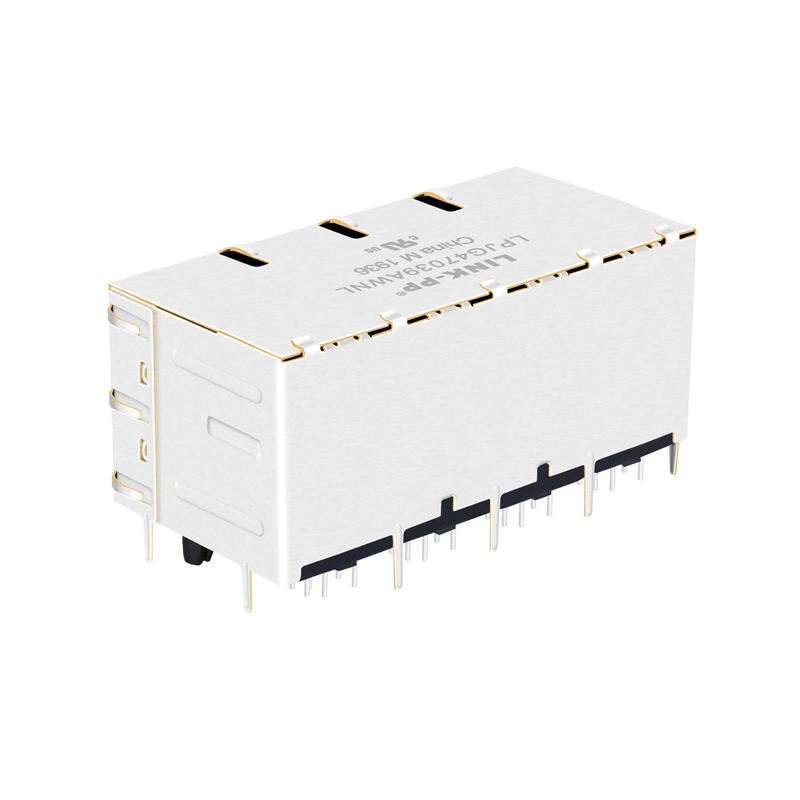

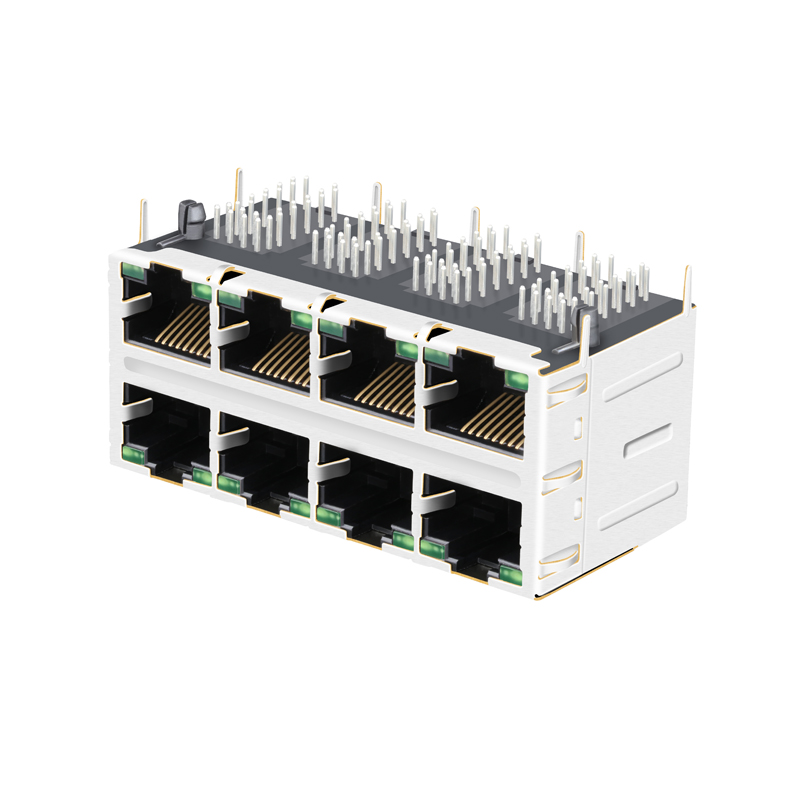

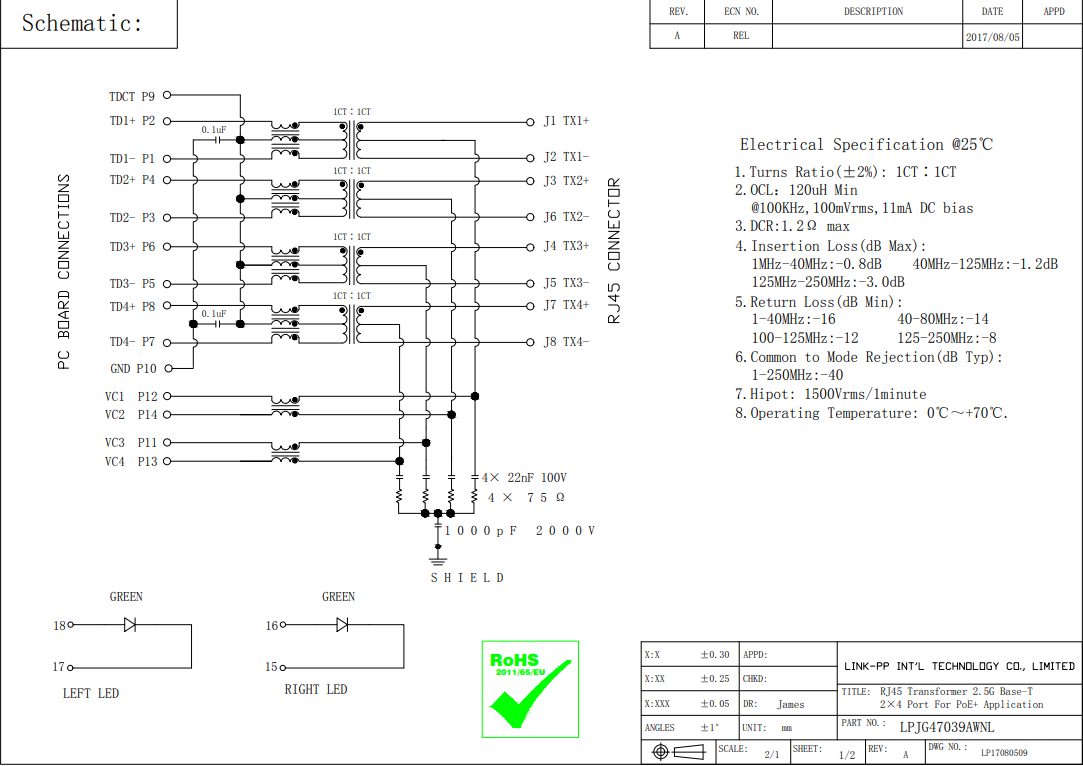

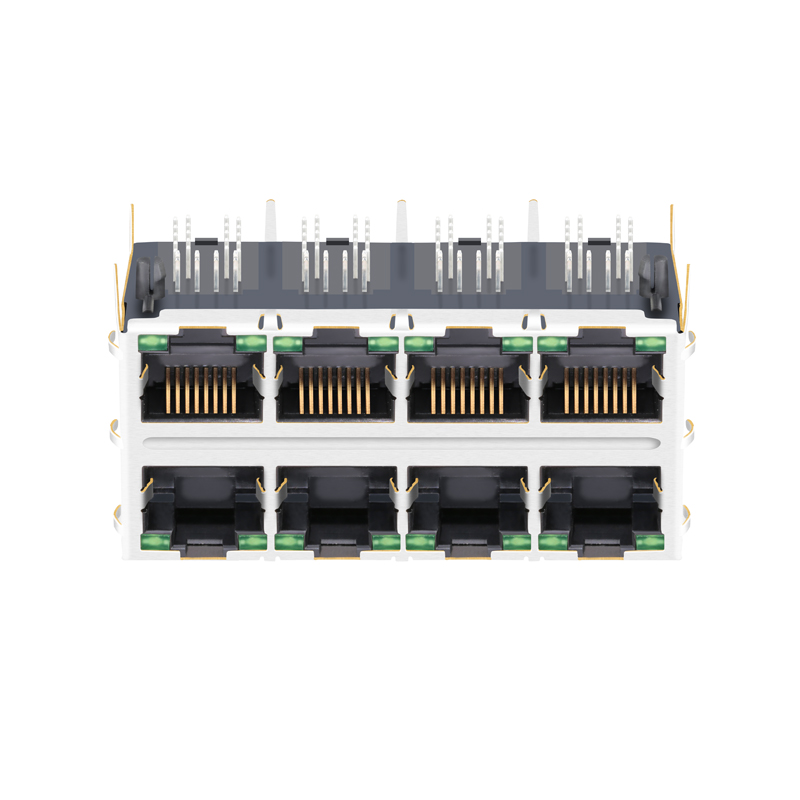

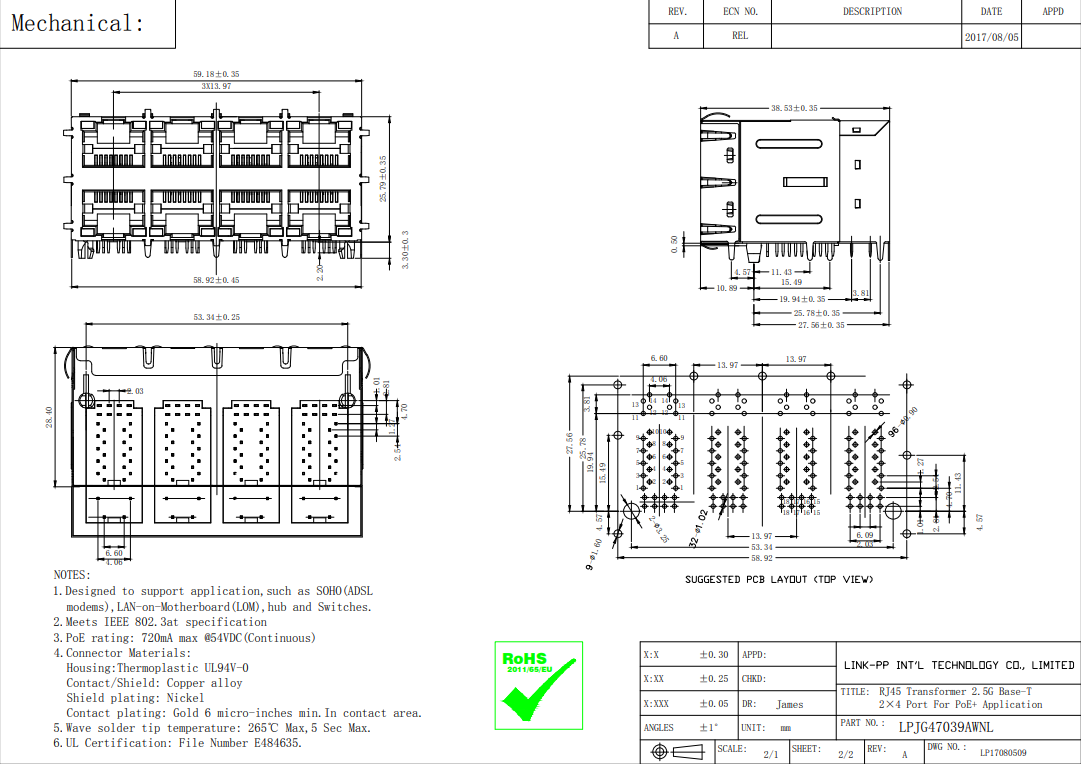

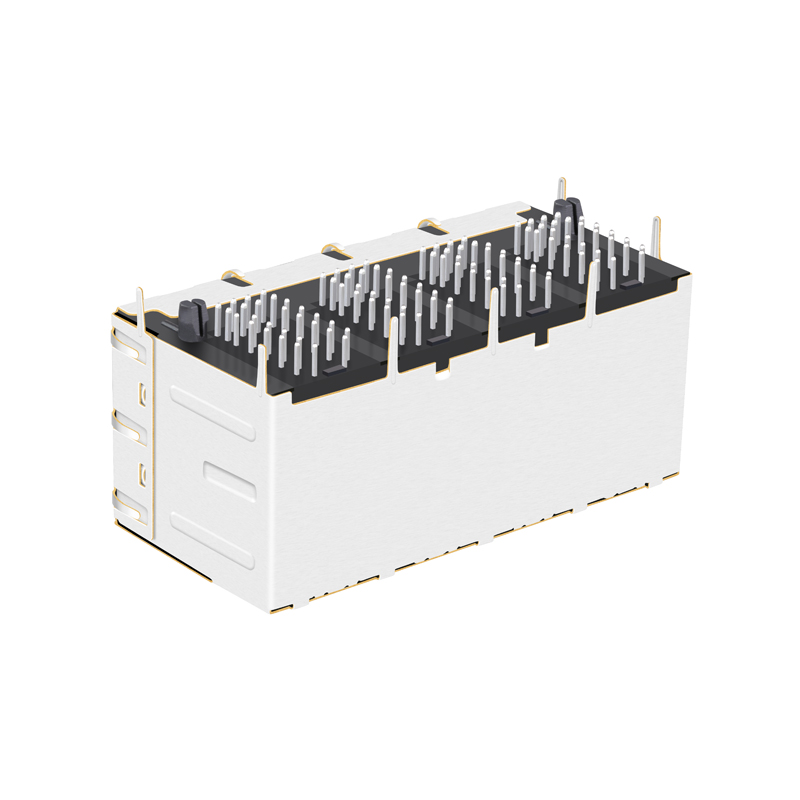

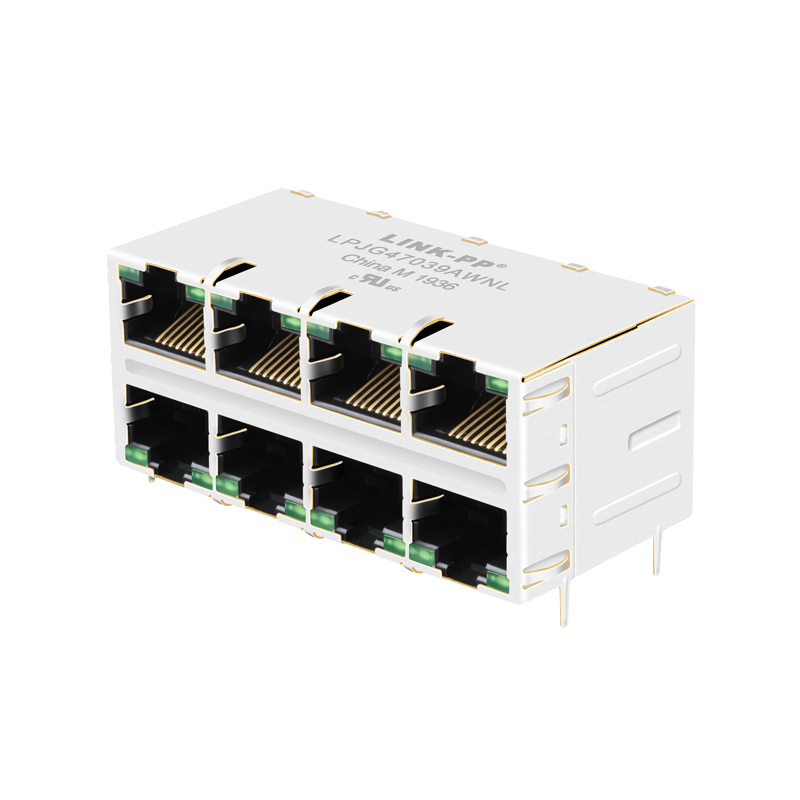

RJ45 Front View RJ45 Side View RJ45 Mechanical Drawing RJ45 Internal Magnetics RJ45 Production Detail RJ45 Testing Phase RJ45 Assembly line RJ45 Dimensions View RJ45 Final Package
Product Quality Certification
Why Choose Us
Why Choose Us Detail 1 Why Choose Us Detail 2 Why Choose Us Detail 3 Why Choose Us Detail 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipment. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components and strong technical support as well.

Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions in the world. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for unique requirements.
Factory Workshop Production Line Quality Control Lab Warehouse Storage
FAQ
1. Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

2. Can I get a sample before mass production?

Yes, we can offer you free samples to test the quality, but the shipping fee must be covered by the customer.

3. What is your delivery time?

We are ready to ship immediately for stock items, and it takes 15-30 days for mass production orders.

4. What after-service can you offer?

We offer a one-year guarantee period along with 24-hour online technical support.

5. Can you accept OEM/ODM orders?

Yes, please send your inquiry directly to us so we can have a detailed discussion regarding your custom specifications.

6. What is your advantage?

We possess over 19 years of professional production experience and have partnered with global industry leaders for many years.
