| item | value |

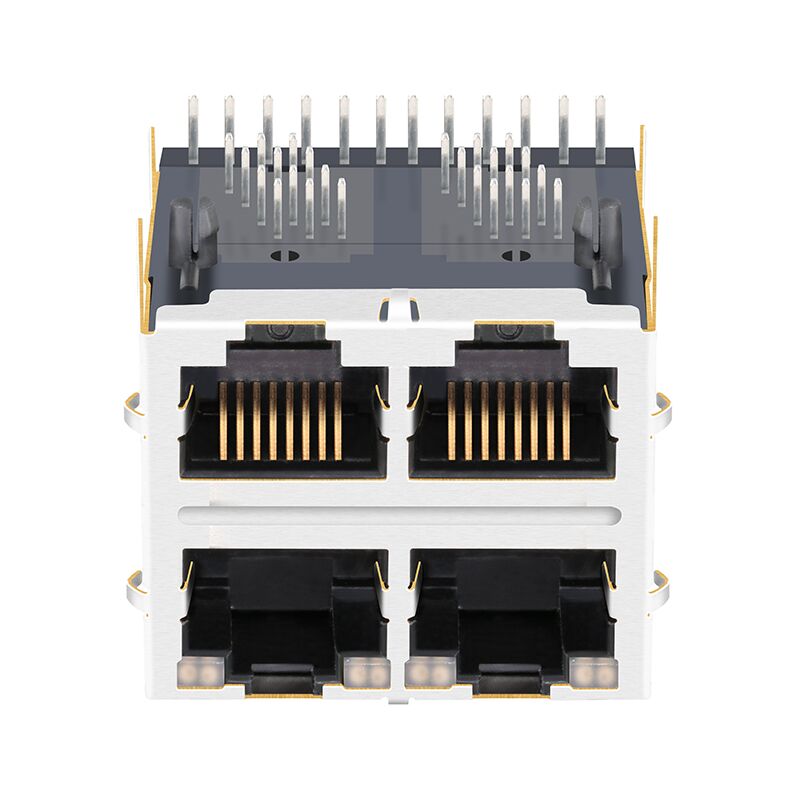

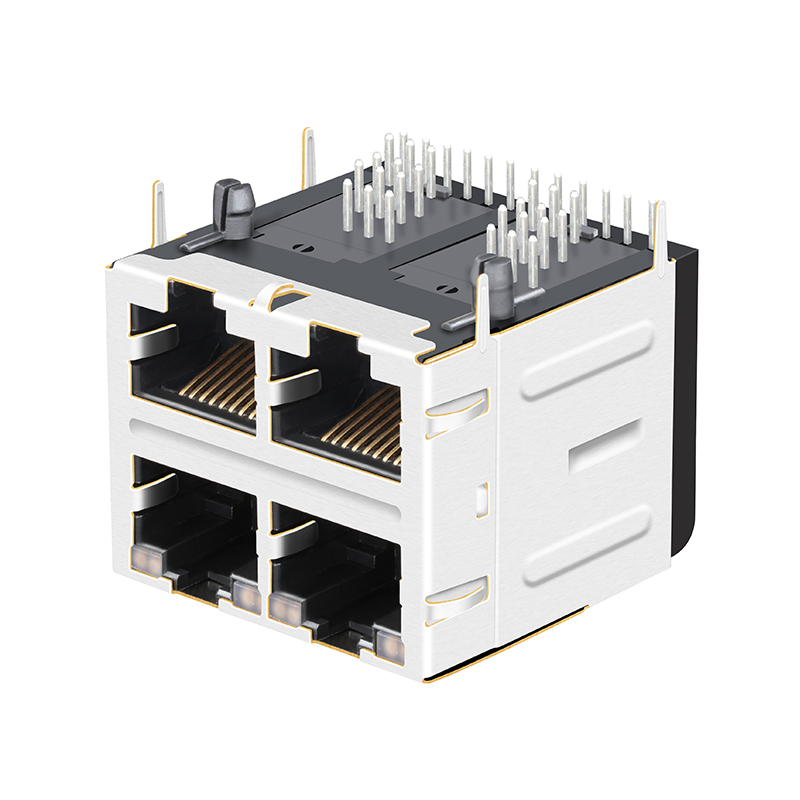

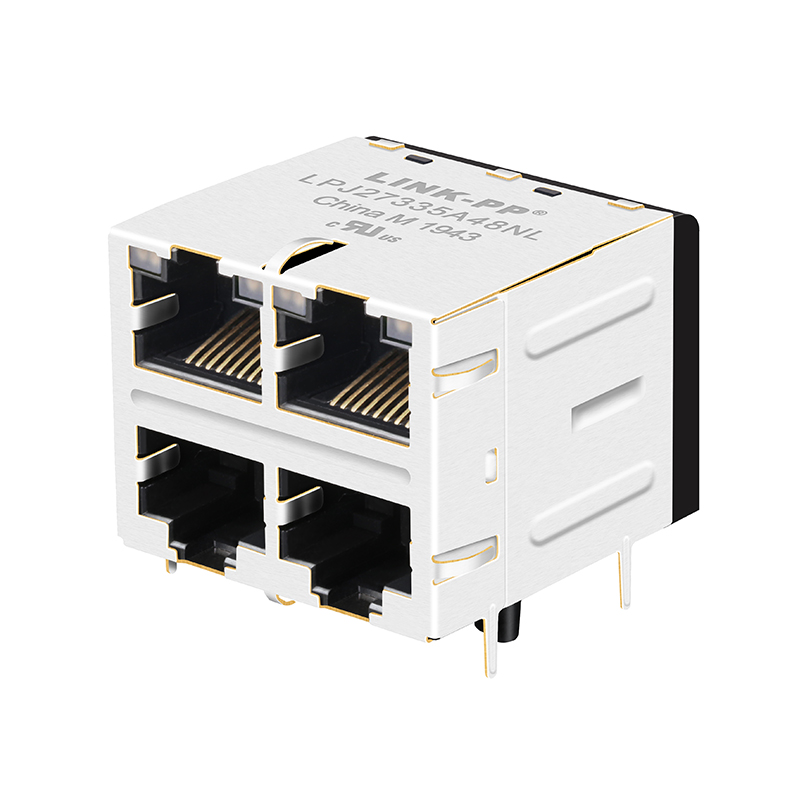

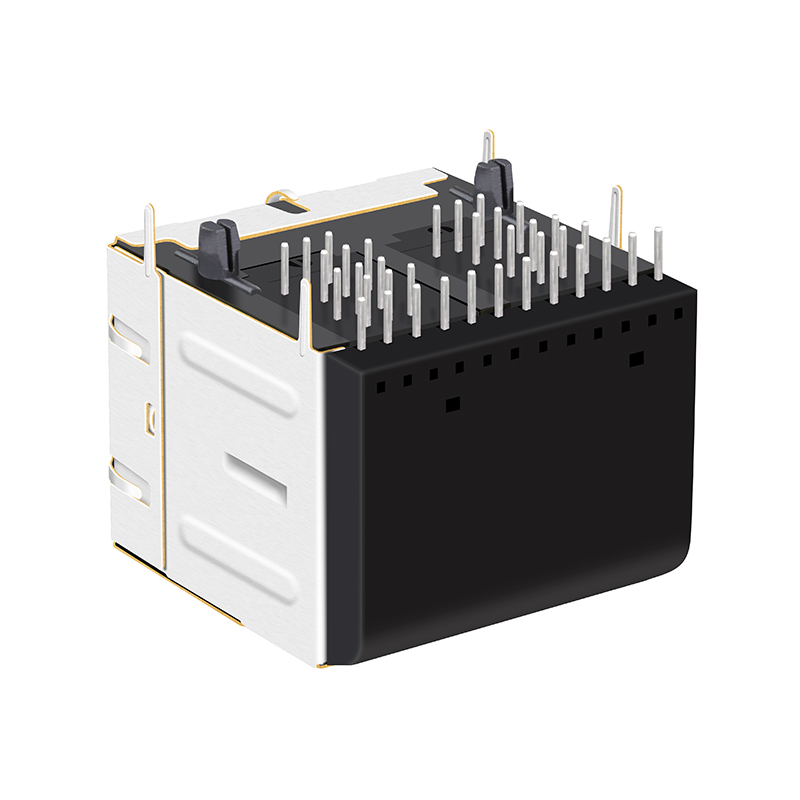

| Part Number | LPJ27335A48NL |
| Pulse Part Number | JX20-0252NL |
| Part Status | Active |
| Connector Type | RJ45 |
| Applications-Lan | Ethernet(Non_PoE) |
| Speed | 10/100 Base-T, AutoMDIX |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Contact Finish Thickness | 6.00µin (0.152µm) |
| LED Color | Green&Orange/Green&Orange Led |
| Number of Cores per Jack | 4 |
| Shielding | Shielded, Emi Finger |
| Number of Ports | 2x2 Port |
| Features | Board Guide |
| Tab Direction | Both |
| Contact Finish | Gold |
| Configuration RX/TX | T,C |
| Turns Ratio RX/TX | 1CT:1CT |
| Operating Temperature | -40°C ~ 85°C |
We are a manufacturer specialized in RJ45 connectors and LAN Transformers for more than 23 years.
Yes, 3-5 pcs free samples are available for your testing. Small batch orders are also acceptable.
Yes. We have rich experience and strong capacity to bring your design and concept to realization. Laser printing your brand on products is fully supported.
With our professional team and high-quality production control, we are generally able to ship within 30 days.
Our manufacturing facilities and products are compliant and certified with ISO9001:2000, RoHS, REACH, CE, and UL standards.
Our products are widely used in network and communication systems, including HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.
