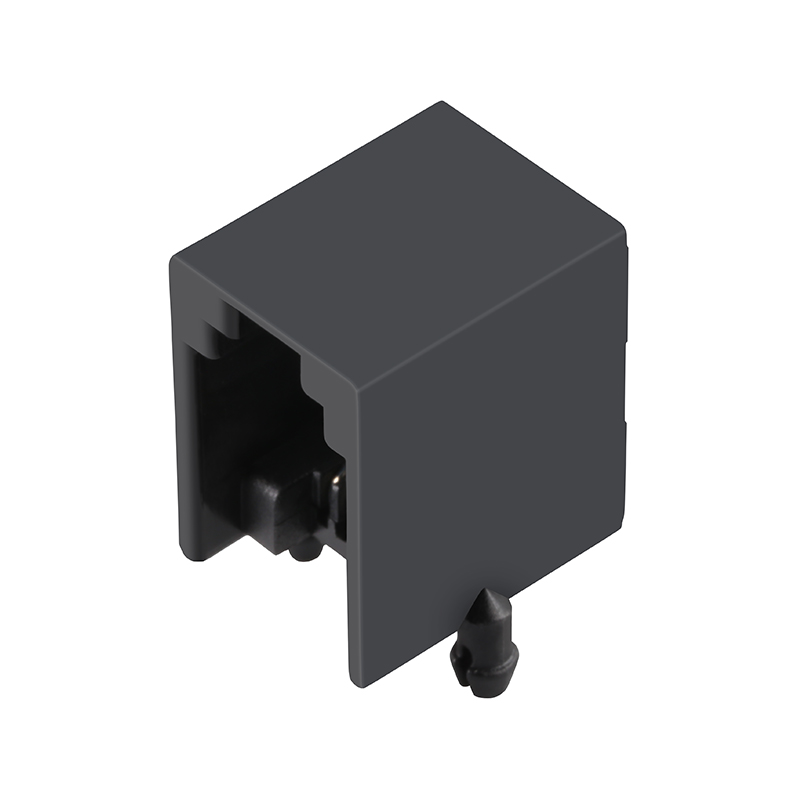

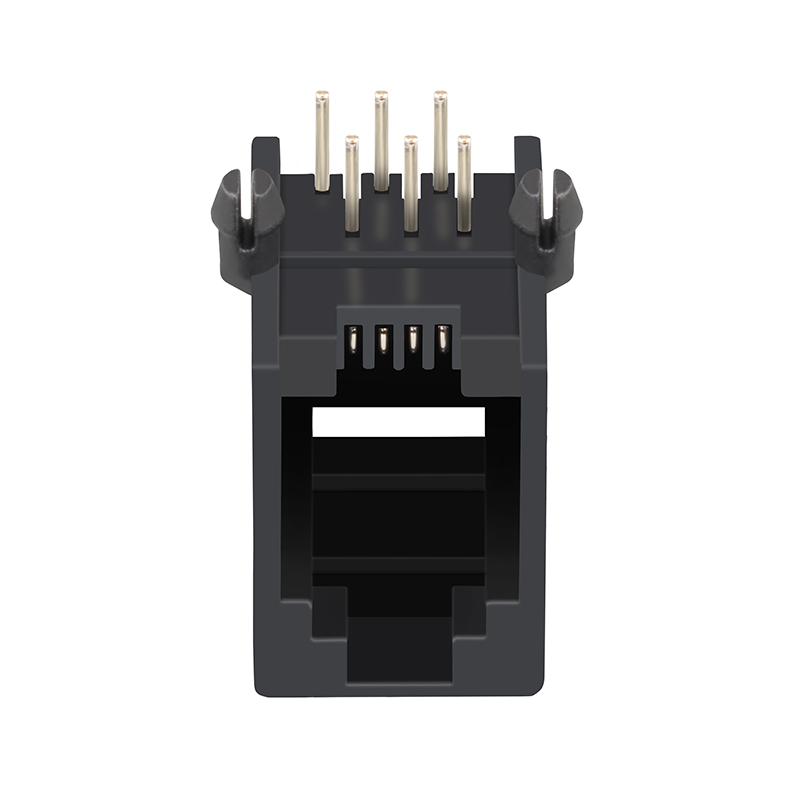

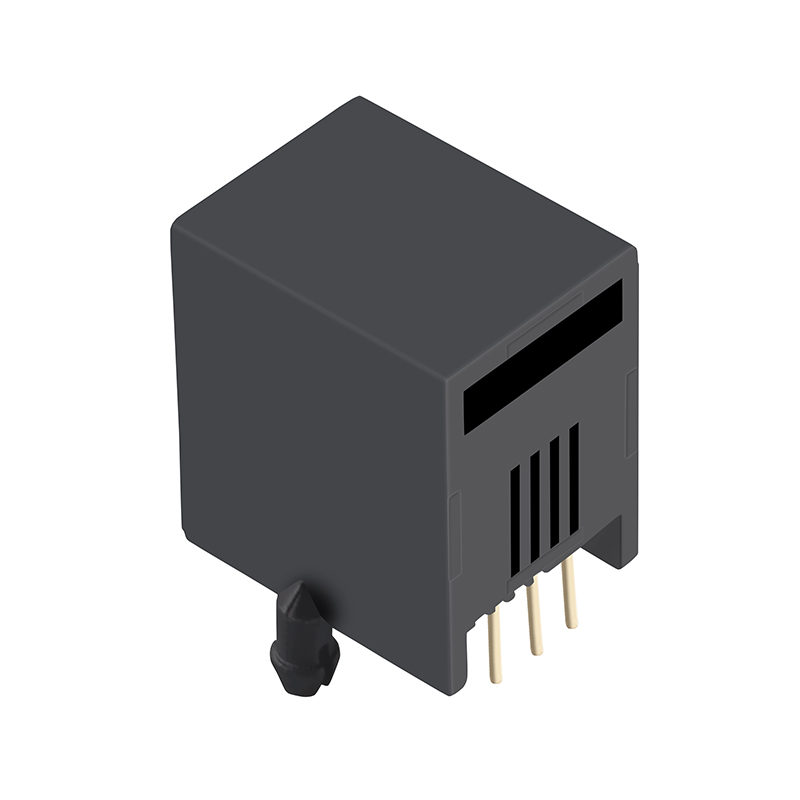

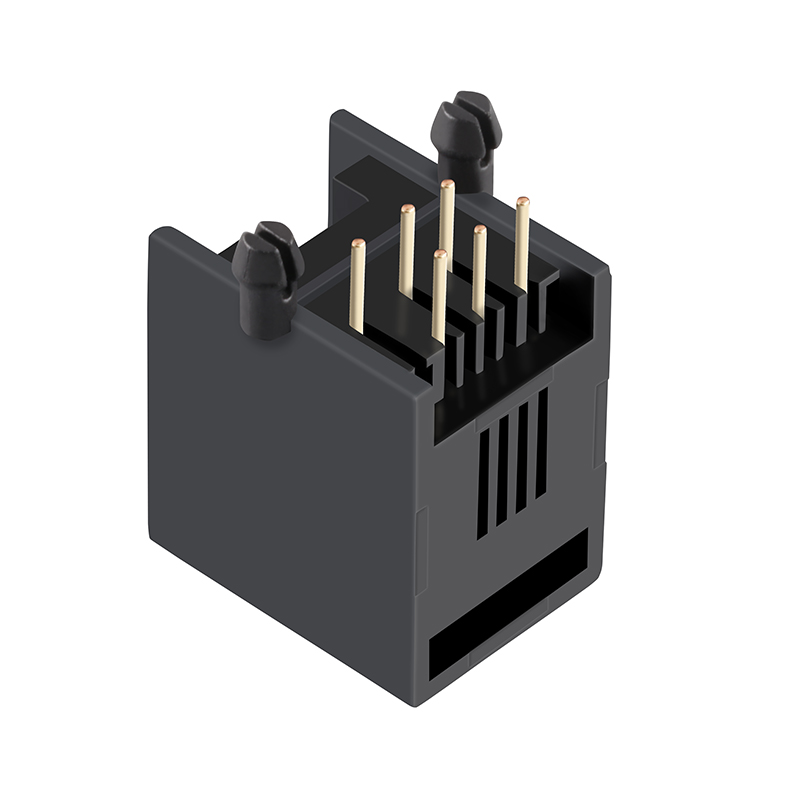

Through Hole Side Entry Dip Tab up 1x1 Port 6P6C RJ11 Connector Jack
Through Hole Side Entry Dip Tab up 1x1 Port 6P6C RJ11 Connector Jack
Through Hole Side Entry Dip Tab up 1x1 Port 6P6C RJ11 Connector Jack
Through Hole Side Entry Dip Tab up 1x1 Port 6P6C RJ11 Connector Jack
Through Hole Side Entry Dip Tab up 1x1 Port 6P6C RJ11 Connector Jack
1 / 5
Through Hole Side Entry Dip Tab up 1x1 Port 6P6C RJ11 Connector Jack
Through Hole Side Entry Dip Tab up 1x1 Port 6P6C RJ11 Connector Jack
Through Hole Side Entry Dip Tab up 1x1 Port 6P6C RJ11 Connector Jack
Through Hole Side Entry Dip Tab up 1x1 Port 6P6C RJ11 Connector Jack
Through Hole Side Entry Dip Tab up 1x1 Port 6P6C RJ11 Connector Jack

Through Hole Side Entry Dip Tab up 1x1 Port 6P6C RJ11 Connector Jack

Send Inquiry

Product Description

Product Showcase
Through Hole Side Entry Dip Tab Up 1x1 Port 6P6C RJ11 Connector Jack
Products Description
Item RJ11 Jack
Part Number LPJE8014NNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 6p6c (RJ11, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Latch Up
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

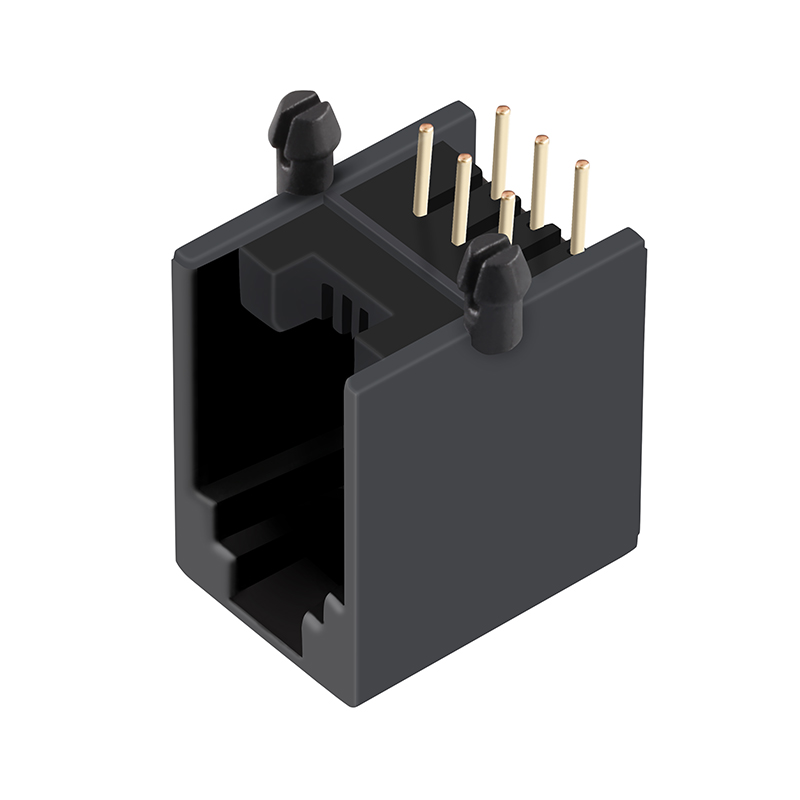

Product Details 1 Product Details 2
Technical Drawing
Product Options
Production Workflow
Equipment Display
Quality Standard
Inspection Process
Packaging Standard
Shipping Logistics
Factory Area 1 Factory Area 2 Factory Area 3
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
What is your delivery time?
Ready to ship for stock items and 15-30 days for mass production.
What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
What is your advantage?
19 years of production experience and we are partner of Intel and Jabil for many years.
