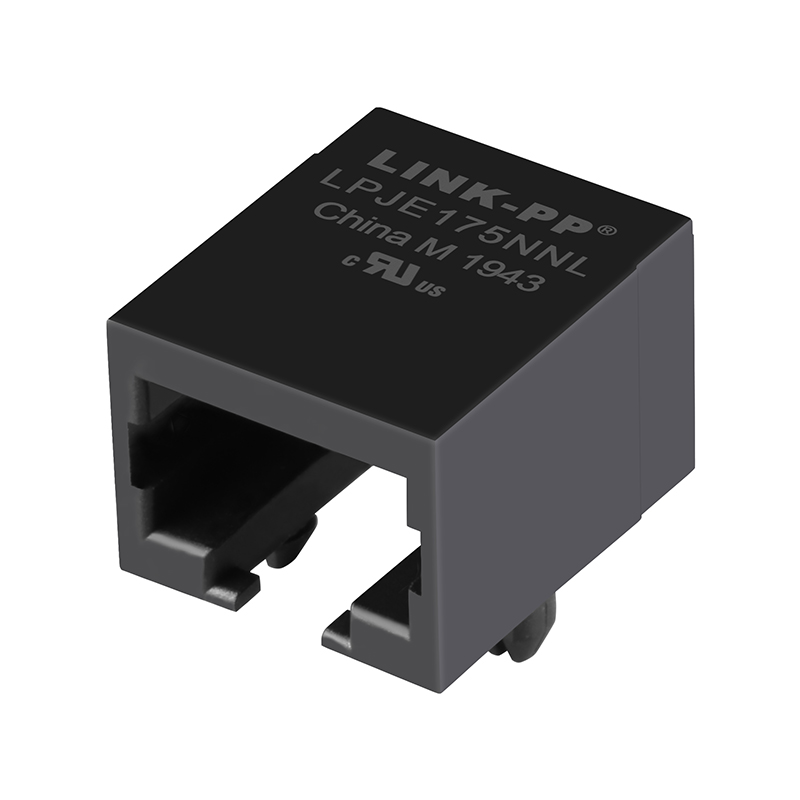

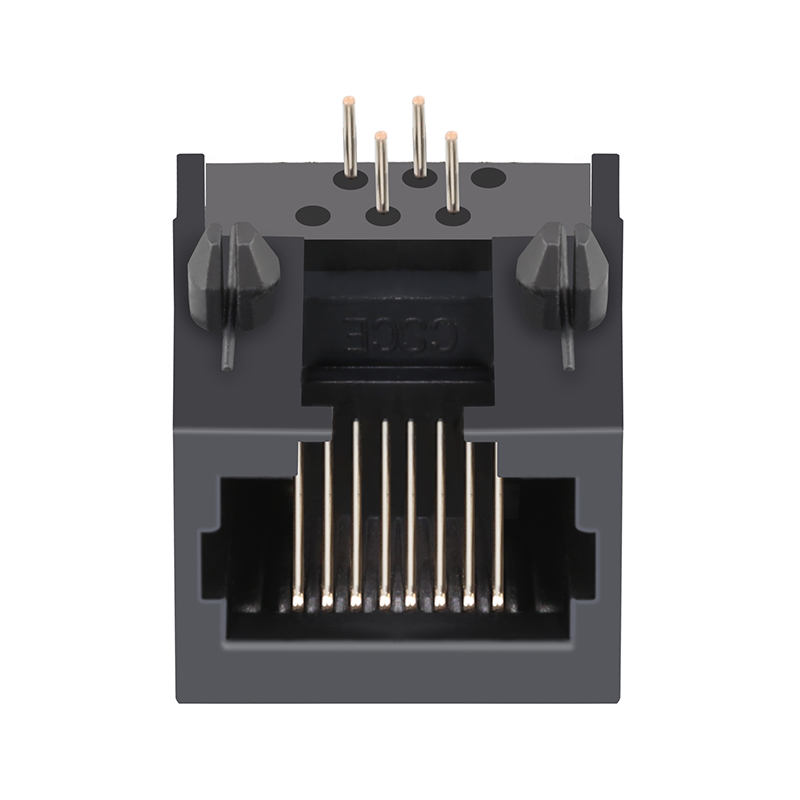

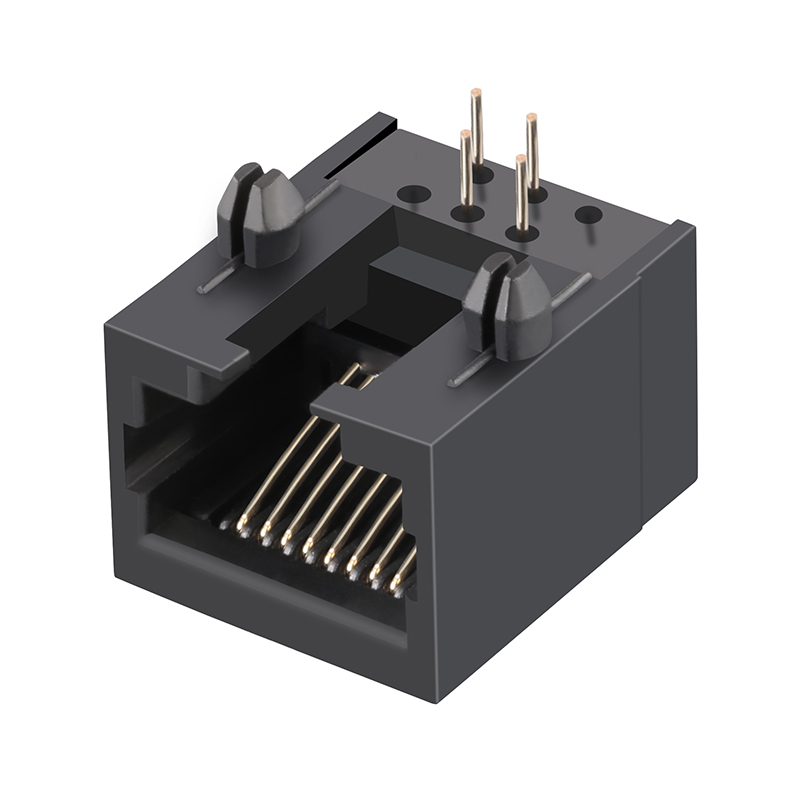

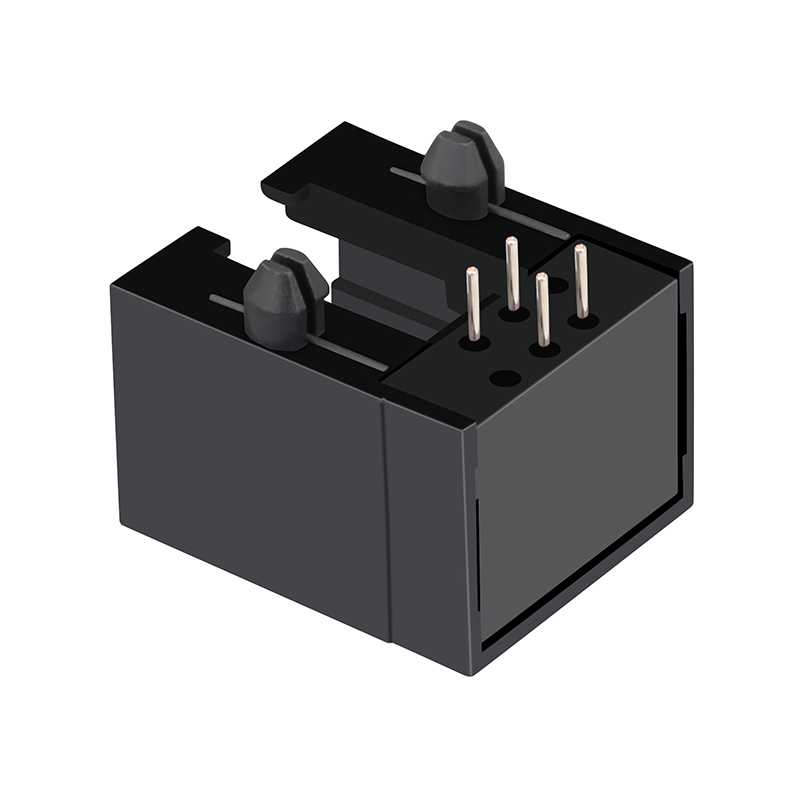

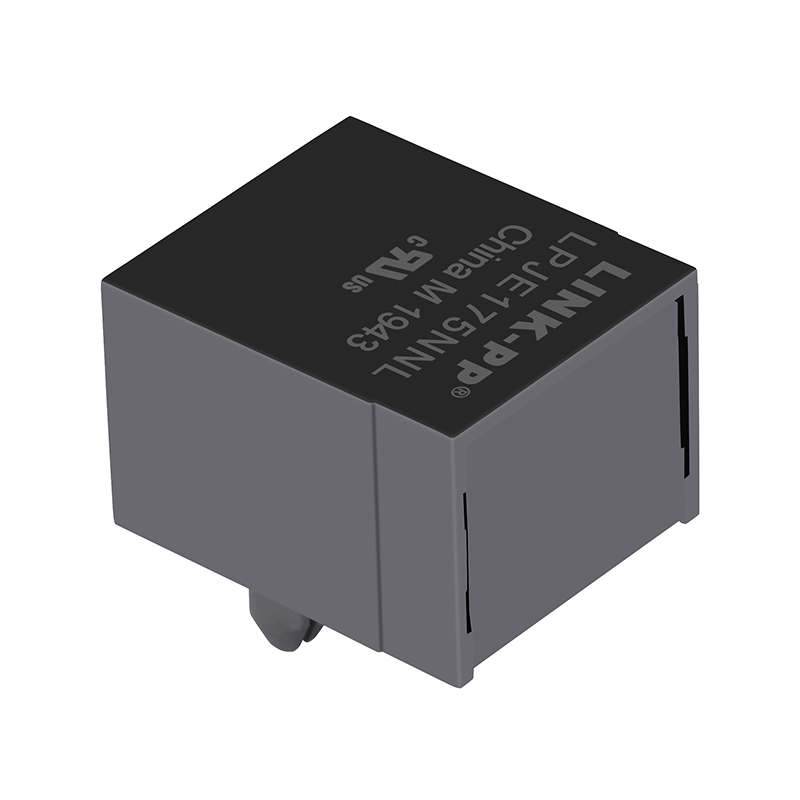

Tab Down Without Magnetics 1x1 Port 4P4C RJ11 Modular Jack
Product Description
| Item |
RJ11 Female Connector |
| Part Number |
LPJE175NNL |
| Part Status |
Active |
| Connector Type |
Jack |
| Number of Positions/Contacts |
4p4c (RJ11, Ethernet) |
| Application-Lan |
Ethernet(Non PoE) |
| Number of Ports |
1x1 Port |
| Latch |
Down |
| Orientation |
90° Angle (Right) |
| PCB Mount Angle |
SIDE ENTRY |
| Shield EMI Tabs |
Without |
| LED Option |
Without |
| PCB |
FR4 |
| PCB Retaining Post |
T POST |
| Temperature |
-40°C TO 85°C |
| Bst Circuit |
Yes |
| AutomDX |
YES |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T,C |
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping fee.
What is your delivery time?
We have items ready to ship from stock, and it takes 15-30 days for mass production.
What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so we can discuss the details.
What is your advantage?
We have 19 years of professional production experience and have partnered with major industry leaders for many years.
