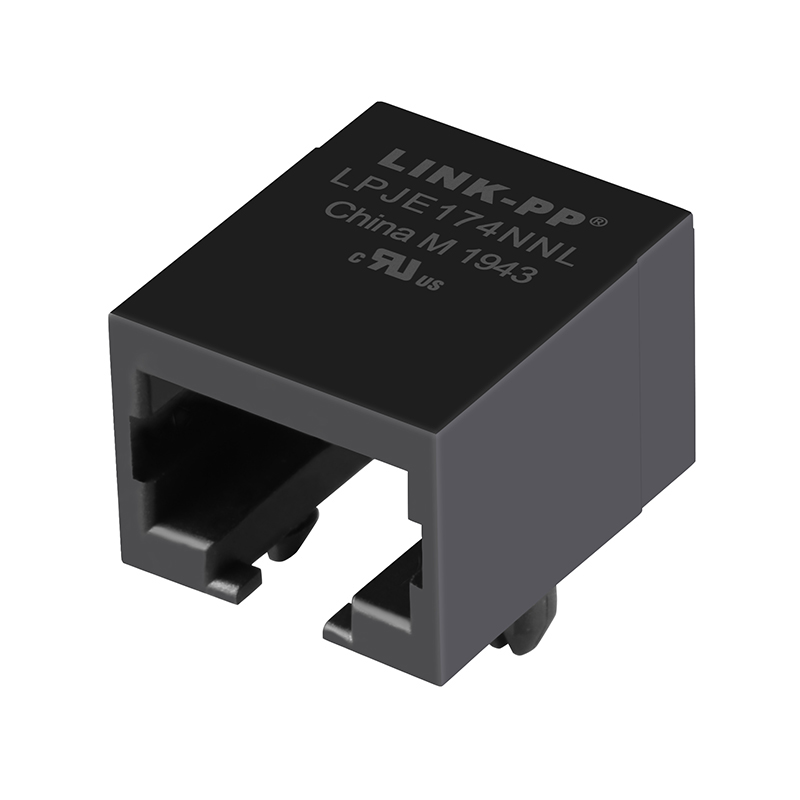

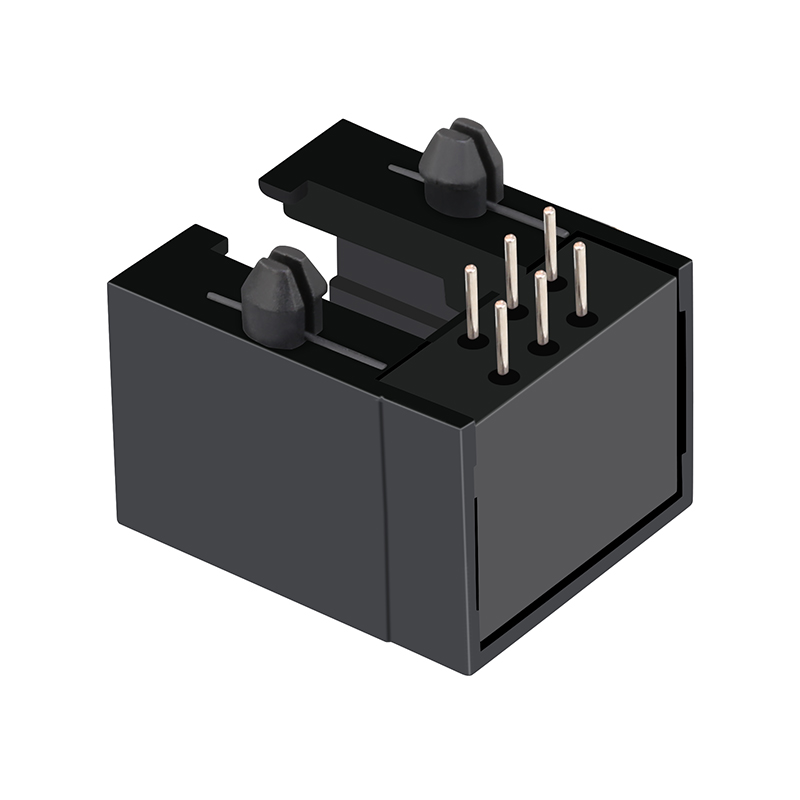

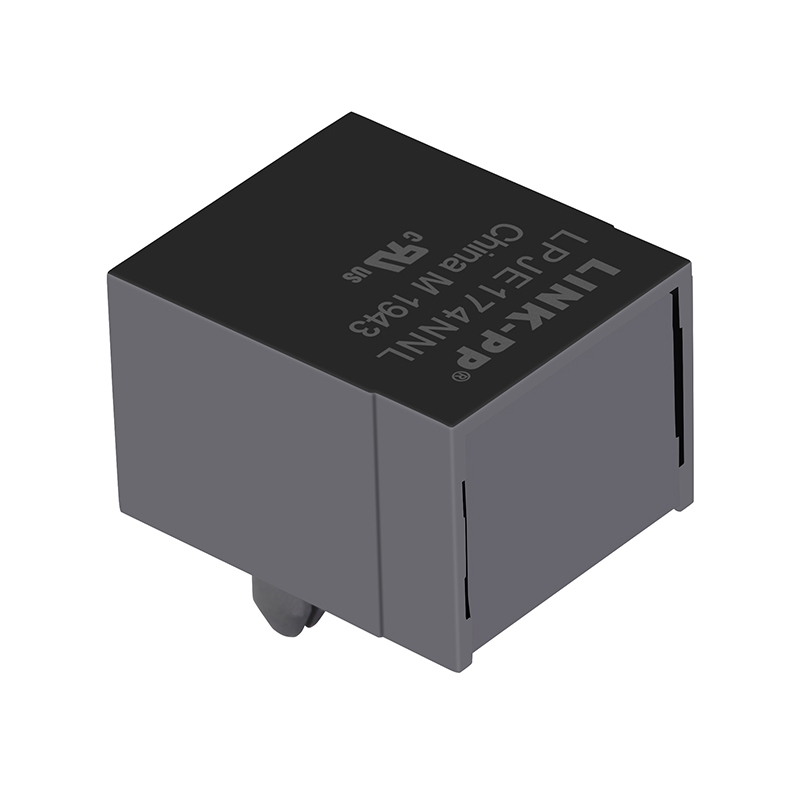

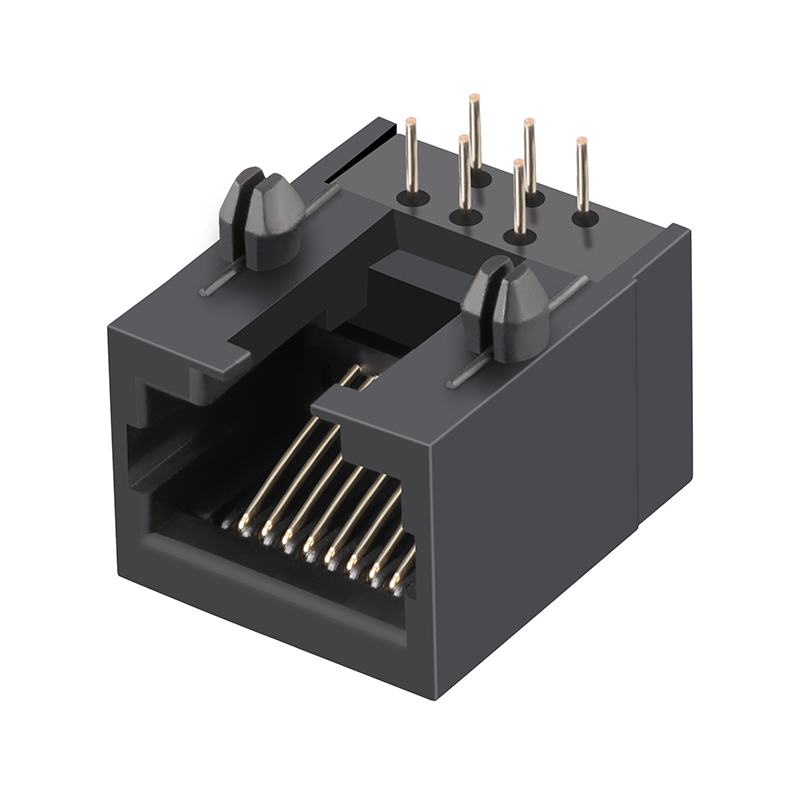

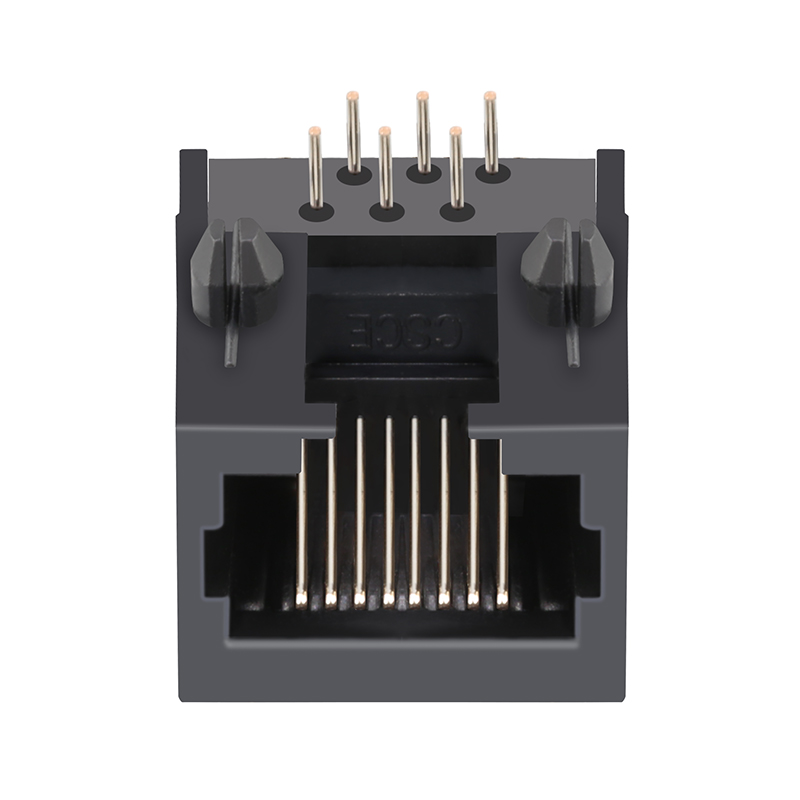

TS6P6C-PCB-U Unshielded Tab Down Without LEDs 1X1 Port RJ45 Modular Jack

1 / 5

TS6P6C-PCB-U Unshielded Tab Down Without LEDs 1X1 Port RJ45 Modular Jack

Send Inquiry

Product Description

Products Description

Item	RJ45 Female Connector
Part Number	LPJE174NNL
Compatible With	S11-ZZ-0159
Part Status	Active
Connector Type	Jack
Number of Positions/Contacts	6p6c (RJ45, Ethernet)
Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port
Speed	10/100/1000 Base-T
Latch	Down
Cores per Port	4
Orientation	90° Angle (Right)
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	Without
LED Option	Without
PCB	FR4
PCB Retaining Post	T POST
Temperature	-40°C TO 85°C
Bst Circuit	Yes
AutomDX	YES
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C

Company Profile

Established in 1997, our company is a professional designer and Manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.

We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.

FAQ

1 Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.

2 Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but you should pay the shipping fee.

3 What is your delivery time?

Ready to ship for stock and 15-30 days for mass production.

4 What after-service can you offer?

One year guarantee period and we can offer technical support online 24 hours.

5 Can you accept OEM/ODM order?

Yes, please send inquiry to us so that we can have a detailed discussion.

6 What is your advantage?

We have 19 years of production experience and we have been partners with leading companies like Intel and Jabil for many years.
