Tab Up Through Hole Without LED DIP 1X1 Port 4P4C RJ11 Modular Jack

Product Description

Product Categories
Tab Up Through Hole Without LED DIP 1X1 Port 4P4C RJ11 Modular Jack
Products Description
Item RJ11 Female Connector
Part Number LPJE8013NNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 4p4c (RJ11, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

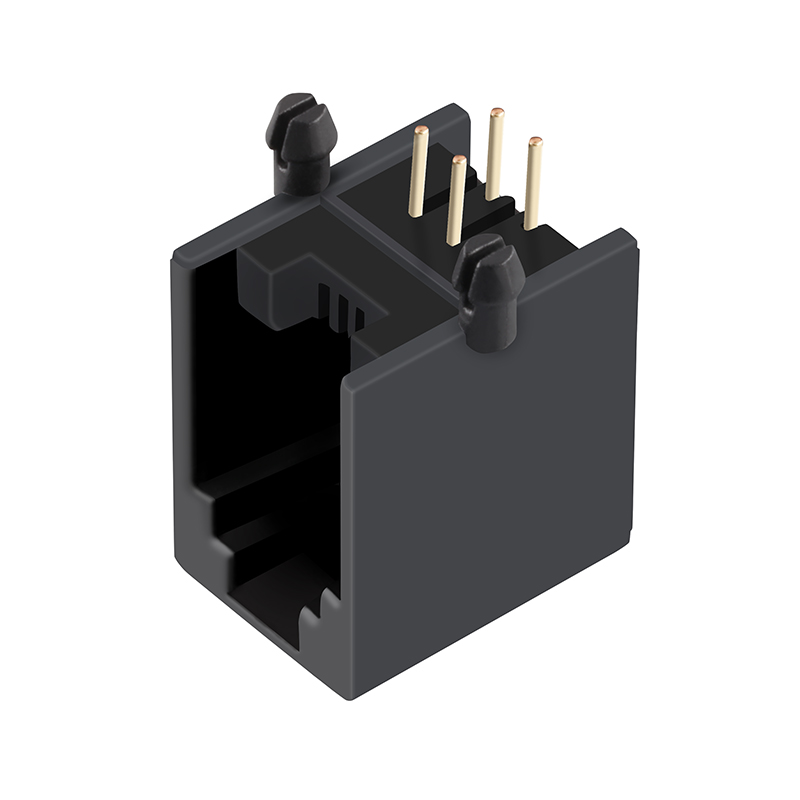

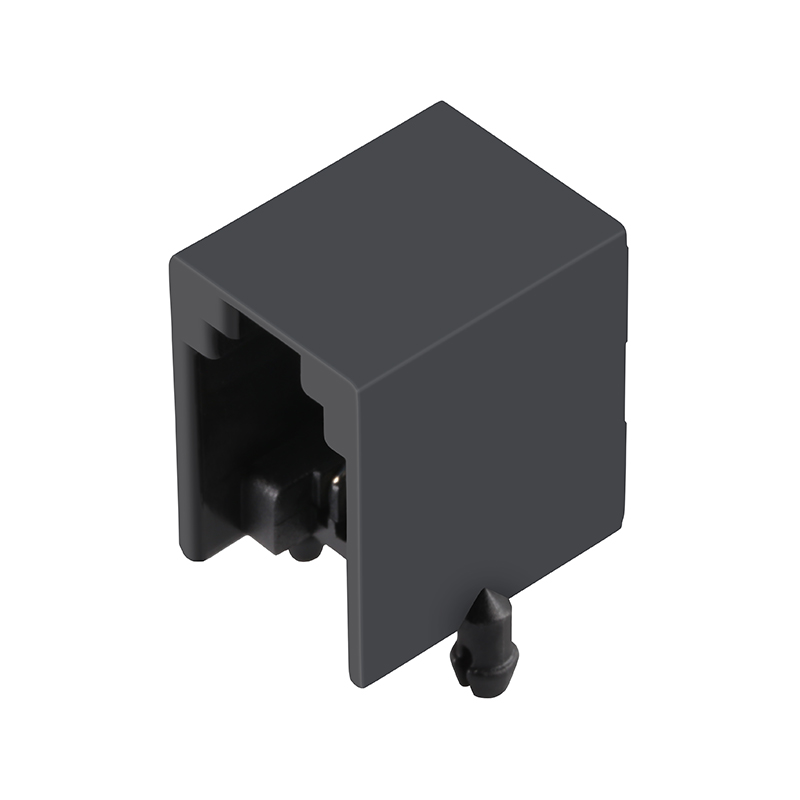

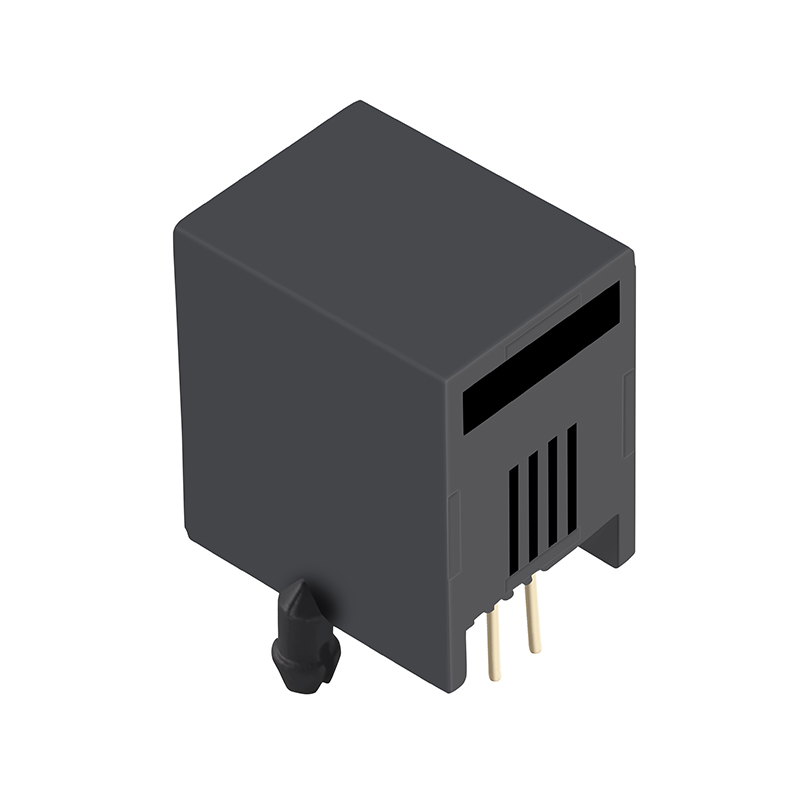

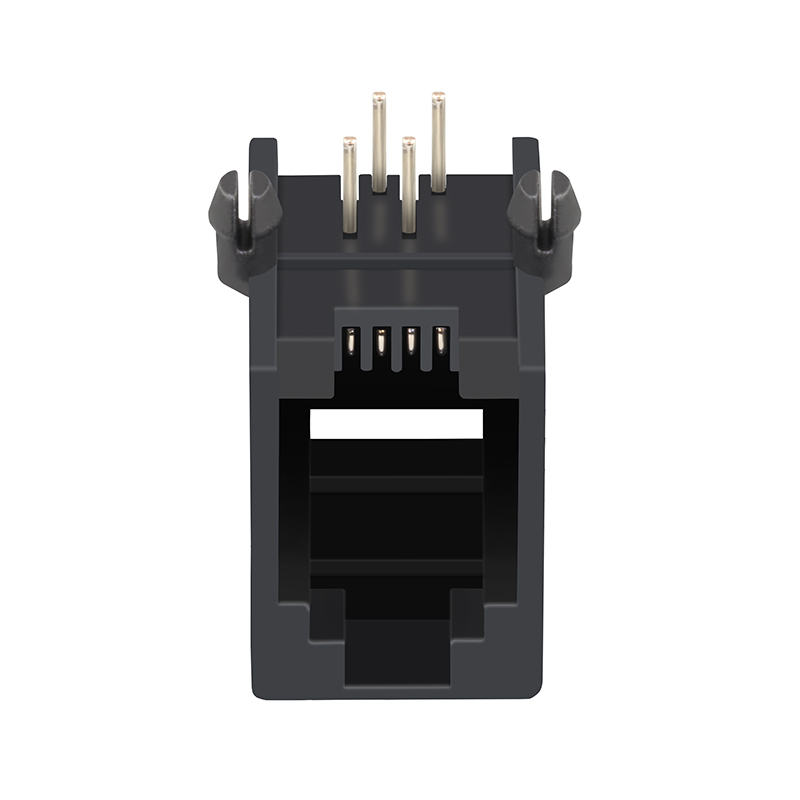

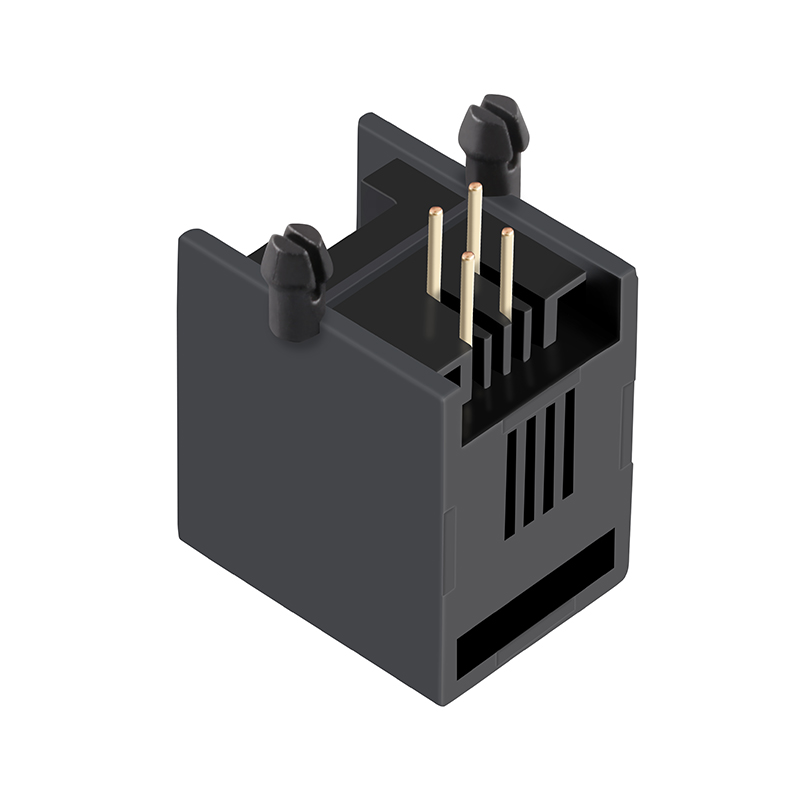

Product View 1 Product View 2
Product Dimensions
View Our Comprehensive Product Range Below
Product Category Matrix
Product Series Overview
Product Specifications
Manufacturing Details
Technical Drawing
Quality Standards
Testing Lab
Company Profile
Established in 1997, our company is a professional designer and manufacturer of magnetic telecom and networking components, featuring an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading Ethernet RJ45 connector and LAN transformer provider globally.
Factory Workshop
Production Line
Warehouse and Logistics
FAQ
Q1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q2. Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you will need to cover the shipping cost.
Q3. What is your delivery time?
Ready-to-ship for in-stock items, and 15-30 days for mass production.
Q4. What after-sales service do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q5. Can you accept OEM/ODM orders?
Yes, please send your requirements to us so we can discuss the details.
Q6. What is your advantage?
We possess 19 years of production experience and have served as a trusted partner for global industry leaders for many years.
