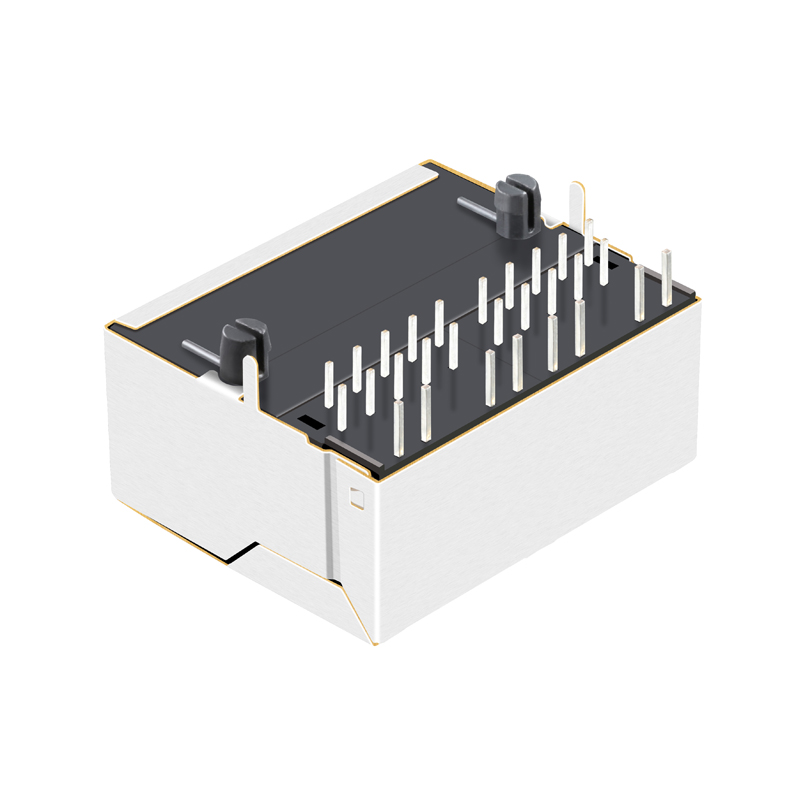

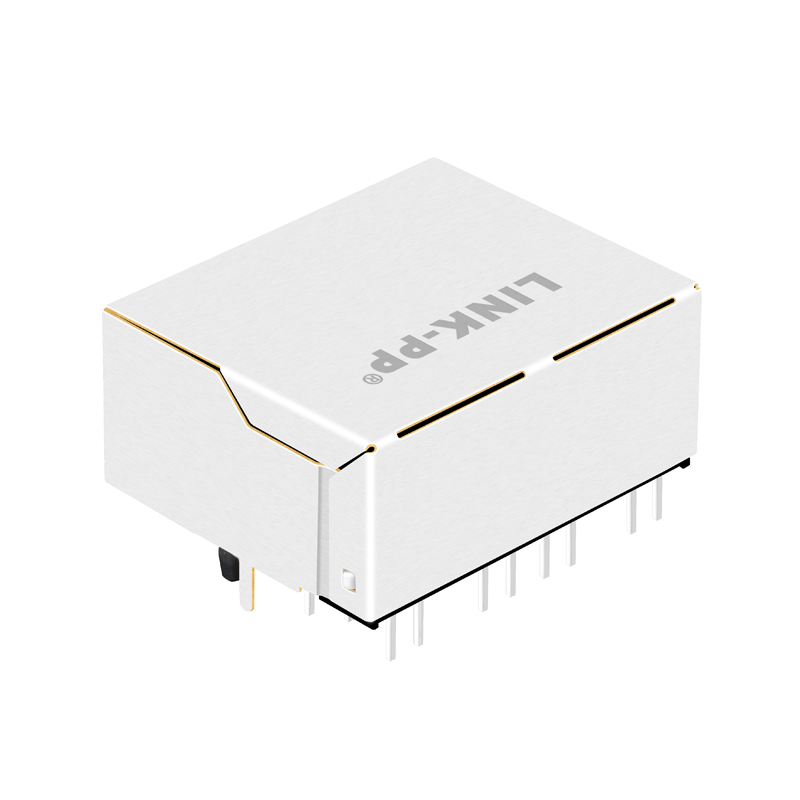

HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector
HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector
HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector
HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector
HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector
1 / 5
HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector
HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector
HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector
HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector
HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector

HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector

Send Inquiry

Product Description

Ethernet RJ45 Connectors and LAN Transformers
HR911205C 10 / 100 Base-T Single Port Ethernet RJ45 Female Connector
Products Description
Item RJ45 Female Connector
Part Number LPJ26204AENL
Compatible With HR911205C
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x2 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle Side Entry
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T Post
Temperature 0°C to 70°C / -40°C to 85°C
Bst Circuit Yes
AutoMDIX Yes
Contact Mating Area Plating Gold 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
RJ45 Connector Detail Photo
Product Range Details
Related Product Catalog Options
Connector Dimensions Drawing
Schematic Diagram
Pin Layout Specifications
PCB Footprint Dimensions
Quality Standard Certificate
Product Compliance Certificate
Company Profile
Established in 1997, our company is a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, serving more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading provider of Ethernet RJ45 connectors and LAN transformers.
Advanced Testing Laboratory
Production Workshop
Quality Control Department
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though the shipping fee needs to be covered.
What is your delivery time?
Stock items are ready to ship immediately, while mass production orders generally take 15 to 30 days.
What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your details to us so we can proceed with a detailed discussion.
What is your advantage?
We bring 19 years of professional production experience and have partnered with major global enterprises for many years.
