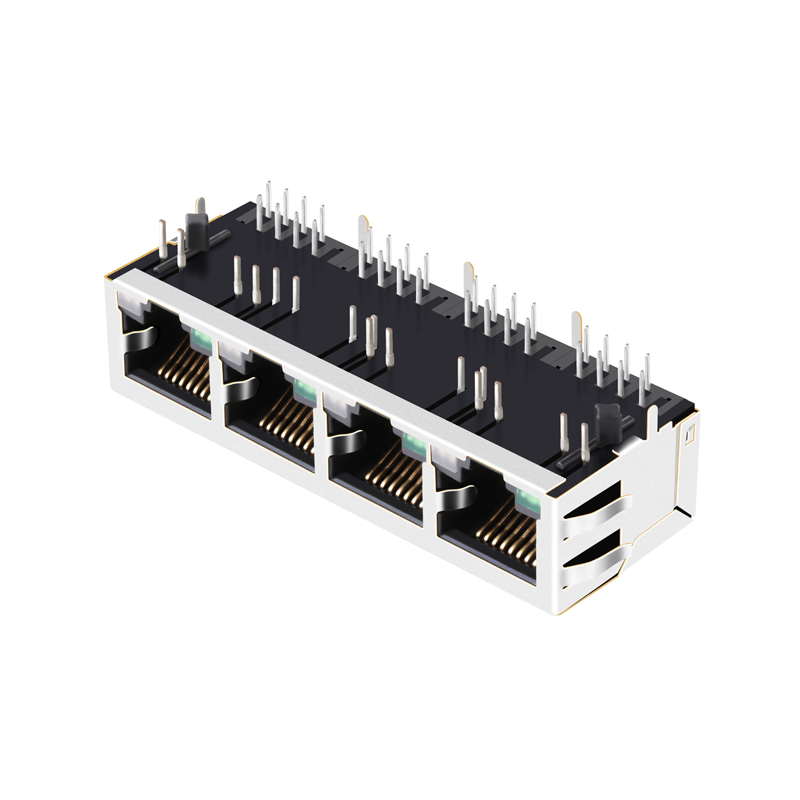

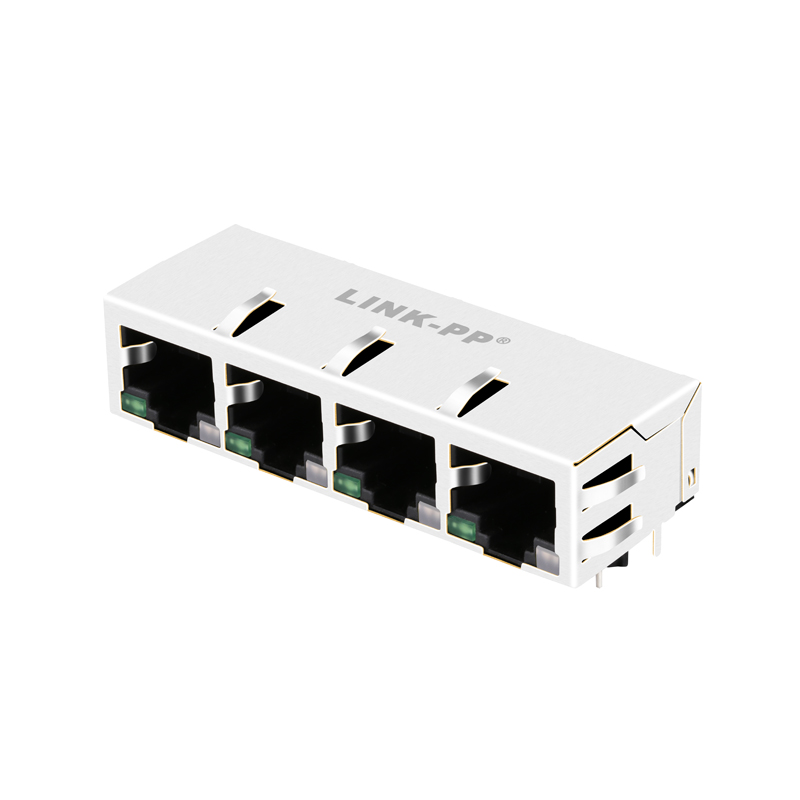

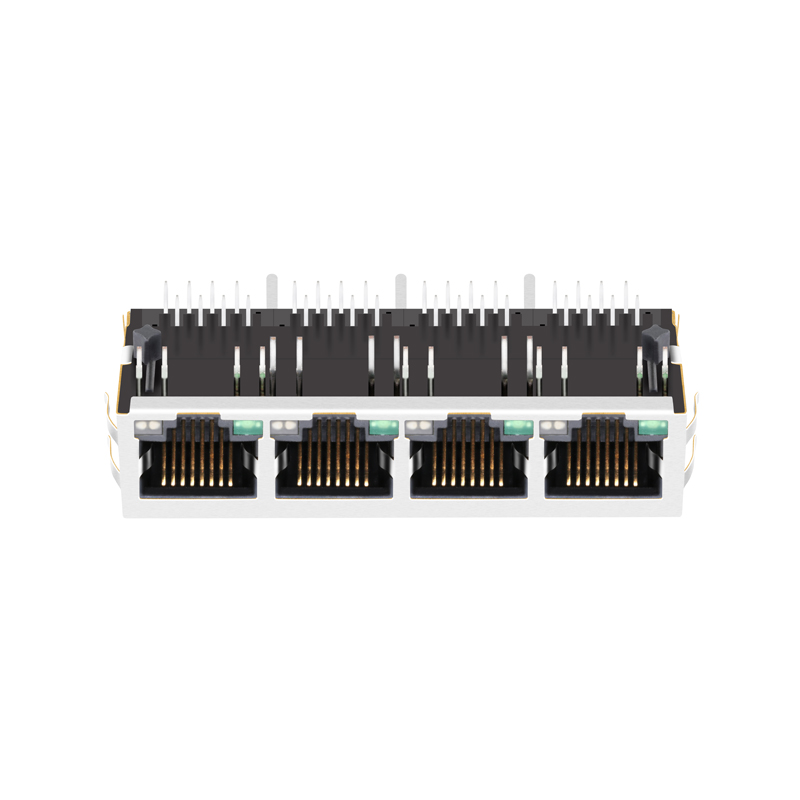

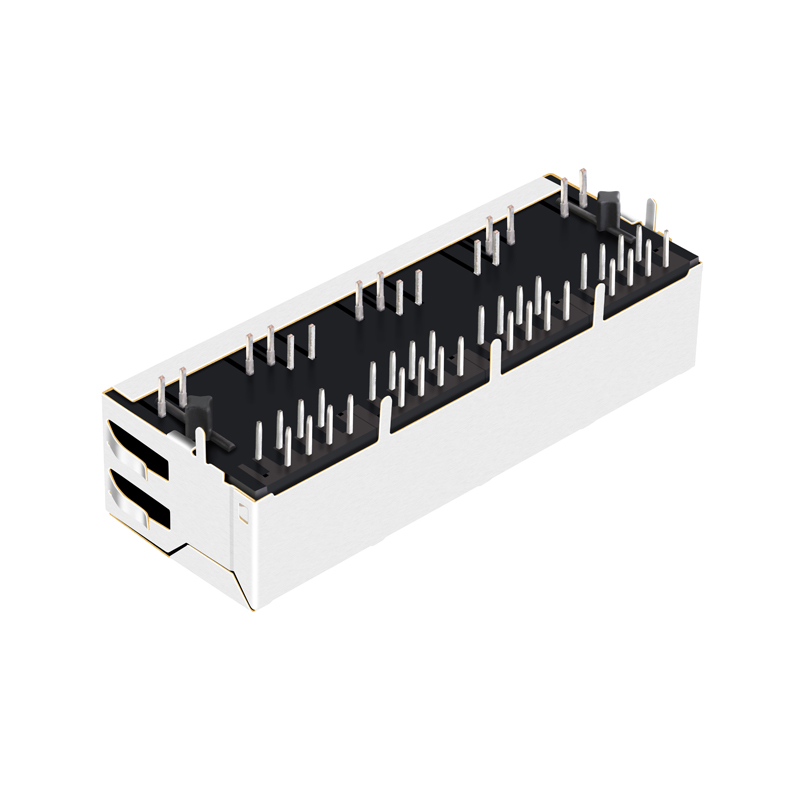

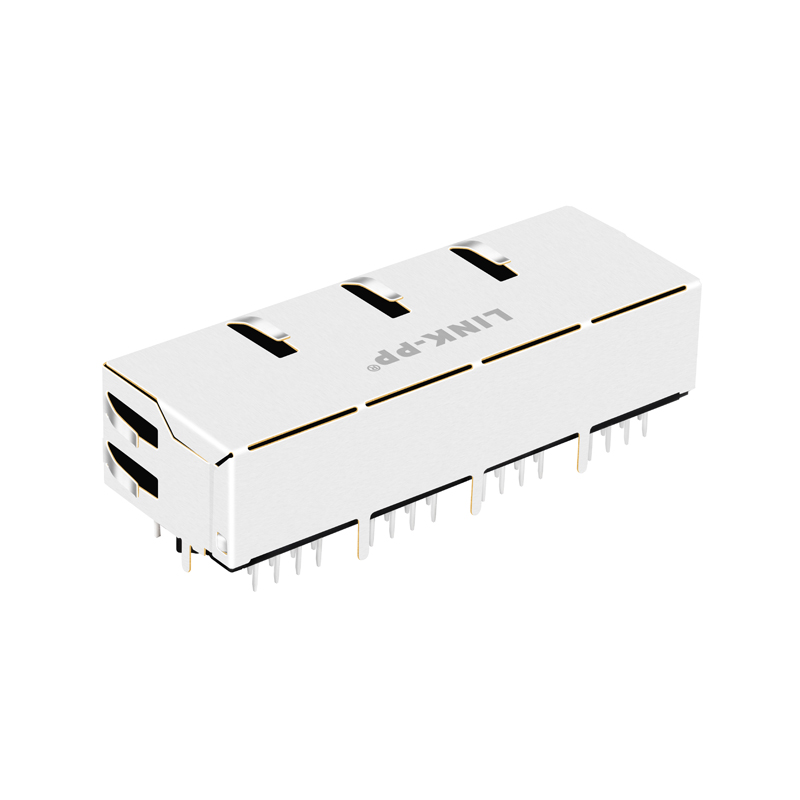

Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
| Part Number |
5-6610068-7 |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
GREEN/GREEN&ORANGE |
| Latch |
UP |
| Number of Ports |
1X4 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
1000 BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
🛡️ Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
⭐ 100% Guarantee Quality
- Manufactured Under Strict Controls.
- 100% Tested (Not Just Batch Tested)
- OEM Of TE (Tyco) For 9 Years
- Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
- Preferred Supplier Of TI (Texas Instruments)
- Quality Guarantee: 6 Years
💰 Competitive Price And Service
- More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By DHL UPS FEDEX Or TNT
📋 Corporate Policy
- The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
- Committed To And Expects Quality Performance From Every Employee
- The Company Standard Is Defect-Free Products And Services
Preferred Supplier Of TI Samsung Cisco Siemens ...
Frequently Asked Questions (FAQ)
What is the data transmission speed of this RJ45 connector?
This RJ45 modular jack supports speeds up to 1000 BASE-T (Gigabit Ethernet), providing high-speed and reliable network connectivity.
What is the port configuration and latch direction?
It features a 1X4 multi-port configuration with a Tab Up latch orientation, making it ideal for compact design layouts.
What are the operating temperature ranges for this connector?
The connector can operate efficiently under two temperature range standards: 0 to 70°C for commercial applications and -40 to 85°C for industrial setups.
Is the product compliant with environmental and safety standards?
Yes, the connector is RoHS compliant (RoHS-5 with lead in solder exemption) and complies with REACH and UL standards.
What contact mating area plating options are available?
It offers various gold plating options including 6u", 15u", 30u", and 50u" to suit different durability and performance specifications.
What are the integrated magnetics specifications?
It includes 4 cores per port, integrated BST circuit, auto-MDIX compatibility, and a turns ratio of 1CT:1 for both RX and TX configurations.
